Analysis of typical interference and influence factors of Beijing geoelectric field observation network
-
摘要: 本文基于数据跟踪分析工作，通过对北京地电台网2015年1月—2020年12月的非正常变化事件记录进行系统整理和汇总分析，研究得出北京地电台网的典型干扰有观测系统故障、自然环境影响、场地环境影响、人为干扰、地球物理事件和不明原因干扰6类。其中，场地环境干扰对地电台网的影响最为严重，占地电台网干扰的75%。场地环境干扰主要影响因素为城市轨道交通、抽水灌溉、设备漏电、工程影响和高压直流输电。开展井下地电观测是减小场地环境干扰的有效办法。研究成果为提高北京地电台网数据观测质量，更好地应用于地震预测研究提供了科学依据和技术参考。Abstract: In this paper, the abnormal event records of Beijing Geoelectric Field Observation Network (BGFON) from January 2015 to December 2020 are processed and analyzed. Based on the data tracking and analysis, it is concluded that the typical disturbances of BGFON include observation system failure, natural environment impact, site environment impact, man-made interference, geophysical event and unknown disturbance. The site environment disturbance has the most serious impact of BGFON, covering 75% of BGFON. The main influencing factors of site environmental disturbance include urban rail transit, pumping irrigation, equipment leakage, engineering influence, and high voltage direct current transmissionpower transmission. Underground deep well geoelectric observation is an effective way to reduce site environmental interference. The research results will help to improve the data observation quality of BGFON, and provide better supportfor earthquake prediction research.
-

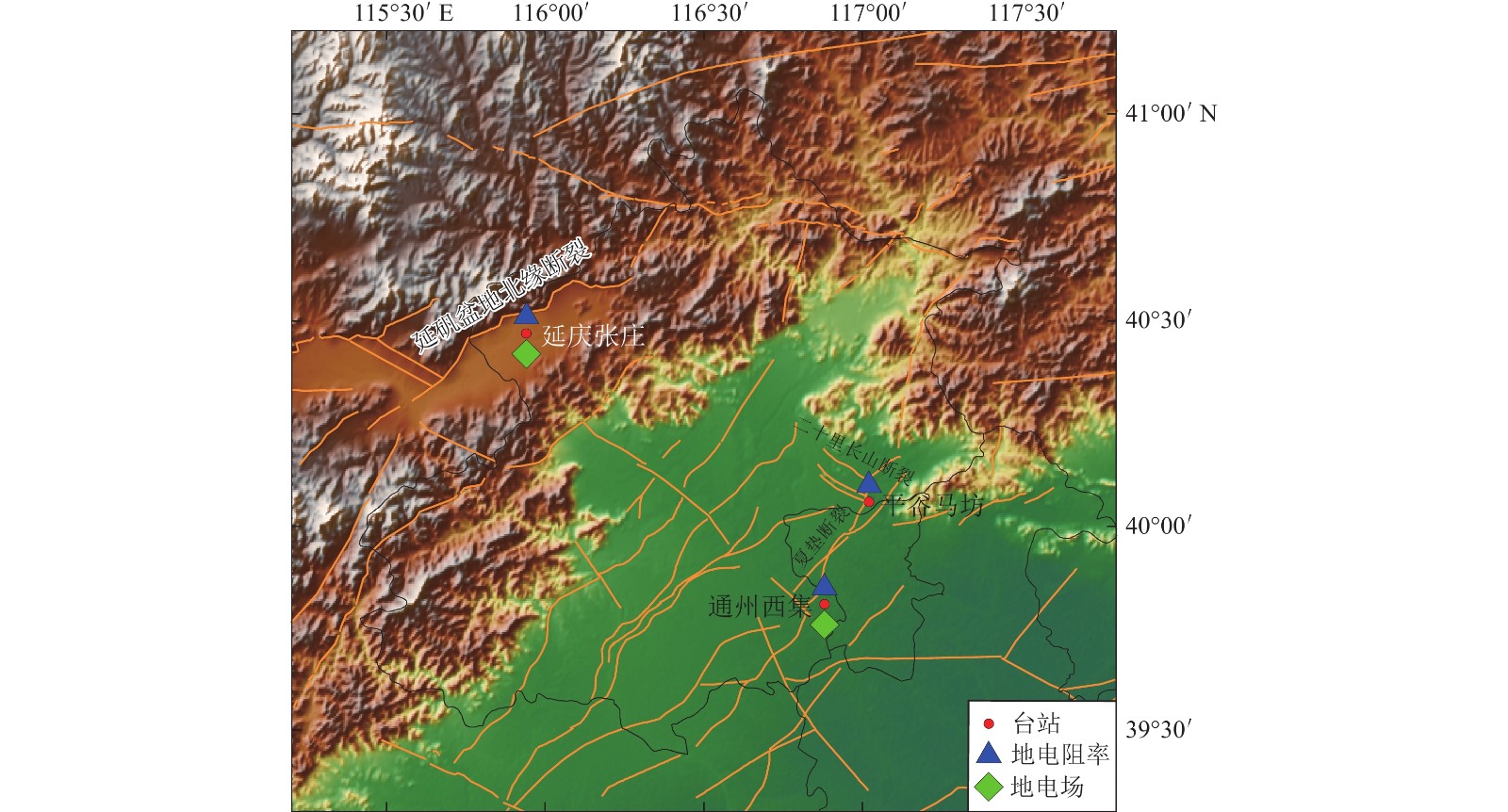

图 1 北京地电台站分布图
Figure 1. Distribution map of geoelectric field observation stations in Beijing

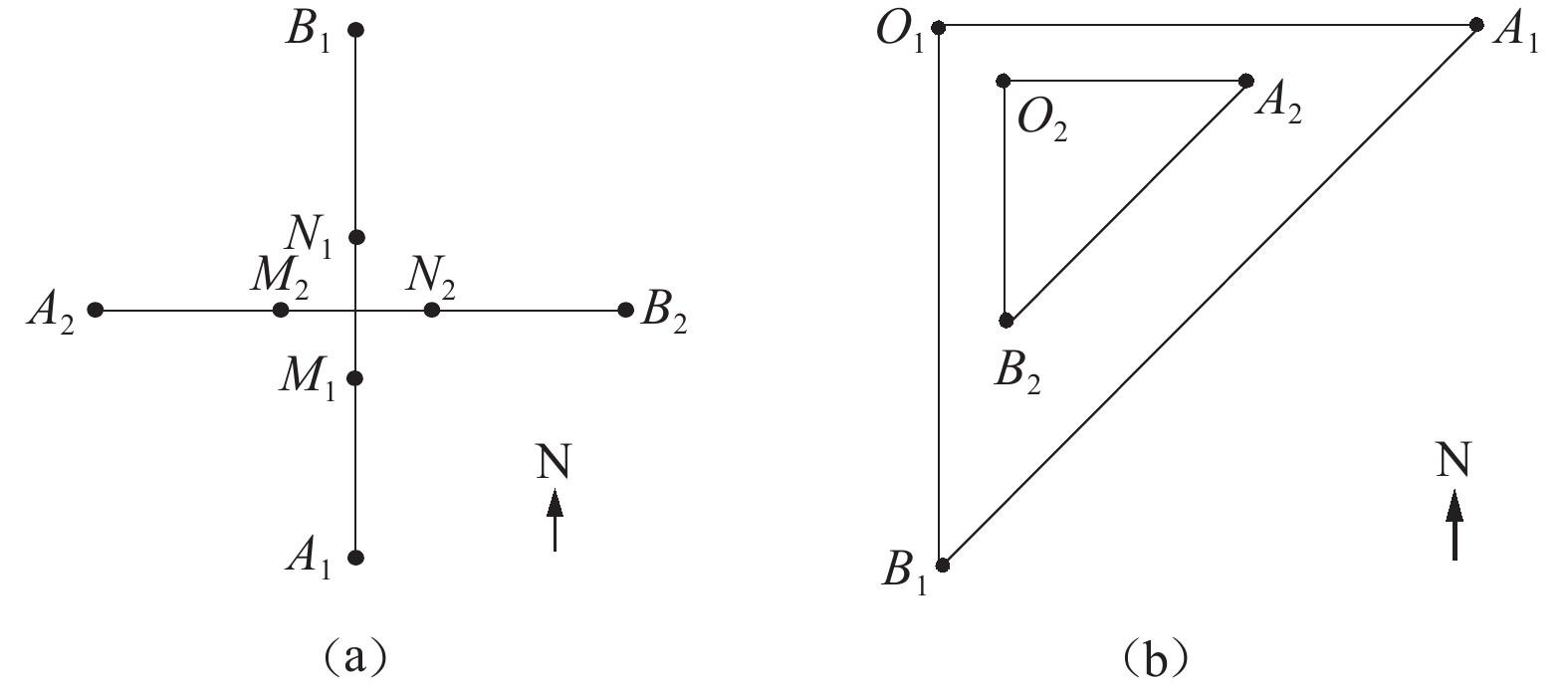

图 2 北京地电台站布极图
（a） 地电阻率；（b） 地电场
Figure 2. Electrodes arrangement of geoelectric field observation stations in Beijing
（a） Earth resistivity；（b） Geoelectric field
图 3 2017年11月16—18日通州西集台ZD9A-Ⅱ地电场仪主机故障观测曲线
Figure 3. Observation curve of main engine fault of ZD9A-Ⅱ geoelectric field meter at Tongzhou Xiji seismic station in November 2017 from 16 to 18

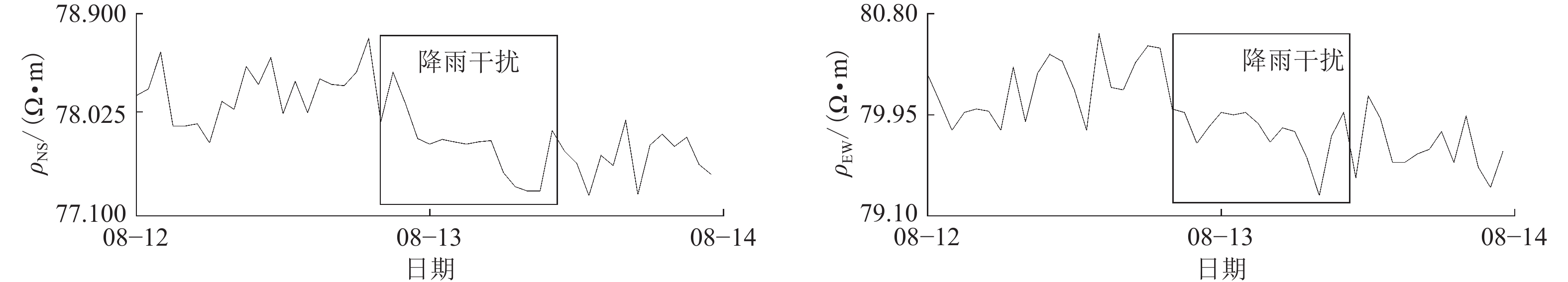

图 4 平谷马坊台ZD8MI地电阻率仪降雨干扰曲线
Figure 4. Rainfall interference curve of ZD8MI resistivity meter at Pinggu Mafang seismic station

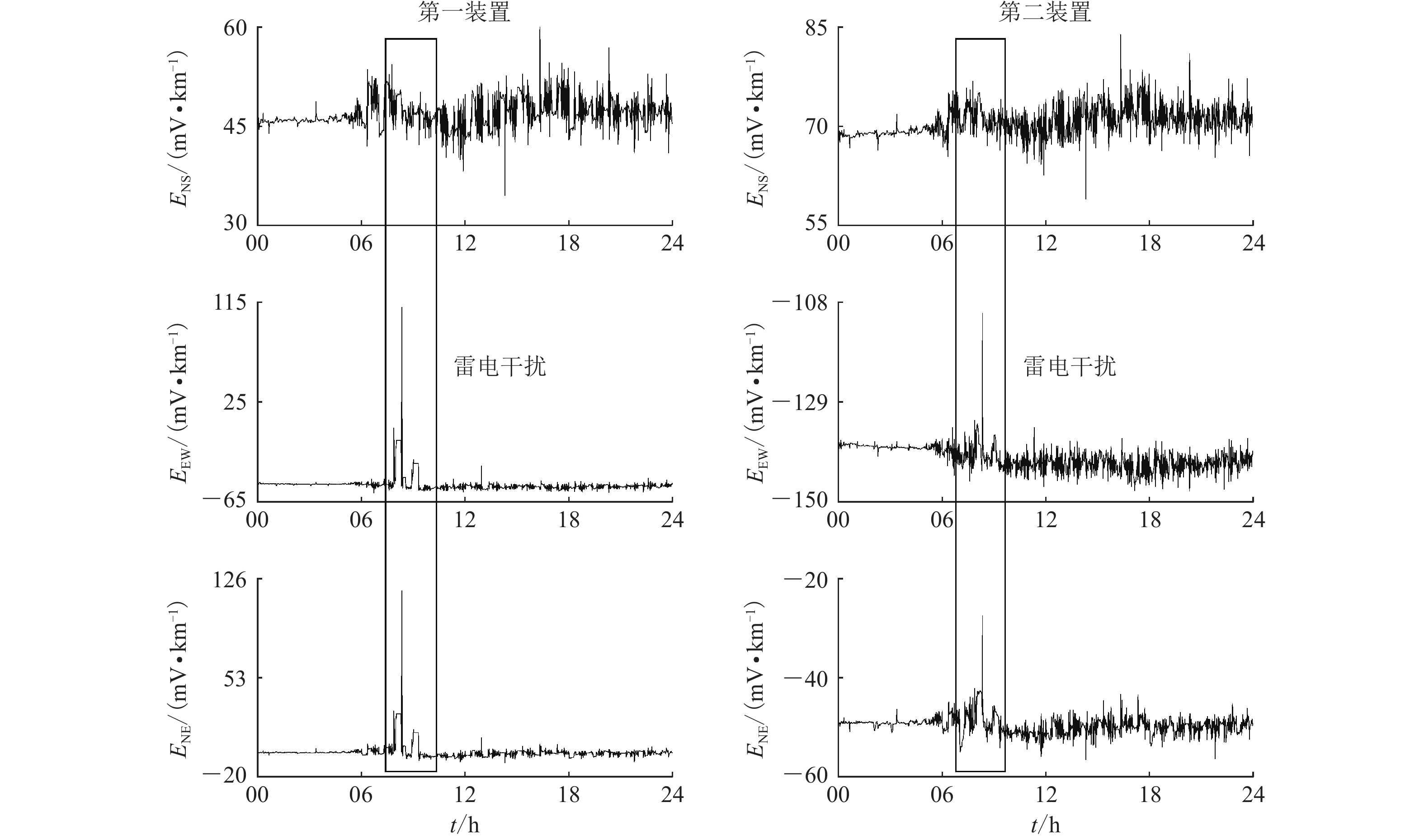

图 5 通州西集台ZD9A-Ⅱ地电场仪雷电干扰曲线
Figure 5. Thunder and lightning interference curve of ZD9A-Ⅱ geoelectric field meter at Tongzhou Xiji seismic station

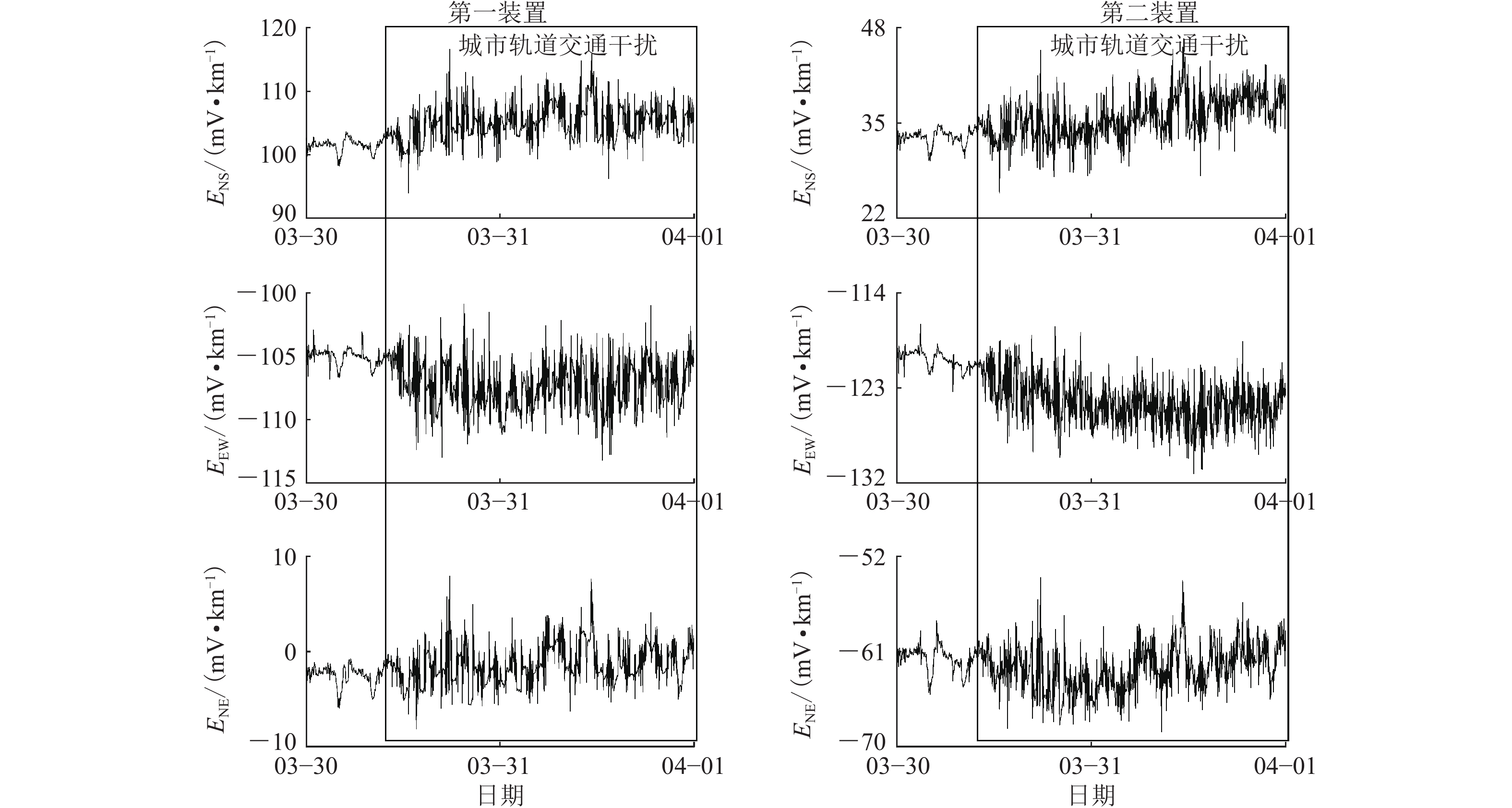

图 6 通州西集台ZD9A-Ⅱ地电场仪城市轨道交通干扰曲线
Figure 6. Urban rail transit disturbance curve of ZD9A-Ⅱ geoelectric field meter at Tongzhou Xiji seismic station

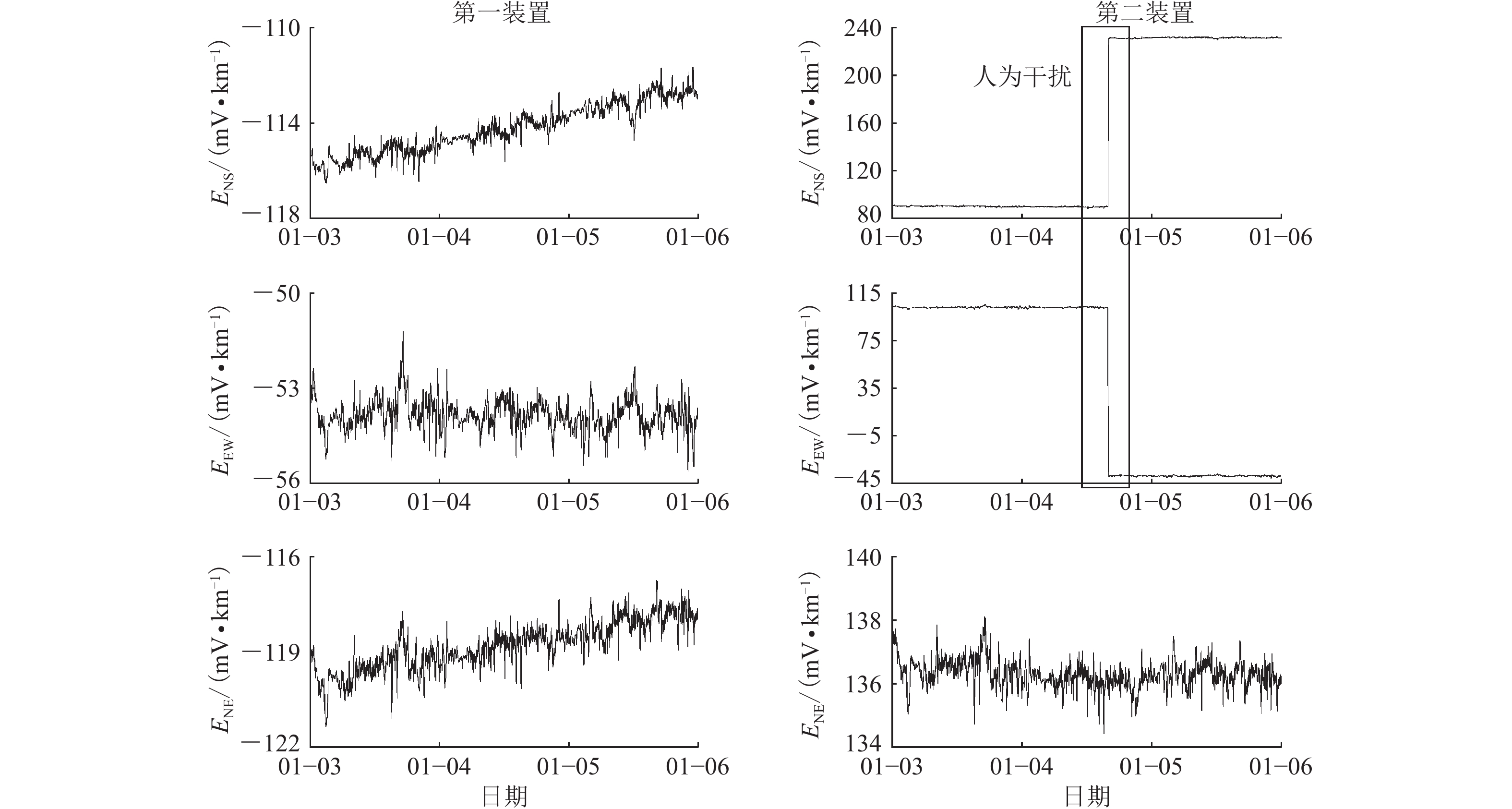

图 7 延庆张庄台ZD9A-2B地电场仪人为干扰曲线
Figure 7. Man-made disturbance curve of ZD9A-2B geoelectric field meter at Yanqing Zhangzhuang seismic station

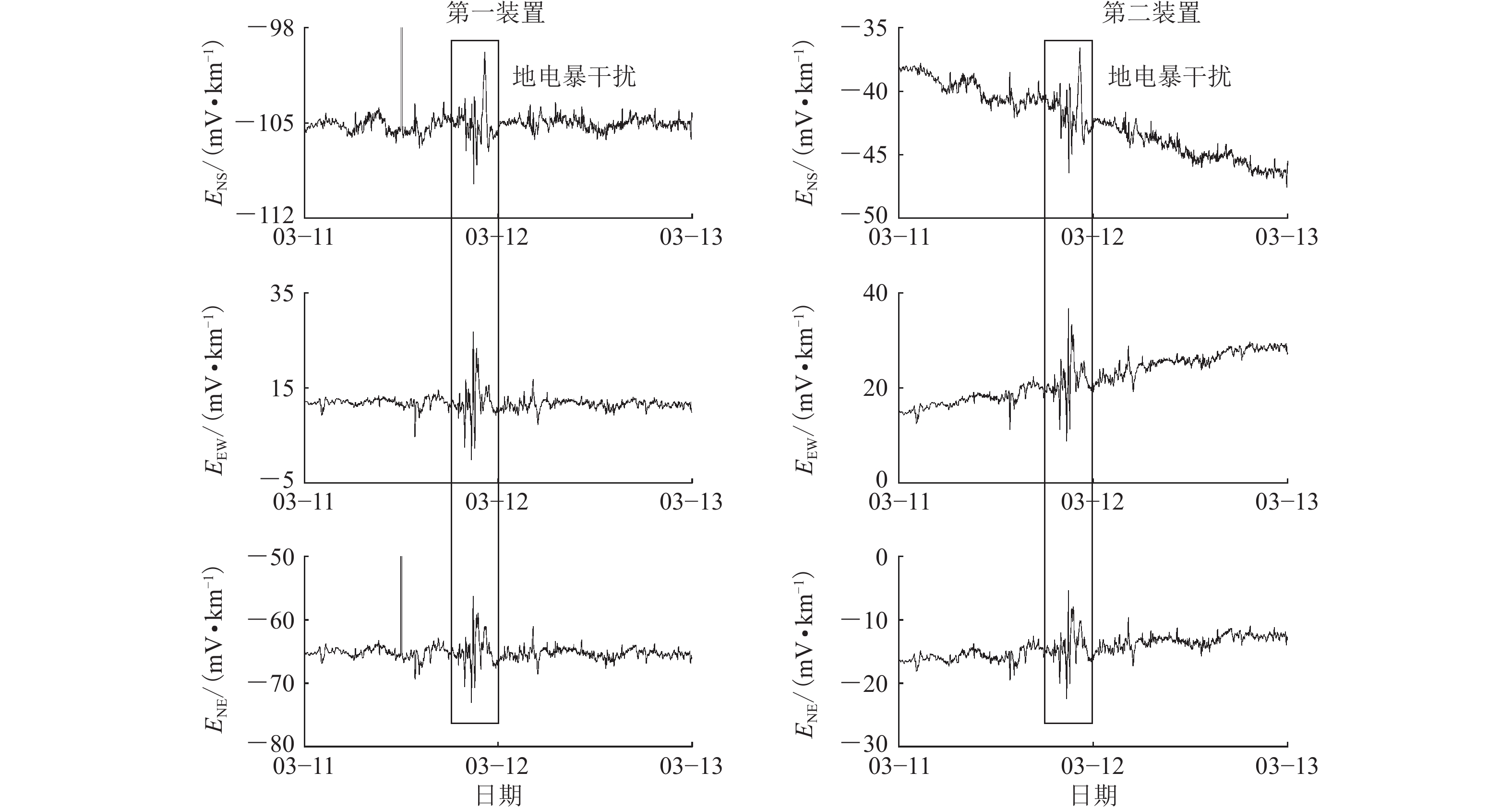

图 8 延庆张庄台ZD9A-2B地电场仪地电暴干扰曲线
Figure 8. Geoelectric storm curve of ZD9A- 2B geoelectric field meter at Yanqing Zhangzhuang seismic station

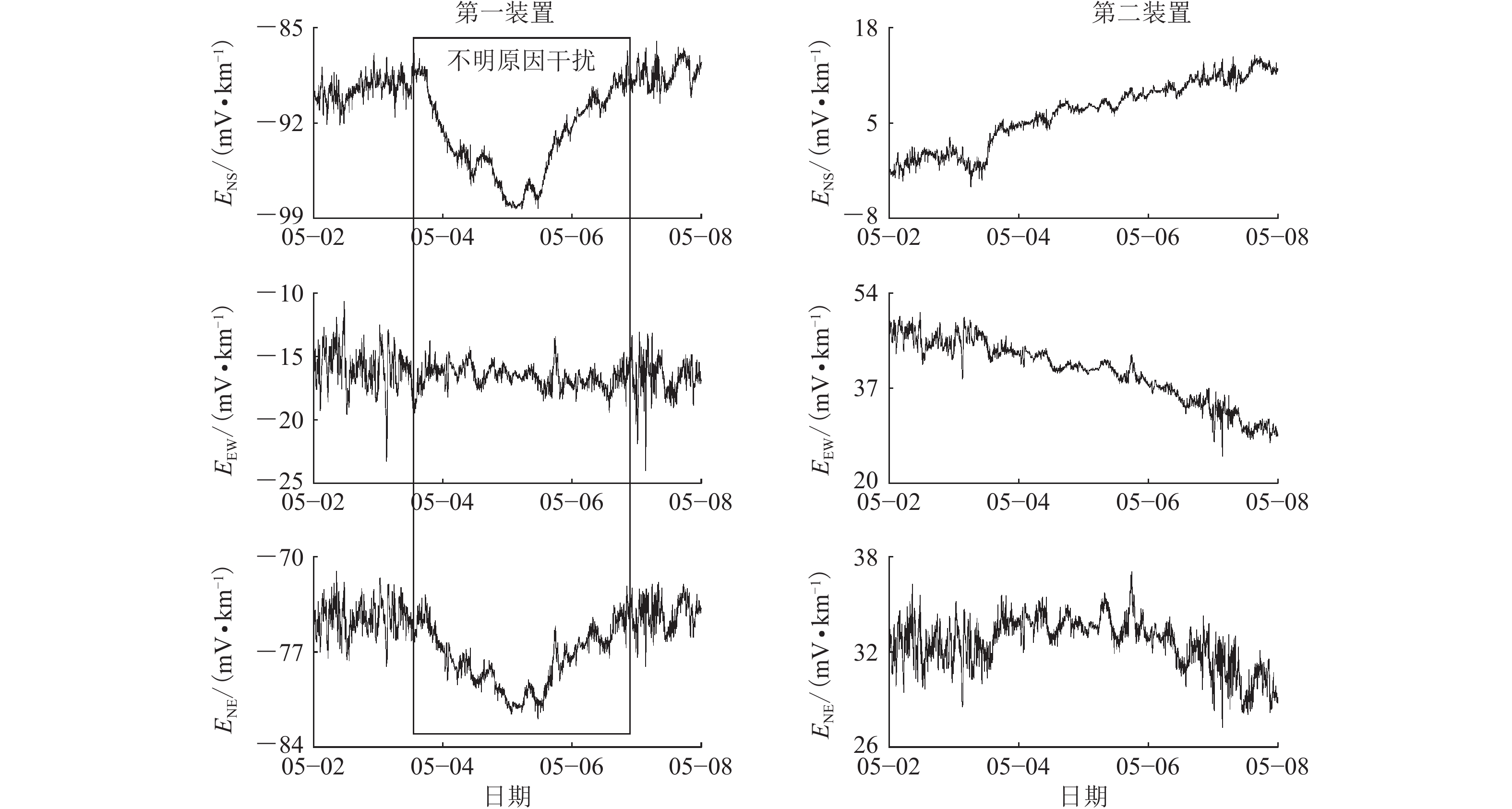

图 9 延庆张庄台ZD9A-2B地电场仪不明原因干扰曲线
Figure 9. Unknown disturbance curve of ZD9A-2B geoelectric field meter at Yanqing Zhangzhuang seismic station
表 1 2015—2020年北京地电台网事件统计
Table 1. Statistics of Beijing geoelectric network incidents from 2015 to 2020
台站名称 仪器名称 测点
编码非正常变化事件记录/条 观测
系统自然
环境场地
环境人为
干扰地球物
理事件不明
原因合计 延庆张庄 ZD8M地电仪 B 2 9 60 1 2 3 77 ZD9A-2B地电场仪 E 18 15 103 9 28 6 179 平谷马坊 ZD8MI地电仪 D 10 8 69 4 91 通州西集 ZD8MI地电仪 G 3 2 83 1 89 ZD9A-Ⅱ地电场仪 F 17 4 140 4 1 2 168 合计 50 38 455 19 31 11 604
下载: 导出CSV
-
[1] 李正媛,熊道慧,刘高川,等. 基于大数据挖掘的地震前兆台网观测数据跟踪分析[J]. 地震地磁观测与研究,2016,37(3):1-6Li Zhengyuan,Xiong Daohui,Liu Gaochuan,et al. The application of large data mining techniques in earthquake precursory network observation data tracking analysis[J]. Seismological and Geomagnetic Observation and Research,2016,37(3):1-6 [2] 刘高川,李正媛,王建国,等. 地震前兆台网数据跟踪分析平台设计[J]. 大地测量与地球动力学,2016,36(9):841-846Liu Gaochuan,Li Zhengyuan,Wang Jianguo,et al. The design of the tracking and analysis platform for earthquake precursor observation data[J]. Journal of Geodesy and Geodynamics,2016,36(9):841-846 [3] 李希亮,张玲,董晓娜,等. 山东区域地震前兆台网数据跟踪分析[J]. 地震地磁观测与研究,2016,37(5):142-146Li Xiliang,Zhang Ling,Dong Xiaona,et al. The data tracking and analysis of earthquake precursor networks in Shandong Province[J]. Seismological and Geomagnetic Observation and Research,2016,37(5):142-146 [4] 李颖,程冬焱,王鹏伟,等. 山西地震前兆台网数据跟踪分析[J]. 山西地震,2017(4):8-11,15 doi: 10.3969/j.issn.1000-6265.2017.04.003Li Ying,Cheng Dongyan,Wang Pengwei,et al. Data tracking analysis of Shanxi earthquake precursor network[J]. Earthquake Research in Shanxi,2017(4):8-11,15 doi: 10.3969/j.issn.1000-6265.2017.04.003 [5] 王莉森,张云昌,殷金平,等. 基于数据跟踪分析河北电磁台网环境干扰因素[J]. 地震地磁观测与研究,2017,38(3):145-152 doi: 10.3969/j.issn.1003-3246.2017.03.025Wang Lisen,Zhang Yunchang,Yin Jinping,et al. Analysis of environmental interference in Hebei electromagnetic network based on data tracking[J]. Seismological and Geomagnetic Observation and Research,2017,38(3):145-152 doi: 10.3969/j.issn.1003-3246.2017.03.025 [6] 杨振鹏,孙素梅,赵倩,等. 辽宁地震前兆台网观测数据跟踪分析探讨[J]. 防灾减灾学报,2018,34(2):46-50Yang Zhenpeng,Sun Sumei,Zhao Qian,et al. Research on the tracking and analyzing of the observation data of Liaoning earthquake precursor networks[J]. Journal of Disaster Prevention and Reduction,2018,34(2):46-50 [7] 邵叶,刘锦,严兴,等. 广东省地下流体观测台网数据跟踪分析[J]. 防灾减灾学报,2019,35(3):78-83Shao Ye,Liu Jin,Yan Xing,et al. Data tracking and analysis of the underground fluid observation network in Guangdong Province[J]. Journal of Disaster Prevention and Reduction,2019,35(3):78-83 [8] 刘川琴,李发,谢庆,等. 安徽省前兆数据异常跟踪深入分析研究[J]. 国际地震动态,2019(11):35-41 doi: 10.3969/j.issn.0253-4975.2019.11.006Liu Chuanqin,Li Fa,Xie Qin,et al. Deep analysis and research on abnormal tracking of precursory data in Anhui Province[J]. Recent Developments in World Seismology,2019(11):35-41 doi: 10.3969/j.issn.0253-4975.2019.11.006 [9] 潘洁,孙亮亮,李良辉,等. 五河女山井水温数据跟踪分析中的常见案例分析[J]. 国际地震动态,2019(3):15-18Pan Jie,Sun Liangliang,Li Lianghui,et al. Analysis of some common breakdown of water temperature data in Nüshan,Wuhe well[J]. Recent Developments in World Seismology,2019(3):15-18 [10] 王云泉,龚永俭,王建国,等. 天津台网水温观测系统事件数据跟踪分析[J]. 地震科学进展,2021,51(1):7-14 doi: 10.3969/j.issn.2096-7780.2021.01.002Wang Yunquan,Gong Yongjian,Wang Jianguo,et al. Data tracking analysis of water temperature observation system events in Tianjin network[J]. Progress in Earthquake Sciences,2021,51(1):7-14 doi: 10.3969/j.issn.2096-7780.2021.01.002 [11] 刘水莲,林慧卿,陈美梅. 福建永安井水温观测中的干扰因素浅析[J]. 地震科学进展,2020,50(12):7-14Liu Shuilian,Lin Huiqing,Chen Meimei. Analysis of affecting factors on water temperature of Yong’an well in Fujian[J]. Progress in Earthquake Sciences,2020,50(12):7-14 [12] 王同利,李妍,武晓东,等. 延庆台地电阻率铁质干扰的有限元模拟[J]. 地震学报,2017,39(4):520-530 doi: 10.11939/jass.2017.04.007Wang Tongli,Li Yan,Wu Xiaodong,et al. The finite element modelling of iron interference on earth resistivity of Yanqing station[J]. Acta Seismologica Sinica,2017,39(4):520-530 doi: 10.11939/jass.2017.04.007 [13] 王同利,胡乐银,崔博闻,等. 北京城市轨道交通对地电场观测的干扰影响[J]. 地震地质,2013,35(4):887-893 doi: 10.3969/j.issn.0253-4967.2013.04.017Wang Tongli,Hu Leyin,Cui Bowen,et al. A preliminary analysis on the interference generated by urban railway transit in Beijing to the geoelectric field observations[J]. Seismology and Geology,2013,35(4):887-893 doi: 10.3969/j.issn.0253-4967.2013.04.017 [14] 肖武军,解滔,张尧. 晋冀蒙交界及附近地区小极距井下地电阻率观测装置设计[J]. 中国地震,2019,35(1):134-143 doi: 10.3969/j.issn.1001-4683.2019.01.013Xiao Wujun,Xie Tao,Zhang Yao. Observation scheme for short electrode spacing well apparent resistivity at the vicinity of Shanxi-Hebei-Inner Mongolia area[J]. Earthquake Research in China,2019,35(1):134-143 doi: 10.3969/j.issn.1001-4683.2019.01.013 [15] 解滔,于晨,卢军. 开展小极距井下地电阻率观测的可行性分析[J]. 中国地震,2019,35(1):14-24 doi: 10.3969/j.issn.1001-4683.2019.01.002Xie Tao,Yu Chen,Lu Jun. Feasibility analysis on short-electrode spacing well apparent resistivity observation[J]. Earthquake Research in China,2019,35(1):14-24 doi: 10.3969/j.issn.1001-4683.2019.01.002 -
