Precursory or atmospheric waves?Comments on“Analysis of characteristics of precursor wave of low frequent in Shanxi before Wenchuan MS8.0 earthquake” by Zhang et al (2009)
-
摘要: 2008年5月11日山西地区5个地壳形变测项出现了“前驱波”信号，但其真实的物理本质究竟如何？至今仍存质疑。为此，本文借助小波变换方法对气压波和“前驱波”在不同时、频段的相关性进行了较系统的诊断；还进一步将“前驱波”与短时气压波动所产生的干扰实例进行了对比分析。结果表明：这些“前驱波”并非源自汶川MS8.0地震，而主要是气压波动的干扰。Abstract: On May 11 2008, some“precursory waves”were obviously recorded at five stations in Shanxi Province, but their real physical nature is still under debate. To uncover these important phenomena, we adopt the wavelet transform method to diagnose the correlations between atmospheric and precursory waves at different frequency bands. Furthermore, we compare the typical variations induced by the fluctuations of atmospheric pressure to the “precursory waves”aiming to analyze the similarities between them. The results show that the physical origin of these “precursory waves”mainly comes from the atmospheric waves rather than from the Wenchuan MS8.0 earthquake.
-
Key words:
- precursory wave /
- atmospheric wave /
- Wenchuan earthquake /
- crustal deformation /
- wavelet transform /
- Shanxi Province
-

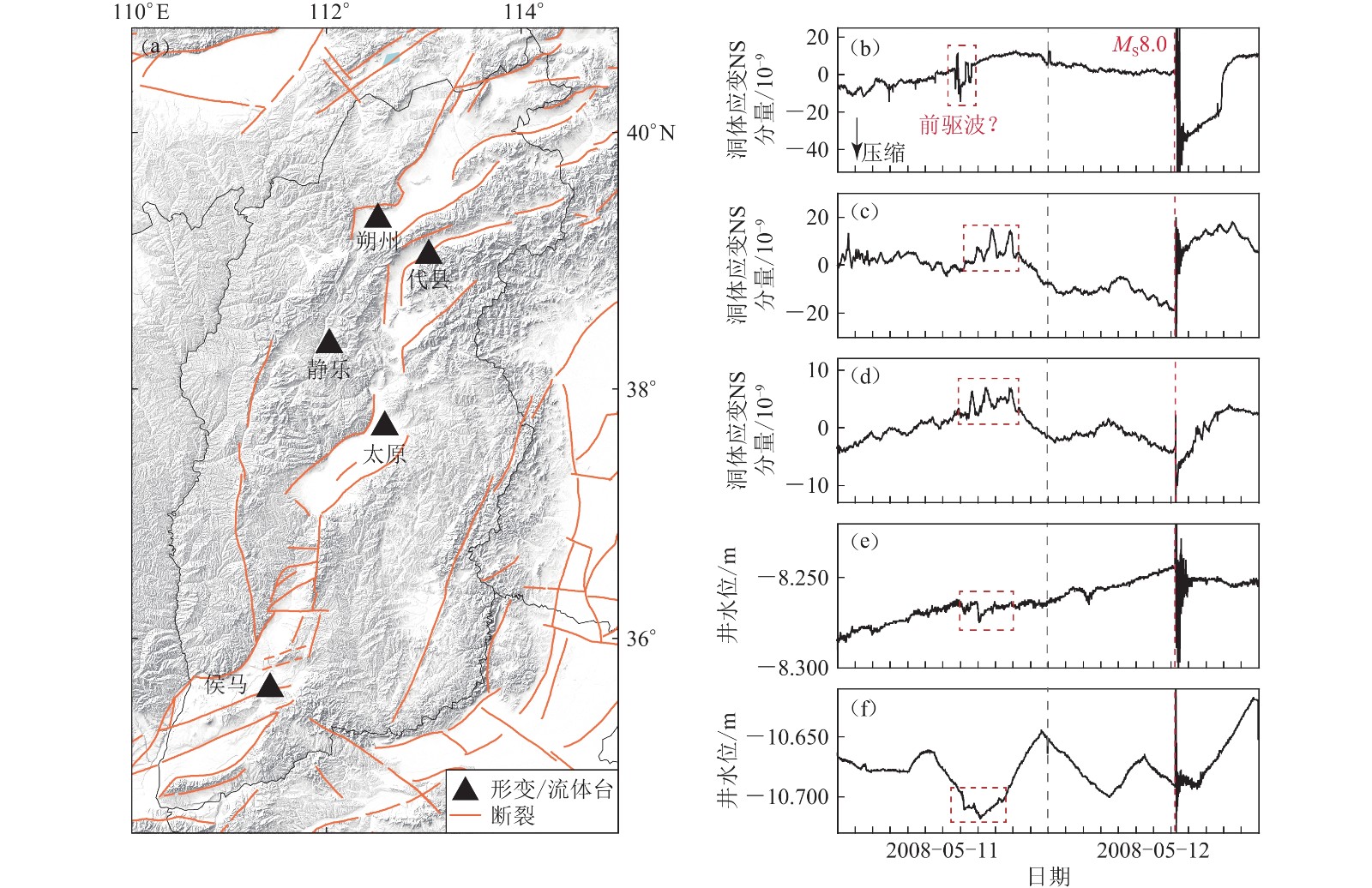

图 1 汶川MS8.0地震前山西地区观测到“前驱波”的台站分布 （a） 及具体测项 （分钟值）；（b） 侯马台；（c） 太原台； （d） 代县台；（e） 静乐井；（f） 朔州井
Figure 1. （a） Spatial distributions of the five stations （black triangles） in Shanxi Province in which the “precursory waves”（marked with red dashed rectangles） observed; Minute value curves of NS component of strain at Houma （b）, Taiyuan （c）, Daixian （d） starions; Minute value curves of water level in Jingle （e）, and Shuozhou （f）wells. The 2008 Wenchuan MS8.0 earthquake is marked with dashed red vertical line
图 2 洞体应变NS分量与短时气压波动的对比曲线 （分钟值）。（a） 太原台；（b） 代县台
Figure 2. Comparisons of the NS component of strain （black lines） with the short-period oscillation of barometric pressure （red lines） data with one-minute sampling rate recorded at Taiyuan （a） and Daixian （b）stations，respectively

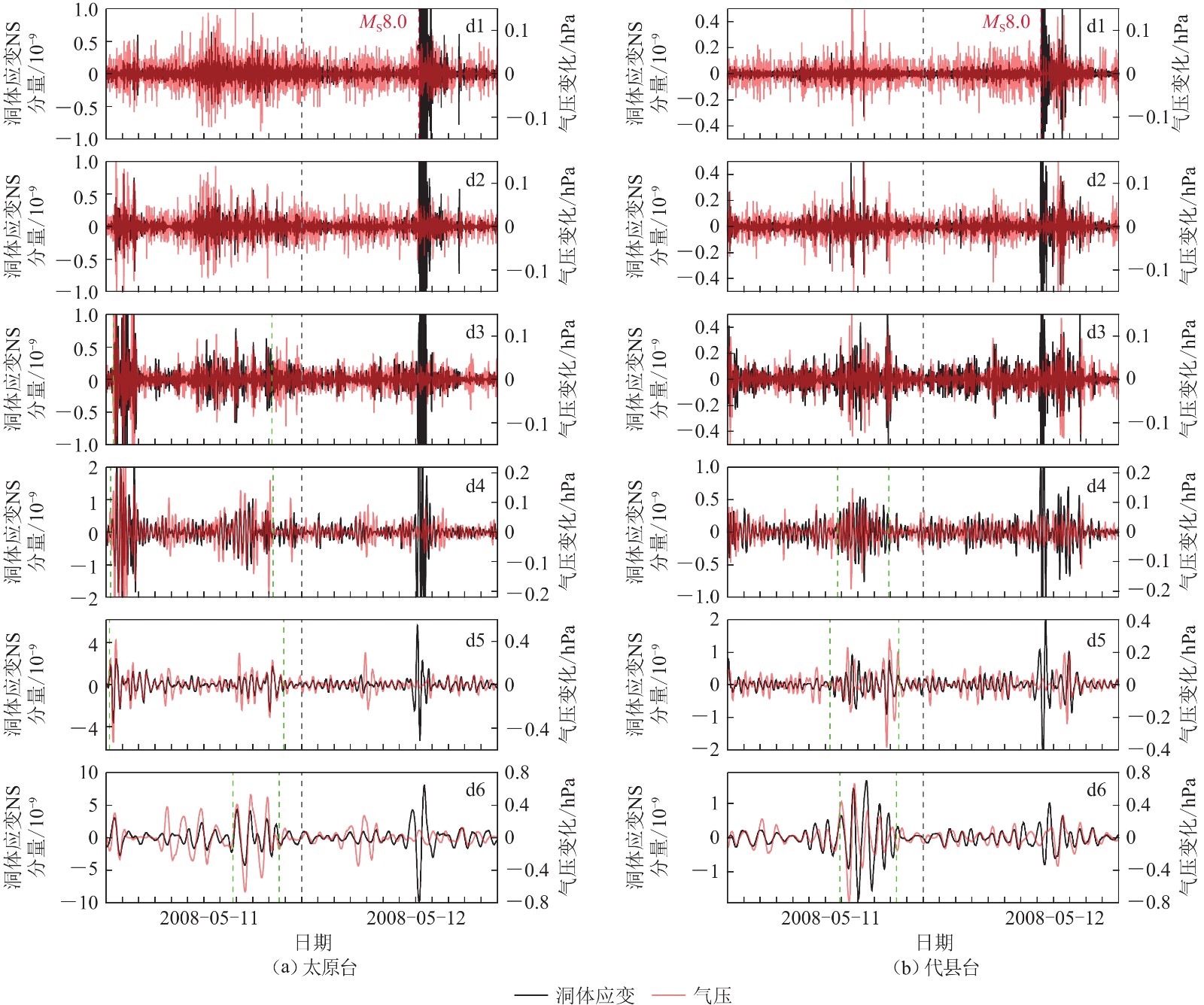

图 3 洞体应变NS分量和气压的小波分析结果，绿色垂直虚线界定了“前驱波”出现的时段[15]
d1—d6依次为小波分解后第1—6层的细节部分，其信号对应的周期分别为2—4 min，4—8 min，8—16 min，16—32 min，32—64 min，64—128 min
Figure 3. Decomposition of the signals of the NS component of strain （black lines） and barometric pressure （red lines） for Taiyuan （a） and Daixian （b） stations into six levels （d1 to d6） using wavelet transform. The starting time and ending time of the precursory waves are marked with dashed green vertical lines[15]
The corresponding periods of decomposed signals （from d1 to d6） are 2—4 min，4—8 min，8—16 min，16—32 min， 32—64 min，and 64—128 min，respectively

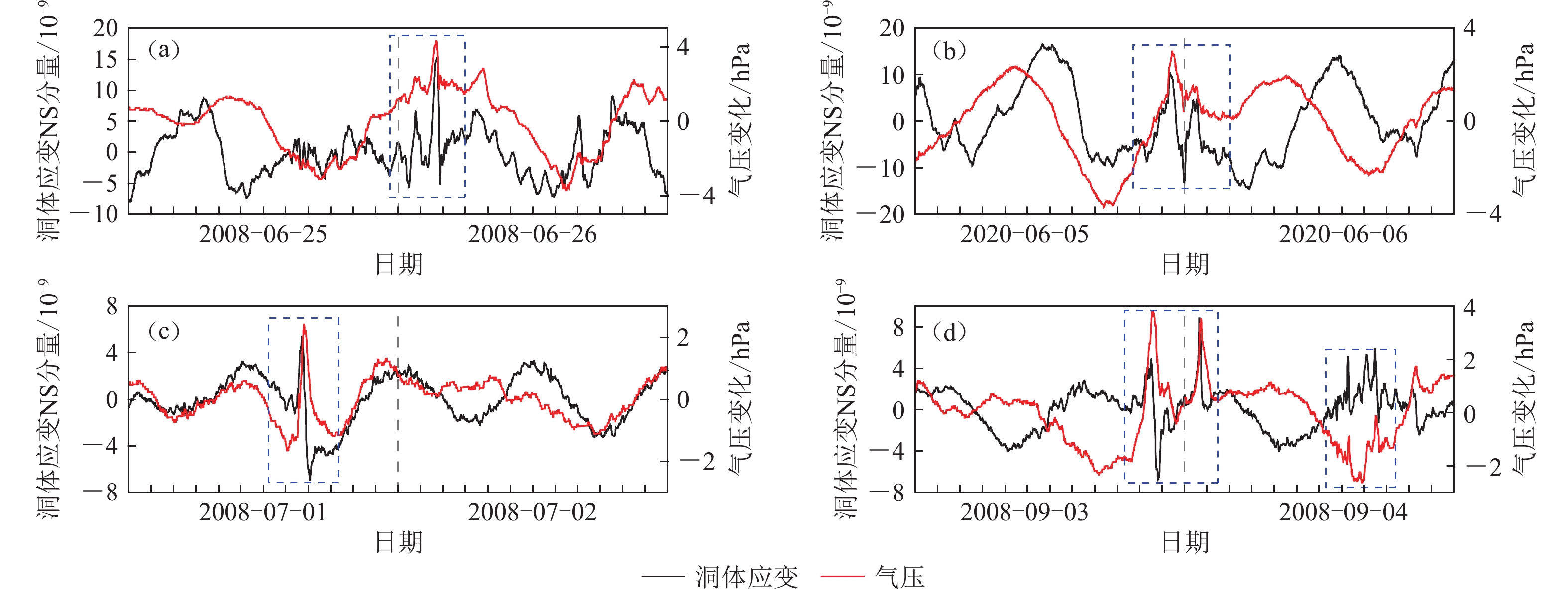

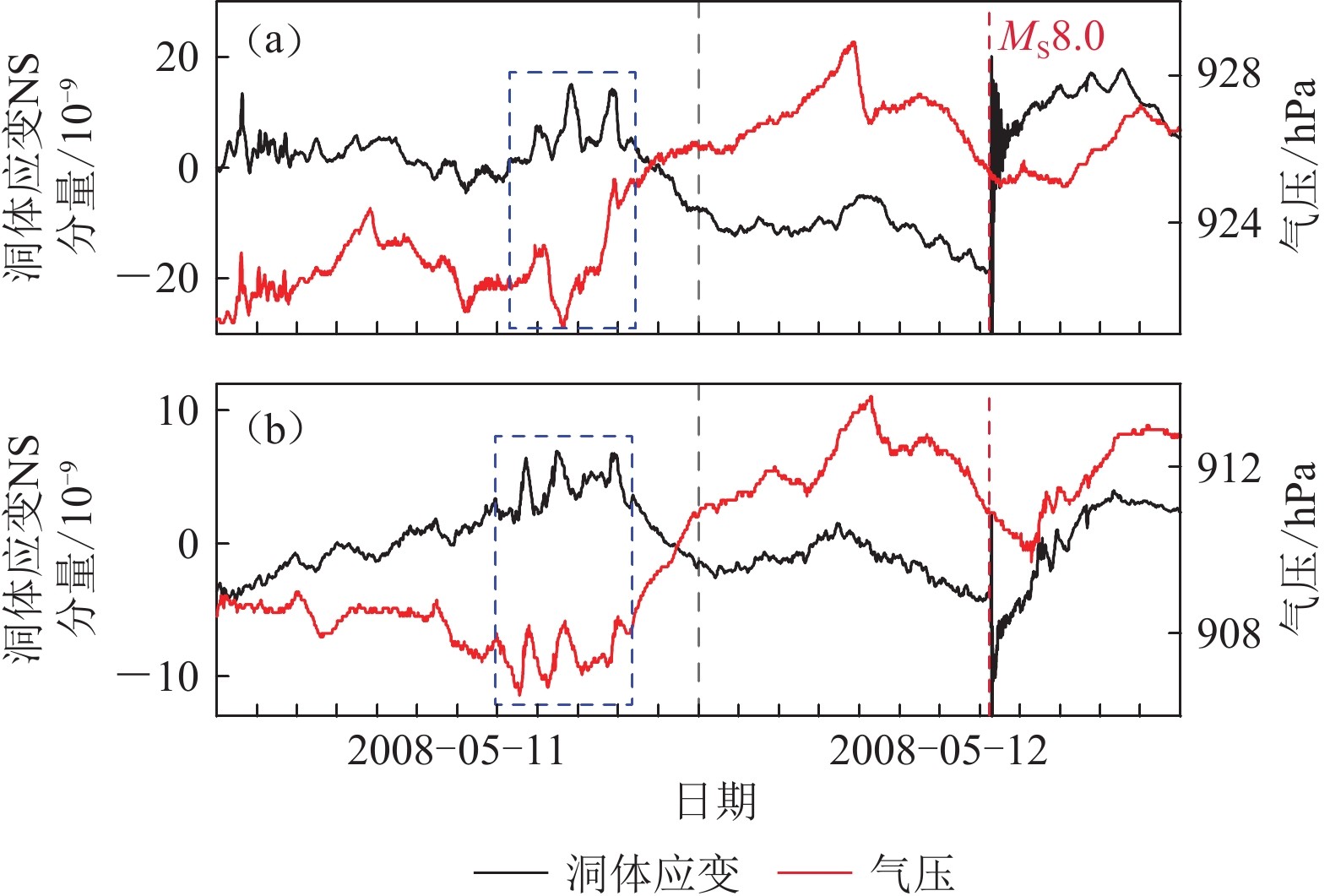

图 4 太原 （a，b） 和代县台 （c，d） 洞体应变NS分量对短时气压波动的响应实例 （蓝色虚线框所标）
Figure 4. Evidence of atmospheric pressure-induced strain changes （marked by the dashed blue rectangle） for Taiyuan （a，b） and Daixian （c，d） stations ，respectively
-
