利用重复地震观测重庆武隆地区地壳介质变化

汪建; 杨亚运; 马伟

doi:10.3969/j.issn.2096-7780.2021.11.003

利用重复地震观测重庆武隆地区地壳介质变化

doi: 10.3969/j.issn.2096-7780.2021.11.003

重庆市地震局，重庆 401147

基金项目: 中国地震局监测、预报、科研三结合项目（3JH-2021040）与重庆市地震局科研项目联合资助。

详细信息

通讯作者:
汪建（1987-），男，工程师，主要从事重复地震等研究。E-mail：373271967@qq.com

中图分类号: P315
计量
- 文章访问数: 111
- HTML全文浏览量: 75
- PDF下载量: 15
出版历程
- 收稿日期: 2021-10-16
- 修回日期: 2021-11-26

Monitoring variation of crustal media in Wulong area of Chongqing Municipality by using repeating earthquakes

Chongqing Earthquake Agency, Chongqing 401147, China

摘要

摘要: 选取重庆数字地震台网记录的武隆地区107次M_L≥1.5地震波形和观测报告资料，采用波形互相关技术进行相关计算，识别出12组同时被3个地震台站记录且各台波形互相关系数不小于0.8的重复地震。利用射线追踪方法，对武隆地区重复地震位置做归一化处理，得到所选台站记录地震P波走时差变化，结果显示：在2017年武隆M_S5.0地震前4年，武隆、仙女山、涪陵地震台记录到P波走时差均存在长期的负异常变化，持续时间长达339天，共出现18次负值，表明该时段地壳介质速度有明显升高现象。
- 重复地震 /
- 射线追踪 /
- P波走时差 /
- 武隆地区
Abstract: The waveform and observation report data of 107 earthquakes with M_L≥1.5 recorded by Chongqing Digital Seismic Network in Wulong area were selected. The waveform cross-correlation technology was used for correlation calculation. 12 groups of repeating earthquakes with waveform correlation coefficient larger than 0.8 and recorded by 3 seismic stations at the same time were identified. The position of repeating earthquakes in Wulong area was normalized by ray tracing method, and the change of P-wave travel-time difference of the selected stations was obtained. The results show that four years before the 2017 Wulong M_S5.0 earthquake, there are long-term negative abnormal changes in P-wave travel-time difference recorded by Wulong, Xiannushan and Fuling seismic stations, lasting for 339 days, with a total of 18 negative values. It shows that the crustal medium velocity increases obviously in this period.
- repeating earthquakes /
- ray tracing /
- P-wave travel-time difference /
- Wulong area

HTML全文

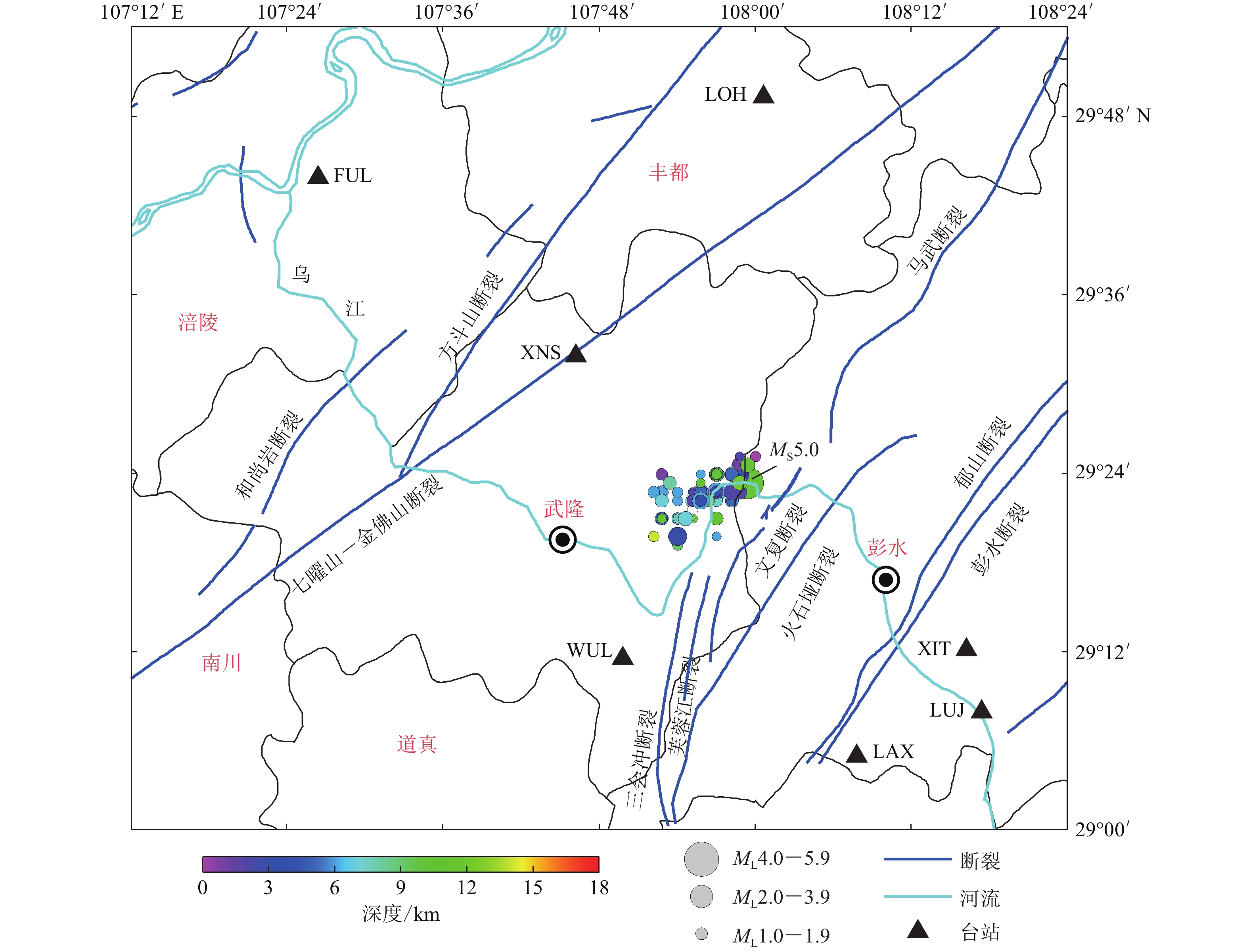

图 1 台站和震中分布

Figure 1. Distribution of seismic stations and epicenters

下载: 全尺寸图片幻灯片

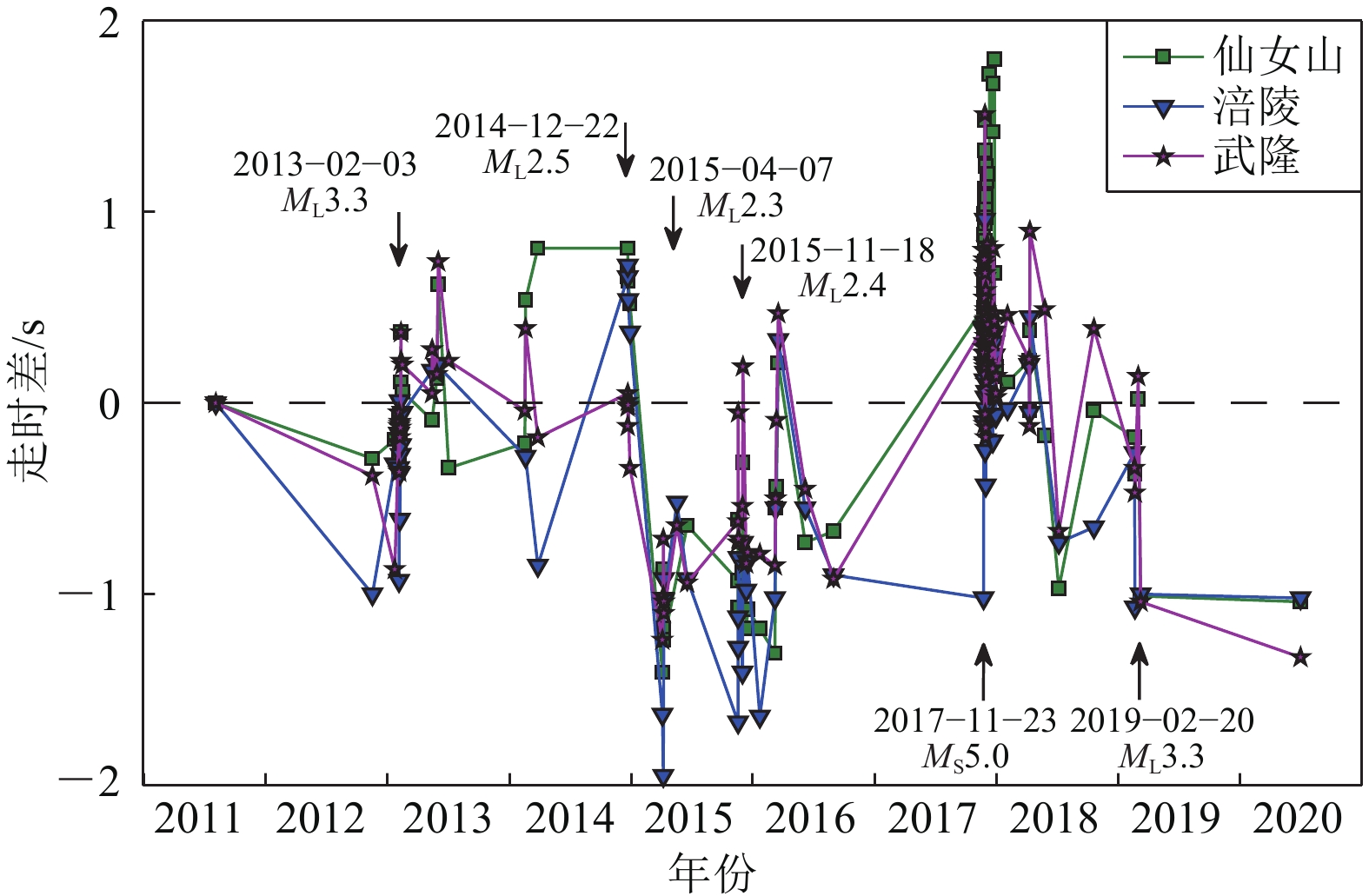

图 2 3个台站P波走时差变化（原始曲线）

Figure 2. Variation of P-wave travel-time difference at three stations (original curve)

下载: 全尺寸图片幻灯片

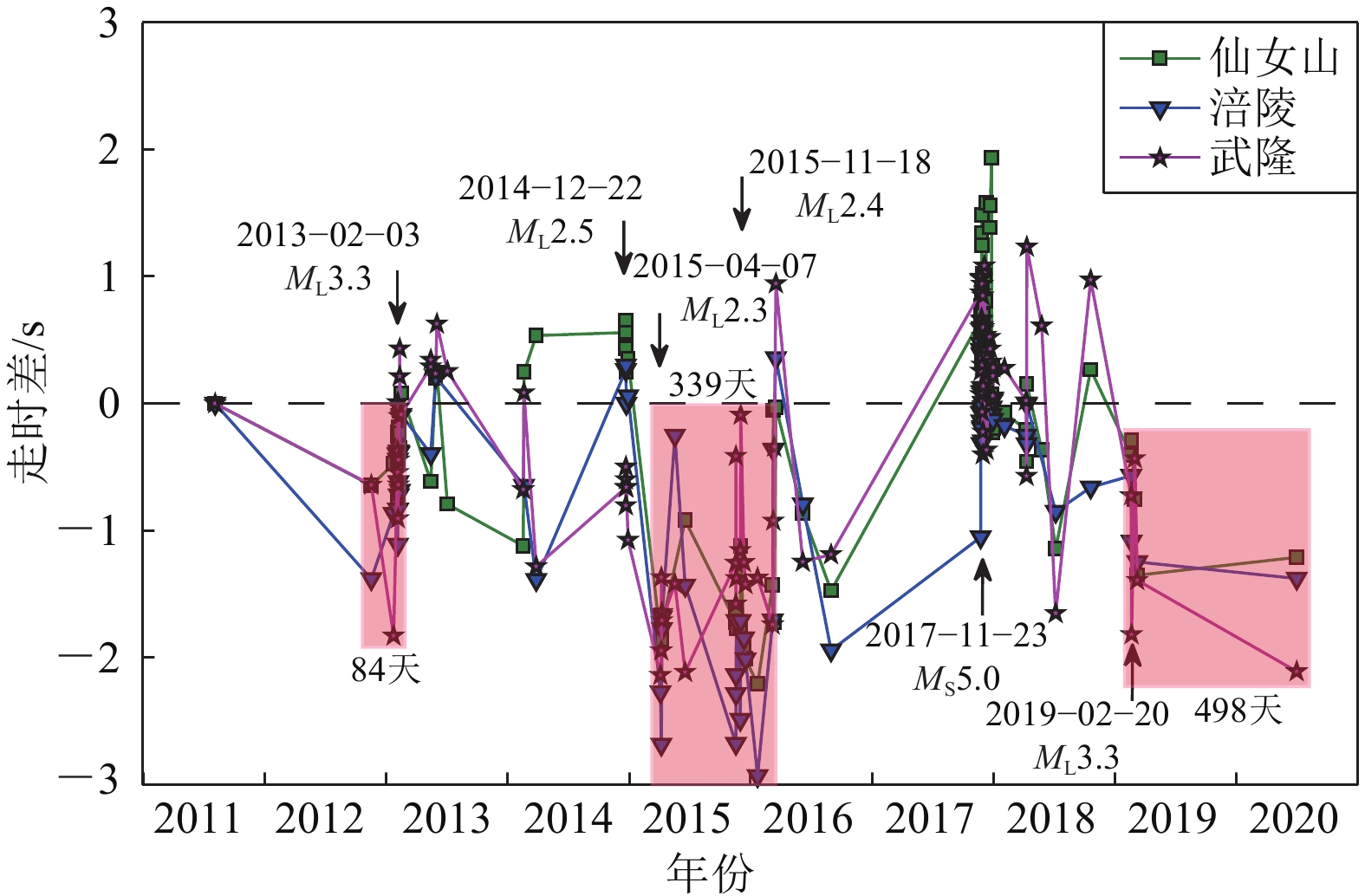

图 3 3个台站P波走时差变化（校正曲线）

Figure 3. Variation of P-wave travel-time difference at three stations (correction curve)

下载: 全尺寸图片幻灯片

图 4 朗溪台（LAX）P波走时差变化

Figure 4. P-wave travel-time difference curves at Langxi station

下载: 全尺寸图片幻灯片

表 1 武隆地区3台相关重复地震

Table 1. Correlated repeating earthquakes at three stations in Wulong area

序号	发震时刻	$\varphi $/°N	λ/°E	M_L	深度 /km	组间距 /km	序号	发震时刻	$\varphi $/°N	λ/°E	M_L	深度 /km	组间距 /km
1	2011-08-04T06:01	29.382	107.967	1.7	5.0	5.5	7	2015-04-05T03:24	29.358	107.893	2.0	6.0	2.8
1	2013-02-05T14:42	29.374	107.911	1.8	6.0	5.5		2015-04-07T22:26	29.358	107.885	2.3	6.0
2	2013-02-03T08:31	29.378	107.951	3.3	6.0	3.9		2015-04-07T23:25	29.377	107.874	1.7	5.0
2	2013-02-04T03:44	29.373	107.911	1.5	6.0	3.9	8	2015-04-07T23:25	29.377	107.874	1.7	5.0	0.2
3	2013-02-03T23:44	29.386	107.965	2.0	7.0	0.2	8	2015-04-09T03:27	29.375	107.893	1.8	6.0	0.2
3	2013-02-08T09:32	29.386	107.963	1.6	6.0	0.2	9	2015-04-07T23:25	29.377	107.874	1.7	5.0	3.2
4	2013-02-05T14:42	29.374	107.911	1.8	6.0	3.7	9	2015-04-09T03:47	29.371	107.906	1.8	6.0	3.2
4	2013-02-09T18:15	29.394	107.941	1.6	5.0	3.7	10	2015-11-18T01:37	29.376	107.881	2.2	6.0	1.3
5	2013-05-14T19:15	29.385	107.989	2.3	5.0	0.3	10	2015-11-18T08:49	29.364	107.881	2.4	6.0	1.3
5	2013-05-14T20:06	29.386	107.992	2.1	5.0	0.3	11	2017-11-23T18:30	29.387	107.926	1.9	7.0	3.8
6	2013-05-14T20:06	29.386	107.992	2.1	5.0	5.3	11	2017-11-30T14:46	29.402	107.961	1.8	6.0	3.8
6	2013-05-14T22:24	29.399	107.939	1.7	6.0	5.3	12	2017-11-23T18:59	29.395	107.956	2.0	9.0	0.9
							12	2017-11-30T14:46	29.402	107.961	1.8	6.0	0.9
注：以上地震对同时满足相关系数不小于0.8的成对条件

下载: 导出CSV

表 2 武隆地区速度结构模型^[15]

Table 2. The seismic velocity model used in the location^[15]

模型参数	地壳分层
模型参数	1	2	3	4	5	6	7	8	9	10
深度/km	2	4	6	8	10	12	14	16	18	20
P波速度/km•s⁻¹	5.46	5.66	5.84	6.02	6.10	6.31	6.33	6.38	6.49	6.54

下载: 导出CSV

参考文献(17)

[1]	Poupinet G, Ellsworth W L, Frechet J. Monitoring velocity variations in the crust using earthquake doublets: An application to the Calaveras fault, California[J]. Journal of Geophysical Research, 1984, 89(B7) : 5719-5731
[2]	Li Y,Chen P,Cochran E S,et al. Seismic velocity variations on the San Andreas fault caused by the 2004 M6 Parkfield earthquake and their implications[J]. Earth Planets and Space,2007,59(1):21-31 doi: 10.1186/BF03352018
[3]	Hotovec-Ellis A J, Gomberg J, Vidale J E, et a1. A continuous record of intereruption velocity change at Mount St. Helens from coda wave interferometry[J]. Journal of Geophysical Research, 2014, 119(3): 2199-2214
[4]	周龙泉,刘桂萍,马宏生,等. 利用重复地震观测地壳介质变化[J]. 地震,2007,27(3):1-9 Zhou Longquan,Liu Guiping,Ma Hongsheng,et al. Monitoring crustal media variation by using repeating earthquakes[J]. Earthquake,2007,27(3):1-9
[5]	叶秀薇,闻则刚,刘锦,等. 利用重复地震研究广东阳江地区地壳介质变化[J]. 地震,2008,28(4):103-111 doi: 10.3969/j.issn.1000-3274.2008.04.011 Ye Xiuwei,Wen Zegang,Liu Jin,et al. Monitoring crustal media variation in Yangjiang area of Guangdong Provinces by using repeated earthquakes[J]. Earthquake,2008,28(4):103-111 doi: 10.3969/j.issn.1000-3274.2008.04.011
[6]	申学林,陈俊华,魏贵春,等. 三峡水库巴东地区的介质变化分析[J]. 长江科学院院报,2010,27(5):92-94 doi: 10.3969/j.issn.1001-5485.2010.05.021 Shen Xuelin,Chen Junhua,Wei Guichun,et al. Analysis of media variation in Badong area of Three Gorges Reservoir[J]. Journal of Yangtze River Scientific Research Institute,2010,27(5):92-94 doi: 10.3969/j.issn.1001-5485.2010.05.021
[7]	武敏捷,徐平,马士振,等. 利用重复地震研究滦县地区的地壳介质变化[J]. 地震地磁观测与研究,2011,32(5):20-24 doi: 10.3969/j.issn.1003-3246.2011.05.004 Wu Minjie,Xu Ping,Ma Shizhen,et al. Monitoring crustal media variation in Luanxian area by using repeated earthquakes[J]. Seismological and Geomagnetic Observation and Research,2011,32(5):20-24 doi: 10.3969/j.issn.1003-3246.2011.05.004
[8]	邵媛媛,王亮,曹凤娟,等. 辽宁阜新矿震震源及附近介质变化研究[J]. 防灾减灾学报,2017,33(4):27-31 Shao Yuanyuan,Wang Liang,Cao Fengjuan,et al. Study on media variation of mine-earthquakes source area and nearby in Fuxin,Liaoning Province[J]. Journal of Disaster Prevention and Reduction,2017,33(4):27-31
[9]	汪建,王同军,杨亚运,等. 利用重复地震观测重庆巫山地区地壳介质变化[J]. 地震地磁观测与研究,2018,39(6):16-22 doi: 10.3969/j.issn.1003-3246.2018.06.003 Wang Jian,Wang Tongjun,Yang Yayun,et al. Monitoring crustal media variation in Wushan area of Chongqing Municipality by using repeated earthquakes[J]. Seismological and Geomagnetic Observation and Research,2018,39(6):16-22 doi: 10.3969/j.issn.1003-3246.2018.06.003
[10]	汪建,向涯,杨亚运,等. 尾波干涉技术在2017年重庆武隆M_S5.0地震后震源区地壳介质变化的应用[J]. 地震地磁观测与研究,2021,42(3):64-73 doi: 10.3969/j.issn.1003-3246.2021.03.008 Wang Jian,Xiang Ya,Yang Yayun,et al. Application of coda wave interferometry in crustal medium variation in focal area after Chongqing Wulong M_S5.0 earthquake in 2017[J]. Seismological and Geomagnetic Observation and Research,2021,42(3):64-73 doi: 10.3969/j.issn.1003-3246.2021.03.008
[11]	李宇彤,蒋长胜. 波形相关意义“重复地震”研究综述[J]. 中国地震,2011,27(4):335-347 doi: 10.3969/j.issn.1001-4683.2011.04.001 Li Yutong,Jiang Changsheng. Review of ‘Repeating earthquakes’ by cross-correlation of seismic waveforms[J]. Earthquake Research in China,2011,27(4):335-347 doi: 10.3969/j.issn.1001-4683.2011.04.001
[12]	Nadeau R M,Foxall W,McEvilly T V. Clustering and periodic recurrence of microearthquakes on the San Andreas fault at Parkfield,California[J]. Science,1995,267(5197):503-507 doi: 10.1126/science.267.5197.503
[13]	Schaff D P, Richards P G. Repeating seismic events in China[J]. Science, 2004, 303（5661）: 1176-1178
[14]	汪建,张巡,杨亚运,等. 重庆地区重复地震识别及在数字地震台网定位评价中的应用[J]. 地震地磁观测与研究,2020,41(2):37-43 doi: 10.3969/j.issn.1003-3246.2020.02.005 Wang Jian,Zhang Xun,Yang Yayun,et al. Recognition of repeating earthquakes in Chongqing area and its application in location evaluation of digital seismic network[J]. Seismological and Geomagnetic Observation and Research,2020,41(2):37-43 doi: 10.3969/j.issn.1003-3246.2020.02.005
[15]	王小龙, 马胜利, 郭志, 等. 利用地震背景噪声成像技术反演三峡库区及邻近地区地壳剪切波速度结构[J]. 地球物理学报, 2013, 56(12): 4113-4124 Wang Xiaolong, Ma Shengli, Guo Zhi, et al. S-wave velocity of the crust in Three Gorges Reservoir and the adjacent region inverted from seismic ambient noise tomography[J]. Chinese Journal of Geophysics, 2013, 56(12): 4113-4124
[16]	施行觉,徐果明,靳平,等. 岩石的含水饱和度对纵、横波速及衰减影响的实验研究[J]. 地球物理学报,1995,38(增刊1):281-287 doi: 10.3321/j.issn:0001-5733.1995.z1.030 Shi Xingjue,Xu Guoming,Jin Ping,et al. The laboratory study of influence of water saturation on rock’s velocity and attenuation[J]. Chinese Journal of Geophysics,1995,38(S1):281-287 doi: 10.3321/j.issn:0001-5733.1995.z1.030
[17]	陈立德. 震源硬化模型的理论、实验及观测事实依据[J]. 地震,2000,20(1):1-9 Chen Lide. Evidence of theory,test and observation for source hardening model[J]. Earthquake,2000,20(1):1-9
