山东区域流体数据跟踪分析及思考

王西宝; 程树岐

doi:10.3969/j.issn.2096-7780.2021.09.003

山东区域流体数据跟踪分析及思考

doi: 10.3969/j.issn.2096-7780.2021.09.003

王西宝^,,
程树岐

山东省地震局沂水地震台，山东沂水 276400

详细信息

通讯作者:
王西宝（1981-），男，工程师，主要从事地球物理观测及数据分析工作。E-mail：jiguanlang@vip.163.com

中图分类号: P315.63
计量
- 文章访问数: 129
- HTML全文浏览量: 129
- PDF下载量: 13
出版历程
- 收稿日期: 2021-06-27
- 修回日期: 2021-08-29

Tracking analysis and thinking of underground fluid data in Shandong geophysical networks

Wang Xibao^,,
Cheng Shuqi

Yishui Seismic Station of Shandong Earthquake Agency，Yishui Shandong 276400，China

摘要

摘要: 介绍了山东地球物理台网地下流体测网及数据跟踪分析概况，对2017—2020年数据跟踪分析工作产出的6大类事件记录归纳和梳理，并对地球物理事件中的同震效应进行探讨。结果表明：影响山东流体跟踪分析质量的主要原因在于观测系统；跟踪分析中存在的质量问题可以通过相应措施加以解决；极少数水位观测井具有同震效应，多数观测井监测地壳应力变化的能力较弱。
- 地下流体 /
- 数据跟踪 /
- 典型事件 /
- 同震效应
Abstract: This paper first introduces the general situation about the underground fluid networks and data tracking analysis of Shandong geophysical networks. Then the records of six types of abnormal change events produced by data tracking and analysis work from 2017 to 2020 are summarized and sorted out and the co-seismic effect in geophysical events are analyzed. The results showed that: the main reason affecting the quality of fluid tracking analysis in Shandong Province lied in the observation system; the problems existing in the tracking analysis can be solved by corresponding measures; a few water level observation wells had co-seismic effect, and the ability of most observation wells to monitor crustal stress changes is gradually weakening.
- underground fluid /
- data tracking /
- typical events /
- co-seismic effect
注释:

1) ① 关于组织开展地震前兆台网观测数据跟踪简报编写工作的通知. 中震测函〔2012〕165号

2) ② 关于全面开展地震前兆台网数据跟踪分析工作的通知. 中震函〔2013〕311号

3) ① 山东省地球物理台网观测数据跟踪分析年报（2017、2018、2019、2020年）

4) ① 地震前兆数据跟踪分析描述事件要素标准（2版，2015年11月）

5) ① DB/T 20.1-2006地震台站建设规范. 地下流体台站. 第1部分：水位和水温台站

6) ① 山东省地球物理台网观测数据跟踪分析年报（2017、2018、2019、2020年）

7) ① 山东省地球物理台网观测数据跟踪分析年报（2017、2018、2019、2020年）

HTML全文

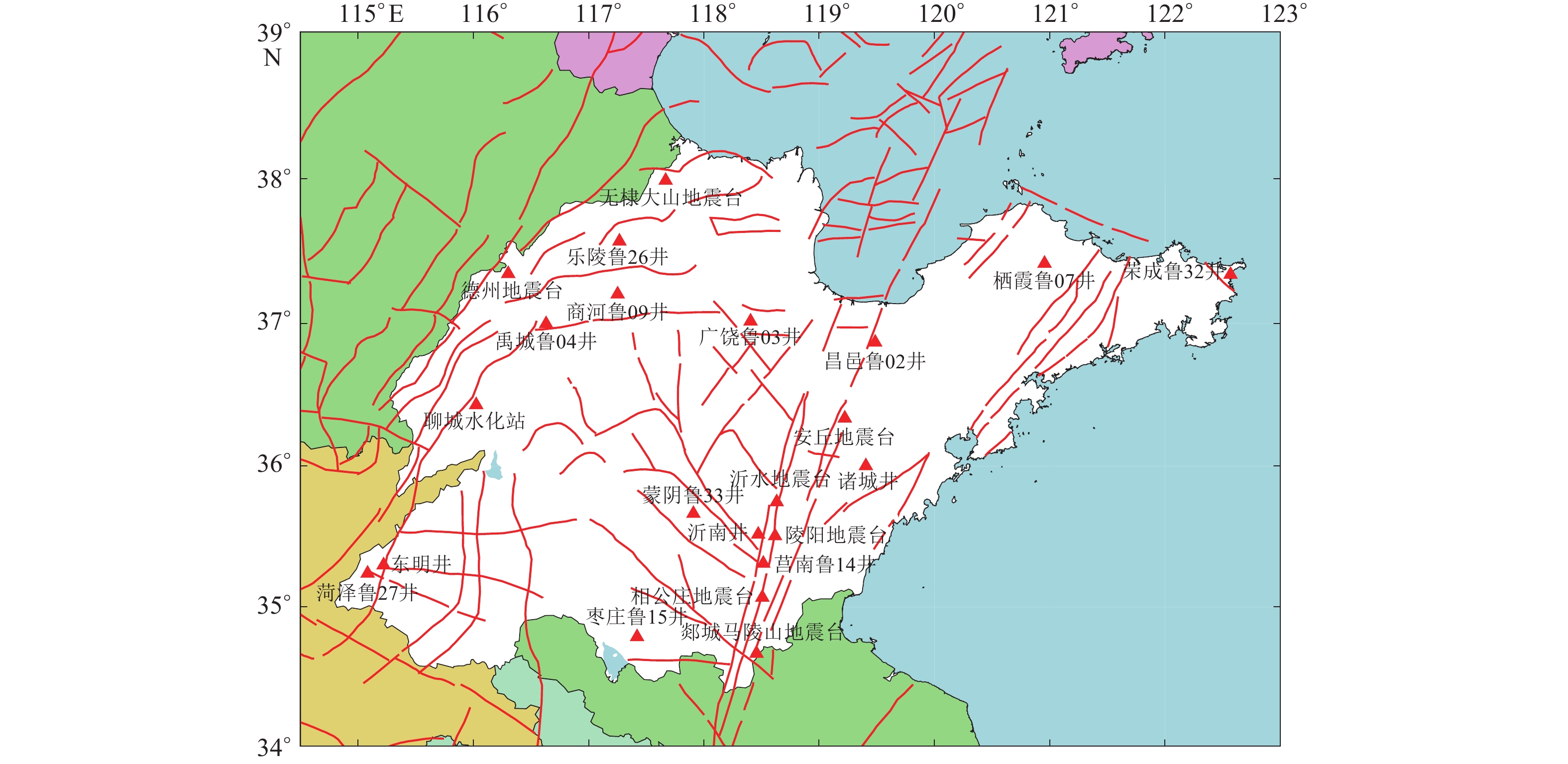

图 1 山东地下流体站点分布

Figure 1. Distribution of underground fluid stations in Shandong Province

下载: 全尺寸图片幻灯片

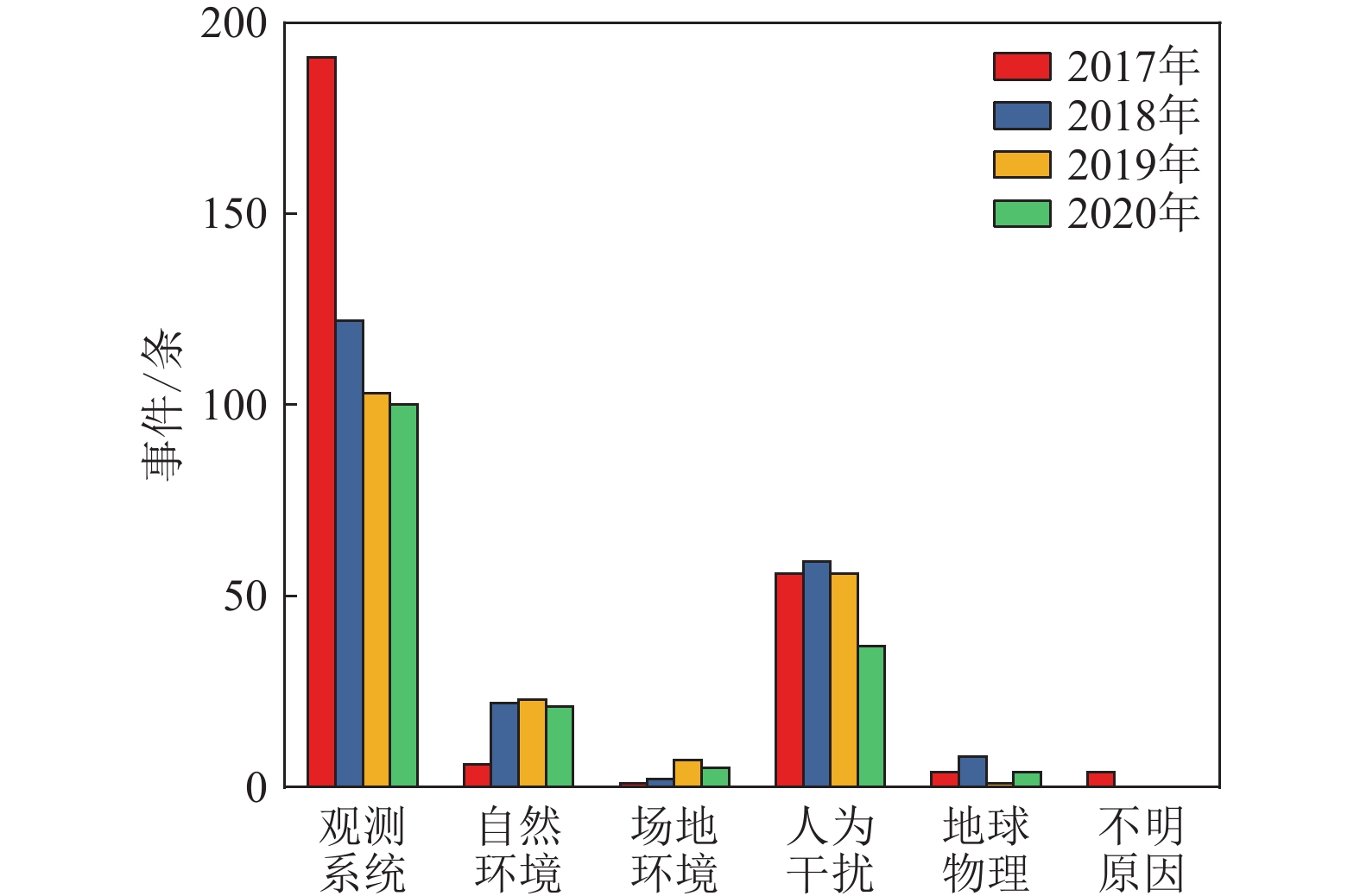

图 2 2017—2020年事件统计图

Figure 2. Statistical chart of abnormal events from 2017 to 2020

下载: 全尺寸图片幻灯片

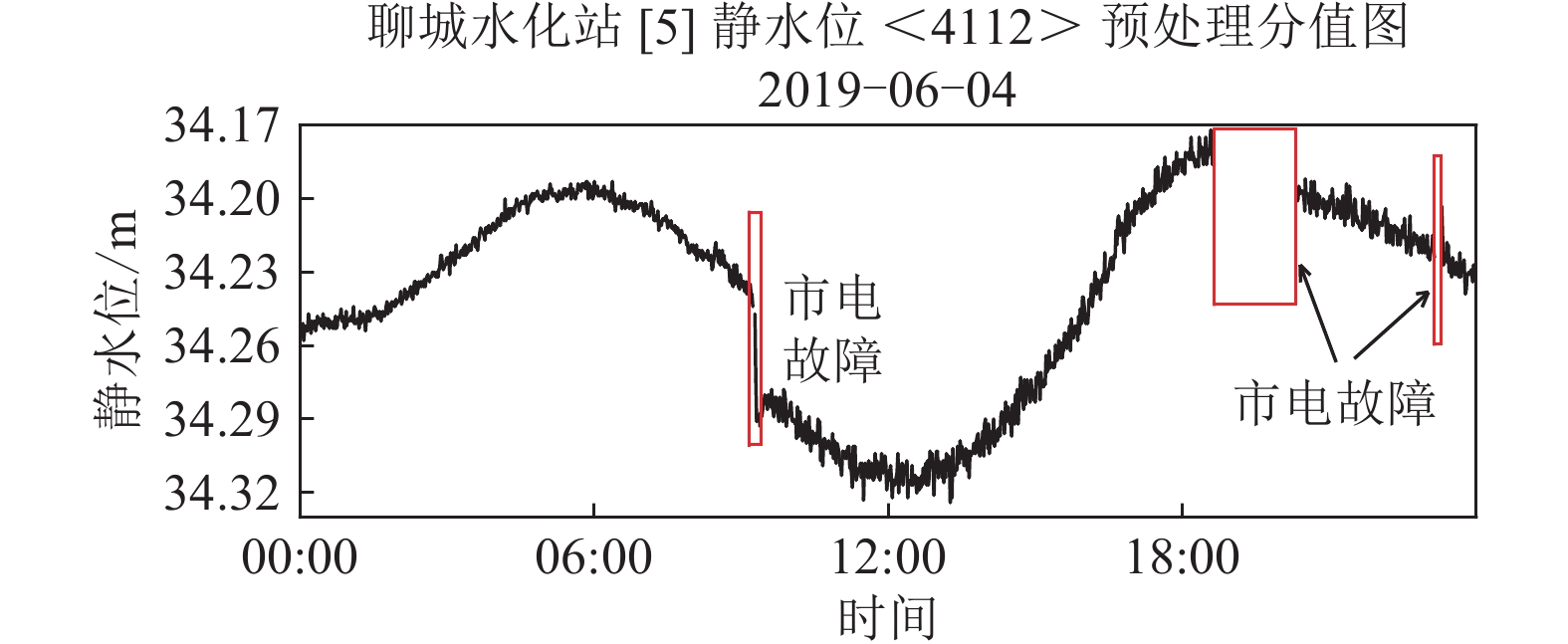

图 3 观测系统事件事例

Figure 3. An example of observation system event

下载: 全尺寸图片幻灯片

图 4 自然环境事件事例

Figure 4. An example of natural environmental event

下载: 全尺寸图片幻灯片

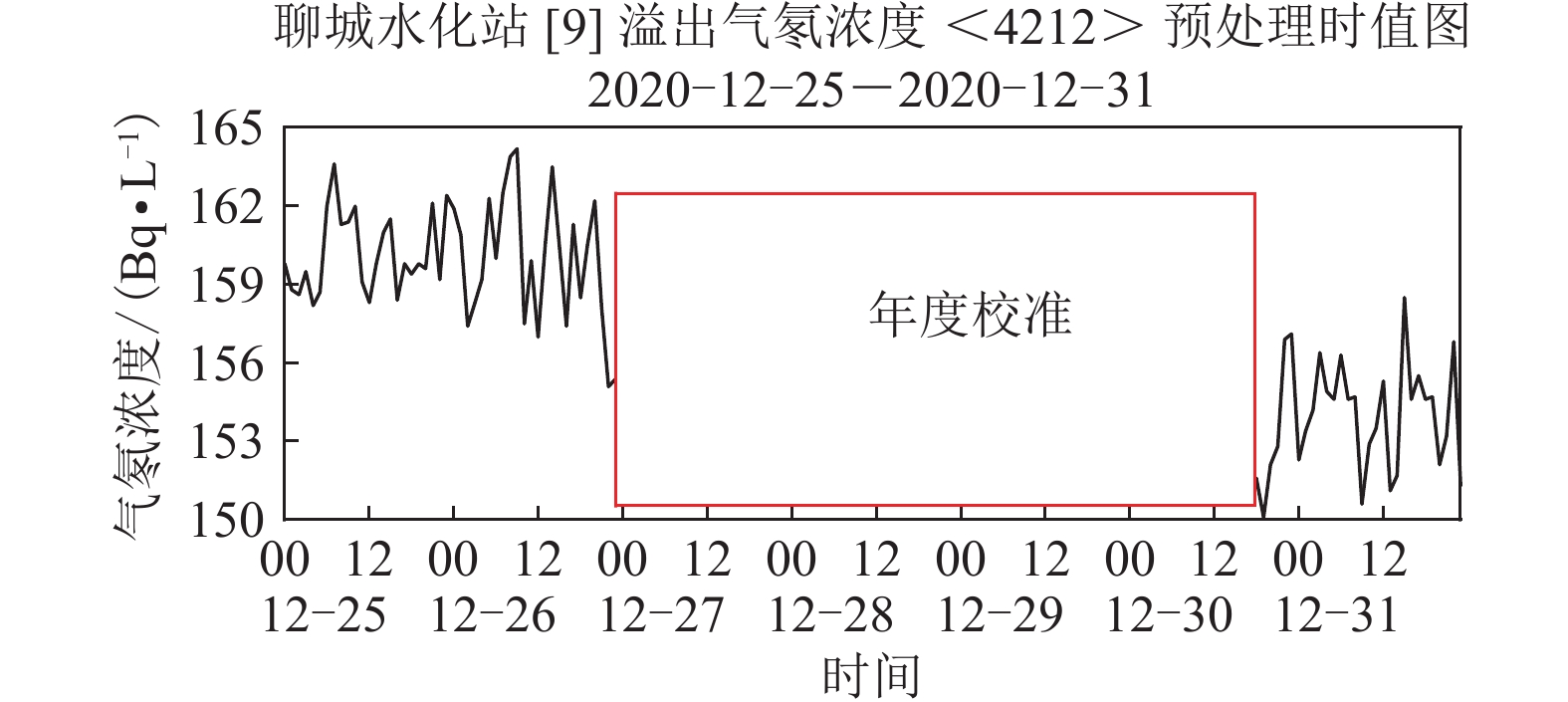

图 5 场地环境事件事例

Figure 5. An example of field environmental event

下载: 全尺寸图片幻灯片

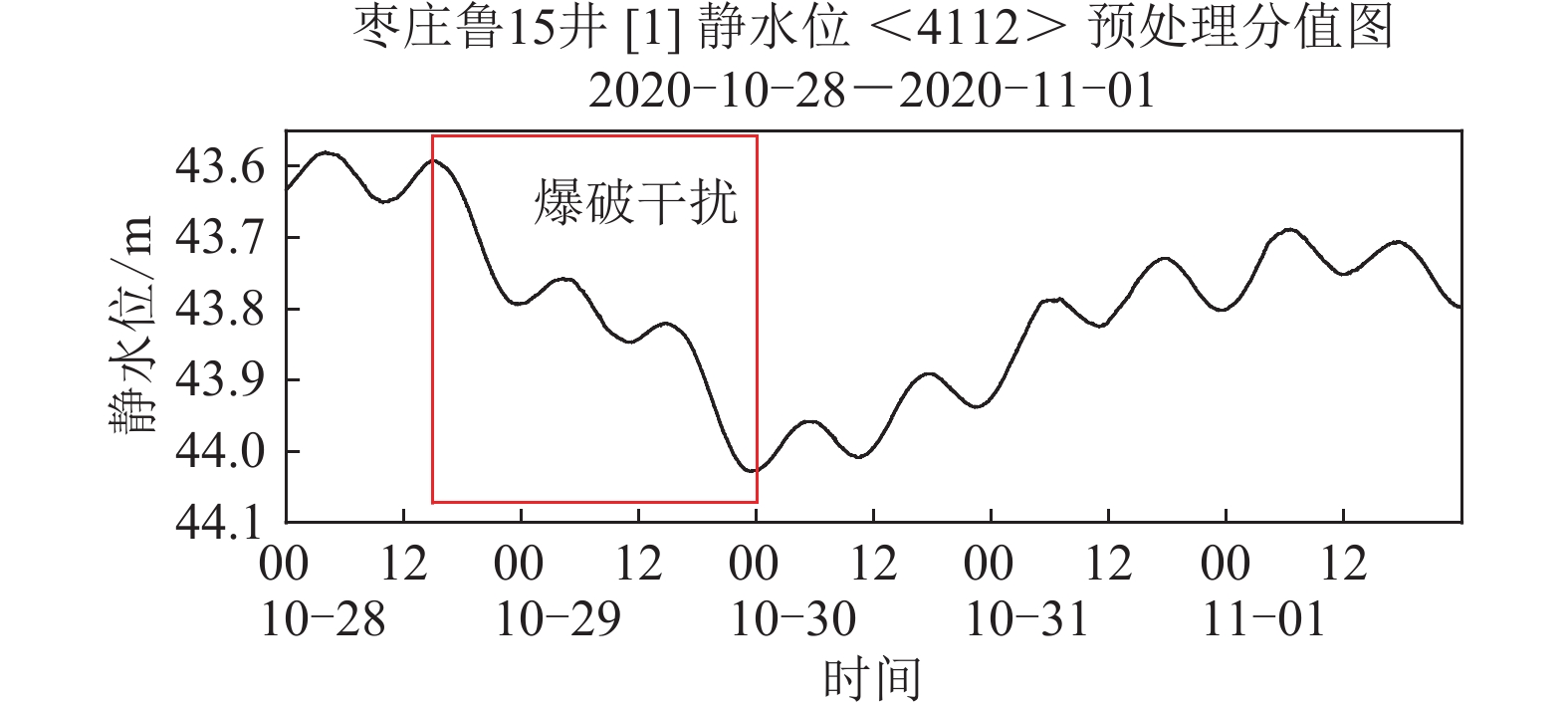

图 6 人为干扰事件事例

Figure 6. An example of human-caused disturbance factors event

下载: 全尺寸图片幻灯片

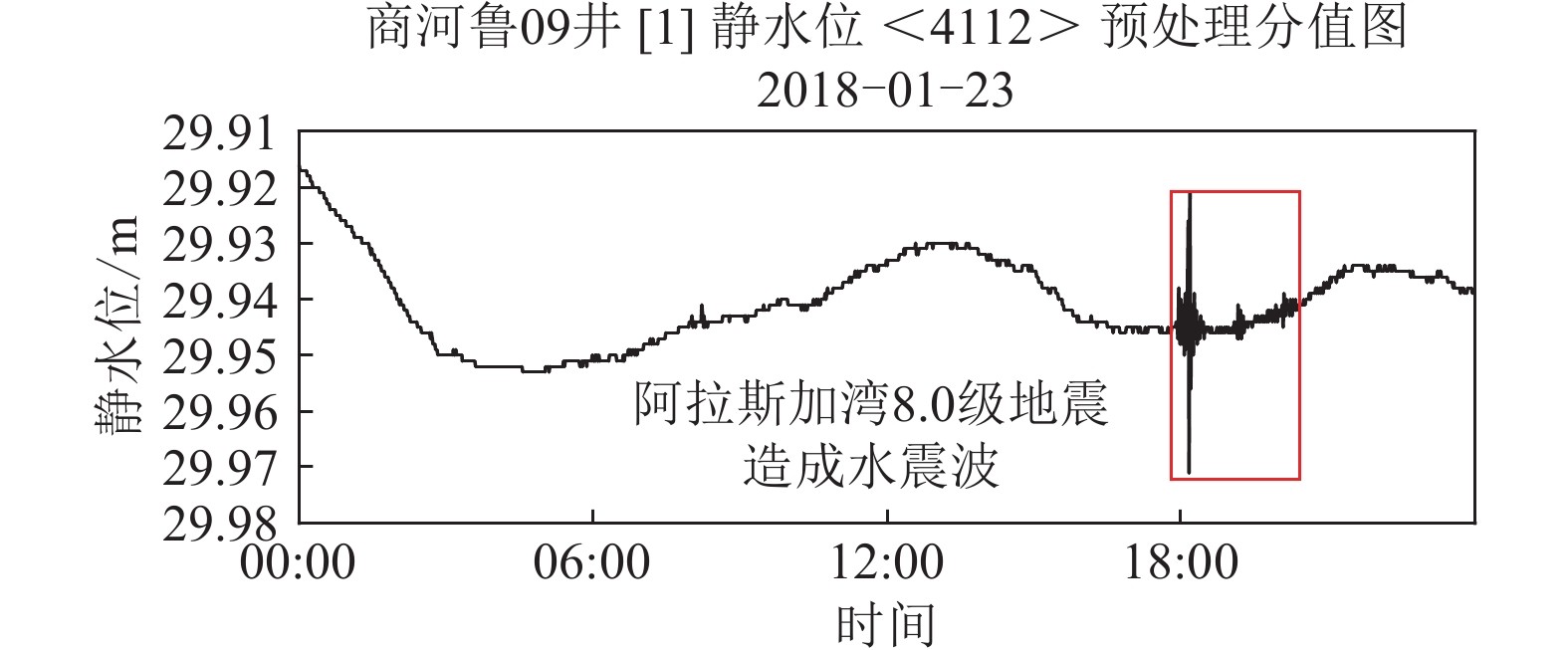

图 7 地球物理事件事例

Figure 7. An example of geophysical event

下载: 全尺寸图片幻灯片

图 8 部分典型水位同震响应曲线

Figure 8. Co-seismic response curve of water level

下载: 全尺寸图片幻灯片

表 1 2017—2020年事件统计

Table 1. Event statistics from 2017 to 2020

	事件类型
	观测系统	自然环境	场地环境	人为干扰	地球物理	不明原因
仪器/套	43	11	8	35	6	2
事件/条	514	72	15	205	17	4

下载: 导出CSV

表 2 井水位同震响应特征

Table 2. Co-seismic response characteristics of well water level

发震时刻	震级（M）	纬度/°N	经度/°E	参考位置	水位变化幅度/m	同震响应类型	备注
年-月-日时:分:秒	震级（M）	纬度/°N	经度/°E	参考位置	水位变化幅度/m	同震响应类型	备注
2017-01-22 12:30:25	7.9	−6.19	155.14	所罗门群岛	0.023	振荡型	鲁07井
2017-01-22 12:30:25	7.9	−6.19	155.14	所罗门群岛	0.03	振荡型	鲁09井
2017-07-18 07:34:13	7.8	54.36	168.95	科曼多尔群岛地区	0.063	振荡型	鲁09井
2017-09-08 12:49:15	8.2	15.05	−93.90	墨西哥沿岸近海	0.124	振荡型	鲁27井
2018-01-23 17:31:41	8.0	55.96	−149.13	阿拉斯加湾	0.05	振荡型	鲁09井
2018-01-23 17:31:41	8.0	55.96	−149.13	阿拉斯加湾	0.13	振荡型	鲁27井
2018-08-19 08:19:37	8.1	−18.08	−178.06	斐济群岛地区	0.028	振荡型	鲁09井
2019-05-26 15:41:12	7.8	−5.85	−75.18	秘鲁北部	0.029	振荡型	鲁27井
2020-03-25 10:49:19	7.5	48.93	157.74	千岛群岛	0.018	振荡型	鲁27井
2020-07-22 14:12:37	7.9	55.14	−158.59	阿拉斯加以南地区	0.04	振荡型	鲁27井
2020-10-20 04:54:36	7.7	54.73	−159.78	阿拉斯加半岛	0.021	振荡型	鲁27井

下载: 导出CSV
