Identification of characteristics of earthquake and explosion: A research review
-

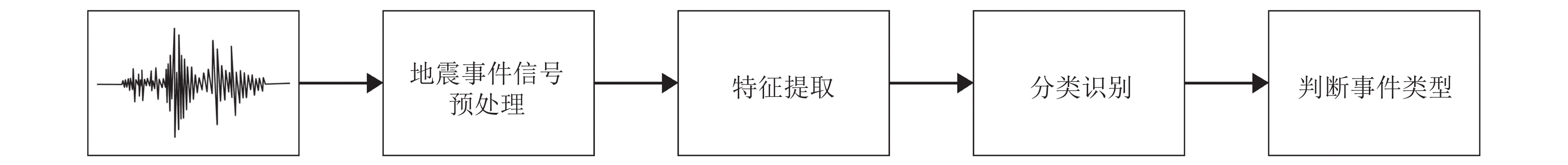

摘要: 近年来，天然地震与人工爆破特征识别作为地震事件分类识别的关键技术之一，随受关注度的不断提升获得了长足的发展。文中针对该研究方向出现的识别特征和特征提取方法进行了整体综述，以期为进一步深入研究天然地震与人工爆破特征识别以及拓展其应用领域奠定一定的基础。Abstract: In recent year, the identification of characteristics of earthquake and explosion is one of the key technologies for earthquake event classification and recognition, and has made to a considerable development and progress. The overall review of existing identification and characteristic extraction method is carried out, in order to establish a platform for identification of characteristics of earthquake and explosion future researches.
-
Key words:
- earthquake /
- explosion /
- identification charateristics /
- characteristic extraction
-
表 1 天然地震与人工爆破常用识别特征
Table 1. The common characteristics for earthquake and explosion identification
特征参数 具体特征 数据处理方法 人工爆破 天然地震 优点 缺点 参考文献 事
件
波
形
直
观
特
征发震时间、地点规律 ①时间一般通常具有规律性；
②部分人工爆破地点固定，如采石场发震时间、
地点随机直观明了 适用范围局限于爆破时间、地点固定地区 [9-11] 短周期面波
（瑞利型Rg波）在S波之后往往有较大周期的瑞利面波，呈正弦波状态的波 瑞利面波不发育 直观明了 ①近场爆破产生的面波不是完全的瑞利波
②辅助判据，无法定量[12-13] 水
平
分
量
振
幅
比P波初动振幅和S波最大振幅比（Pc/Sm） 为了减弱震源大小、传播路径、台站方位角以及震中距的影响，P波与S波幅值比一般采用经过震中距衰减校正后的各台记录的算术平均值
${{\rm{P}}{\text{波与} }{\rm{S}}{\text{波幅值比} }=}$
${\dfrac{ { \sum {\text{衰减校正后的各台记录的幅值比} } } }{\text{台数} }}$
Pc/Sm：人工爆破＞天然地震
Pm/Sm：人工爆破＞天然地震
可根据样本数据计算得到最优阈值
减小震级、地震仪的放大倍数、频率特性影响①主要利用相应波段上孤立点的测量信息，具有一定的局限性
②需要通过克里金方法进行路径校正，减弱传播路径差异影响[14-20] P波最大振幅和S波最大振幅比（Pm/Sm） P波初动方向 P波初动判据准则：
①${\dfrac{ { {\text{初动向上} } } }{ { {\text{清晰初动} } } } }$≥80%，
记为1，偏向爆破；
②${\dfrac{ { {\text{初动向下} } } }{ { {\text{清晰初动} } } } }$≥50%，
记为−1，偏向地震；
③处于中间的记为0，无法通过初动判断事件类型
近台（△≤100 km）P波垂直分量初动方向向上
有象限分布，P 波垂直分量初动方向可能向上，也可能向下
直观明了受震级、地球介质结构等因素影响，部分波形记录初动不清晰，部分人工爆破P波初动向下 [18, 20] 尾波持续时间（从最大S波振幅开始到接近噪声水平的时间段） 每一事件各记录台站尾波持续时间的
平均尾波持续时间短 尾波持续时间长 尾波持续时间量取直观方便 只适用于天然地震与人工爆破震级相等的情况 [11, 18] 体波震级相同的天然地震与人工爆破：

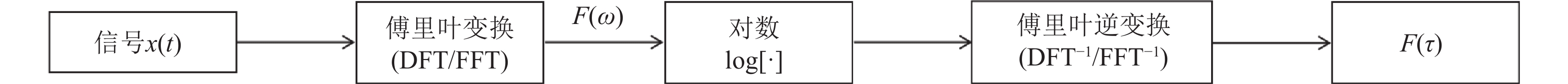

天然地震＞人工爆破倒谱参数 倒谱分析 ①倒谱图单调下降，无非零峰值
②倒谱参量C＜1①多峰值分布
②倒谱参量C＞1使用全波例信号，对滤波带宽不敏感 依赖合理有效的传播路径介质衰减模式 [2-4, 21] 震
源
参
数
特
征拐角频率 波谱分析方法 体波震级相同的天然地震与人工爆破同类波相比：天然地震＞人工爆破 可根据样本数据计算得到最优阈值，定量分析 与震级存在一定相关性，具有一定局限性 [22-23] 最大振幅
卓越周期波谱分析方法 平均卓越周期约0.7 s 平均卓越周期约0.3 s 受震中距影响 [22, 24] 优势频率 ①短时傅里叶变换

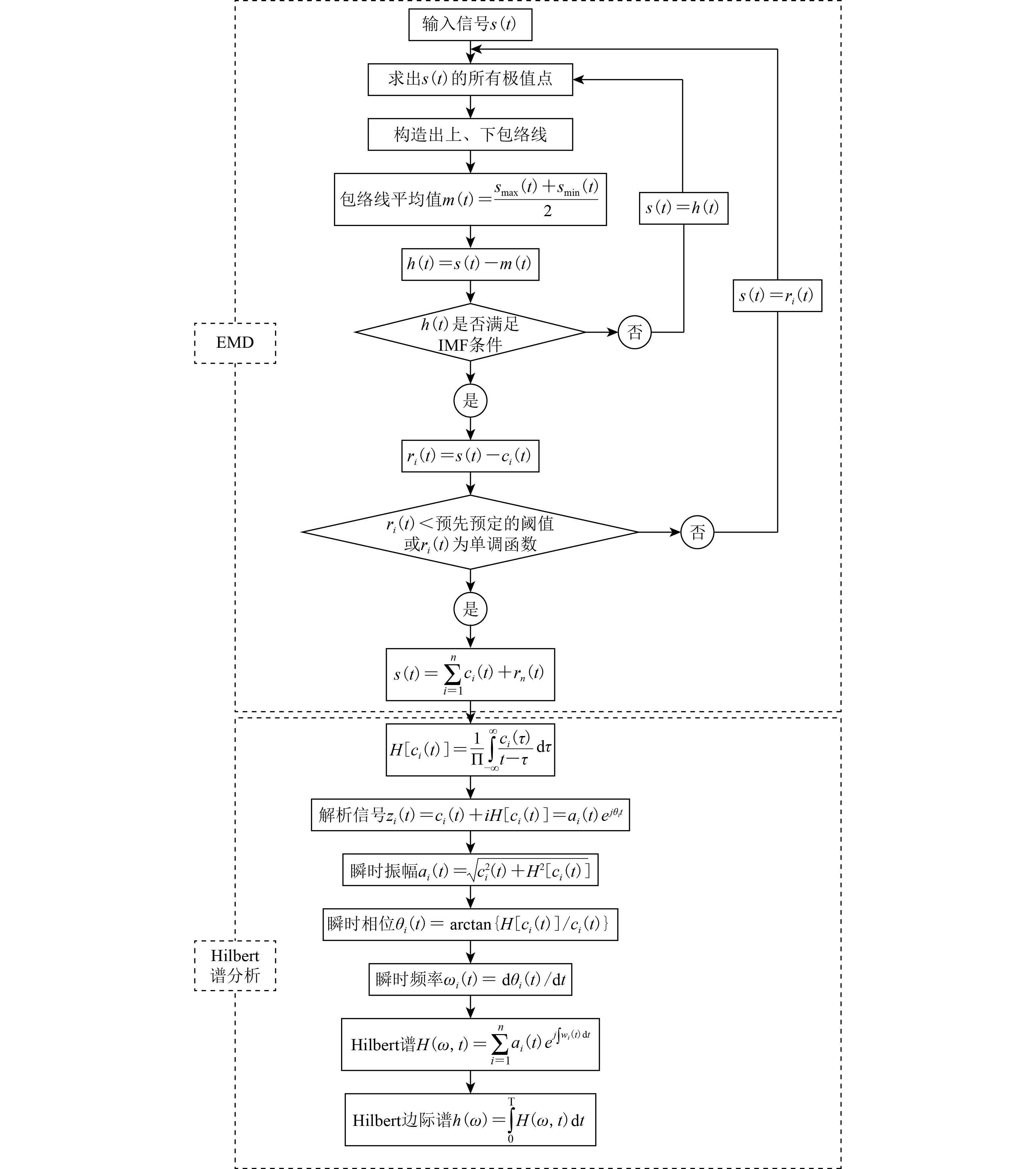

②Hilbert-Huang变换
③非线性赵-阿特拉斯-马克斯（Zhao-Atlas-
Marks）时频分析方法一般处于低频段，能量衰减快 一般处于高频区，能量衰减慢 [6-8, 25-28] 顶峰频率平均值：天然地震＞人工爆破 能量比 小波包变换 人工爆破＞天然地震 小波变换选取基函数需要通过实验方法验证，工作量较大 [18-19,
29-30]P波瞬时频率 非稳态WD理论 瞬时频率平稳 瞬时频率不稳定 计算复杂 [9, 31] 瞬时频率复杂度公式
$IFC={ \sum\limits _{ {i}=\text{1} }^{ {n} }({ {\displaystyle {g} } }_{{i}+\text{1} } }-{ {g} }_{{i} }{)}^{\text{2} }$
$g_i $：瞬时频率曲线上各拐点的值天然地震＞人工爆破 Hilbert-Huang变换 自相关系数 三分向的自相关系数计算结果求和 人工爆破＞天然地震 [32-35] 波形复杂度C $C = \displaystyle\int\limits_A^B {X{ {(t)}^2} } {\text{d} }t/\displaystyle\int\limits_B^C {X{ {(t)}^2} } {\text{d} }t$
X（t）为t时刻的波形幅值，分母取为从第A时刻到第B时刻的波形样本幅值和，分子取为从B时刻到第C时刻的波形样本幅值和人工爆破＞天然地震 [32,
34-35]频谱比 $SR = \dfrac{ {\displaystyle\int_{ {L_{\text{1} } } }^{ {H_1} } {\left| {x(f)} \right|{\rm{d}}f} } }{ {\displaystyle\int_{ {L_{\text{2} } } }^{ {H_2} } {\left| {x(f)} \right|{\rm{d}}f} } }$
x（f）：傅里叶频谱中频率f处幅值的模；
H1，L1：低频段的上下限；
H2，L2：高频段的上下限天然地震＞人工爆破 受震源到台站间的射线传播路径和地球介质的非均匀性影响 [32,
34-35]
