基于余震分析的宏观震中、地震影响场方向和极震区初步修正

孙艳萍 张苏平 朱瑞 马小平 刘岸果

孙艳萍, 张苏平, 朱瑞, 马小平, 刘岸果. 基于余震分析的宏观震中、地震影响场方向和极震区初步修正[J]. 地震科学进展, 2021, (7): 309-314. doi: 10.3969/j.issn.2096-7780.2021.07.004
引用本文: 孙艳萍, 张苏平, 朱瑞, 马小平, 刘岸果. 基于余震分析的宏观震中、地震影响场方向和极震区初步修正[J]. 地震科学进展, 2021, (7): 309-314. doi: 10.3969/j.issn.2096-7780.2021.07.004
Yanping Sun, Suping Zhang, Rui Zhu, Xiaoping Ma, Anguo Liu. Preliminary correction of the macro epicenter,the direction of the earthquake influence field and the meizoseismal area based on aftershock analysis[J]. Progress in Earthquake Sciences, 2021, (7): 309-314. doi: 10.3969/j.issn.2096-7780.2021.07.004
Citation: Yanping Sun, Suping Zhang, Rui Zhu, Xiaoping Ma, Anguo Liu. Preliminary correction of the macro epicenter,the direction of the earthquake influence field and the meizoseismal area based on aftershock analysis[J]. Progress in Earthquake Sciences, 2021, (7): 309-314. doi: 10.3969/j.issn.2096-7780.2021.07.004

基于余震分析的宏观震中、地震影响场方向和极震区初步修正

doi: 10.3969/j.issn.2096-7780.2021.07.004
基金项目: “十三五”国家重点研发计划项目(2017YFC1500905)资助
详细信息
    作者简介:

    孙艳萍(1986-),女,高级工程师,主要从事地震应急工作。E-mail:yrrgyoyo@163.com

    通讯作者:

    张苏平(1965-),女,研究员,主要从事地震应急工作。E-mail:zhangsp@gssb.gov.cn

  • 中图分类号: P315.9

Preliminary correction of the macro epicenter,the direction of the earthquake influence field and the meizoseismal area based on aftershock analysis

  • 摘要: 在地震应急初期评估中,宏观震中、影响场方向和极震区的判断准确与否,直接影响评估结果的准确性和政府及有关部门的救援工作。本文收集甘肃及周边近几年MS6.5以上地震的12 h内余震序列、震源机制解信息和居民点等数据,通过分时间段进行余震质心计算、趋势回归、震源机制解分析等,对宏观震中位置、地震影响场方向、极震区范围等要素的修正方法进行了初步研究,为地震应急救援工作的快速开展提供依据。

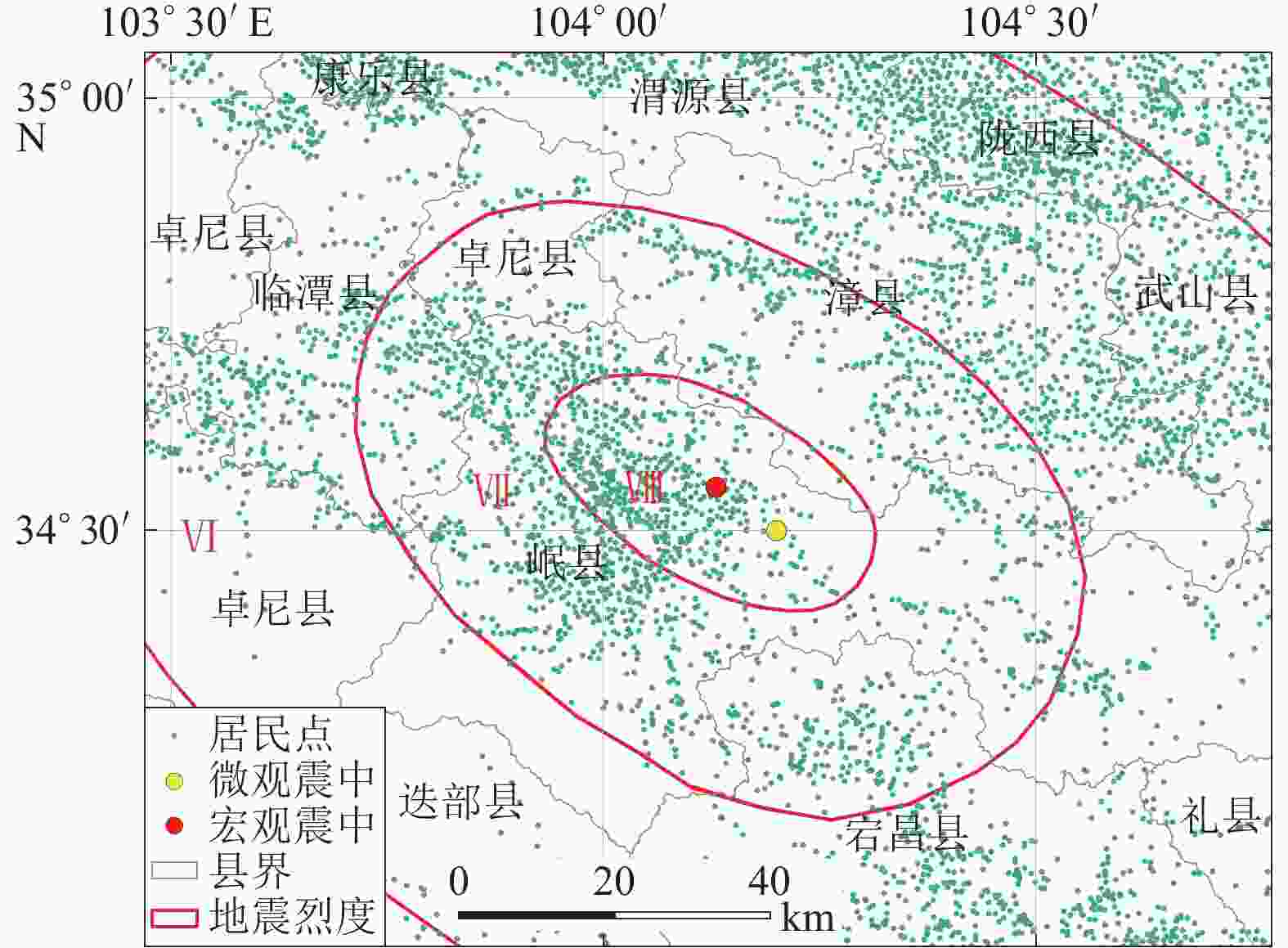

  • 图  1  岷县漳县地震宏、微观震中与居民点分布图

    Figure  1.  Distribution of macro and micro epicentre and settlements of Minxian-Zhangxian earthquake

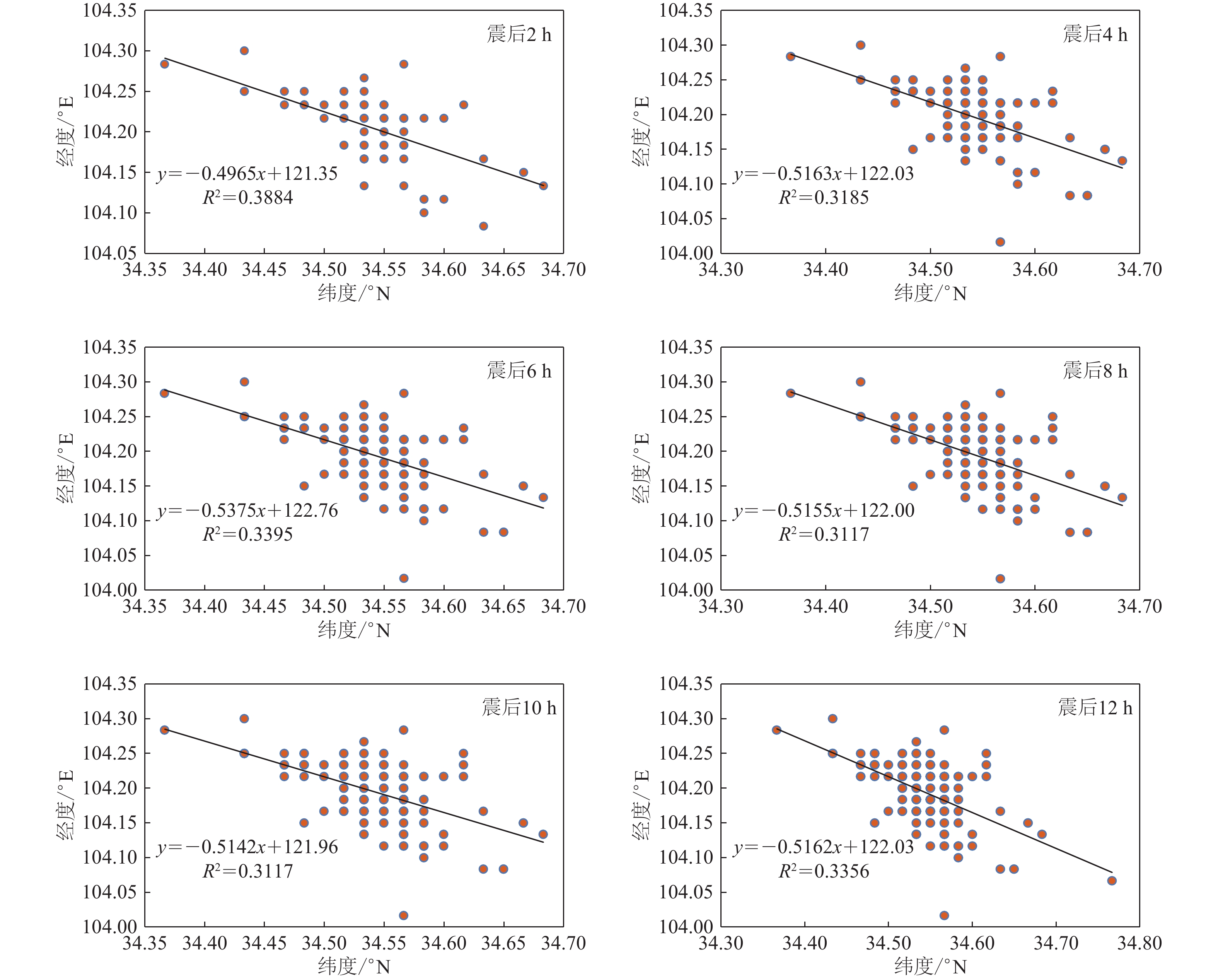

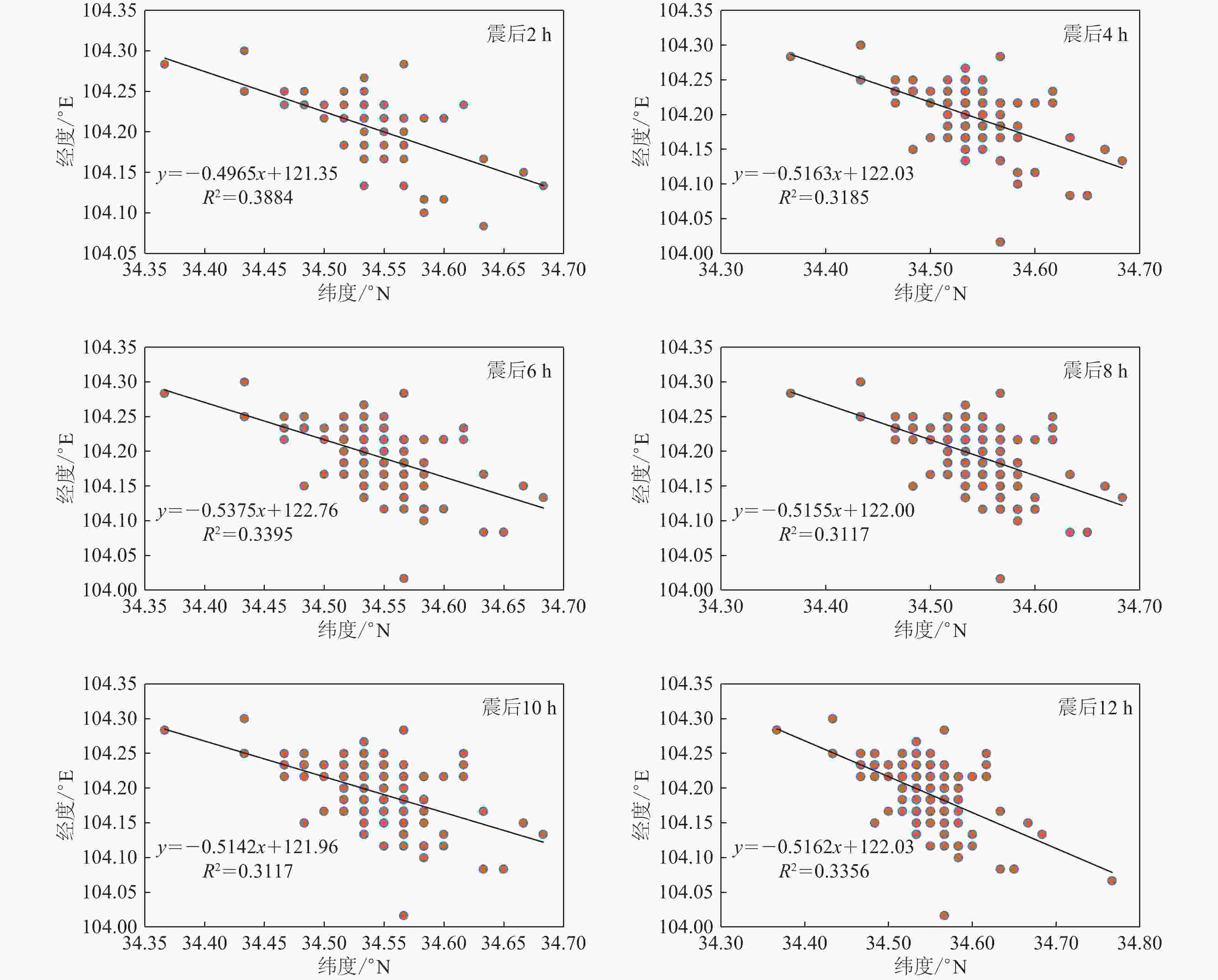

    图  2  岷县漳县MS6.6地震12 h内余震一元线性回归拟合结果

    Figure  2.  One-variable linear regression fitting results of aftershocks within 12 hours of the Minxian-Zhangxian MS6.6 earthquake

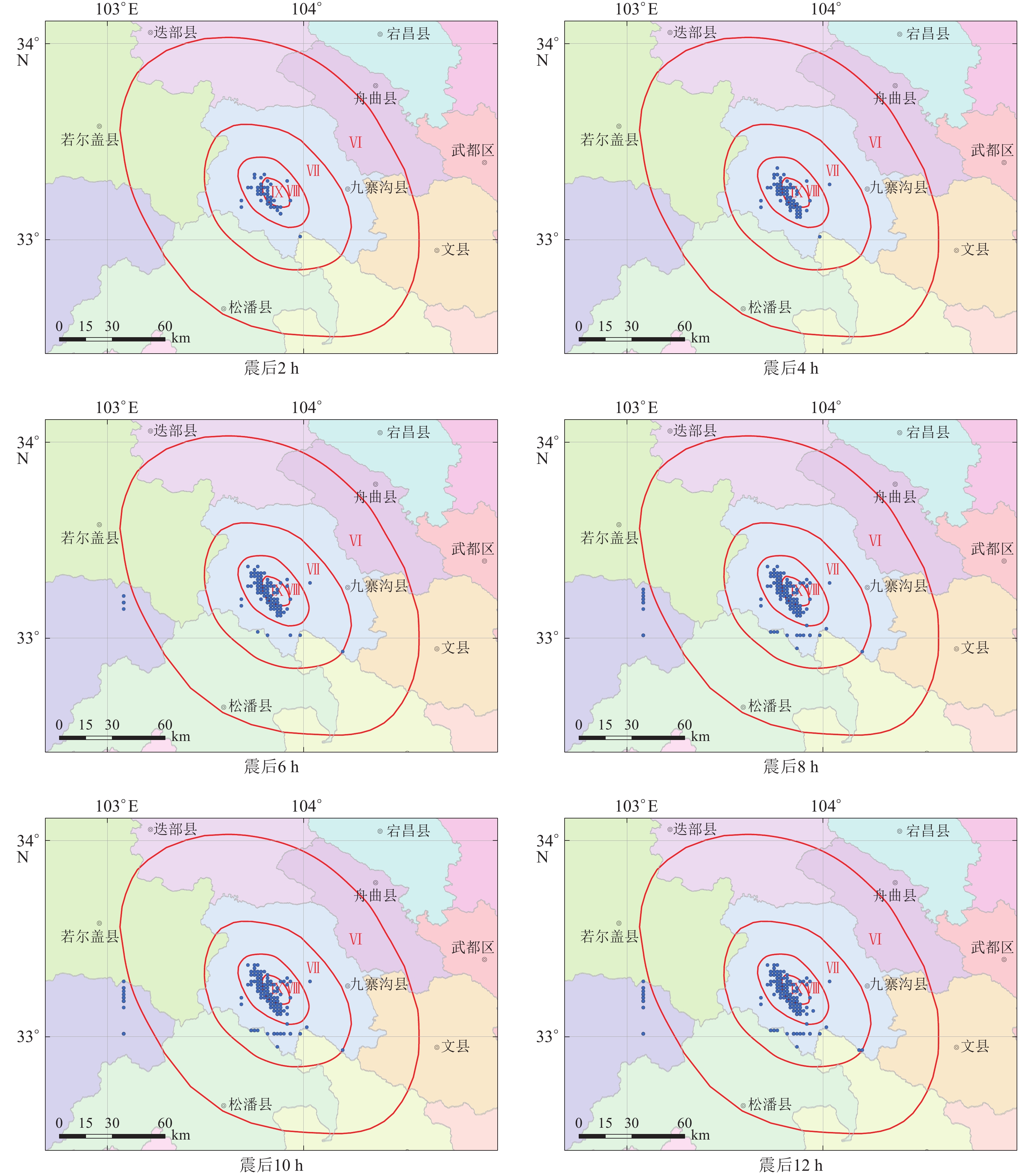

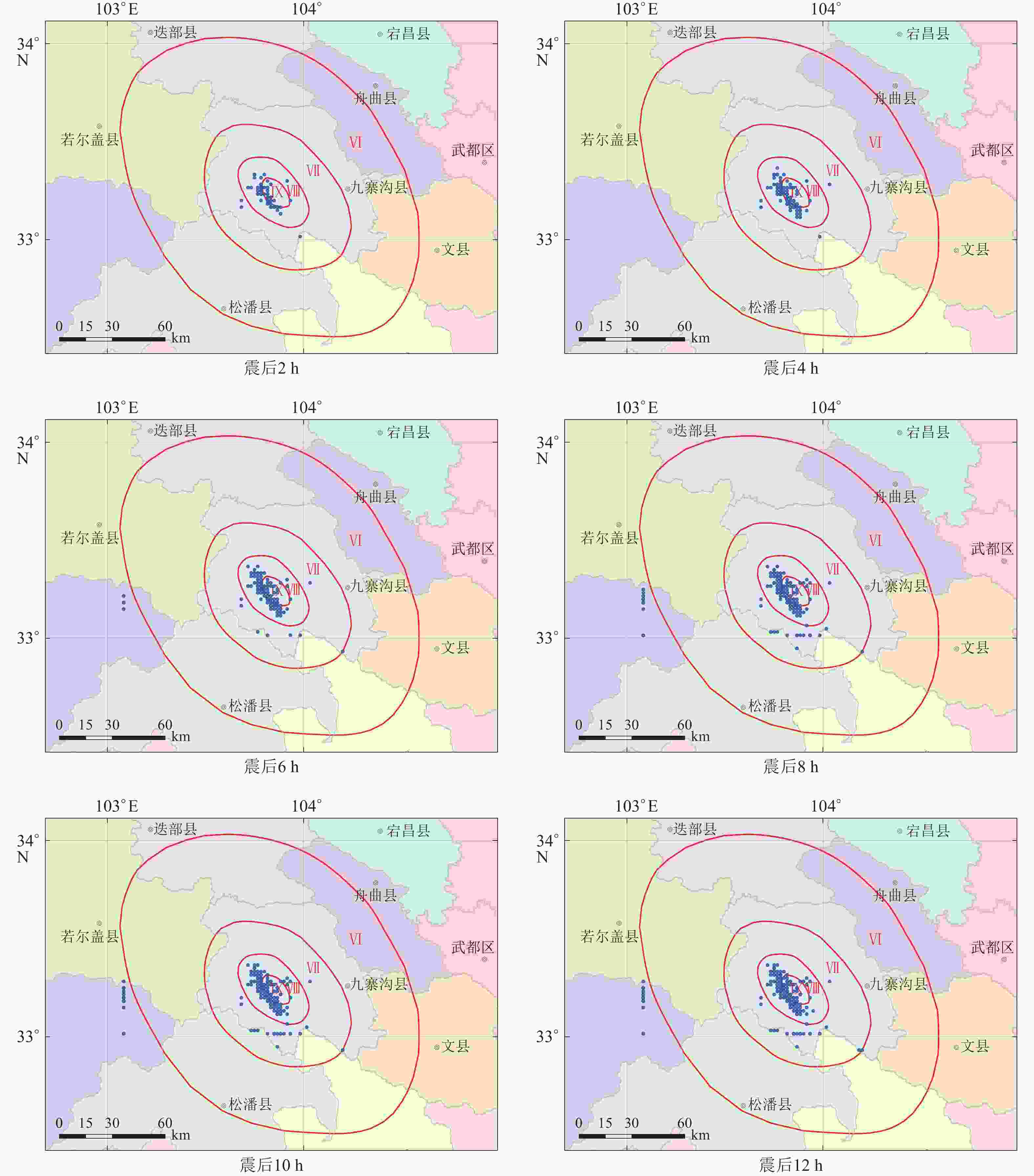

    图  3  四川九寨沟MS7.0地震12 h余震分布图

    Figure  3.  12-hour aftershock distribution of the Jiuzhaigou MS7.0 earthquake in Sichuan

    表  1  近年来甘肃及周边MS6.5以上地震宏观震中和微观震中及其差异

    Table  1.   Macro epicenters,micro epicenters and their deviation distances of recent MS6.5 earthquakes in Gansu and surrounding areas

    地震时间
    (年-月-日)
    地点震级(M宏观震中 微观震中偏离距离/km
    经度/°E纬度/°N经度/°E纬度/°N
    2008-05-12四川汶川8.0104.231.6 103.4231.01约110
    2010-04-14青海玉树7.196.8533.0696.5933.22约30
    2013-04-20四川芦山7.0102.9830.26103.030.3约5
    2013-07-22甘肃岷县漳县6.6104.1334.55104.234.5约10
    2017-08-08四川九寨沟7.0103.84333.217103.8233.2约4
    下载: 导出CSV

    表  2  各震例12 h内余震质心与宏观震中距离

    Table  2.   The distance between the centroid of aftershocks and the macro-epicenter within 12 hours of each case

    地震余震判定与宏观震中
    距离/km
    时间段/h经度/°E纬度/°N
    岷县漳县2104.2034.548.4
    4104.2034.547.4
    6104.1934.547.3
    8104.2034.547.4
    10104.2034.547.3
    12104.1934.547.3
    玉树297.0133.0317.7
    497.0133.0119.0
    697.0333.0120.7
    897.0333.0021.4
    1097.0432.9921.9
    1297.0432.9922.4
    汶川2103.7331.3161.3
    4103.7031.3363.0
    6103.8331.4445.3
    8103.7231.3759.7
    10103.7231.3659.8
    12103.7031.3562.0
    九寨沟2103.8133.232.9
    4103.8233.222.5
    6103.8233.222.6
    8103.8233.222.3
    10103.8233.221.9
    12103.8233.222.0
    下载: 导出CSV

    表  3  不同机构对岷县漳县MS6.6地震震源机制解的研究结果

    Table  3.   The research results of the focal mechanism solution of the Minxian-Zhangxian MS6.6 earthquake by different institutions

    机构节面Ⅰ节面Ⅱ震源
    深度/km
    走向/°倾角/°滑动角/°走向/°倾角/°滑动角/°
    IGPCEA18047120 320516220
    IGCEA188.458.8142301.357.3386
    USGS17760108324346215
    GSSB19554149305654013.5
    下载: 导出CSV

    表  4  芦山MS7.0地震和九寨沟MS7.0地震长短轴及面积

    Table  4.   Long and short axes and area of the MS7.0 Lushan earthquake and the Jiuzhaigou MS7.0 earthquake

    地震烈度长轴/km短轴/km面积/km2
    芦山MS7.0
    地震
    2311208
    58351418
    112664029
    19012813027
    九寨沟MS7.0
    地震
    1810139
    4426778
    90613372
    18513014006
    下载: 导出CSV
  • [1] 何钧,陈时军,康瑞清. 地震灾害盲场快速评估系统及其应用[J]. 内陆地震,1998,12(3):234-241

    He Jun,Chen Shijun,Kang Ruiqing. The out-site rapid assessment system of earthquake disaster and its application[J]. Inland Earthquake,1998,12(3):234-241
    [2] 王伟锞,李志强,李晓丽. 利用余震法快速判定宏观震中的研究[J]. 震灾防御技术,2011,6(1):36-48 doi: 10.3969/j.issn.1673-5722.2011.01.004

    Wang Weike,Li Zhiqiang,Li Xiaoli. Rapid determination of macro epicenter based on aftershocks[J]. Technology for Earthquake Disaster Prevention,2011,6(1):36-48 doi: 10.3969/j.issn.1673-5722.2011.01.004
    [3] 鄢家全,李金臣,俞言祥,等. 论宏观震中及其快速估定方法[J]. 震灾防御技术,2010,5(4):409-417 doi: 10.3969/j.issn.1673-5722.2010.04.003

    Yan Jiaquan,Li Jinchen,Yu Yanxiang,et al. Discussion of the macro-epicenter and the method of rapid estimation[J]. Technology for Earthquake Disaster Prevention,2010,5(4):409-417 doi: 10.3969/j.issn.1673-5722.2010.04.003
    [4] 兰晓雯,田家勇,谢周敏,等. 发震断层对微、宏观震中偏离的影响分析:以新疆地区为例[J]. 现代地质,2011,25(1):114-121 doi: 10.3969/j.issn.1000-8527.2011.01.015

    Lan Xiaowen,Tian Jiayong,Xie Zhoumin,et al. Analysis on the impact of seismogenic fault on the micro-and macro-epicenter deviation:Taking Xinjiang area as an example[J]. Geoscience,2011,25(1):114-121 doi: 10.3969/j.issn.1000-8527.2011.01.015
    [5] 李闽峰,李圣强,陈颙. 探讨地震宏观破坏场分布的影响因素[J]. 中国地震,2000,16(4):293-306 doi: 10.3969/j.issn.1001-4683.2000.04.001

    Li Minfeng,Li Shengqiang,Chen Yong. Study on the main affected factors of the distribution of the macro field of earthquake[J]. Earthquake Research in China,2000,16(4):293-306 doi: 10.3969/j.issn.1001-4683.2000.04.001
    [6] 王晓青,邵辉成,丁香. 地震速报参数不确定性的应急灾害损失快速评估模型[J]. 地震工程与工程振动,2003,23(6):198-201 doi: 10.3969/j.issn.1000-1301.2003.06.032

    Wang Xiaoqing,Shao Huicheng,Ding Xiang. Model for fast assessment of earthquake damage and losses considering uncertainty of epicenters obtained from rapid determination of earthquake location[J]. Earthquake Engineering and Engineering Vibration,2003,23(6):198-201 doi: 10.3969/j.issn.1000-1301.2003.06.032
    [7] 曹刻,王锋,李永强,等. 云南宁洱6.4级地震灾区范围的快速判断[J]. 灾害学,2008,23(2):76-79 doi: 10.3969/j.issn.1000-811X.2008.02.017

    Cao Ke,Wang Feng,Li Yongqiang,et al. Fast judgment of disaster area of Ning’er M6.4 earthquake in Yunnan[J]. Journal of Catastrophology,2008,23(2):76-79 doi: 10.3969/j.issn.1000-811X.2008.02.017
    [8] 白仙富,戴雨芡,李永强,等. 基于余震信息的宏观震中和影响场方向快速判定方法−以云南地区为例[J]. 地震研究,2011,34(4):525-532 doi: 10.3969/j.issn.1000-0666.2011.04.020

    Bai Xianfu,Dai Yuqian,Li Yongqiang,et al. Rapid assessment of the macro-epicenter and earthquake-effected field based on aftershocks:A case study of Yunnan area[J]. Journal of Seismological Research,2011,34(4):525-532 doi: 10.3969/j.issn.1000-0666.2011.04.020
    [9] 陈颙. 测定浅震震源参数的宏观方法[J]. 地球物理学报,1975,18(4):246-255

    Chen Yong. On the determination of focal parameters of shallow earthquakes by means of macroseismic method[J]. Chinese Journal of Geophysics,1975,18(4):246-255
    [10] 吴健,吕红山,刘爱文. 汶川地震烈度分布与震源过程相关性的初步研究[J]. 震灾防御技术,2008,3(3):224-229 doi: 10.3969/j.issn.1673-5722.2008.03.003

    Wu Jian,Lü Hongshan,Liu Aiwen. Preliminary study on correlation between seismic intensity and earthquake source process in Wenchuan earthquake[J]. Technology for Earthquake Disaster Prevention,2008,3(3):224-229 doi: 10.3969/j.issn.1673-5722.2008.03.003
