Preliminary discussion on the earthquake early warning network of Jiangxi Province
-
摘要: 江西省地震烈度速报与预警工程是对江西省现有地震监测台网进行加密和升级后，形成的地震烈度速报与预警观测网络和紧急地震信息服务网络，向社会公众和政府部门及时提供紧急地震信息服务。本文介绍了江西省地震烈度速报与预警工程基本情况，重新对江西省地震监测能力进行了计算，并对地震预警能力进行了评估。Abstract: The earthquake early warning system is formed by seismic stations and the urgent information systems. Many seismic stations are added to the original seismic monitoring network and old operation systems are upgraded. Early warning and emergency earthquake information to the public and government departments can be published rapidly. This article introduces the earthquake early warning network of Jiangxi Province and evaluates the seismic monitoring capability.
-

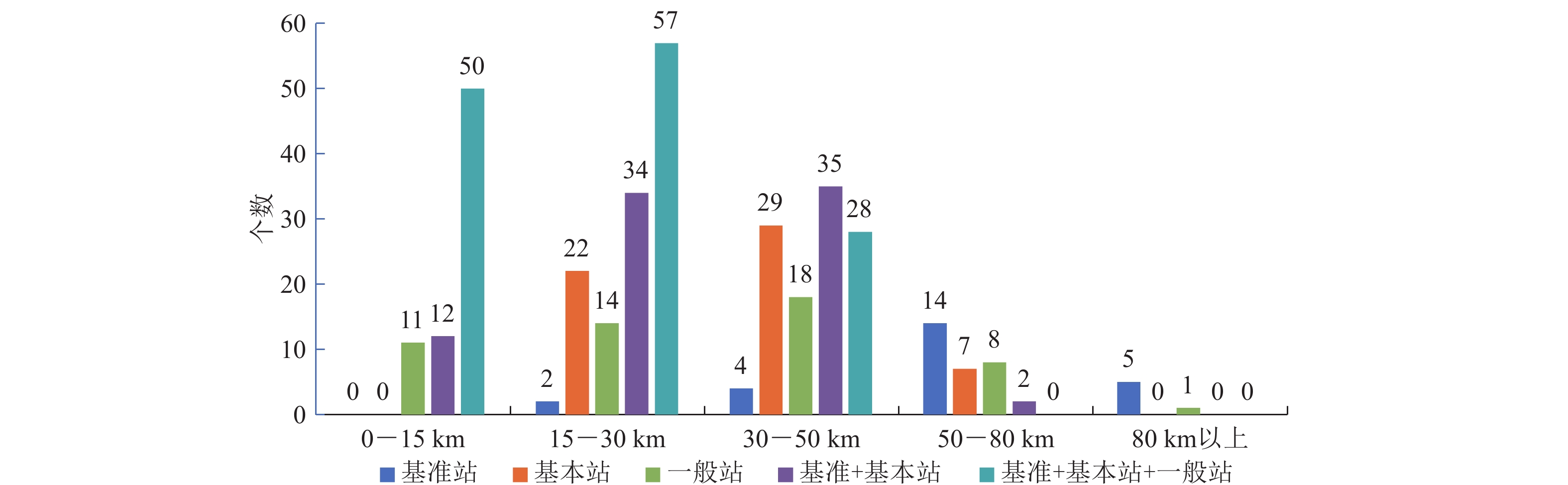

图 2 江西省不同台站台间距台站数统计
Figure 2. Statistics on the stations with different station spacing in Jiangxi Province

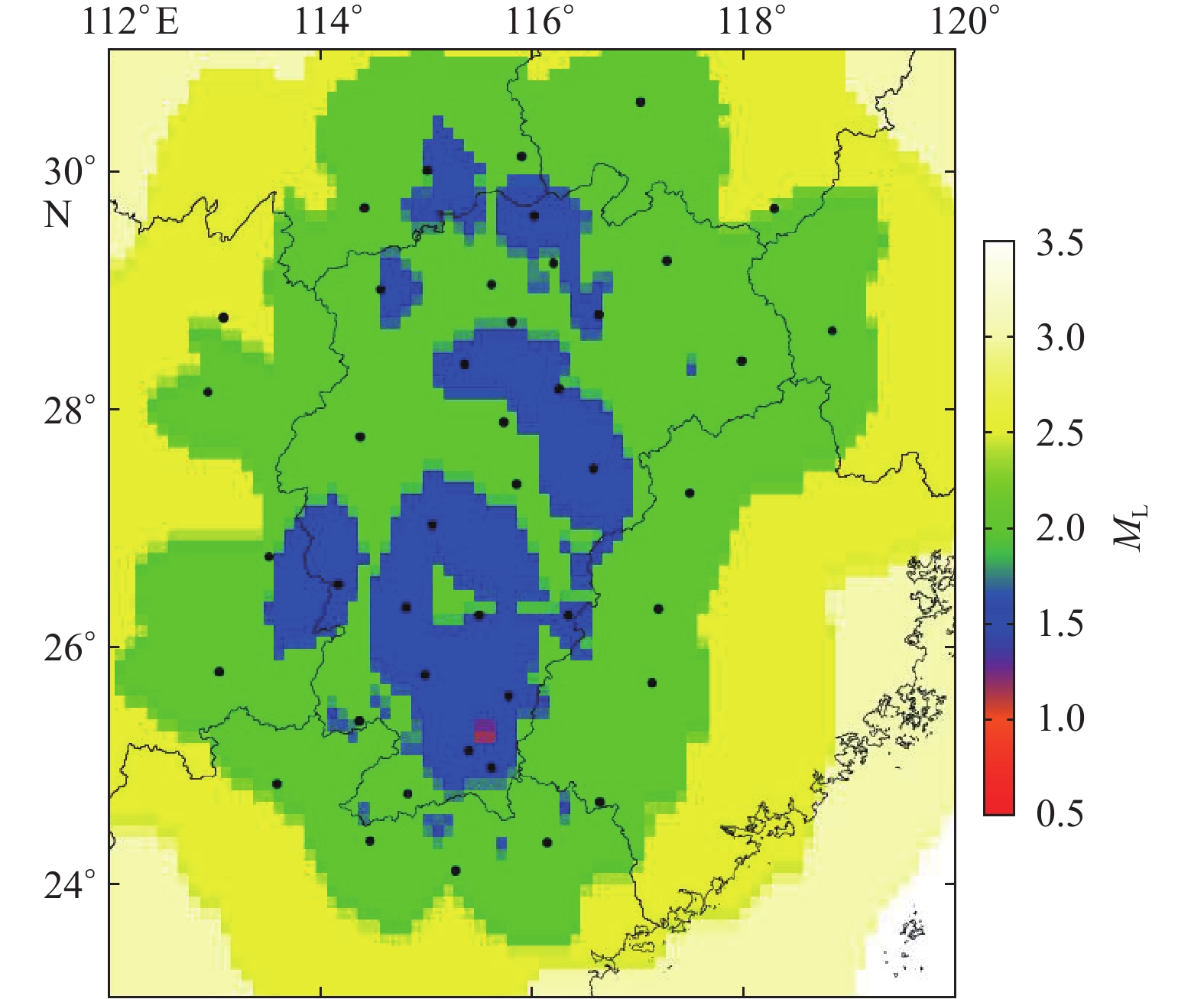

图 3 江西省基准站3台定位监测能力图
Figure 3. The earthquake monitoring capacity of 3 reference stations of Jiangxi Province

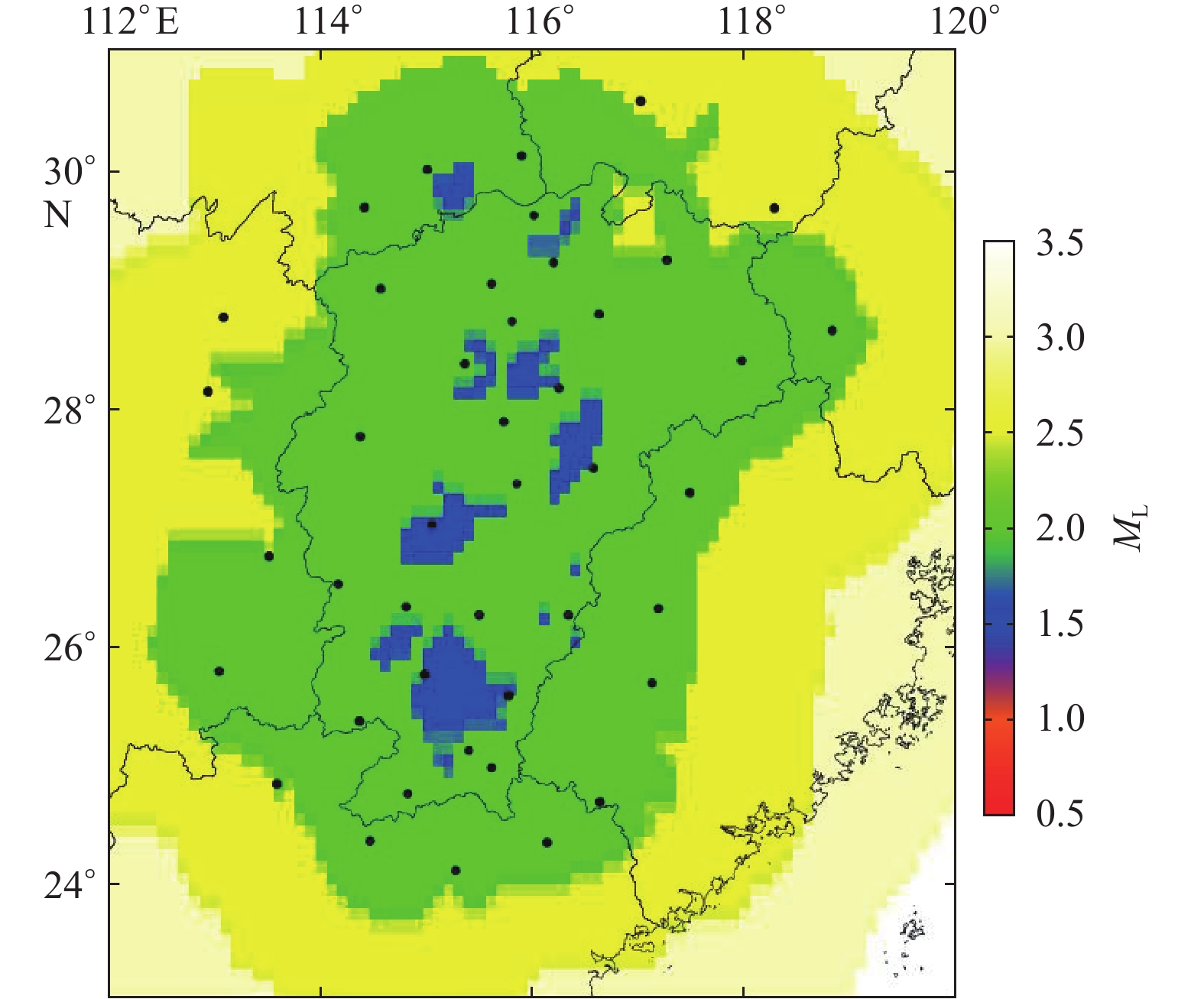

图 4 江西省基准站4台定位监测能力图
Figure 4. The earthquake monitoring capacity of 4 reference stations of Jiangxi Province

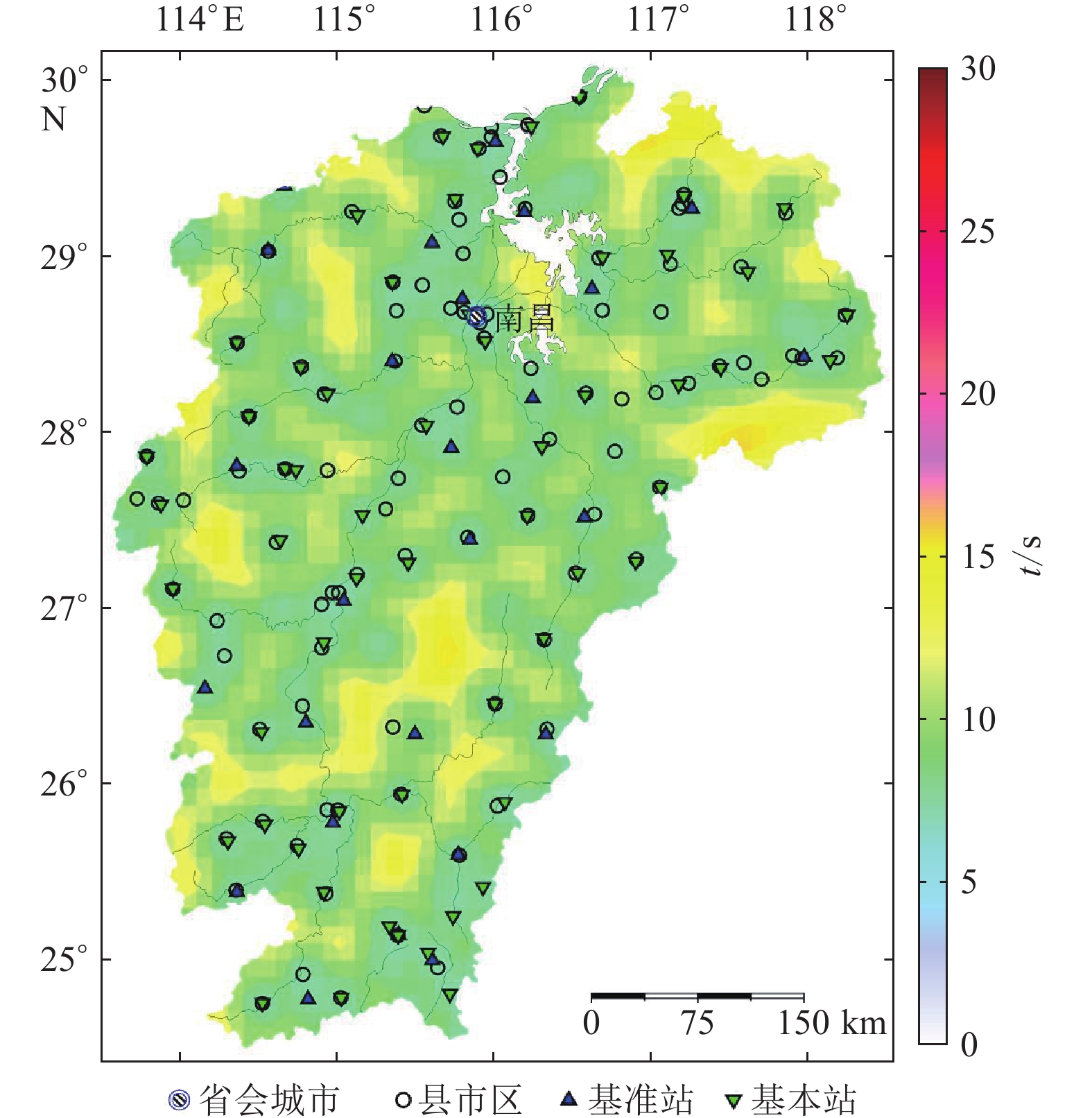

图 5 江西省地震预警第1报需时
Figure 5. The first earthquake warning time needed in Jiangxi Province

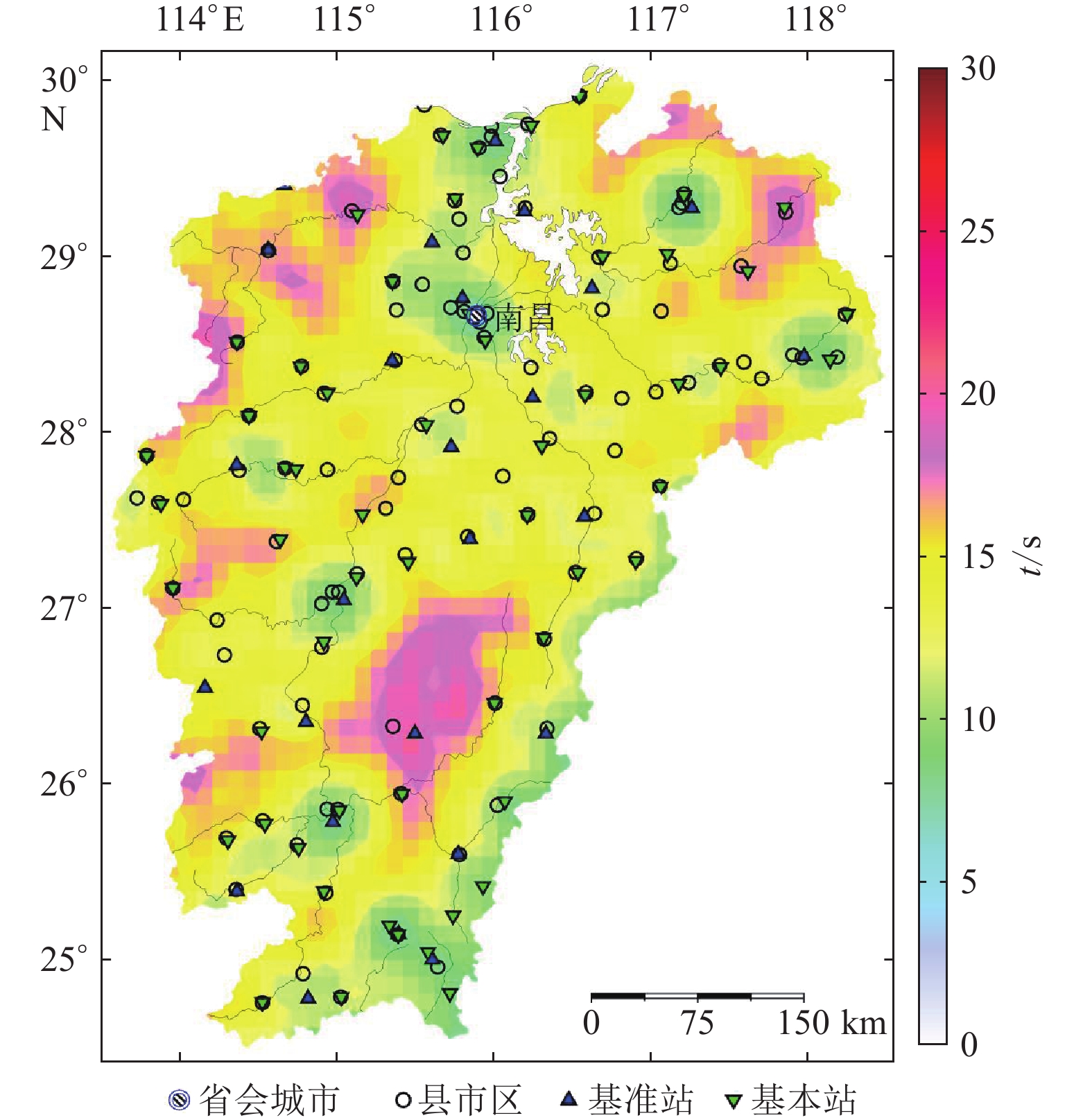

图 7 江西省地震预警第3报需时
Figure 7. The third earthquake warning time needed in Jiangxi Province

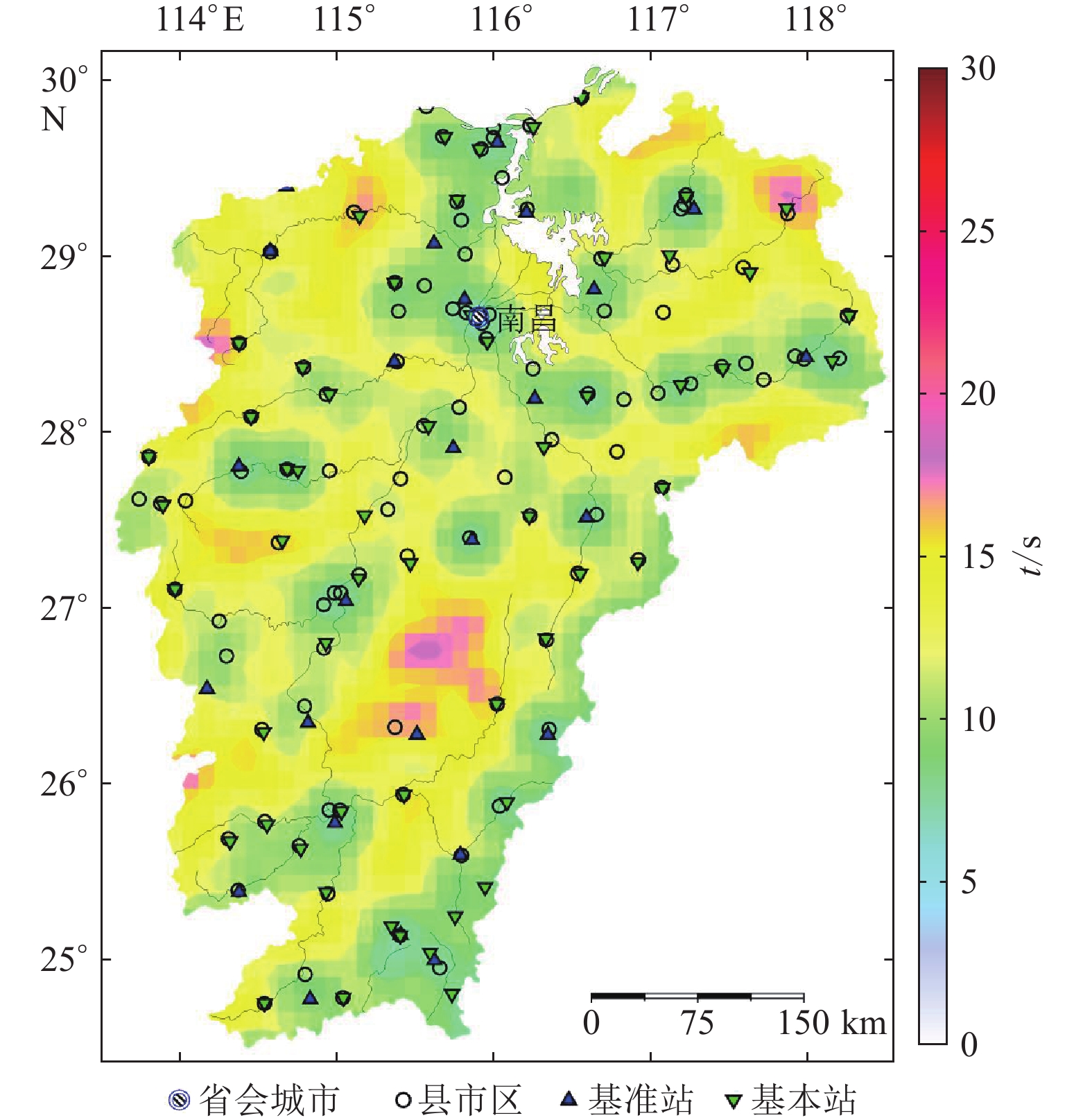

图 6 江西省地震预警第2报需时
Figure 6. The second earthquake warning time needed in Jiangxi Province
表 1 量规函数与震中距关系
Table 1. Relationship between scale function
$R(\Delta )$ and epicenter distance$\varDelta $ /km0—5 10 15 20 25 30 35 40 45 50 55 60—70 75—85 90—100 $R(\Delta )$ 1.8 1.9 2.0 2.1 2.3 2.5 2.7 2.8 2.9 3.0 3.1 3.3 3.3 3.4
下载: 导出CSV
表 2 江西台网基准站噪声统计表
Table 2. Noise statistics table of reference station of Jiangxi seismic network
序号 台站名 噪声值/
（×10−8 m•s−1）台站噪声分级 1 南昌 4.4422 Ⅱ 2 九江 6.3859 Ⅱ 3 会昌 3.4632 Ⅱ 4 上饶 2.9892 Ⅰ 5 修水 3.1091 Ⅰ 6 寻乌 3.1056 Ⅰ 7 安远 4.7267 Ⅱ 8 大余 7.7876 Ⅱ 9 龙南 4.6193 Ⅱ 10 赣州 8.3981 Ⅱ 11 石城 7.6433 Ⅱ 12 万安 1.7247 Ⅰ 13 井冈山 1.8458 Ⅰ 14 吉安 3.9889 Ⅱ 15 南城 2.2121 Ⅰ 16 乐安 3.2285 Ⅱ 17 宜春 4.1913 Ⅱ 18 丰城 3.9358 Ⅱ 19 高安 16.7207 Ⅲ 20 进贤 17.6998 Ⅲ 21 余干 7.8550 Ⅱ 22 景德镇 1.5028 Ⅰ 23 都昌 7.5367 Ⅱ 24 永修 1.6945 Ⅰ 25 兴国 2.4614 Ⅰ
下载: 导出CSV
-
[1] 李山有,金星,马强,等. 地震预警系统与智能应急控制系统研究[J]. 世界地震工程,2004,20(4):21-26Li Shanyou,Jin Xing,Ma Qian,et a1. Study on earthquake early warning system and intelligent emergency controlling system[J]. World Earthquake Engineering,2004,20(4):21-26 [2] Nakamura Y. UrEDAS, Urgent earthquake detection and alarm system, now and future[C]. Proceedings of 13th World Conference Oil Earthquake Engineering, 2004 [3] 朱福祥,郭迅,李山有,等. 重大工程地震预警初步研究[J]. 世界地震工程,2002,18(3):32-36Zhu Fuxiang,Guo Xun,Li Shanyou,et a1. Preliminary study on earthquake early warning system for significant infrastructures[J]. World Earthquake Engineering,2002,18(3):32-36 [4] Mert A, Alcik H, Erdik M, et al. Istanbul earthquake rapid response and the early warning system[C]. Proceedings of 13th World Conference on Earthquake Engineering, 2004 [5] Allen R M,Kanamori H,蒋伟进. 加利福尼亚南部地震预警的可能性[J]. 世界地震译丛,2004(2):15-19Allen R M,Kanamori H,Jiang Weijin. The potential for earthquake early warning in southern California[J]. Translated World Seismology,2004(2):15-19 [6] Lee W H K, Shin T C, Teng T L. Design and implementation of earthquake early warning system in Taiwan[C]. Proceedings of 11th World Conference on Earthquake Ensnaring, 1996 [7] Wu Y M,Chung J K,Shin T C,et a1. Development of an integrated earthquake early warning system in Taiwan-case for the Hualian area earthquakes[J]. Terrestrial Atmospheric and Oceanic Sciences,1999,10(4):719-736 doi: 10.3319/TAO.1999.10.4.719(T) [8] 廖旭,黄河. 企业地震预警系统应用研究[J]. 地震工程与工程振动,2002,22(6):142-149Liao Xu,Huang He. Study on earthquake alarm system for enterprises[J]. Earthquake Engineering and Engineering Vibration,2002,22(6):142-149 [9] 刘林,阎贵平,辛学忠. 京沪高速铁路地震预警系统的方案及关键参数研究[J]. 中国安全科学学报,2002,12(4):75-79Liu Lin,Yan Guiping,Xin Xuezhong. Study on schemes and key parameters of seismic alarm system for Beijing-Shanghai express railway[J]. China Safety Science Journal,2002,12(4):75-79 [10] 张有林,戚浩,王燚坤,等. 安徽省地震台网监测能力和监控范围估算[J]. 地震地磁观测与研究,2005,26(6):56-59Zhang Youlin,Qi Hao,Wang Yikun,et a1. The estimate of Anhui Province seismic network monitoring ability and controlling range[J]. Seismological and Geomagnetic Observation and Research,2005,26(6):56-59 [11] 薛兵. 测震台网监测能力估算[R]. 杭州: 浙江省地震局, 2013Que Bing. The estimate of seismic network monitoring ability[R]. Hangzhou: Zhejiang Earthquake Agency, 2013 [12] 中国地震局监测预报司. 地震学与地震观测[M]. 北京: 地震出版社, 2007Department of Earthquake Monitoring and Prediction, China Earthquake Administration. Seismology and seismological observation[M]. Beijing: Seismological Press, 2007 [13] 童汪练. 地震仪参数测定简介[R]. 北京, 2003Tong Wanglian. Brief introduction to the determination of seismograph parameters[R]. Beijing, 2003 [14] 张红才. 地震预警系统关键技术研究[D]. 哈尔滨: 中国地震局工程力学研究所, 2013Zhang Hongcai. Study of key technologies in earthquake early warning system[D]. Harbin: Institute of engineering mechanics, China Earthquake Administration, 2013 -
