趣味地震学(23):地震波之魂−S波

冯锐

冯锐. 趣味地震学(23):地震波之魂−S波[J]. 地震科学进展, 2020, (11): 39-49. doi: 10.3969/j.issn.2096-7780.2020.11.007
引用本文: 冯锐. 趣味地震学(23):地震波之魂−S波[J]. 地震科学进展, 2020, (11): 39-49. doi: 10.3969/j.issn.2096-7780.2020.11.007
Rui Feng. Interesting seismology (23):S wave is the soul of seismic waves[J]. Progress in Earthquake Sciences, 2020, (11): 39-49. doi: 10.3969/j.issn.2096-7780.2020.11.007
Citation: Rui Feng. Interesting seismology (23):S wave is the soul of seismic waves[J]. Progress in Earthquake Sciences, 2020, (11): 39-49. doi: 10.3969/j.issn.2096-7780.2020.11.007

趣味地震学(23):地震波之魂−S波

doi: 10.3969/j.issn.2096-7780.2020.11.007
详细信息
    作者简介:

    冯锐:fr97214@sina.com

    通讯作者:

    冯锐(1941-),男,研究员,主要从事地球物理方面的研究。E-mail:fr97214@sina.com

  • 中图分类号: P315

Interesting seismology (23):S wave is the soul of seismic waves

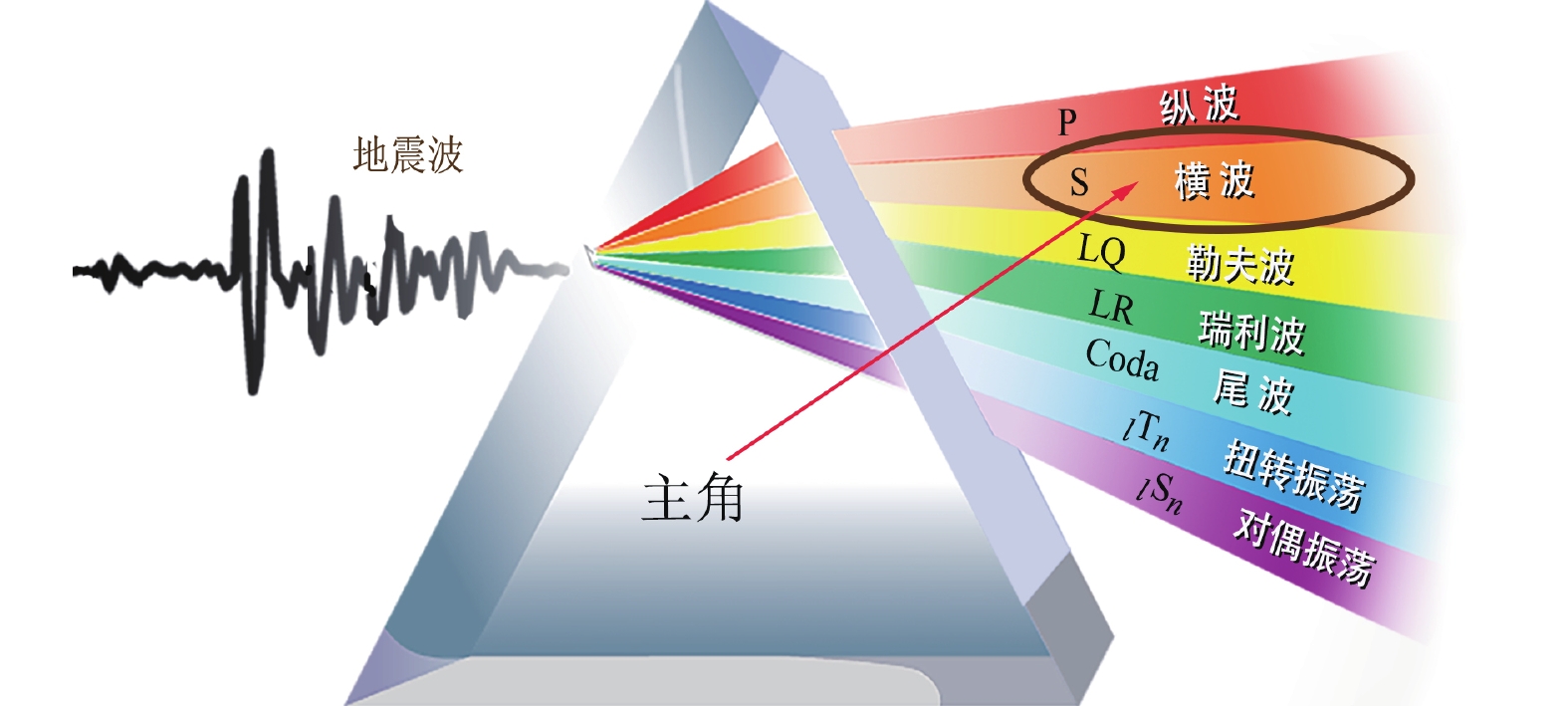

  • 图  1  地震波的基本成分

    Figure  1.  Basic composition of seismic wave

    图  2  断层的剪切位错

    Figure  2.  Shear dislocation of a fault

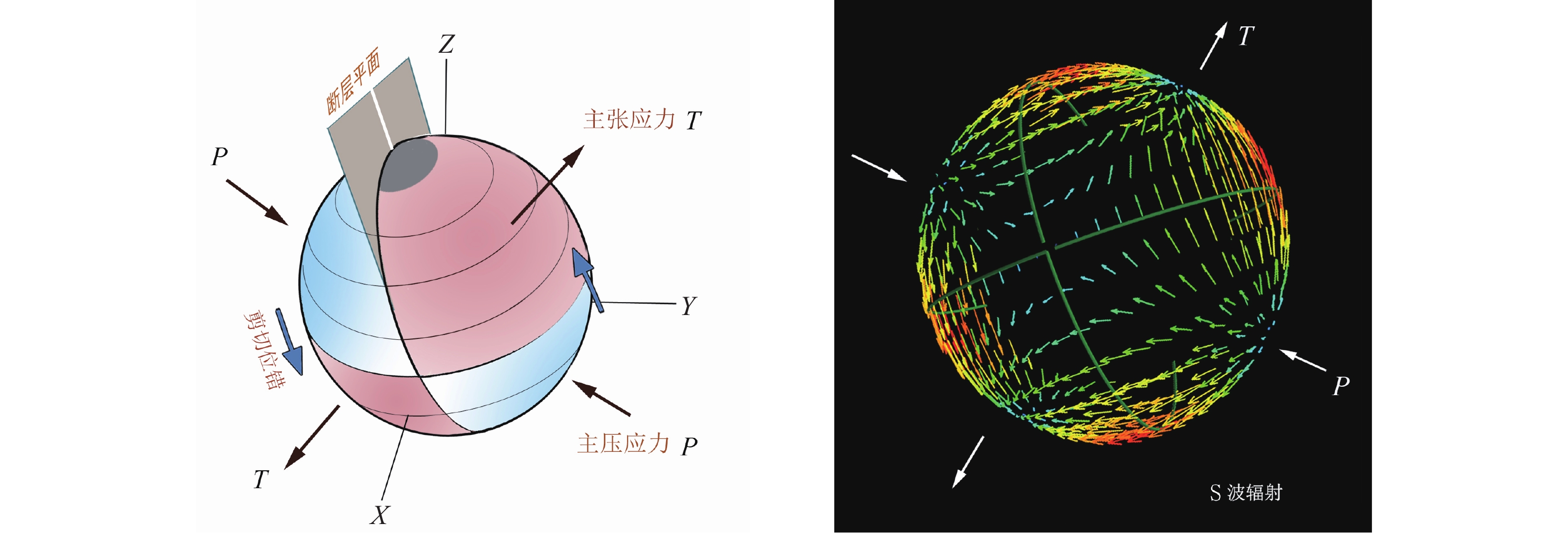

    图  3  震源球体的力学模型

    Figure  3.  Mathematical model of earthquake source

    图  4  米歇尔(1724—1793)和泊松(1781—1840)

    Figure  4.  John Michell (1724—1793) and Simon Denis Poisson (1781—1840)

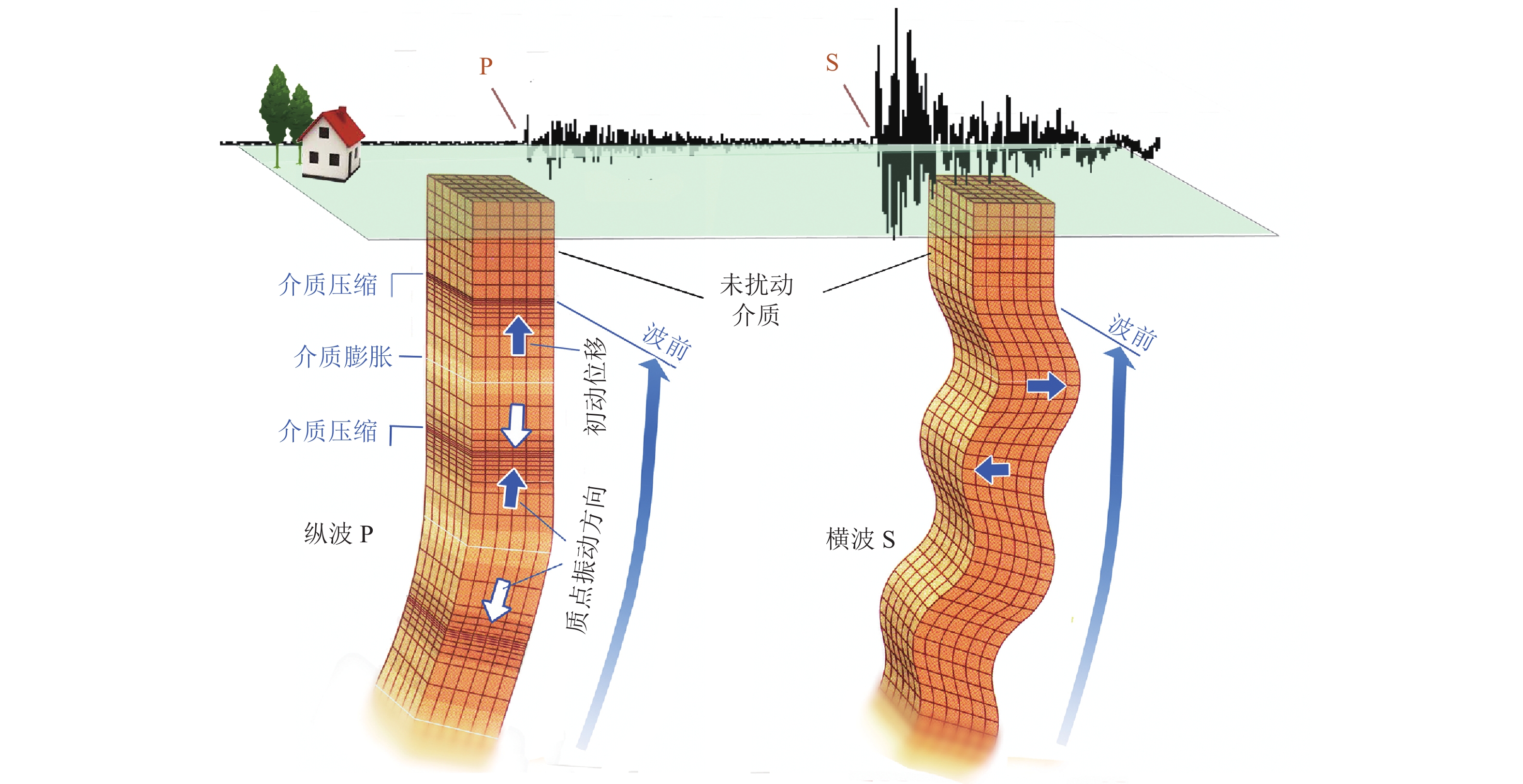

    图  5  地震纵横波及其记录图

    Figure  5.  Longitudinal and shear waves with their recording

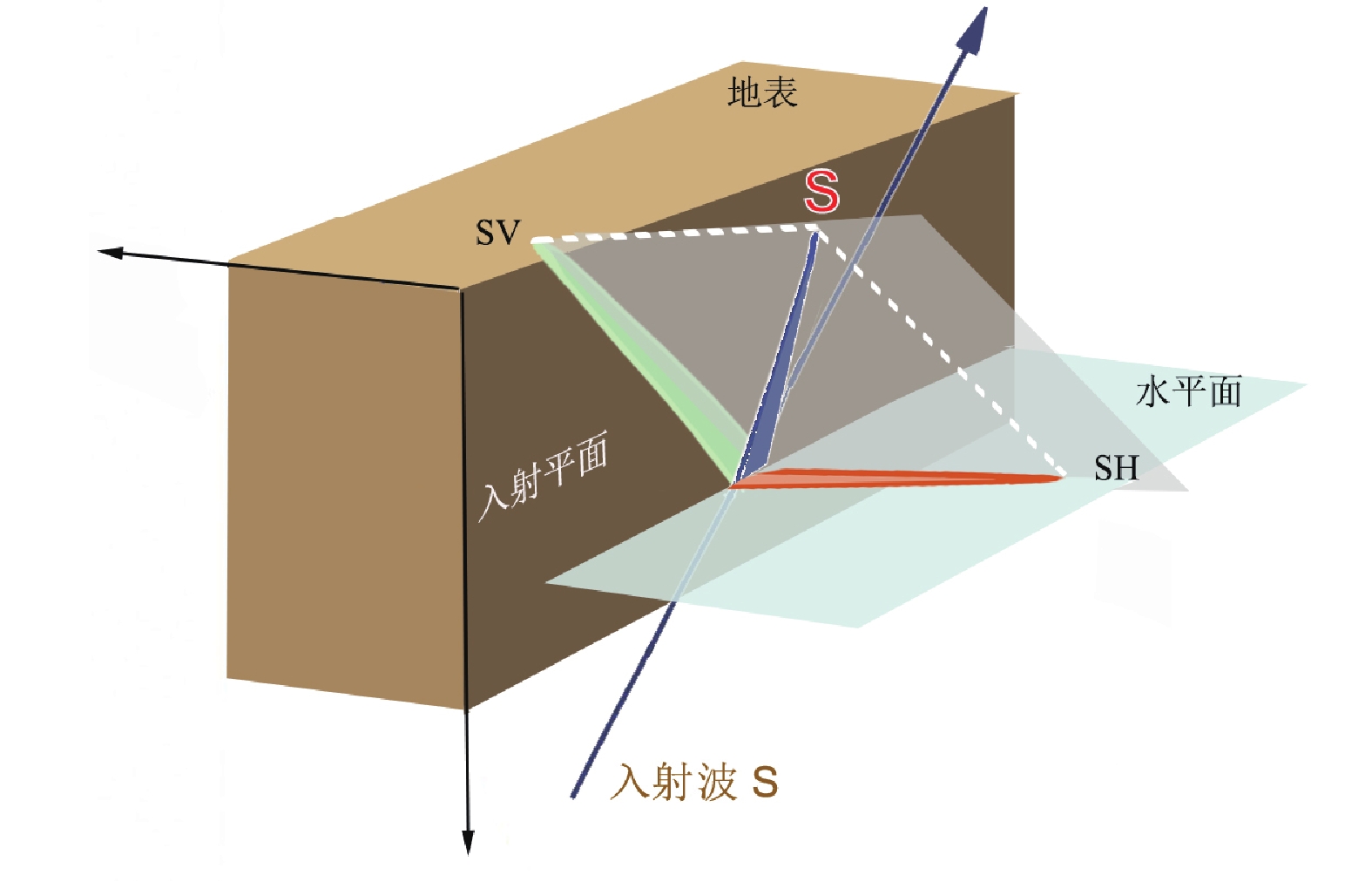

    图  6  S波分解成SV和SH两部分

    Figure  6.  S wave can be deposited into two parts

    图  7  瑞利(1842—1919)和勒夫(1863—1940)

    Figure  7.  Lord Rayleigh (1842—1919) and Augustus E H Love (1863—1940)

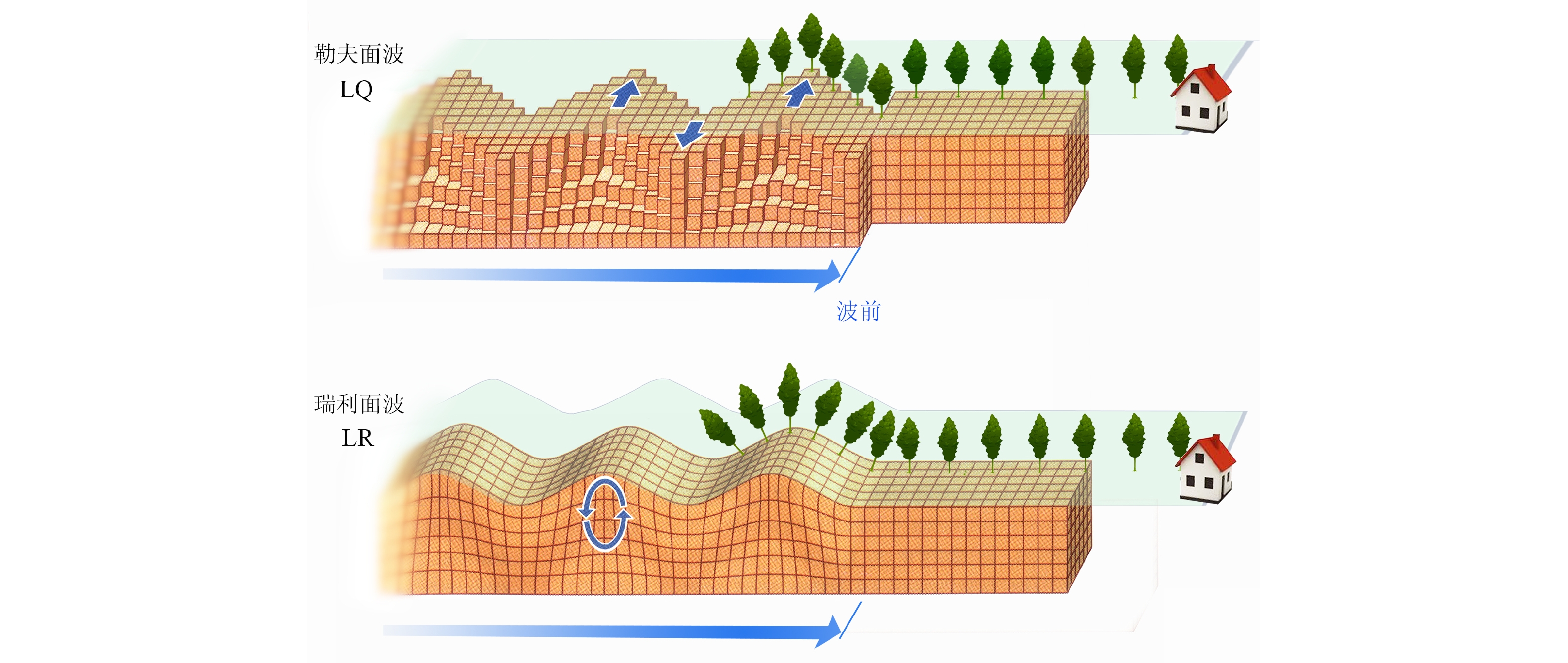

    图  8  两种地震面波

    Figure  8.  Two kinds of seismic surface waves

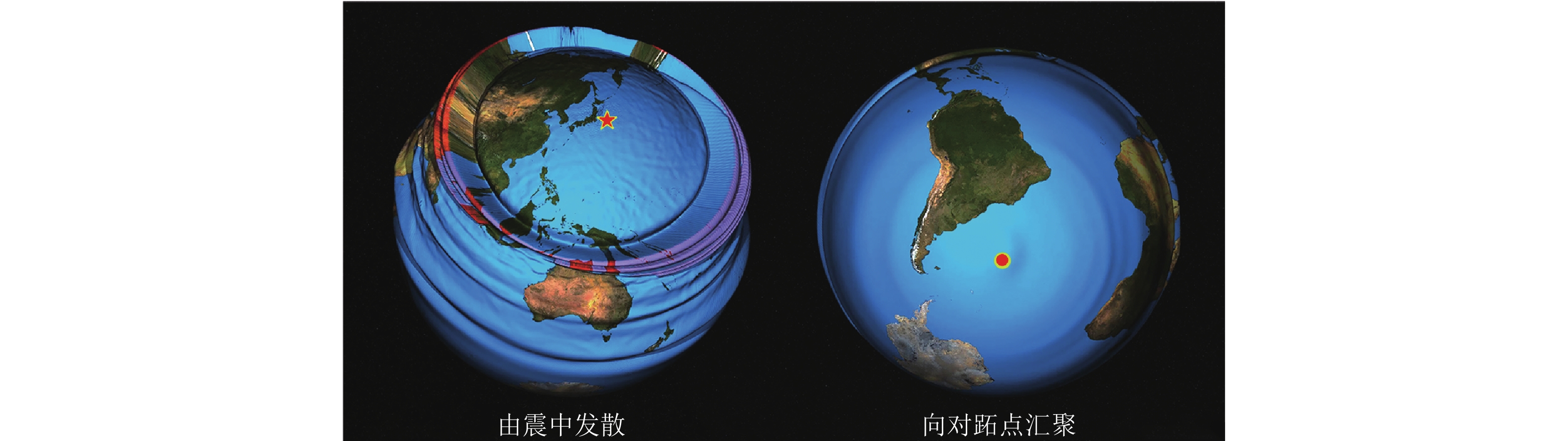

    图  9  面波波阵面的传播

    Figure  9.  Wave front propagation of surface wave

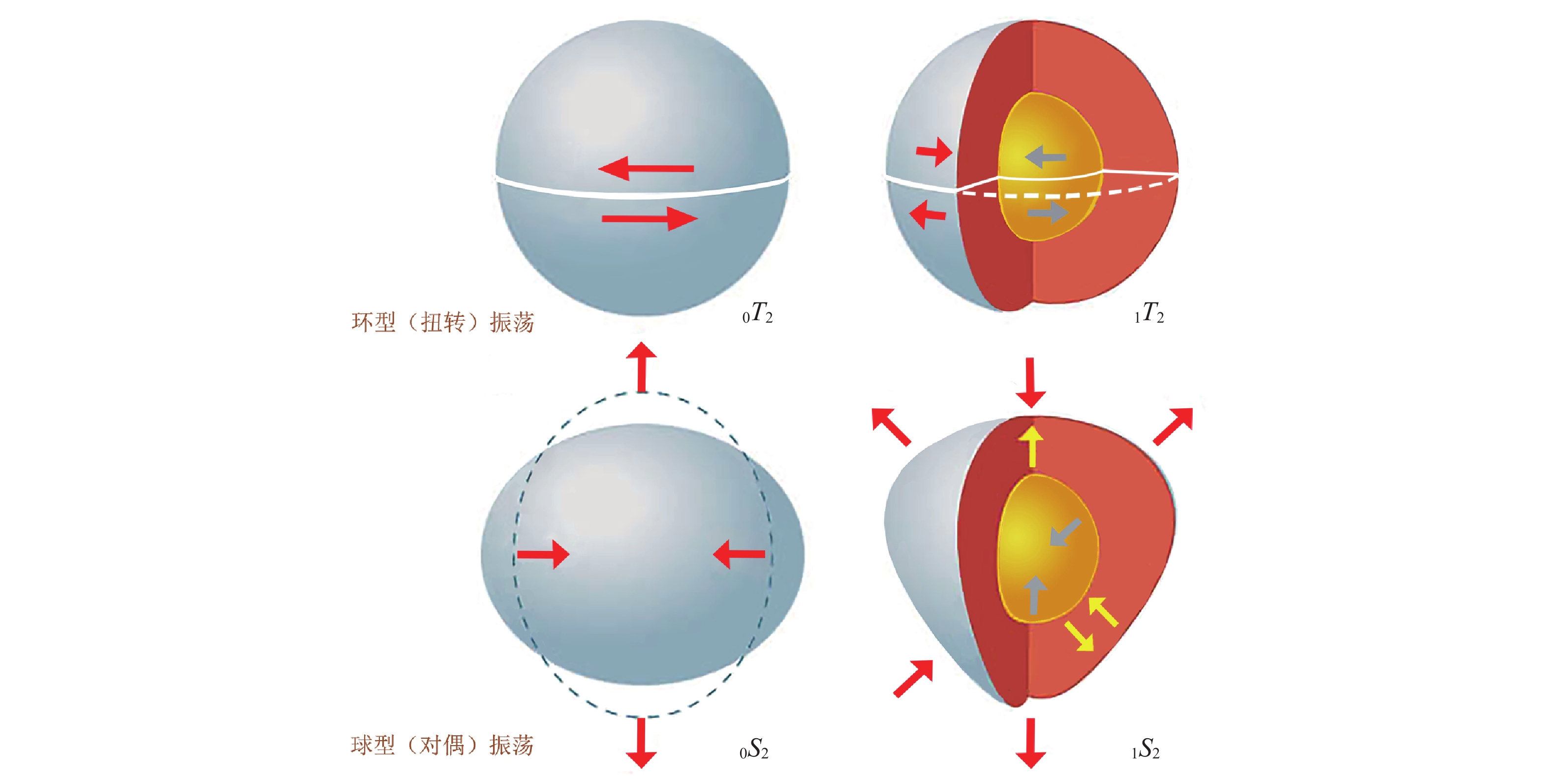

    图  10  地球自由震荡的两种类型

    Figure  10.  Two kinds of pattern of free oscillation

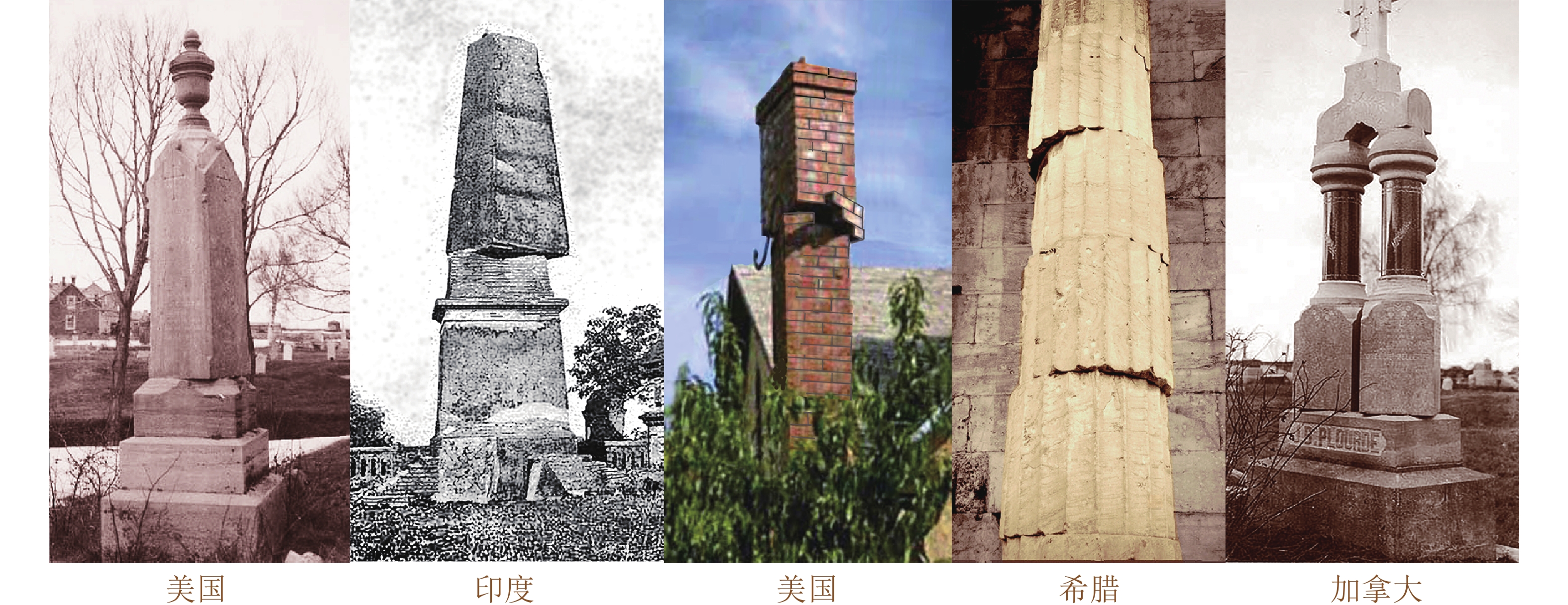

    图  11  地震波旋转运动的破坏

    Figure  11.  Damaged buildings caused by seismic rotation

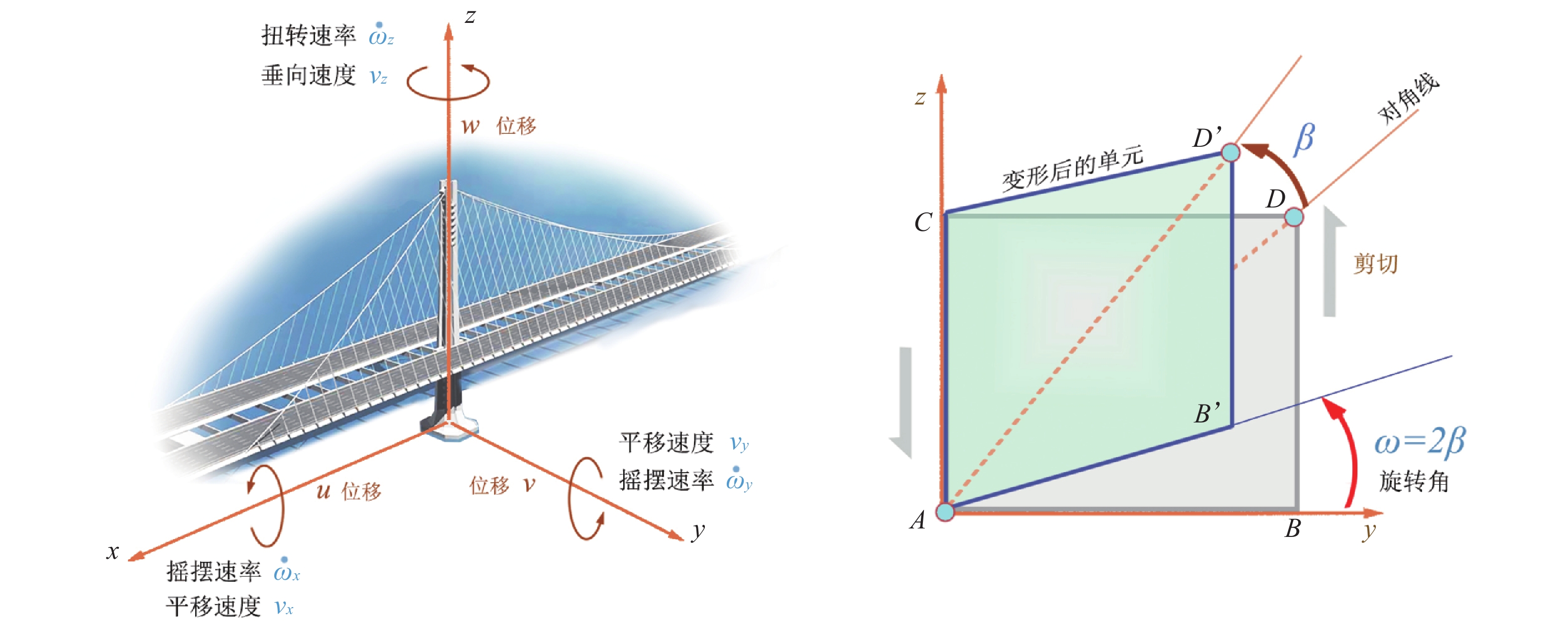

    图  12  地震观测和旋转变形

    Figure  12.  Seismic observation and rotation movement

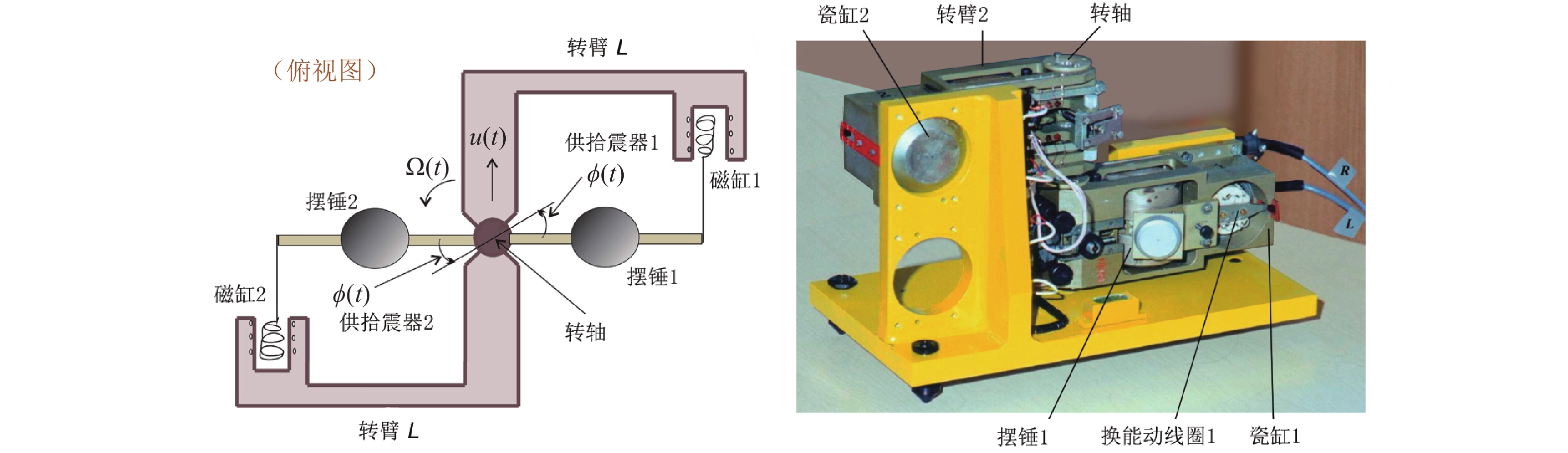

    图  13  摆式旋转地震仪[6]

    Figure  13.  Pendulum rotary seismograph[6]

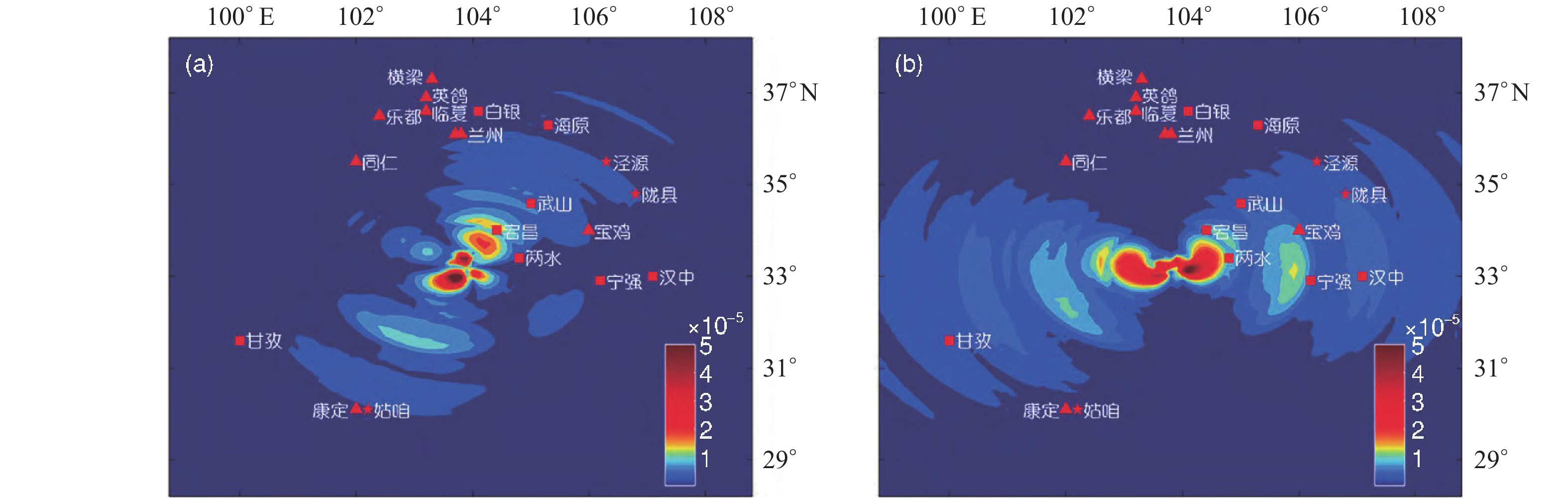

    图  14  地面旋转图像[7]

    Figure  14.  Image map of ground rotation[7]

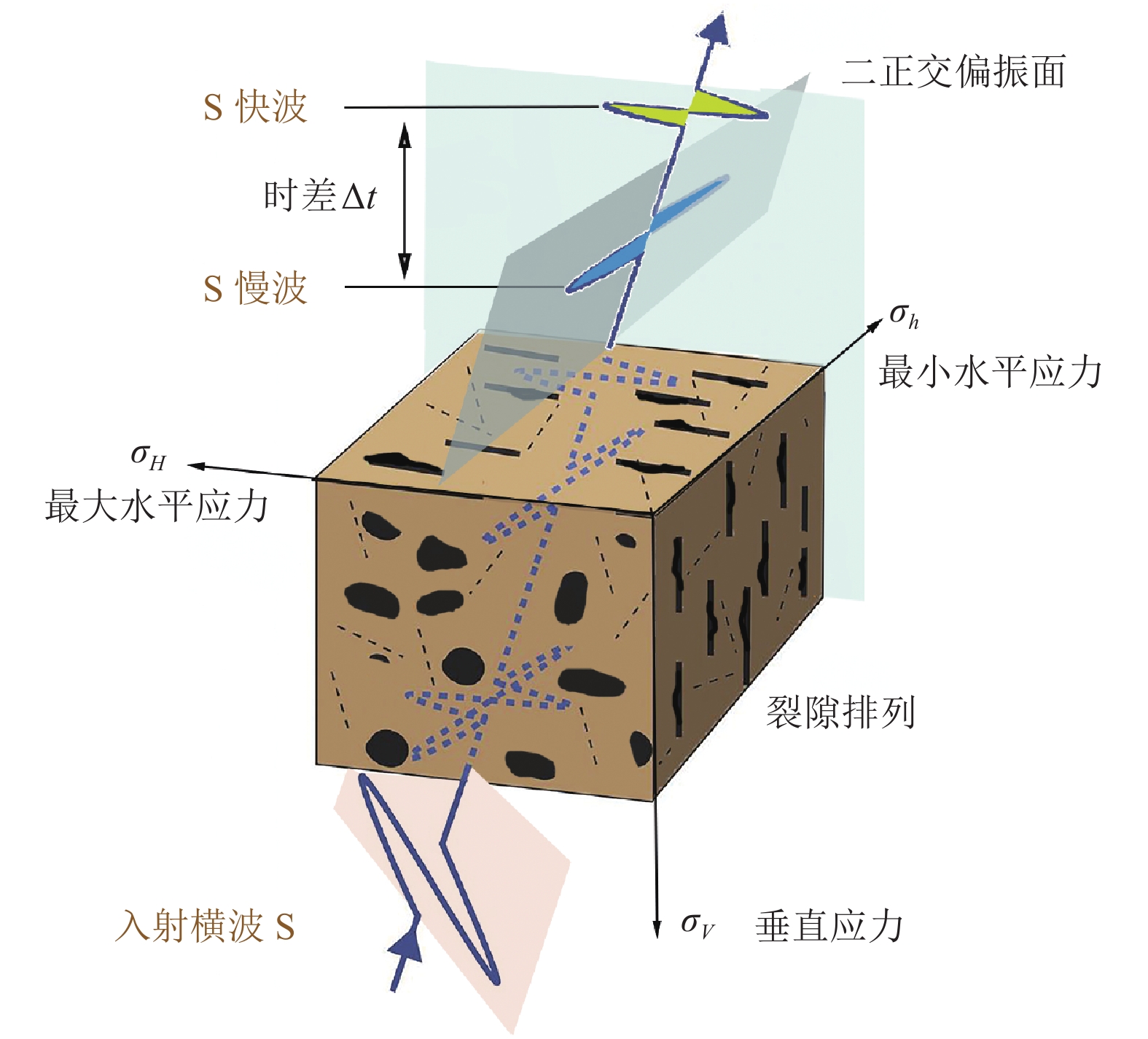

    图  15  在微裂隙岩石中的S波分裂

    Figure  15.  Schematic illustration of shear-wave splitting in microcracked rock

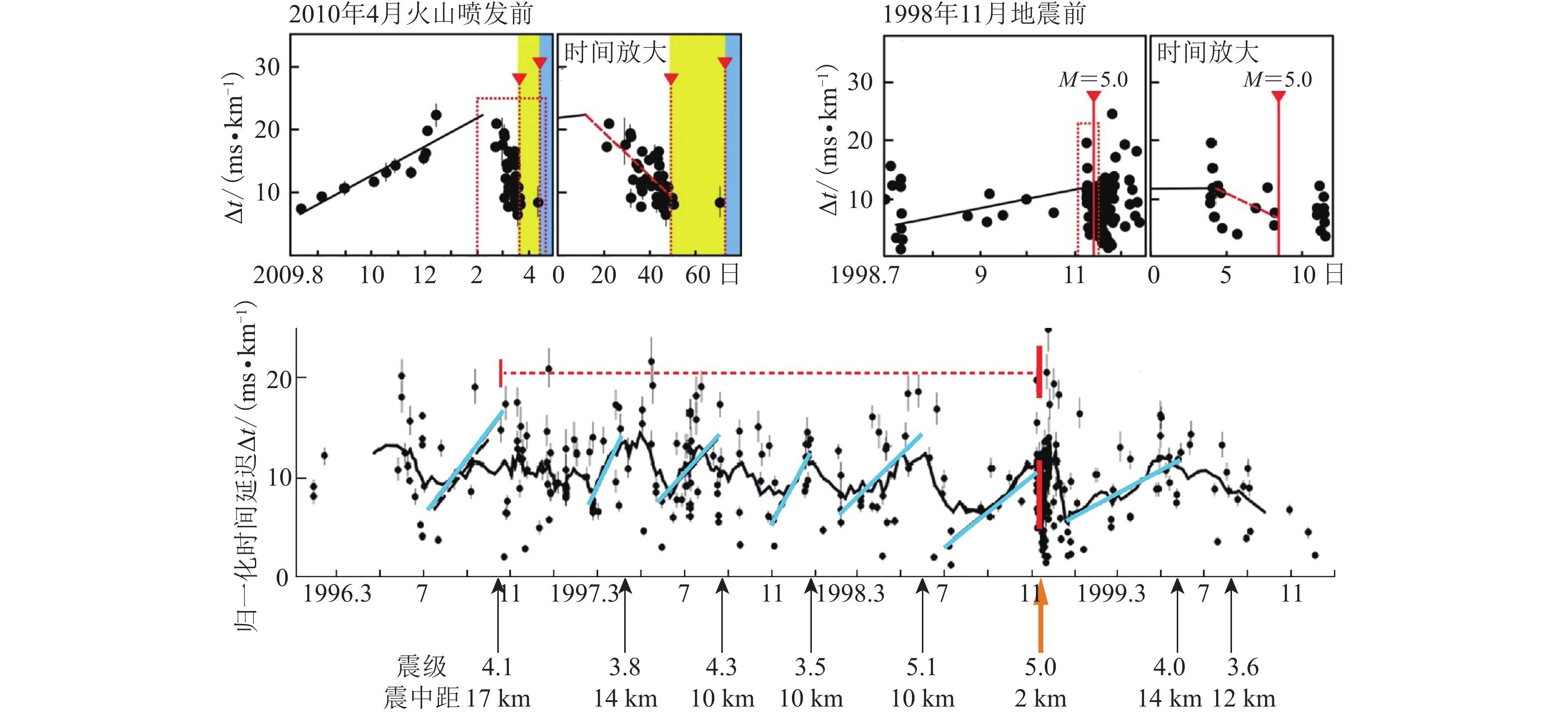

    图  16  S波分裂的时间延迟在地震和火山喷发前的变化

    Figure  16.  Variations of S-wave splitting time-delays before earthquake and volcano eruption

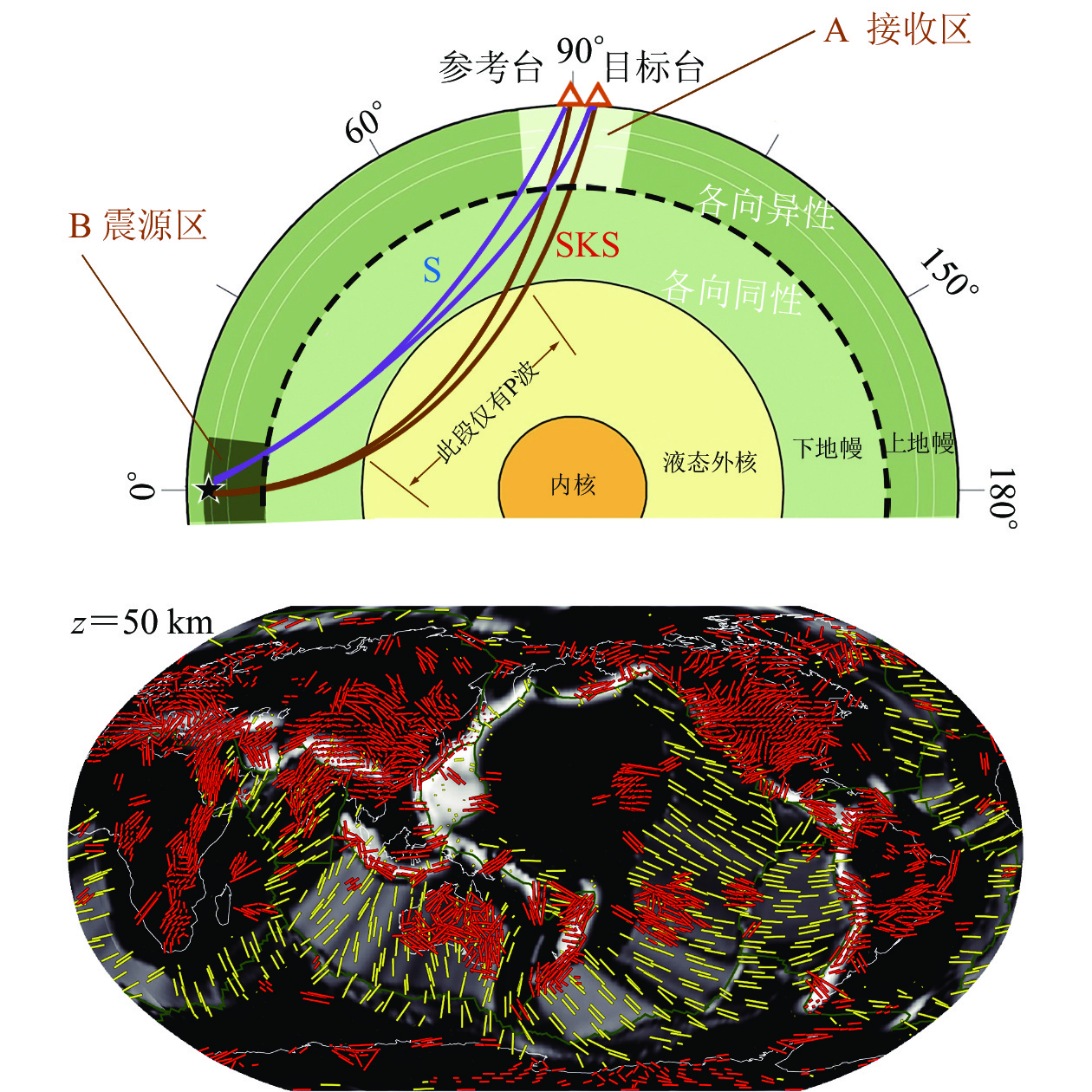

    图  17  利用SKS波的分裂探测上地幔各向异性

    Figure  17.  SKS-wave splitting explores the anisotropic in upper mantle

    图  18  S波在水中消失

    Figure  18.  S wave disappears in water

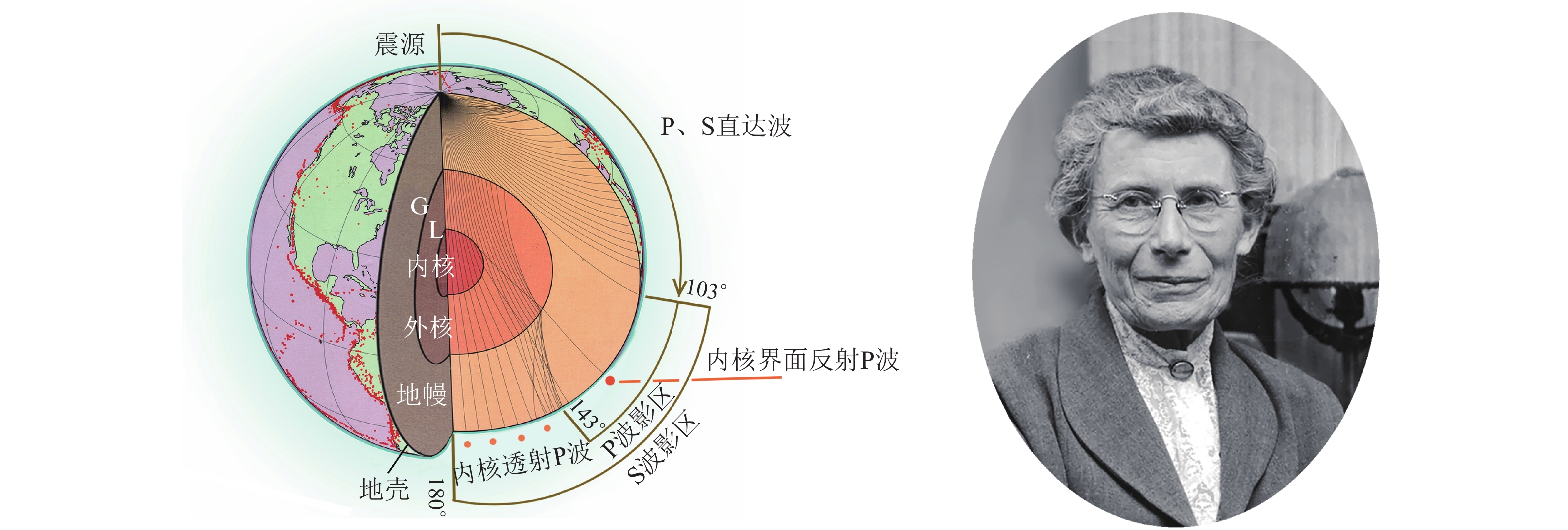

    图  19  莱曼(1888—1993)与地核的发现

    Figure  19.  Lohmann (1888—1993) and the discovery of external-inner cores

    图  20  俄罗斯首座浮动核电站

    Figure  20.  Russian floating nuclear power plant

    图  21  (左)1945—2017年间全球核爆次数(斯德哥尔摩国际和平研究所SIPRI),(右)美国内华达州地下核武器试验场

    Figure  21.  (left) Number of nuclear tests in the world (1945—2017), (right) U.S. Nevada underground nuclear weapons test site

    图  22  爆炸震源和P波辐射图样

    Figure  22.  Explosion source and P wave radiation pattern

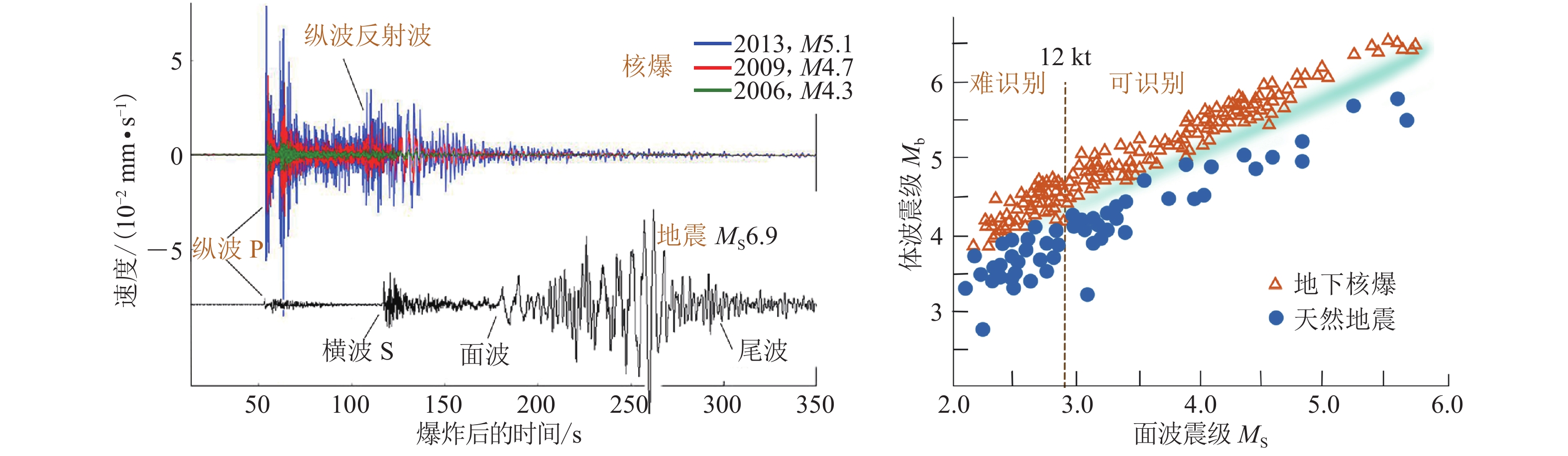

    图  23  核爆在记录和震级测定上的差异

    Figure  23.  The differences in recording and magnitude between nuclear test and earthquake

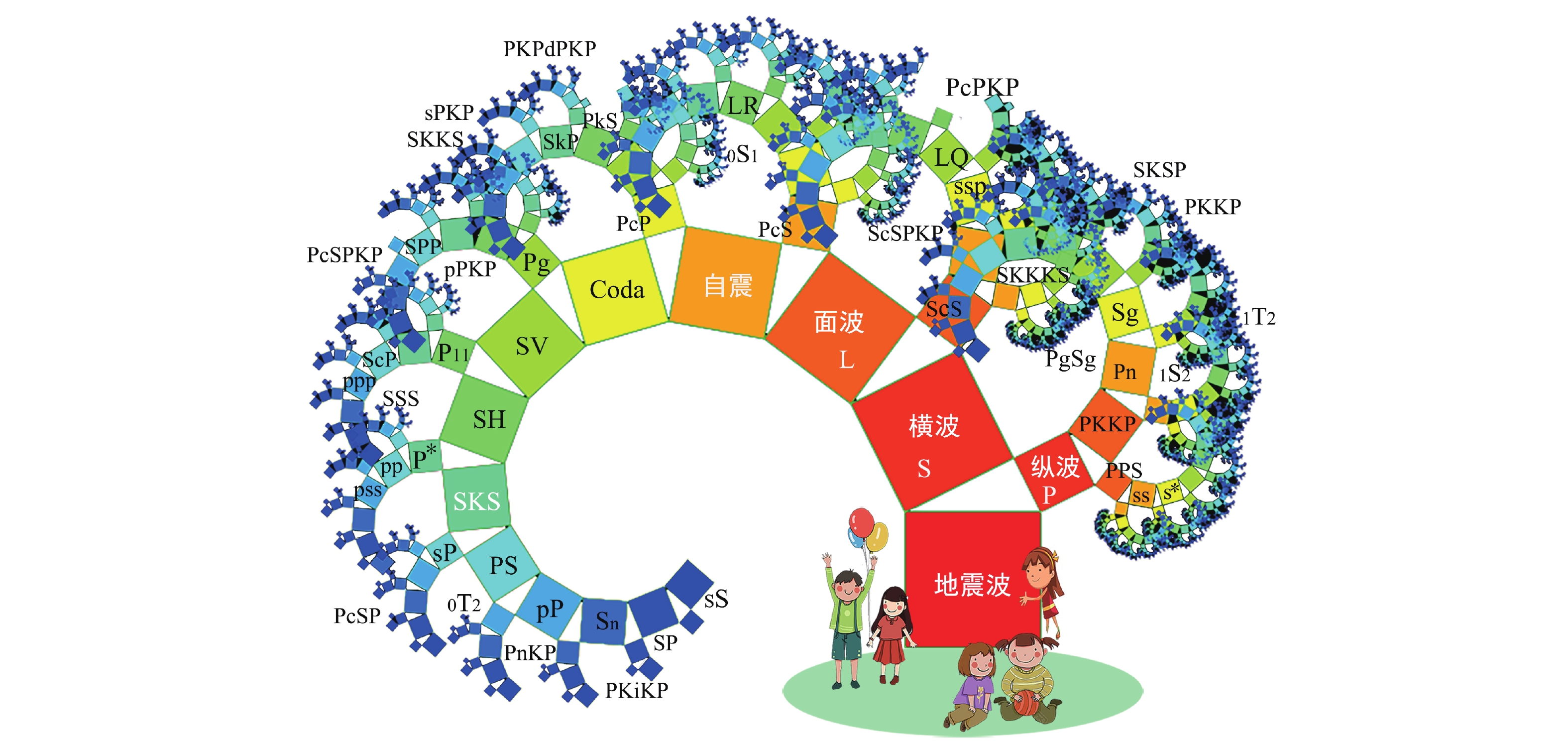

    图  24  地震波的苹果树

    Figure  24.  Apple tree of seismic waves
