Assessment of seismic intensity in the Pishan earthquake extreme disaster area based on UAV images
-
摘要: 2015年7月3日新疆维吾尔自治区皮山县（37.6°N，78.2°E）发生MS6.5地震，震源深度10 km。本文采用无人机遥感影像，结合新疆地震现场调查的真实资料，提取了灾区震害信息，采用地震烈度遥感定量评估方法完成了极灾区地震烈度遥感评估，并且完善了新疆多结构类型建筑物地震烈度遥感评估方法。结果表明：皮山地震极灾区地震烈度遥感评估结果与地震现场调查结果一致，与中国地震局公布的皮山地震烈度图中该区域的地震烈度一致，遥感评估结果较为准确。该方法的完善可为今后新疆地震烈度遥感评估工作服务，为今后新疆无人机遥感技术的深入应用提供基础。Abstract: On July 3, 2015, An earthquake （MS6.5） occurred near Pishan county （37.6°N, 78.2°E）, Hotan Prefecture Xinjiang Uygur Autonomous Region, China, with a focal depth of 10 km. Using UAV remote sensing images and field investigation information, seismic damage information in the disaster area is extracted. Seismic intensity remote sensing quantitative assessment method is used to evaluate earthquake intensity in the disaster area. The results show that the remote sensing assessment method for seismic intensity of multi-structure types of buildings in Xinjiang has been improved by combining the real data of earthquake field investigation. The results of remote sensing assessment of seismic intensity in Pishan earthquake-stricken area are consistent with the results of field investigation, and the seismic intensity in this area is consistent with that in Pishan earthquake intensity map published by China Earthquake Administration. The improvement of this method can serve for the future remote sensing assessment of seismic intensity, and provide a basis for the application of the UAV remote sensing technology in Xinjiang in the future.
-
Key words:
- earthquake /
- UAV /
- seismic intensity /
- remote sensing /
- seismic damage
-

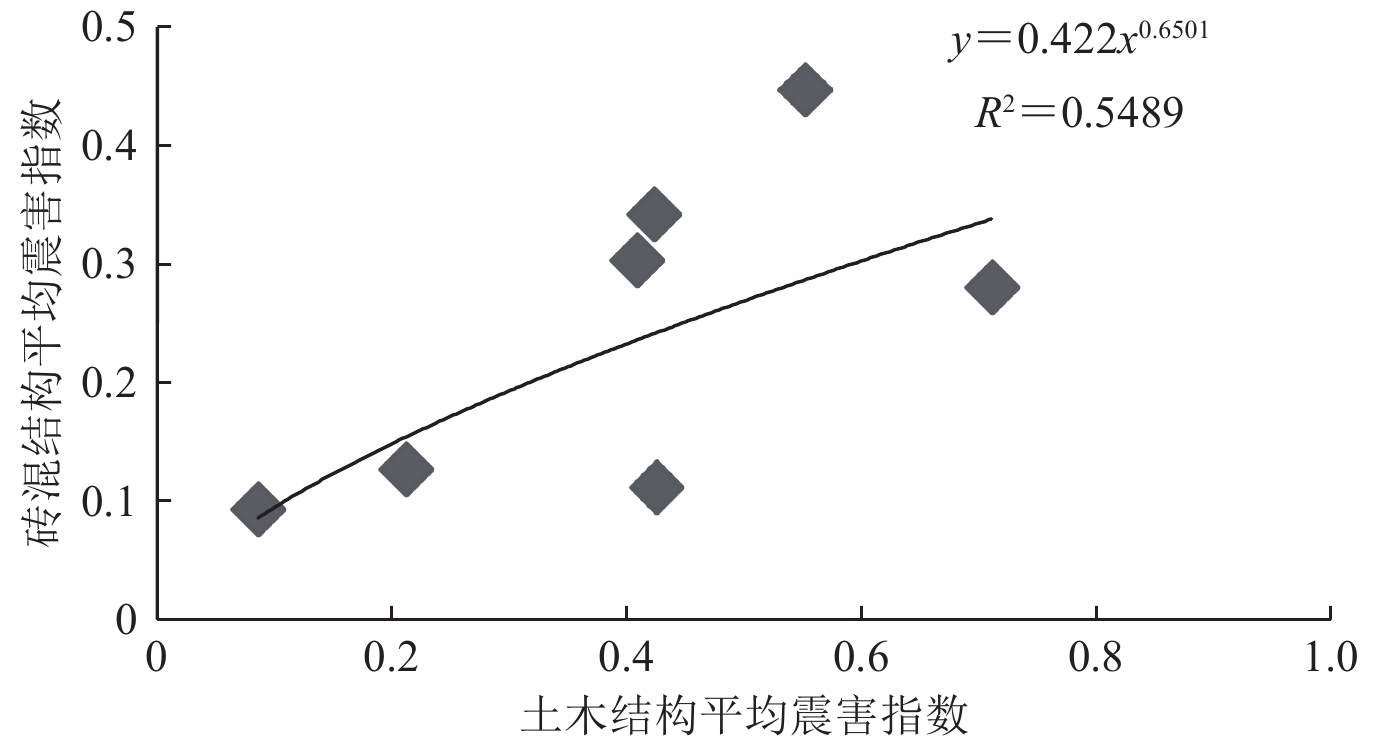

图 2 土木结构平均震害指数和砖混结构平均震害指数的关系
Figure 2. Relationship between average earthquake damage index of civil structures and that of brick concrete structures

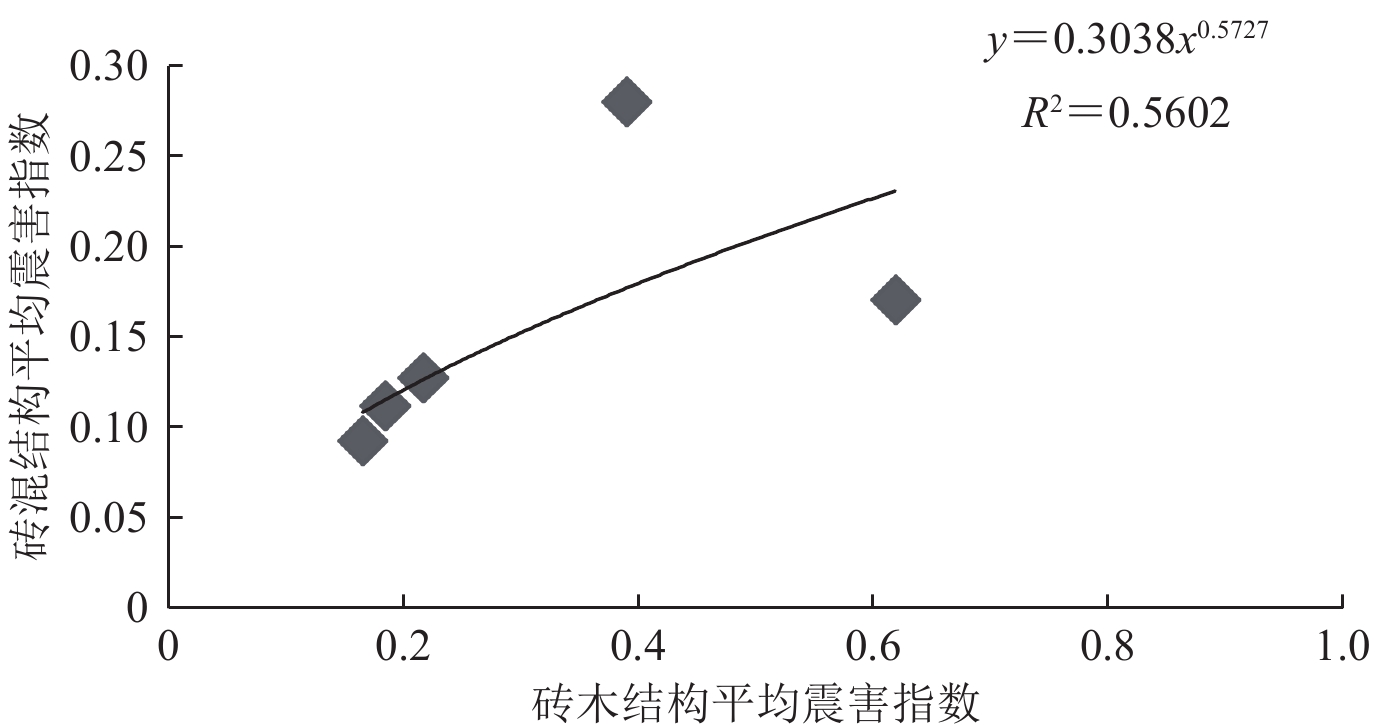

图 3 砖木结构平均震害指数和砖混结构平均震害指数的关系
Figure 3. Relationship between average seismic damage index of brick wood structures and that of brick concrete structures

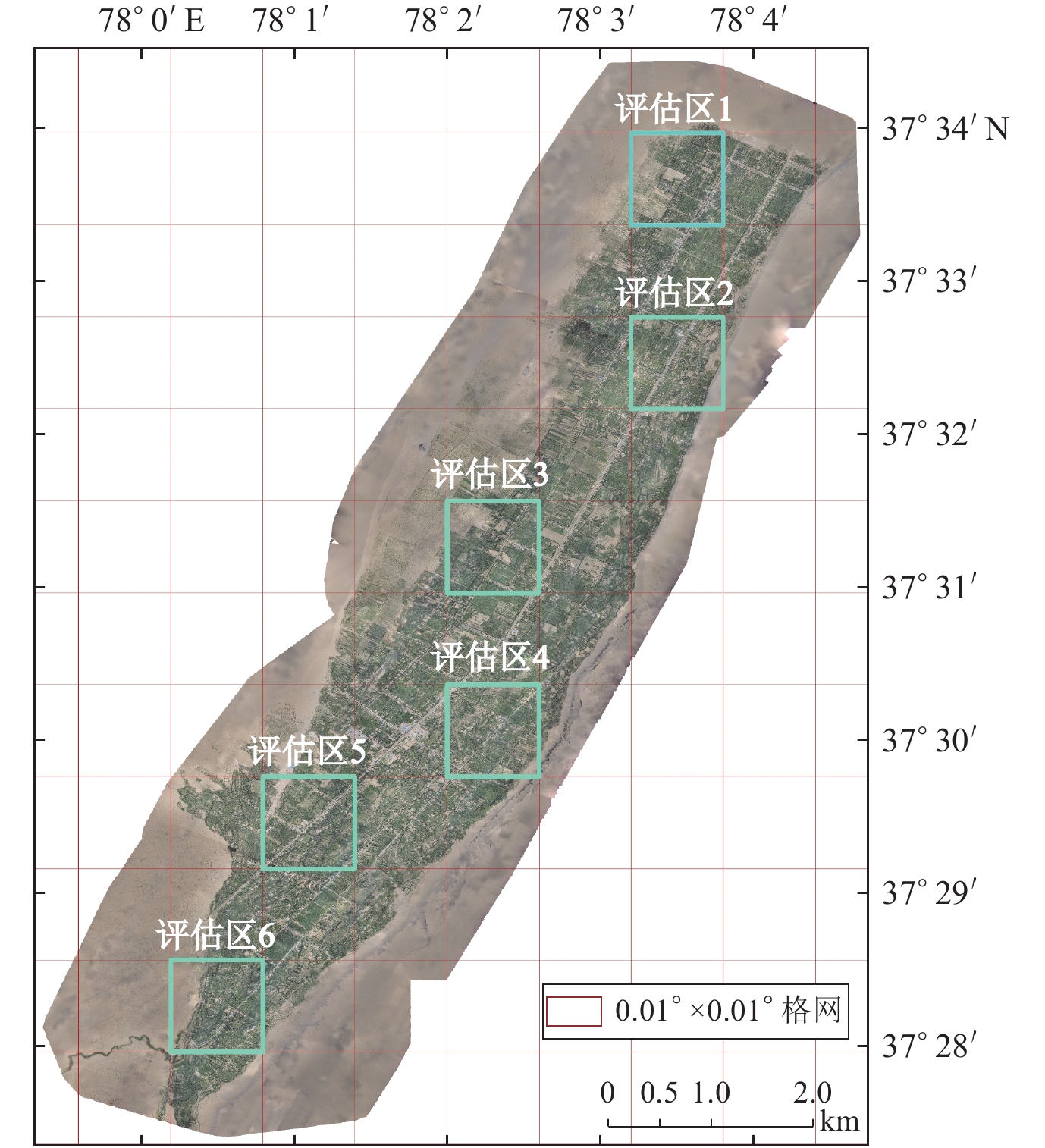

表 1 评估区域震害信息提取结果
Table 1. Results of seismic damage information in assessment area
结构类型 位置 建筑物数量/间 倒塌 局部倒塌 未倒塌 土木结构 评估区1 22 24 23 评估区2 18 22 15 评估区3 10 35 21 评估区4 4 27 15 评估区5 17 35 24 评估区6 16 36 25 砖木结构 评估区1 0 5 54 评估区2 1 6 50 评估区3 0 6 38 评估区4 0 8 53 评估区5 0 5 50 评估区6 0 5 31 砖混结构 评估区1 0 0 37 评估区2 0 1 42 评估区3 0 0 35 评估区4 0 0 37 评估区5 0 0 41 评估区6 0 0 36
下载: 导出CSV
-
[1] 李云,徐伟,吴玮. 灾害监测无人机技术应用与研究[J]. 灾害学,2011,26(1):138-143 doi: 10.3969/j.issn.1000-811X.2011.01.026 [2] 高劲松, 王朝阳, 赵春玲. 在对抗自然灾害中无人机的作用[C]//中国科学技术协会2008防灾减灾论坛论文集, 2008: 546-551 [3] 李金香,常想德,赵朔,等. 新疆塔什库尔干塔吉克自治县地震极灾区地震烈度遥感快速评估研究[J]. 中国地震,2018,34(3):513-524 doi: 10.3969/j.issn.1001-4683.2018.03.012 [4] 徐志强,杨建思,姜旭东,等. 无人机快速获取地震灾情的应用探索[J]. 地震地磁观测与研究,2009,30(5):66-70 [5] 王晓青,王龙,章熙海,等. 汶川8.0级地震震害遥感定量化初步研究−以都江堰城区破坏为例[J]. 地震,2009,29(1):174-181 doi: 10.3969/j.issn.1000-3274.2009.01.021 [6] 王晓青,黄树松,丁香,等. 尼泊尔8.1级地震建筑物震害遥感提取与分析[J]. 震灾防御技术,2015,10(3):481-490 doi: 10.11899/zzfy20150301 [7] 李金香,李亚芳,李帅,等. 无人机遥感技术在新疆皮山地震灾情获取中的应用[J]. 震灾防御技术,2017,12(3):690-699 doi: 10.11899/zzfy20170324 [8] 窦爱霞,王晓青,丁香,等. 遥感震害快速定量评估方法及其在玉树地震中的应用[J]. 灾害学,2012,27(3):75-80 doi: 10.3969/j.issn.1000-811X.2012.03.016 [9] 王晓青,窦爱霞,孙国清,等. 基于综合震害指数的玉树地震烈度遥感评估研究[J]. 地震,2013,33(2):1-10 doi: 10.3969/j.issn.1000-3274.2013.02.001 -
