Community seismic network: A dense array to sense earthquake strong motion
-
-

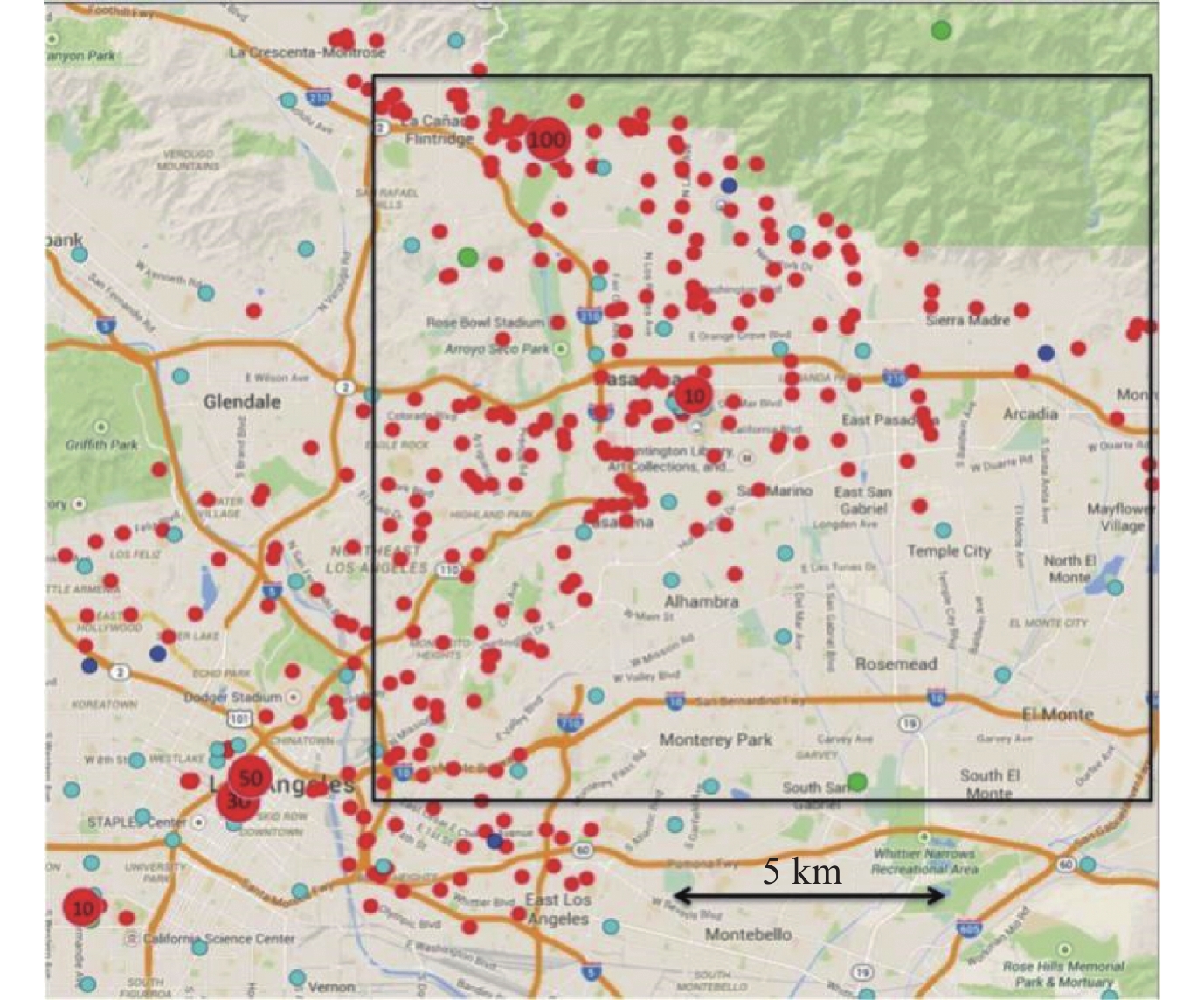

图 1 帕萨迪纳地区的地震台网。红点为CSN台站，暗蓝为Netquake台站，浅蓝为强震动台站，绿点为南加州地震台网台站（SCSN）。大红点表示建筑物安装多个CSN传感器。CS平均台站间距为0.8 km。在这个地区其他强地面运动台站间距4 km。图中方框见图2

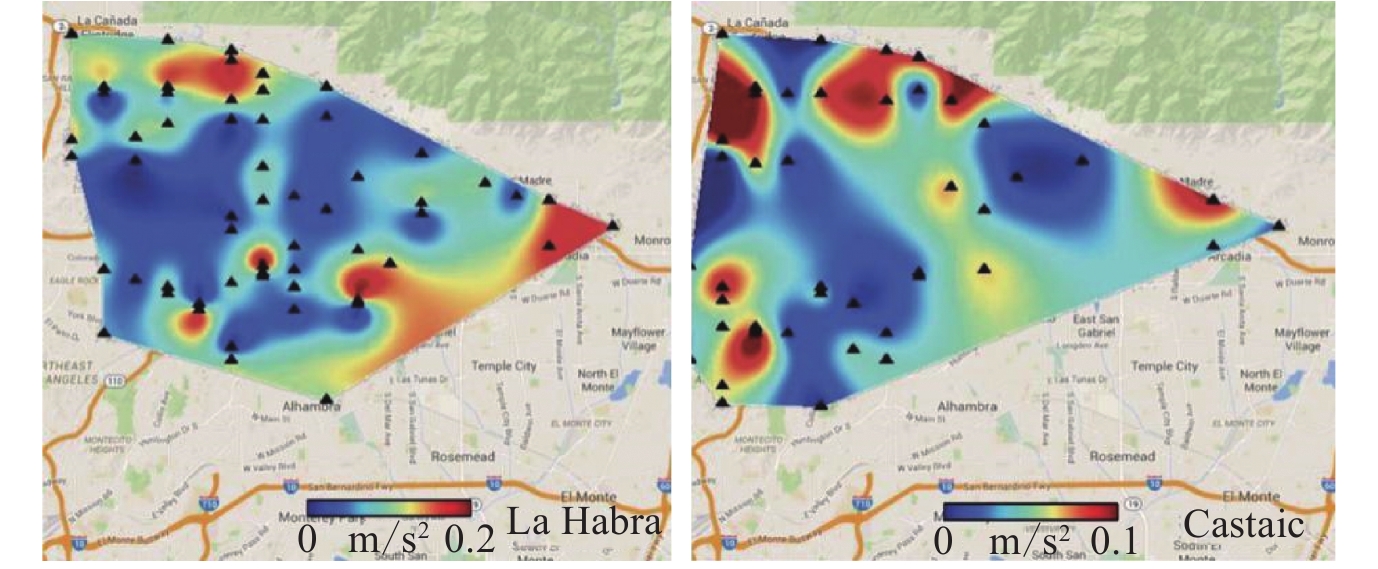

图 2 峰值加速度：左图是拉哈布拉（La Habra）地震，右图是卡斯塔伊奇（Castaic）地震。2014年3月29日的拉哈布拉5.1级地震，距图中心30 km，2015年2月4日的卡斯塔伊奇4.1级地震，距离70 km

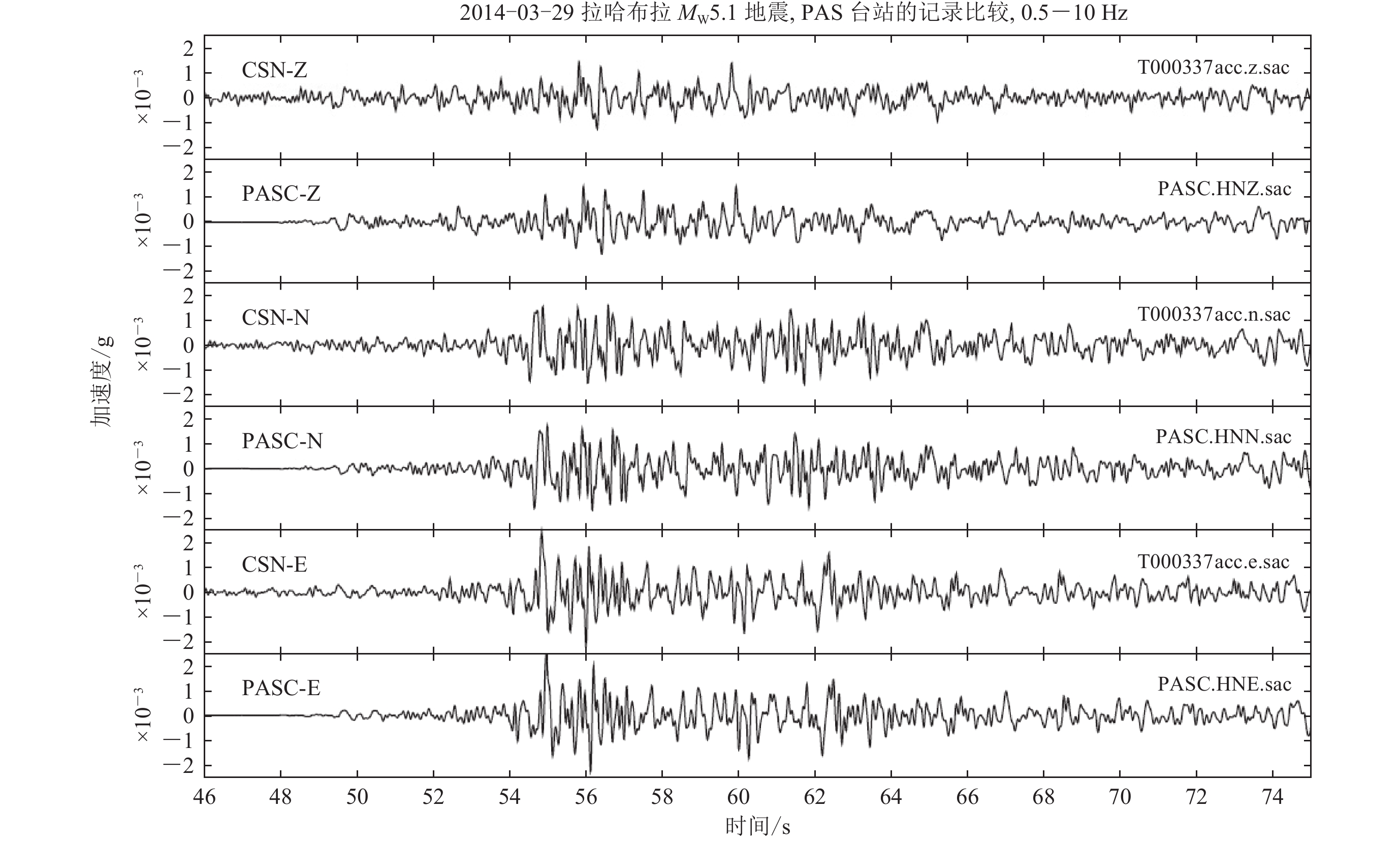

图 5 Phidget（Class-C）加速度计和EpiSensor（Class-A）加速度计在帕萨迪纳PASC地震台记录MW5.1拉哈布拉地震的对比，两者记录的幅度和波形非常相似

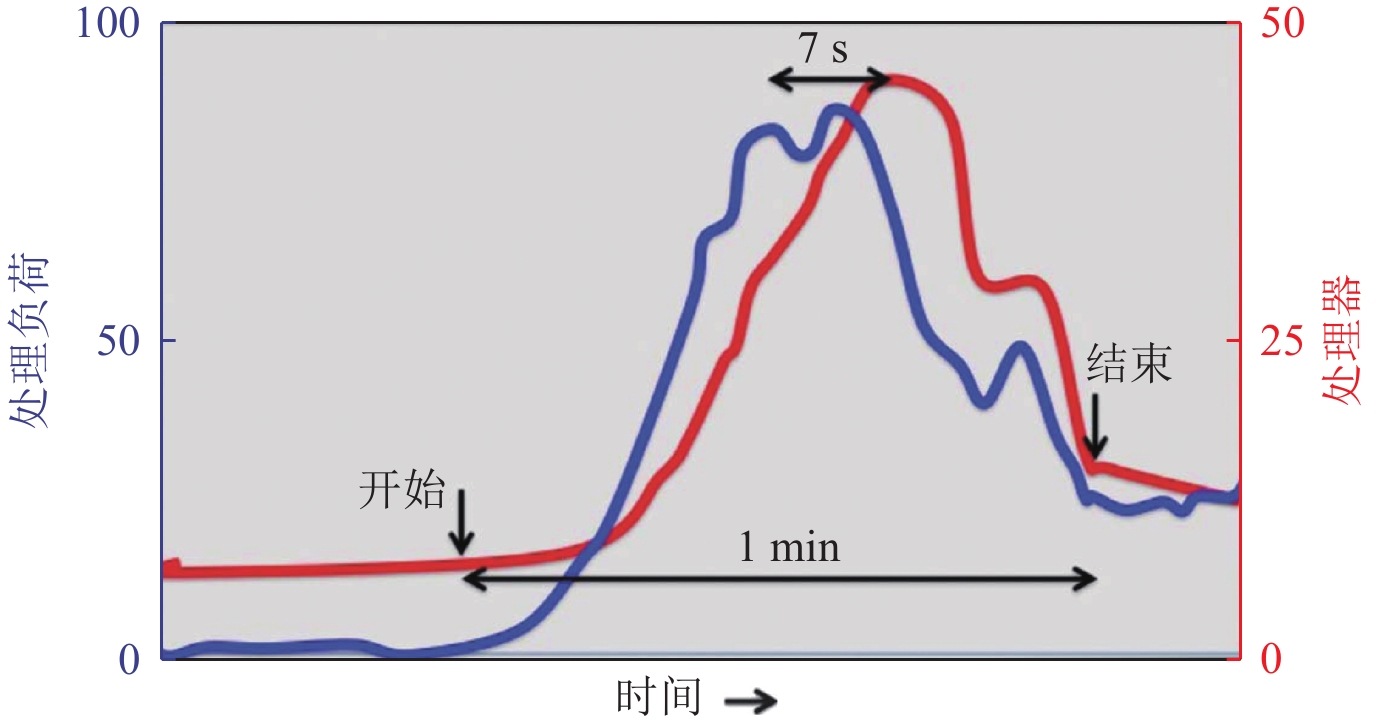

图 6 云的动态资源计算。蓝色曲线显示对于一个大的远震事件（2012年8月14日的鄂霍次克海（Okhotsk）地震）每秒提取初动的数量负荷。红色曲线显示了处理分析这个事件所用处理器的数量，从开始的5到峰值的45，由于开始处理过程中的延时，处理器曲线使负载曲线滞后7 s。事件引起的负荷增强的持续时间大约在1 min内结束

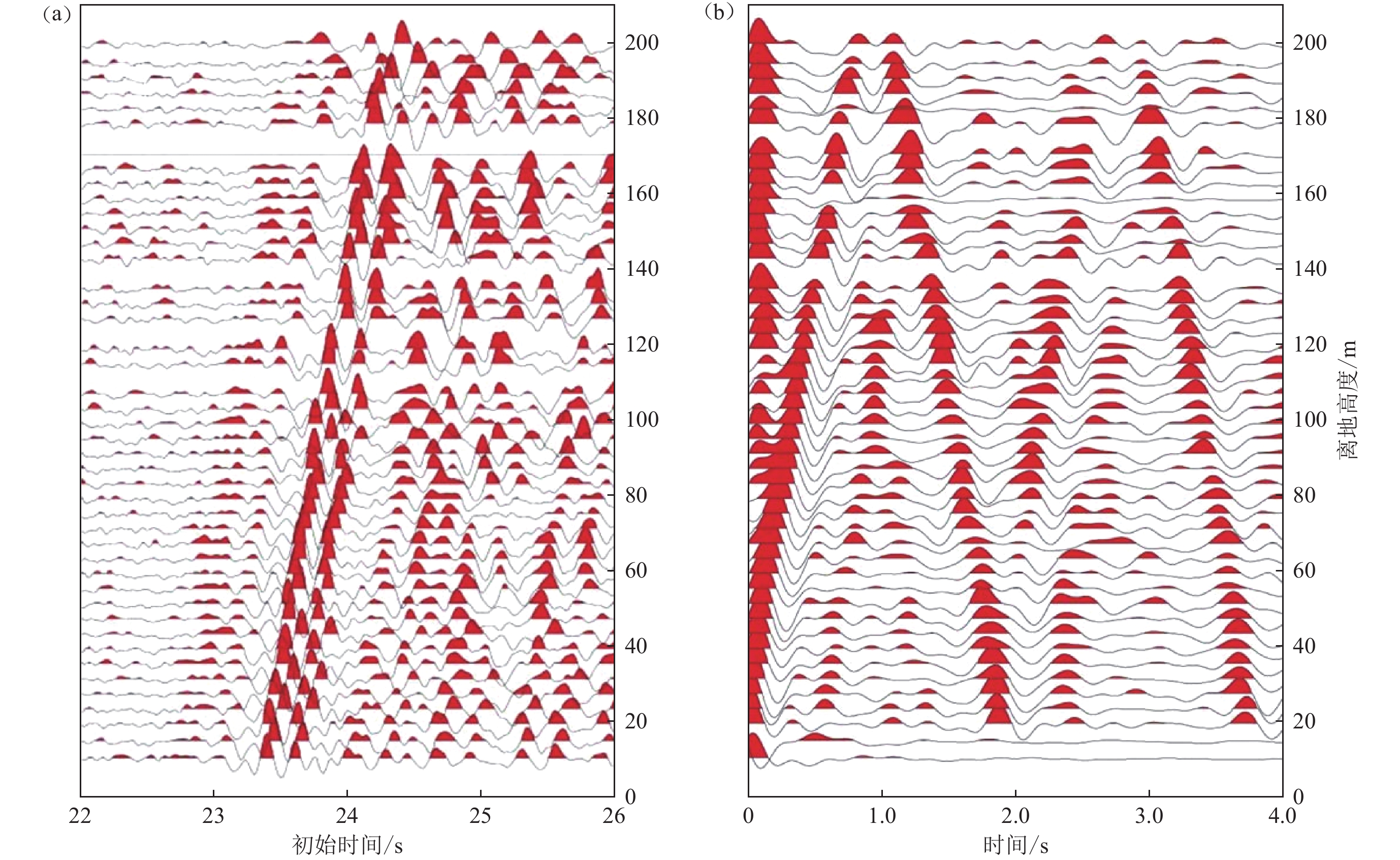

图 7 地震和环境噪声在52层大楼的相关性。（a）距大楼70 km以外的4.1级地震的S波。（b）使用最底层作为参考环境噪声相关性结果。大楼从高到底的反射波表明两种剪切波的速度大约为200 m/s。（a）图还表示附加的反射波和高速波好像是沿着大楼钢结构框架传播的
-
[1] Wald D J,Quitoriano V,Heaton T H,et al. TriNet " ShakeMaps”:Rapid generation of peak ground-motion and intensity maps for earthquakes in southern California[J]. Earthq. Spectra,1999,15(3):537-556 doi: 10.1193/1.1586057 [2] Wald D J, Lin K, Worden B, et al. ShakeCast: Facilitatingthe use of ShakeMap for post-earthquake decision-making and response within Caltrans and other critical lifeline communities[C]//Proc. of the Fifth National Seismic Conference on Bridges & Highways. San Francisco, California, 2006 [3] Clayton R, Heaton T, Chandy M, et al. Community seismic network[J]. Ann. Geophys., 2011, 54（6）. doi: 10.4401/ag-5269 [4] Evans J,Allen R,Chung A,et al. Performance of several low-cost accelerometers[J]. Seismol. Res. Lett.,2014,85(1):147-158 doi: 10.1785/0220130091 [5] Liu A H-W. Sensor networks for geospatial event detection: Theoryand applications[D/OL]. Pasadena: California Institute of Technology, 2013[2015-05-10]. http://resolver.caltech.edu/CaltechTHESIS:06062013-224746692 [6] Olson M J. Cloud computing services for seismic networks[D/OL]. Pasadena: California Institute of Technology, 2014[2015-05-10]. http://resolver.caltech.edu/CaltechTHESIS:08242013-182604077 [7] Lin K-W, Wald D, Turner L. ShakeCast User Guide (Draft)[M]. Virginia: U.S. Geol. Surv. Document（ShakeCast_Manual_Link）, 2014 [8] Prieto G A,Lawrence J F,Chung A I,et al. Impulse response of civil structures from ambient noise analysis[J]. Bull. Seismol. Soc. Amer.,2010,100(5A):2322-2328 doi: 10.1785/0120090285 [9] Kohler M,Heaton T,Bradford S. Propagating waves in the steel,moment-frame factor building recorded during earthquakes[J]. Bull. Seismol. Soc. Amer.,2007,97(4):1334-1345 doi: 10.1785/0120060148 [10] Celebi M. Recorded earthquake responses from the integrated seismicmonitoring network of the Atwood building,Anchorage,Alaska[J]. Earthq. Spectra,2006,22(4):847-864 doi: 10.1193/1.2359702 [11] Kohler M D, Heaton T H, Cheng M H. The community seismic network and quake-catcher network: Enabling structural health monitoring through instrumentation by community participants[C]//Proceedings of the SPIE Smart Structures/Non-destructive Evaluation Conference. San Diego, California, 2013 [12] Kohler M D, Heaton T H, Cheng M H, et al. Structural health monitoring through dense instrumentation by community participants: The community seismic network and quakecatcher network[C]//10th U.S. National Conference on Earthquake Engineering （NC10EE）. Anchorage, Alaska, 2014 [13] Mou J. Situation awareness application[D/OL]. Pasadena: California Institute of Technology, 2013[2015-05-10]. http://resolver.caltech.edu/CaltechTHESIS:06272013-211013400 [14] Faulkner M N. Community sense and response systems[D/OL]. Pasadena: California Institute of Technology, 2014[2015-05-10]. http://resolver.caltech.edu/CaltechTHESIS:04152014-111007328 [15] Faulkner M, Clayton R, Heaton T, et al. Community sense and response systems: Your phone as quake detector, Commun. ACM, 2014, 57（7）. doi: 10.1145/2622628.2622633 -
