Crustal shear-wave velocity structure beneath Anhui Province revealed by receiver function inversions
-

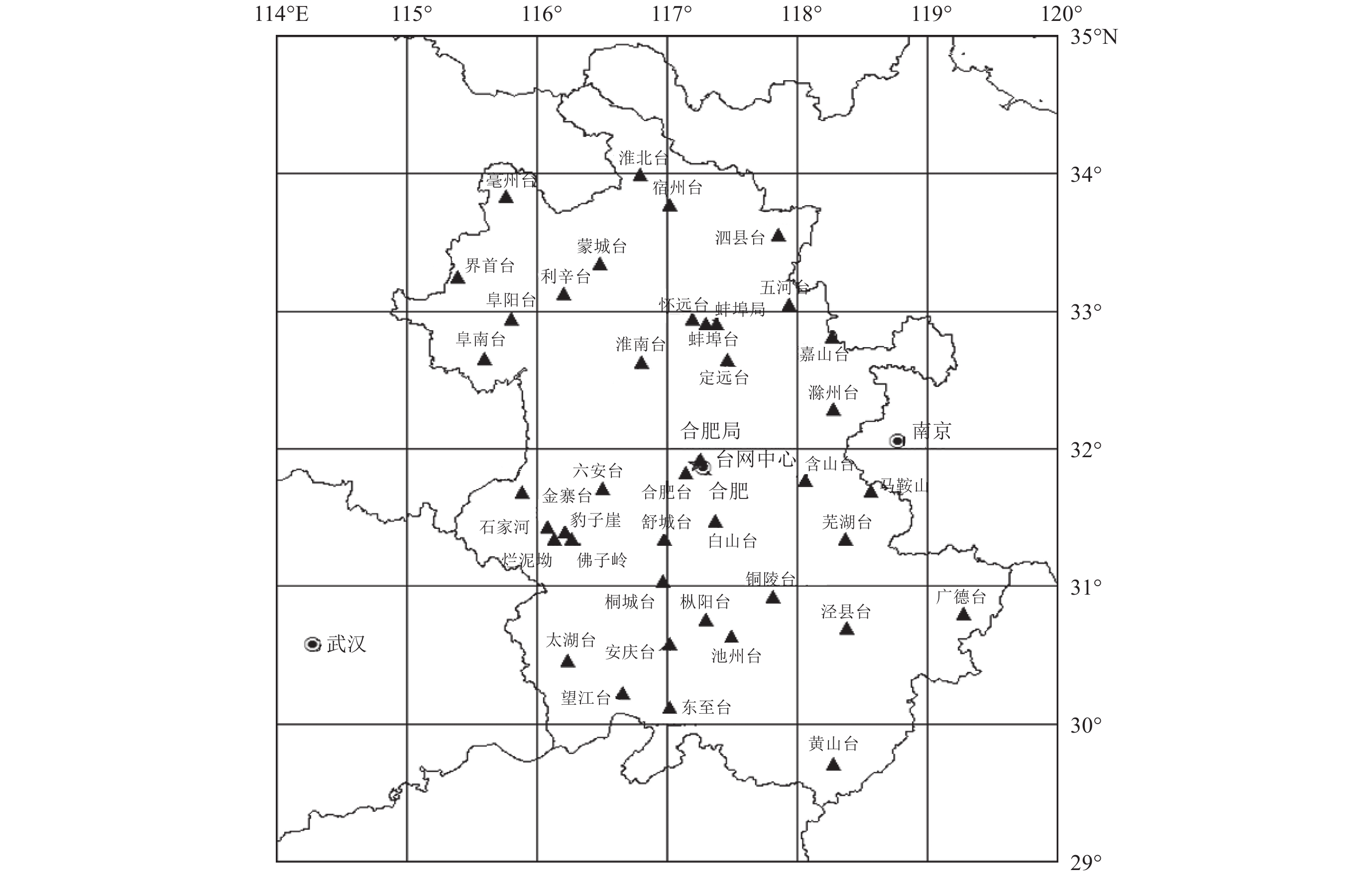

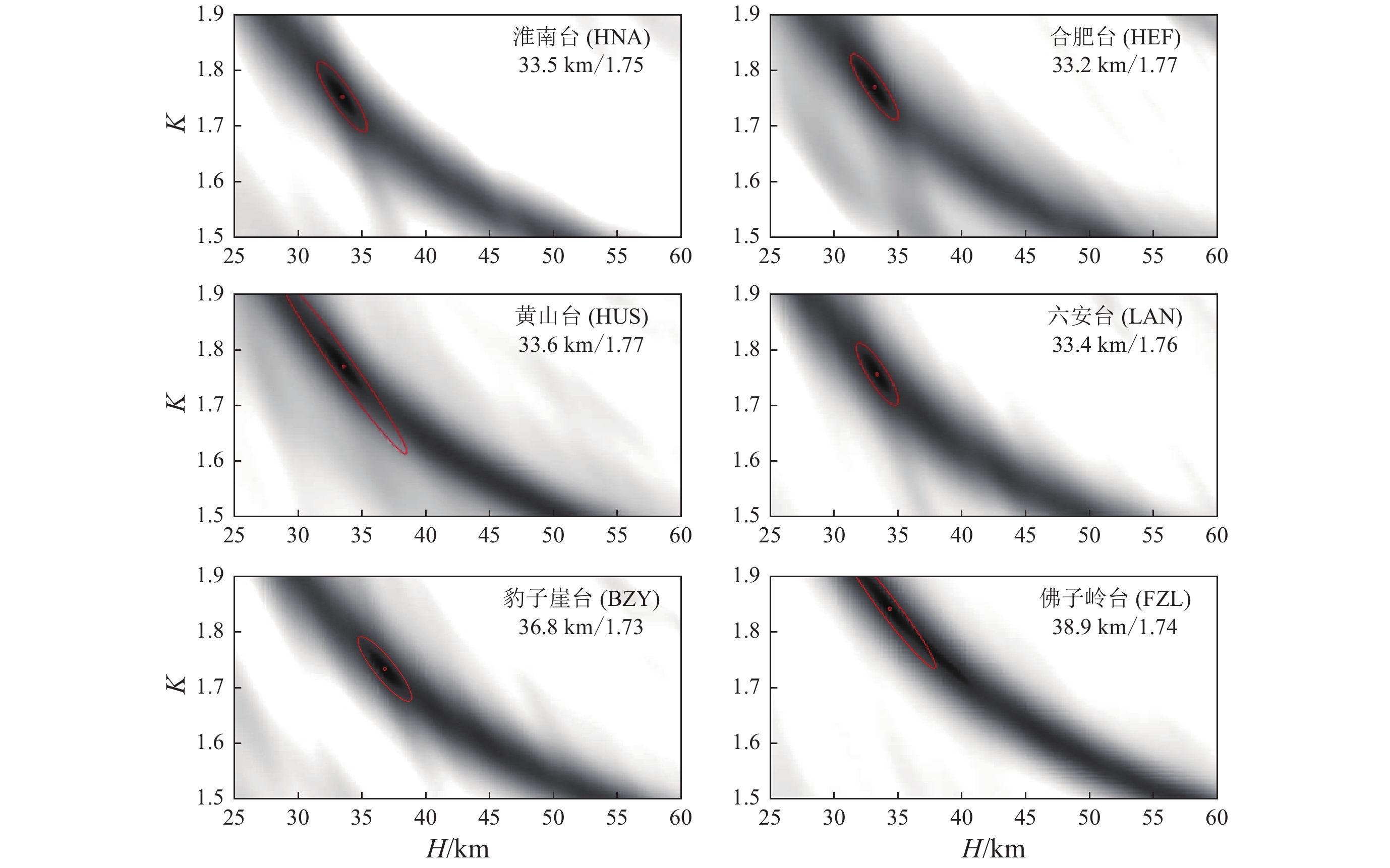

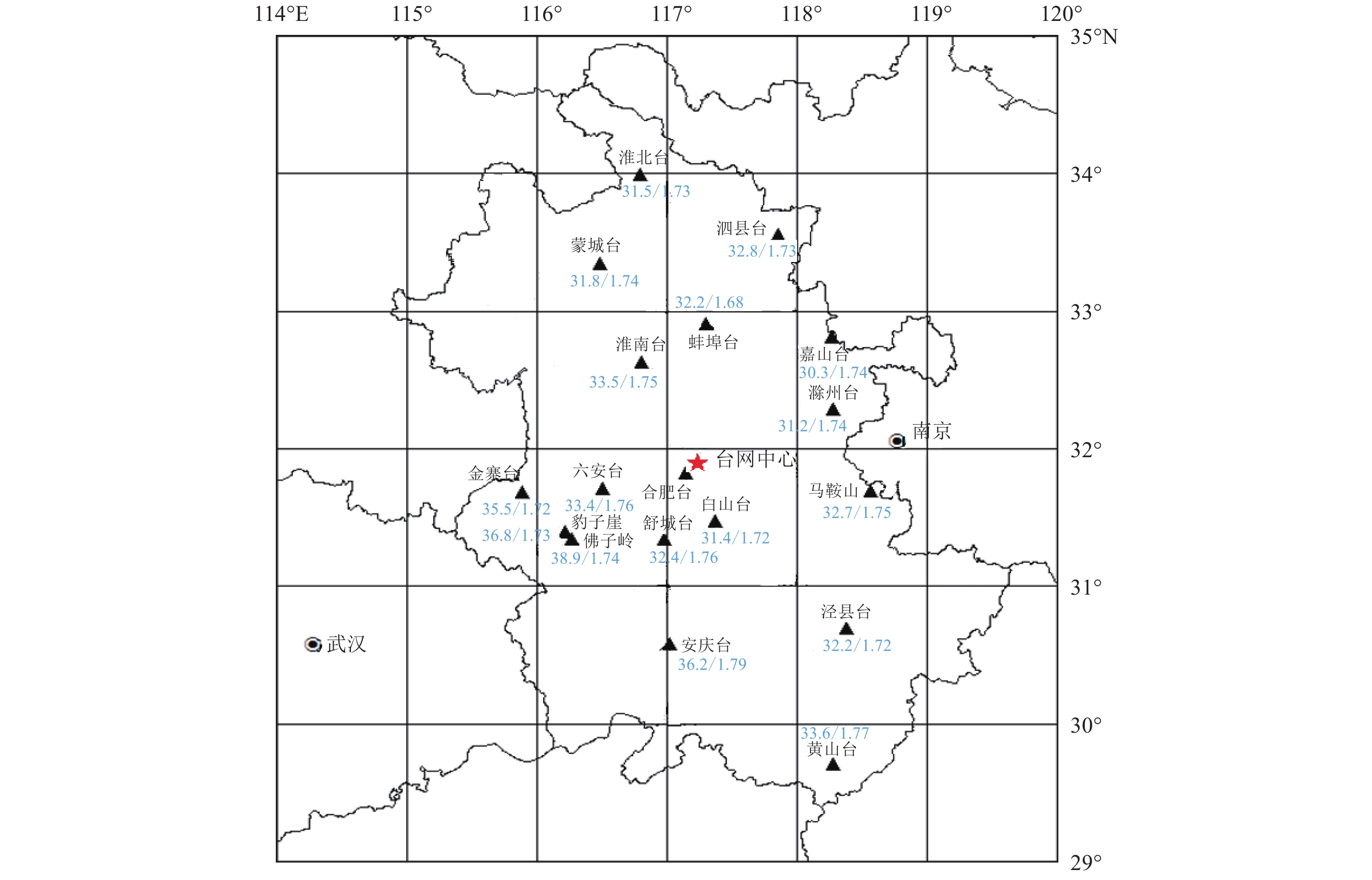

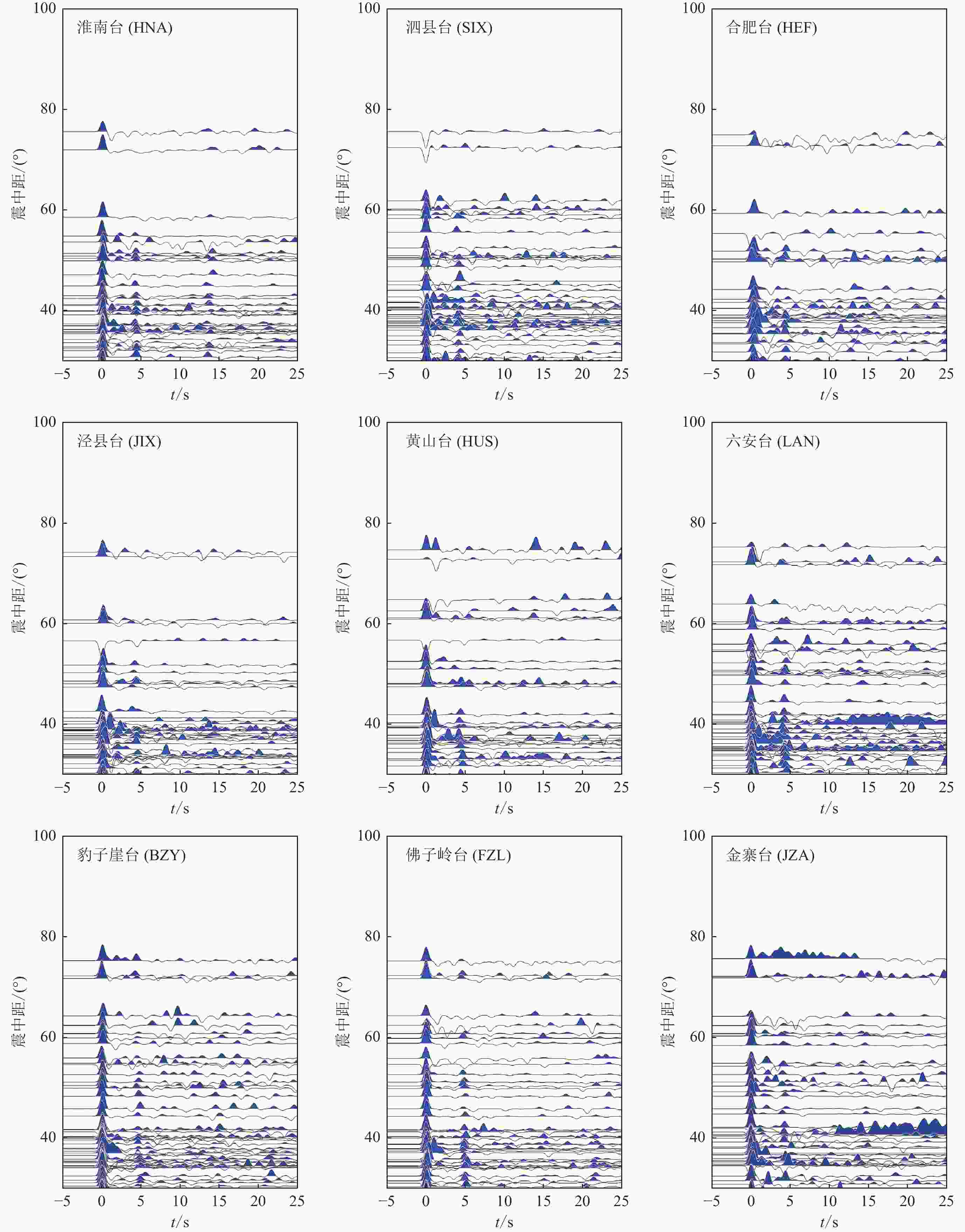

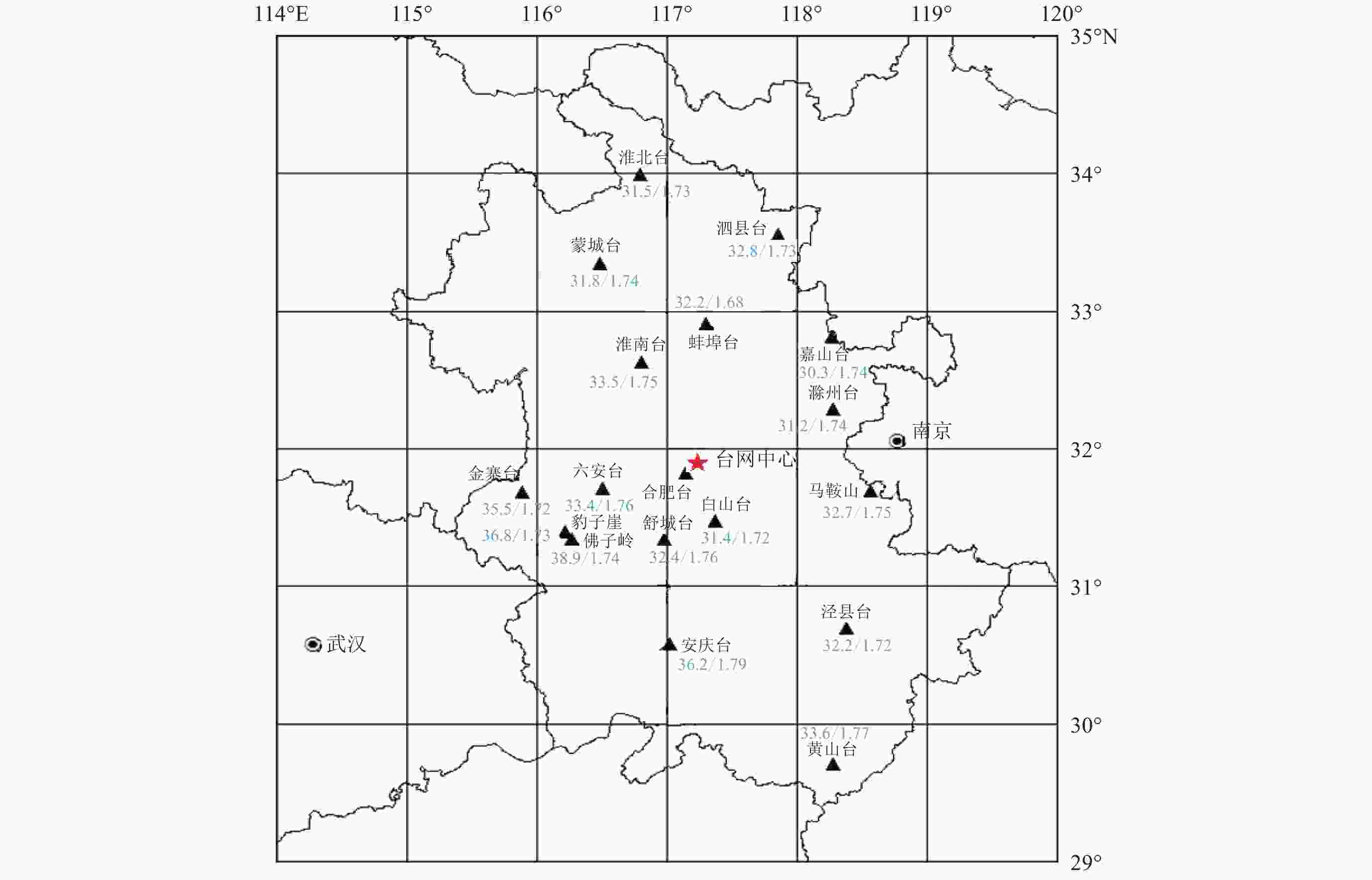

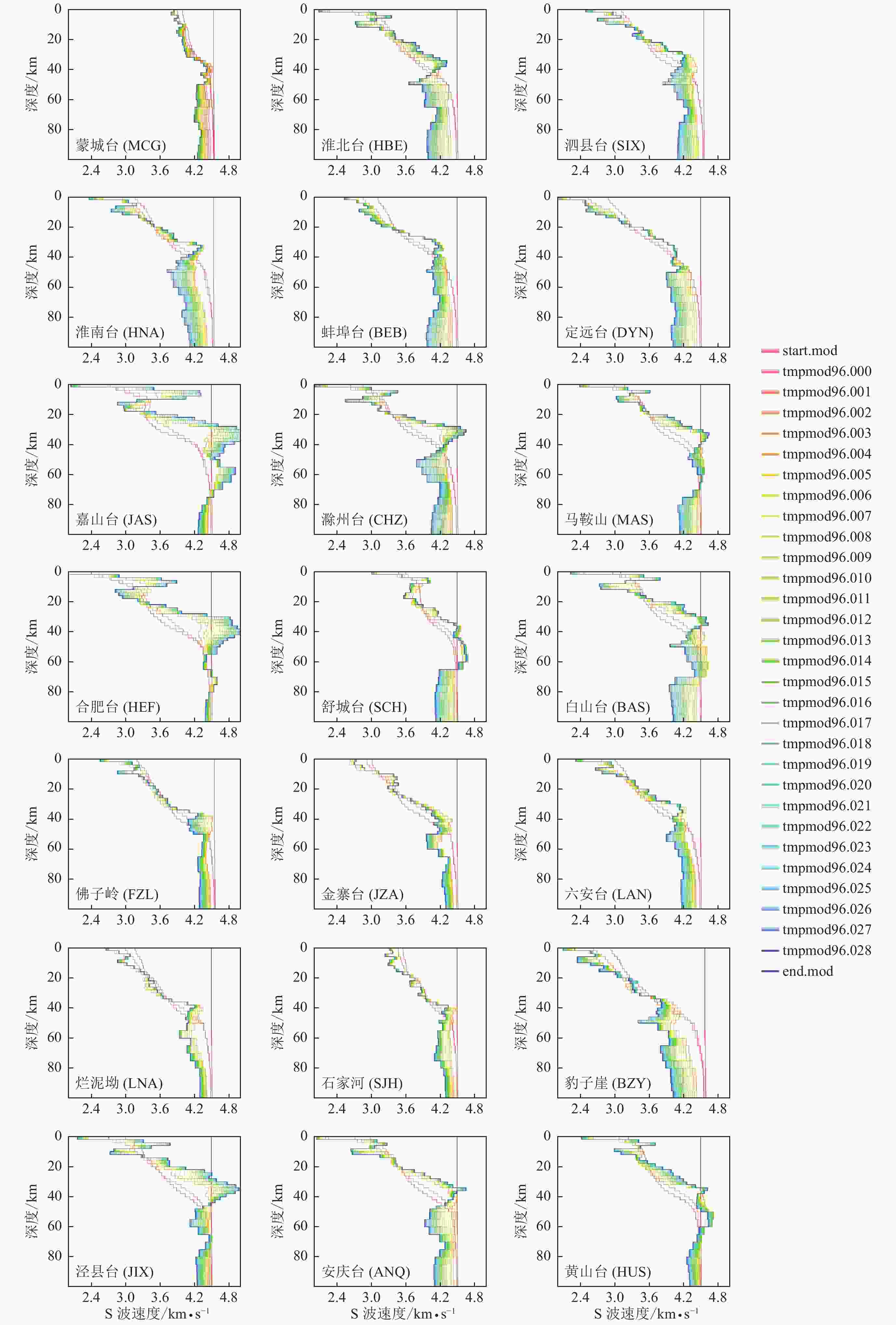

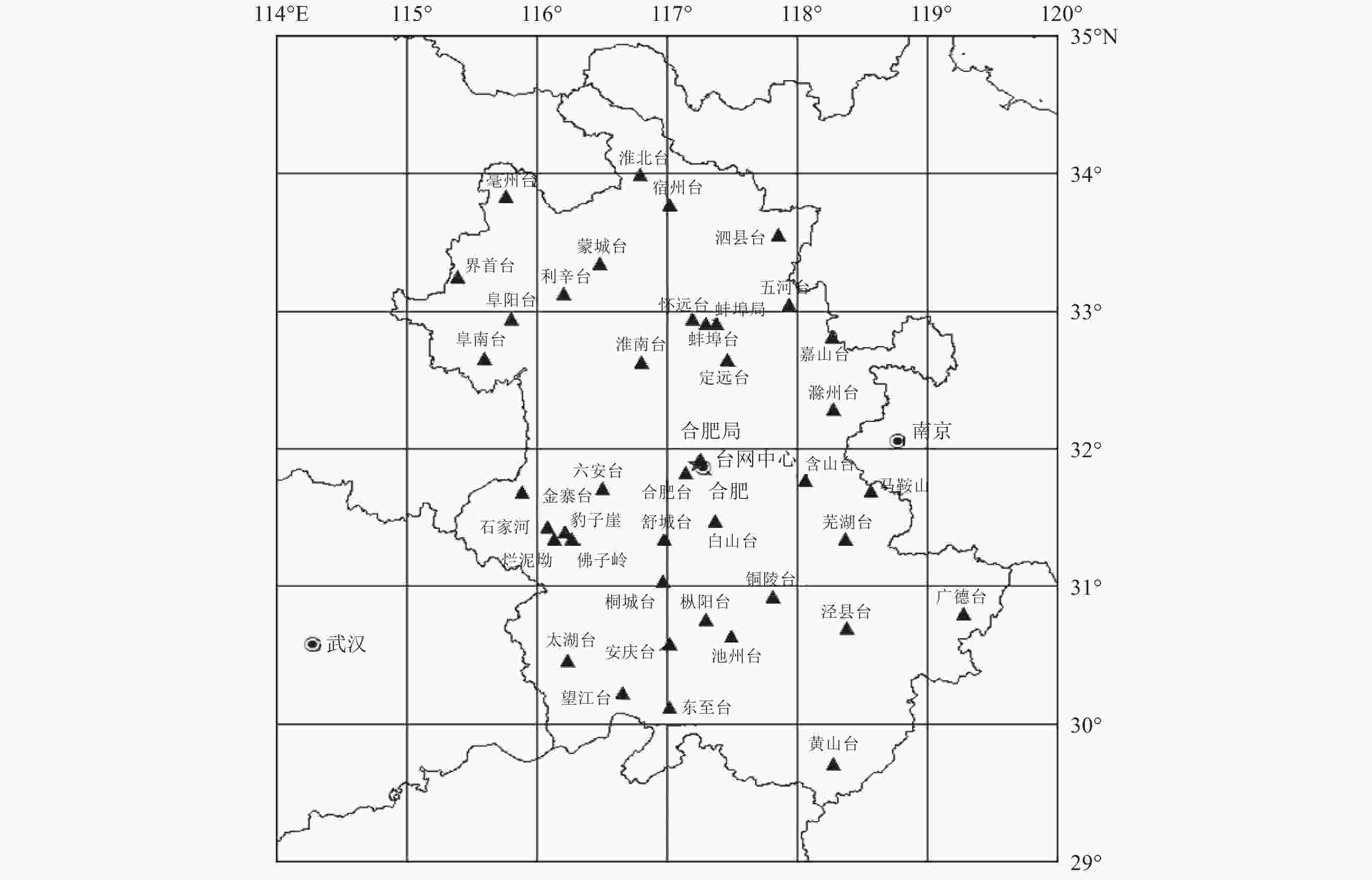

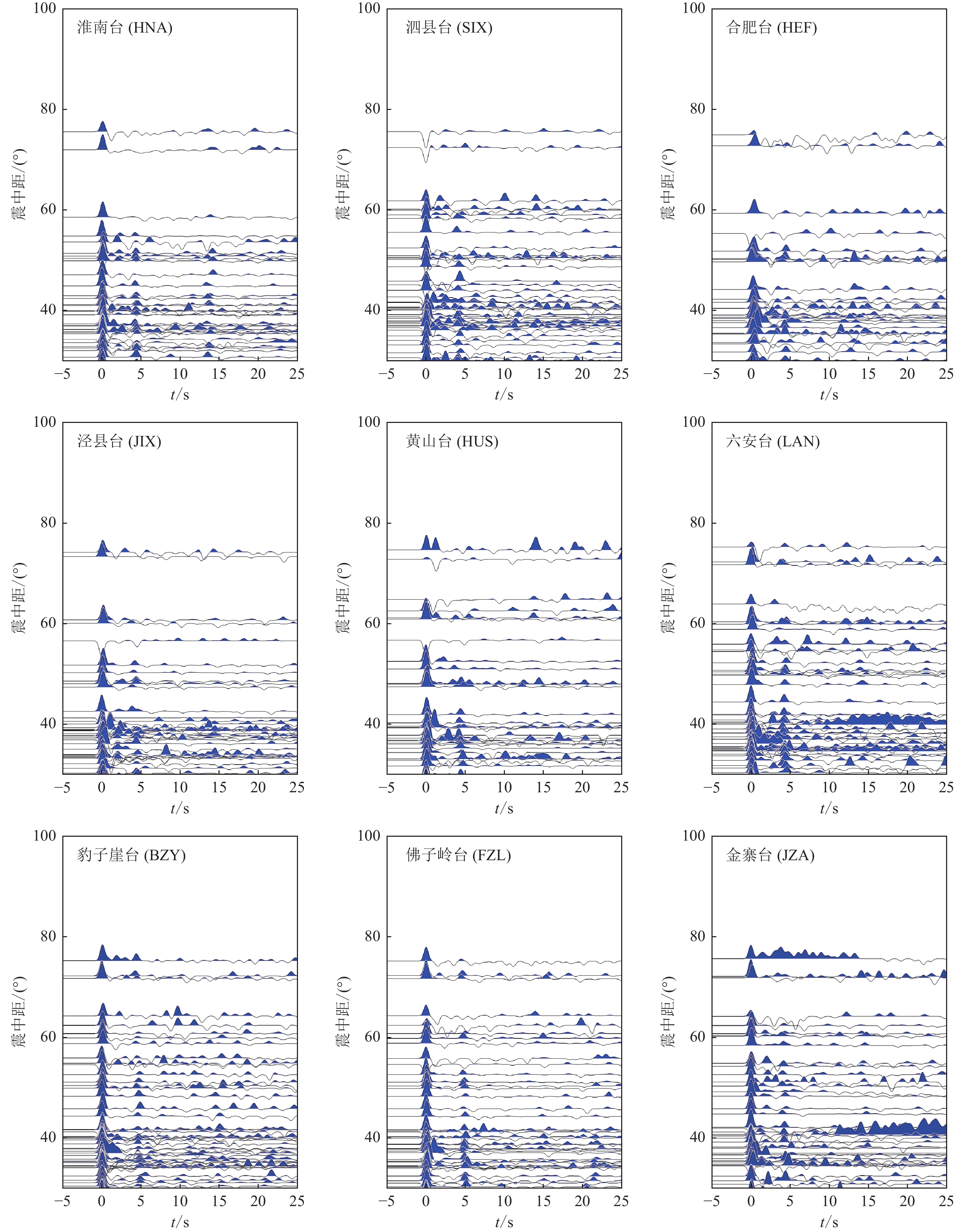

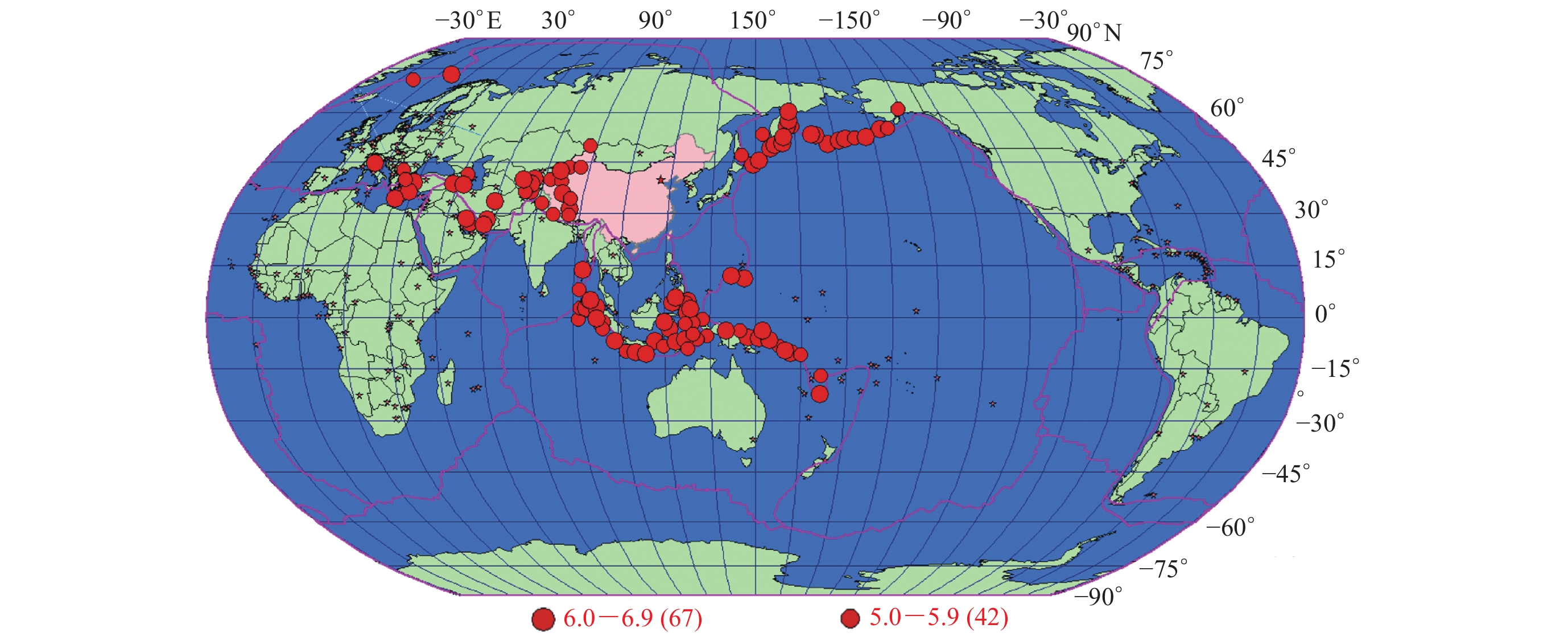

摘要: 根据安徽台网25个台站记录到的远震波形资料，运用频率域反褶积的方法提取接收函数，并采用H-Kappa扫描法反演得到安徽地区各个台站下方的地壳厚度与纵横波速度比。结果显示，安徽地区台站下方地壳厚度大致可分为3个区域：皖西南大别山地区、皖南山区和淮河以北的皖北平原地区，其中大别山地区台站下方的地壳厚度位于35—39 km范围内，相对较厚；皖南地区位于33—36 km范围内；皖北以平原为主，地壳厚度位于30—33 km范围内。这一研究结果与安徽地区的地质构造背景具有较好的相关性。同时，H-K扫描结果显示，安徽地区台站下方波速比基本处于1.70—1.80范围内，变化不大。在界面倾斜角度不大的前提下，利用横向均匀分层模型的波形反演实现接收函数的波形拟合，得到台站下方地壳上地幔S波速度结构，计算结果显示，安徽地震监测台站下莫霍面上表面S波速度一般为3.6—3.9 km/s，而界面底部大约为4.3—4.6 km/s，莫霍面处的速度起伏变化并不十分明显。Abstract: According to the teleseism recorded by twenty-five stations of Anhui Network, this paper has used the method of frequency domain deconvolution to extract receiver functions, and the H-Kappa scanning method to invert the crust thickness and vP/vS ratio under the stations in Anhui area. The results show that the crust thickness of Anhui area can be divided into three regions, including the Dabie Mountains in the southwest of Anhui, the mountains in southern Anhui, and the plains in northern Anhui. The crustal thickness is in the range of 35—39 km beneath the stations in the Dabie Mountain area, in the range of 33—36 km in southern Anhui, and in the range of 30—33 km for plains in northern Anhui. The results of this study have a good correlation with the geological tectonic setting of Anhui. Meanwhile, the H-K results show that the ratio of velocity beneath the stations in Anhui is basically from 1.7 to 1.8 with little change. Under the premise that the inclined angle of the interface is not large, the S-wave velocity structure is obtained by waveform fitting of the receiver functions which are implemented using the waveform inversion of horizontal uniform stratified model. And the calculation results show that the S-wave velocity on the surface of Moho is within the range of 3.6—3.9 km/s, while that is about 4.3—4.6 km/s at the bottom of Moho. The velocity fluctuation of Moho beneath stations in Anhui is not extremely obvious.
-
Key words:
- Anhui area /
- receiver functions /
- H-K stacking /
- shear-wave velocity structure /
- Moho
-
表 1 安徽地区台站下方莫霍面厚度、波速比和泊松比
台站名 代号 莫霍面深度/km 波速比vP/vS 泊松比 安庆台 ANQ 36.2 1.79 0.27 白山台 BAS 31.4 1.72 0.24 蚌埠台 BEB 32.2 1.68 0.23 滁州台 CHZ 31.2 1.74 0.25 淮北台 HBE 31.5 1.73 0.25 合肥台 HEF 33.2 1.77 0.27 淮南台 HNA 33.5 1.75 0.26 黄山台 HUS 33.6 1.77 0.27 嘉山台 JAS 30.3 1.74 0.25 泾县台 JIX 33.2 1.72 0.24 马鞍山台 MAS 32.7 1.75 0.26 蒙城台 MCG 31.8 1.74 0.25 泗县台 SIX 32.8 1.73 0.25 舒城台 SCH 32.4 1.76 0.26 金寨台 JZA 35.5 1.72 0.24 六安台 LAN 33.4 1.76 0.26 豹子崖台 BZY 36.8 1.73 0.25 佛子岭台 FZL 38.9 1.74 0.25
下载: 导出CSV
-
[1] 沈小七,陈宇卫,刘东旺,等. 华东及安徽地区断裂构造及分形分析[J]. 灾害学,2005,20(3):53-56 doi: 10.3969/j.issn.1000-811X.2005.03.011 [2] 张杰,沈小七,王行舟,等. 利用层析成像的结果探讨安徽及邻区中强地震深部构造背景[J]. 中国地震,2005,21(3):350-359 doi: 10.3969/j.issn.1001-4683.2005.03.006 [3] 陈安国,刘东旺,郑海刚. 安徽地区历史及现代地震活动与断裂活动性关系研究[J]. 华北地震科学,2009,27(4):16-21 doi: 10.3969/j.issn.1003-1375.2009.04.004 [4] 王椿镛,张先康,陈步云,等. 大别山造山带地壳结构研究[J]. 中国科学(D辑),1997,27(3):221-226 doi: 10.3321/j.issn:1006-9267.1997.03.004 [5] 史大年,姜枚,彭冲,等. 大别造山带东部地壳结构的层析成像及广角反射的地震学研究[J]. 地震学报,1999,21(4):403-410 doi: 10.3321/j.issn:0253-3782.1999.04.010 [6] 徐佩芬,刘福田,王清晨,等. 大别—苏鲁碰撞造山带的地震层析成像研究:岩石圈三维速度结构[J]. 地球物理学报,2000,43(3):377-385 doi: 10.3321/j.issn:0001-5733.2000.03.011 [7] 洪德全,王行舟,李军辉,等. 利用远震接收函数研究安徽地区地壳厚度[J]. 地震地质,2013,35(4):853-863 doi: 10.3969/j.issn.0253-4967.2013.04.014 [8] 刘启元,Rainer Kind,陈九辉,等. 大别造山带壳幔界面的断错结构和壳内低速体[J]. 中国科学(D辑),2005,35(4):304-313 doi: 10.3321/j.issn:1006-9267.2005.04.002 [9] Sodoudi F,Yuan X C,Liu Q Y,et al. Lithospheric thickness beneath the Dabie Shan,central eastern China from receiver functions[J]. Geophys. J. Int.,2006,166(3):1363-1367 doi: 10.1111/gji.2006.166.issue-3 [10] Li H,Wang S L,Li C,et al. Structure of the crust and uppermost mantle from broadband seismic array in the western Dabie Mountains,east central China[J]. Science in China (Ser D),2009,52(2):203-212 doi: 10.1007/s11430-009-0017-z [11] Phinney R A. Structure of the Earth’s crust from spectral behavior of long-period body waves[J]. J. Geophys. Res.,1964,69(14):2997-3017 doi: 10.1029/JZ069i014p02997 [12] 吴庆举,曾融生. 用宽频带远震接收函数研究青藏高原的地壳结构[J]. 地球物理学报,1998,41(5):669-679 doi: 10.3321/j.issn:0001-5733.1998.05.010 [13] Zhu L P,Kanamori H. Moho depth variation in southern California from teleseismic receiver functions[J]. J. Geophys. Res.,2000,105(B2):2969-2980 doi: 10.1029/1999JB900322 [14] Kind R,Yuan X C,Saul J,et al. Seismic images of crust and upper mantle beneath Tibet:Evidence for Eurasian plate subduction[J]. Science,2002,298(5596):1219-1221 doi: 10.1126/science.1078115 [15] Chen L, Ai Y S. Discontinuity structure of the mantle transition zone beneath the North China Craton from receiver function migration[J]. J. Geophys. Res., 2009, 114（B6）: doi: 10.1029/2008JB006221 [16] Shi D N,Shen Y,Zhao W J,et al. Seismic evidence for a Moho offset and south-directed thrust at the easternmost Qaidam-Kunlun boundary in the Northeast Tibetan plateau[J]. Earth Planet. Sci. Lett.,2009,288(1-2):329-334 doi: 10.1016/j.jpgl.2009.09.036 [17] Burdick L J,Helmberger D V. Time functions appropriate for deep earthquakes[J]. Bull. Seismol. Soc. Amer,1974,64(5):1419-1427 [18] Burdick L J,Longston C A. Modelling crustal structure through the use of converted phases in teleseismic body waves[J]. Bull. Seismol. Soc. Amer,1977,67(3):677-691 [19] Ligorria J,Ammon C. Iterative deconvolution and receiver function estimation[J]. Bull. Seismol. Soc. Amer,1999,89(5):1395-1400 [20] Helmberger D V,Wiggins R A. Upper mantle structure of the Midwestern United States[J]. J. Geophys. Res.,1971,76(14):3229-3245 doi: 10.1029/JB076i014p03229 [21] Zhu L P,Owens T J,Randall G E. Lateral variation in crustal structure of the northern Tibetan plateau inferred from teleseismic receiver functions[J]. Bull. Seismol. Soc. Amer,1995,85(6):1531-1540 -
