非火山震颤研究综述

卫志杰; 杨旻; 王同利; 葛慧颖; 李炎臻; 李波霖

doi:10.3969/j.issn.0253-4975.2019.01.004

非火山震颤研究综述

doi: 10.3969/j.issn.0253-4975.2019.01.004

1.
中国地质大学（北京）地球物理与信息技术学院，北京 100083
2.
广西民族大学法学院，南宁 530000
3.
北京市地震局，北京 100080

基金项目: 国家自然科学基金（41622402和41874063）共同资助。

详细信息

通讯作者:
杨旻，e-mail： 332832324@qq.com

中图分类号: P315.6
计量
- 文章访问数: 563
- HTML全文浏览量: 168
- PDF下载量: 19
- 被引次数: 0
出版历程
- 收稿日期: 2017-12-06
- 修回日期: 2018-05-23
- 刊出日期: 2019-01-01

A review on non-valcano tremor

1.
School of Geophysics and Information Technology，China University of Geosciences，　Beijing 100083，China
2.
Law School，Guangxi University for Nationalities，Nanning 530000，China
3.
Beijing Earthquake Agency，Beijing 100080，China

摘要

摘要: 非火山震颤是在远离火山地区观测到的一种具有较长持续时间，没有明显体波到时的地震波信号，与振幅相似的小震相比，非火山震颤的高频成分几乎没有。非火山震颤常在环太平洋俯冲带以及转换断层的板块交界面被探测到，并且有些非火山震颤伴随着慢地震，还能被远震面波诱发，但对于诱发非火山震颤所必需的环境尚不明确。中国是地震频发的国家，具有东南沿海俯冲带以及多个大断层构造环境，这就给国内非火山震颤的研究提供了非常充分的研究环境。本文对非火山震颤的研究历史进行了梳理，并综述其定义、识别、定位、成因以及研究现状。
- 非火山震颤 /
- 俯冲带 /
- 转换断层 /
- 面波
Abstract: Non-volcano tremor represents seismic signal observed away from volcanic regions with long durations, unclear body wave arrivals, and spectra depleted in high-frequency energy compared with regular earthquakes of similar amplitude. Non-volcano tremor is usually detected in circum-Pacific subduction zone and near transform faults. Meanwhile, non-volcano tremor is often associated with slow-slip events, and can be triggered by surface waves of teleseismic events. The necessary environment of tremor generation is not clear yet. China is a country with frequent earthquakes due to the south-east coast subduction zone and many large faults. Those factors provide sufficient environment for non-volcano tremor research. Therefore, this paper summarizes the identification, location, generation, and current situation of non-volcano tremor.
- non-volcano tremor /
- subduction zone /
- transform fault /
- surface wave

HTML全文

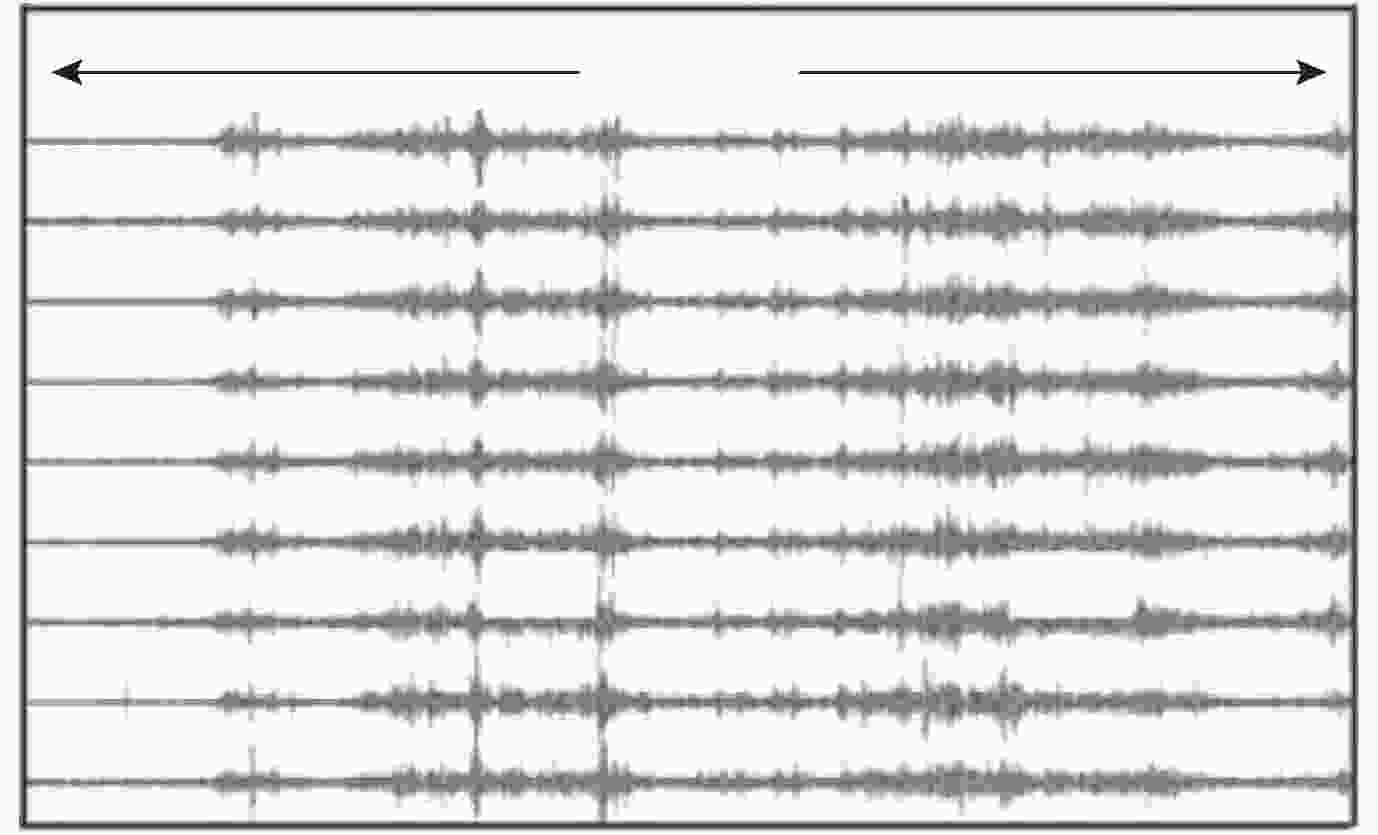

图 1 在圣安德烈斯断层观测到的持续时间为30 min的两个NVT事件^[6]

下载: 全尺寸图片幻灯片

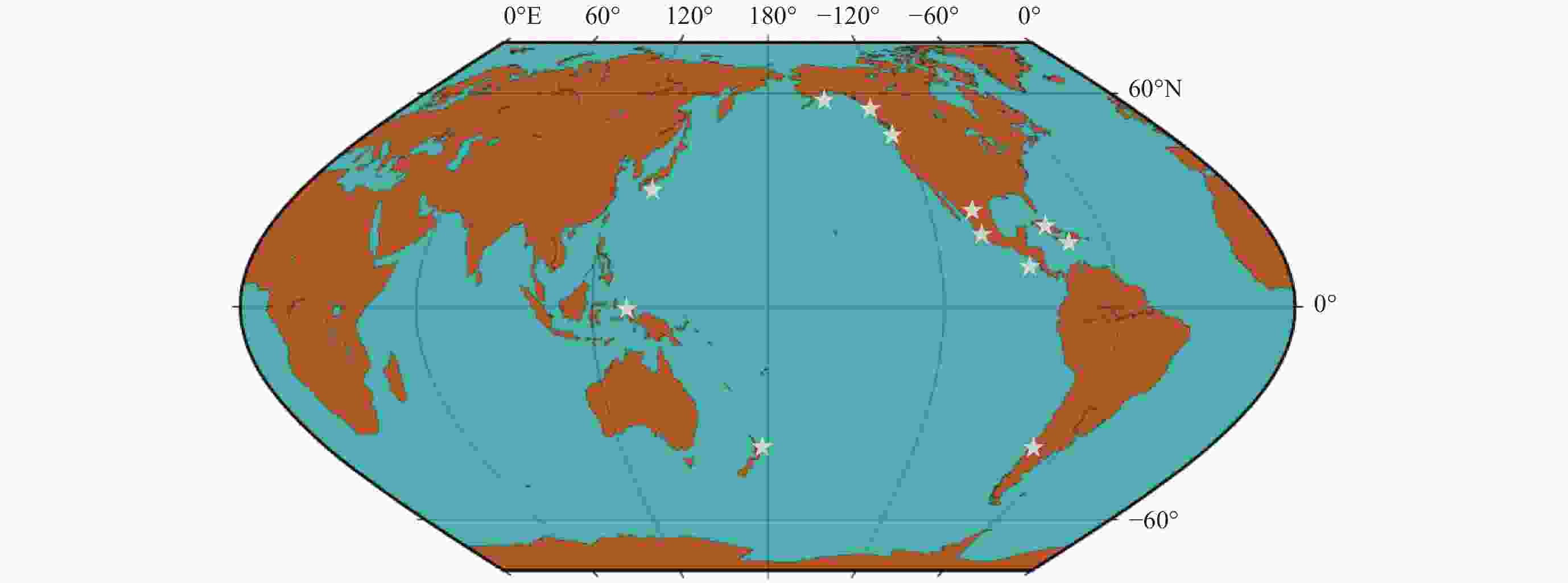

图 2 NVT全球分布示意图。图中白色五角星表示在过去探测到NVT的地区

下载: 全尺寸图片幻灯片

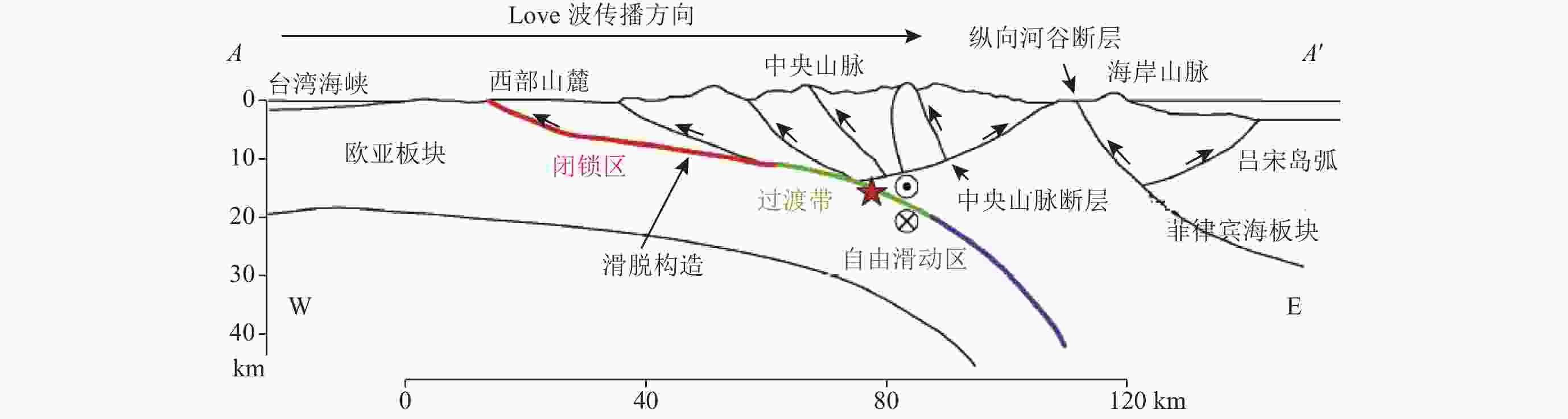

图 3 台湾南部地质特征截面图。NVT用红色五角星表示，红色和紫色实线分别表示闭锁区和自由滑动区，绿色实线表示在它们之间的一个过渡带，NVT就发生在过渡带^[21]

下载: 全尺寸图片幻灯片

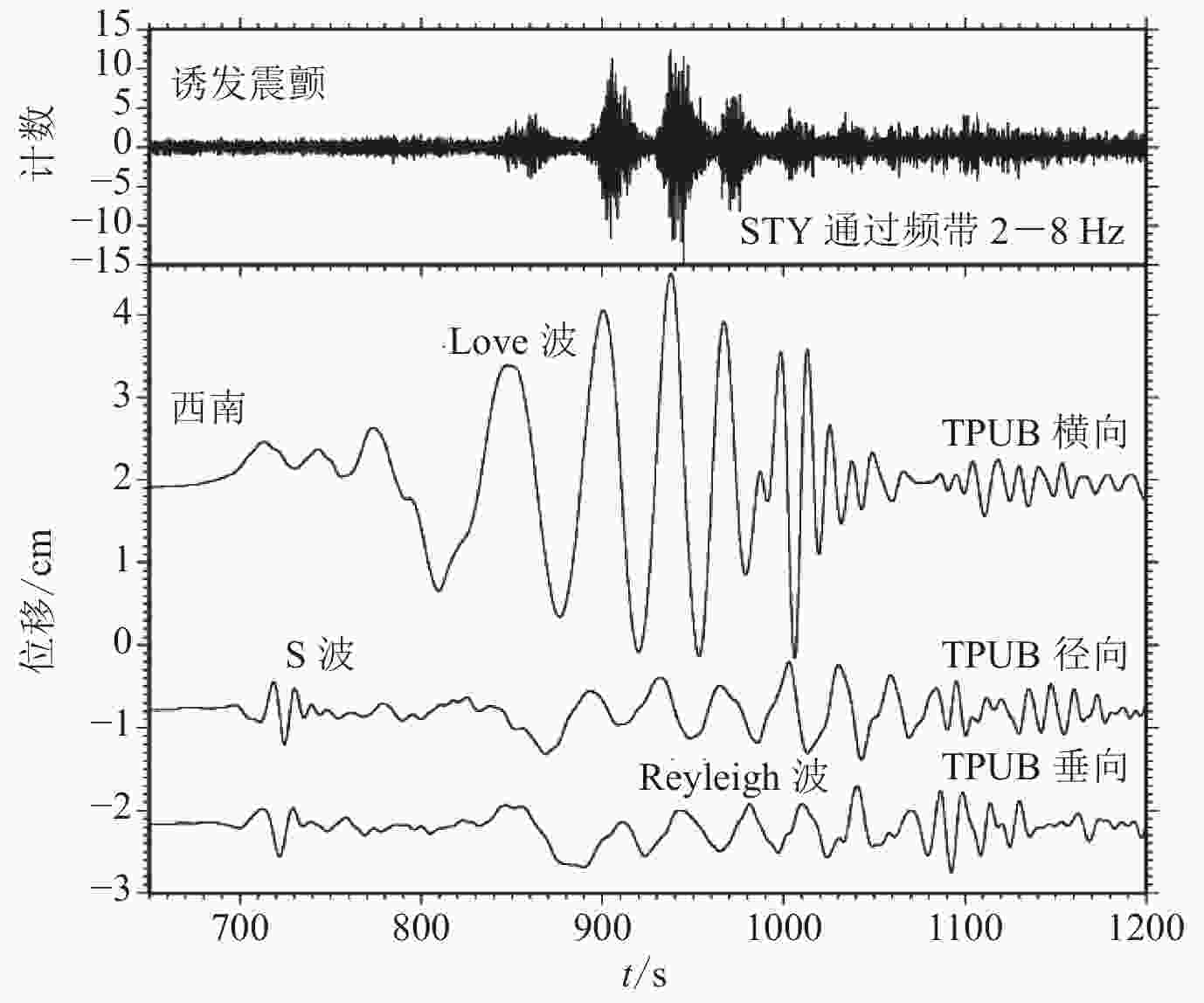

图 4 诱发NVT与面波的比较图^[21]

下载: 全尺寸图片幻灯片

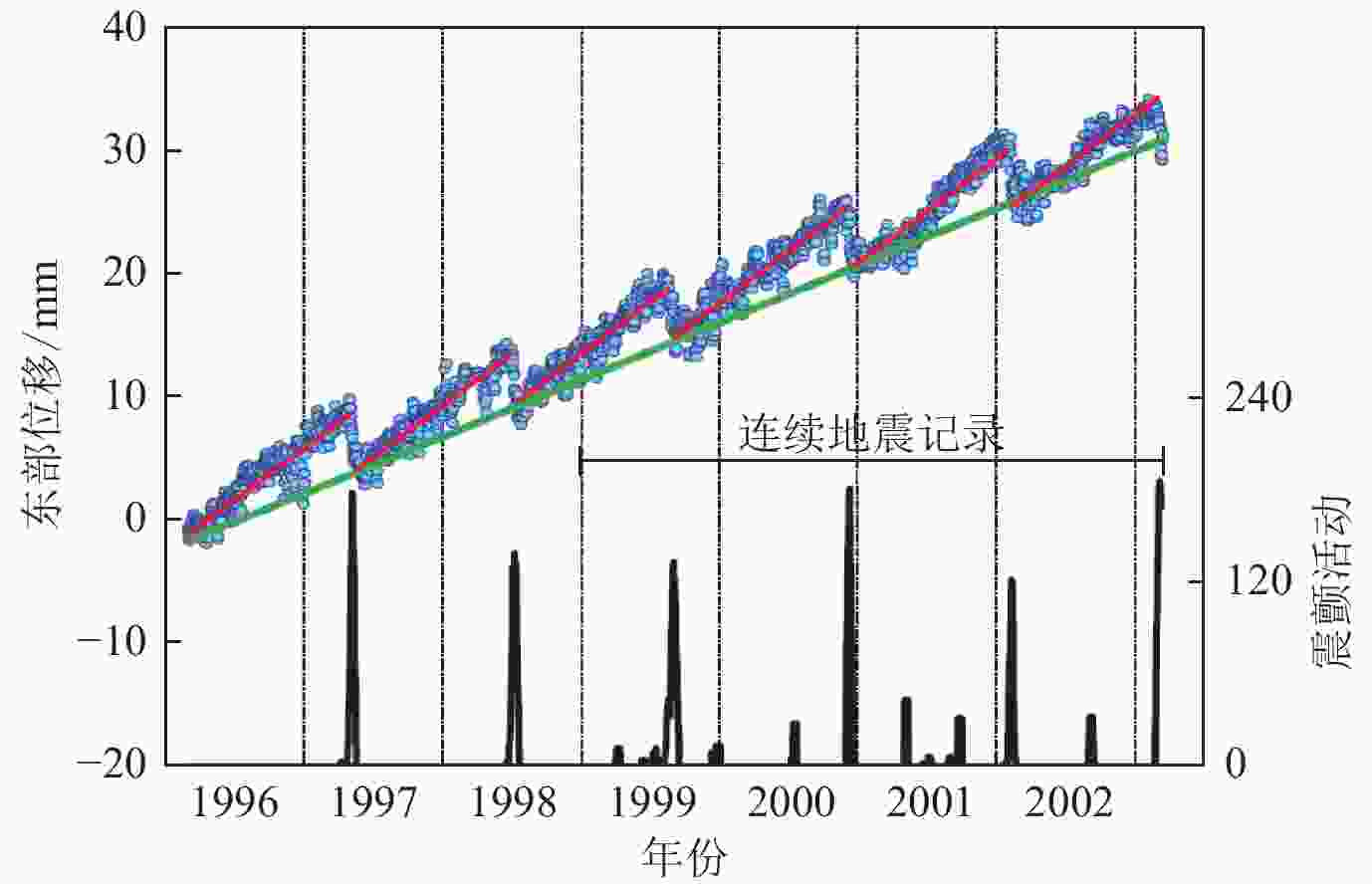

图 5 在卡斯卡迪亚观测的6年中NVT活动伴随着慢地震^[2]

下载: 全尺寸图片幻灯片

图 6 上图表示P波速度与S波速度比值图，黑点表示普通地震定位，红点表示LFEs定位，下图表示基于速度比震源分布示意图，LFEs主要分布在具有高速度比的地区^[4]

下载: 全尺寸图片幻灯片

参考文献(29)

[1]	Obara K. Nonvolcanic deep tremor associated with subduction in southwest Japan[J]. Science,2002,296(5573):1679-1681 doi: 10.1126/science.1070378
[2]	Rogers G,Dragert H. Episodic tremor and slip on the Cascadia subduction zone:The chatter of silent slip[J]. Science,2003,300(5627):1942-1943 doi: 10.1126/science.1084783
[3]	Miyazawa M,Mori J. Detection of triggered deep low-frequency events from the 2003 Tokachi-oki earthquake[J]. Geophys. Res. Lett.,2005,32(10):L10307
[4]	Shelly D R,Beroza G C,Ide S,et al. Low-frequency earthquakes in Shikoku,Japan,and their relationship to episodic tremor and slip[J]. Nature,2006,442(7099):188-191 doi: 10.1038/nature04931
[5]	Shelly D R,Beroza G C,Ide S. Non-volcanic tremor and low-frequency earthquake swarms[J]. Nature,2007,446(7133):305-307 doi: 10.1038/nature05666
[6]	Nadeau R M,Dolenc D. Nonvolcanic tremors deep beneath the San Andreas fault[J]. Science,2005,307(5708):389 doi: 10.1126/science.1107142
[7]	Kim M J,Schwartz S Y,Bannister S. Non-volcanic tremor associated with the March 2010 Gisborne slow slip event at the Hikurangi subduction margin,New Zealand[J]. Geophys. Res. Lett.,2011,38(14):L14301-L14304
[8]	Payero J S,Kostoglodov V,Shapiro N,et al. Non-volcanic tremor observed in the Mexican subduction zone[J]. Geophys. Res. Lett.,2008,35(7):L07305
[9]	Perterson C L,Christensen D H. Possible relationship between nonvolcanic tremor and the 1998—2001 slow slip event,south central Alaska[J]. J. Geophys. Res.,2009,114(B6):B06302
[10]	Walter J I,Schwartz S Y,Protti J M,et al. Persistent tremor within the northern Costa Rica seismogenic zone[J]. Geophys. Res. Lett.,2011,38(1):L01307
[11]	Gallego A,Russo R M,Comte D,et al. Tidal modulation of continuous nonvolcanic seismic tremor in the Chile triple junction region[J]. Geochemistry Geophysics Geosystems,2013,14(4):851-863 doi: 10.1002/ggge.20091
[12]	Aiken C,Peng Z G,Chao K. Tremors along the Queen Charlotte Margin triggered by large teleseismic earthquakes[J]. Geophys. Res. Lett.,2013,40(5):829-834 doi: 10.1002/grl.50220
[13]	Peng Z G,Gonzalezhuizar H,Chao K,et al. Tectonic tremor beneath Cuba triggered by the M_W8.8 Maule and M_W9.0 Tohoku-Oki earthquakes[J]. Bull. Seimol. Soc. Amer.,2013,103(1):595-600 doi: 10.1785/0120120253
[14]	Aiken C,Chao K,Gonzalez-Huizar H,et al. Exploration of remote triggering:A survey of multiple fault structures in Haiti[J]. Earth Planet. Sci. Lett.,2016,455:14-24 doi: 10.1016/j.jpgl.2016.09.023
[15]	Fuchs F,Lupi M,Miller S A. Remotely triggered nonvolcanic tremor in Sumbawa,Indonesia[J]. Geophys. Res. Lett.,2014,41(12):4185-4193 doi: 10.1002/2014GL060312
[16]	Anna P,Linda M,Stefany S,et al. Search for tectonic tremor on the Central North Anatolian fault,Turkey[J]. Bull. Seismol. Soc. Amer.,2015,105(3):1779-1786 doi: 10.1785/0120140312
[17]	Suda N,Nakata R,Kusumi T. An automatic monitoring system for nonvolcanic tremors in southwest Japan[J]. J. Geophys. Res.,2009,114(B11):B00A10
[18]	Wech A G,Creager K C. Automated detection and location of Cascadia tremor[J]. Geophys. Res. Lett.,2008,35(20):L20302 doi: 10.1029/2008GL035458
[19]	Kao H,Shan S J,Dragert H,et al. A wide depth distribution of seismic tremors along the northern Cascadia margin[J]. Nature,2005,436(7052):841-844 doi: 10.1038/nature03903
[20]	Guo H,Zhang H J,Nadeau R M,et al. High-resolution deep tectonic tremor locations beneath the San Andreas Fault near Cholame,California,using the double-pair doubledifference location method[J]. J. Geophys. Res.,2017,122(4):3062-3075 doi: 10.1002/2016JB013919
[21]	Peng Z G,Chao K. Non-volcanic tremor beneath the Central Range in Taiwan triggered by the 2001 M_W7.8 Kunlun earthquake[J]. Geophys. J. Inter.,2008,175(2):825-829 doi: 10.1111/gji.2008.175.issue-2
[22]	Peng Z G,Vidale J E,Wech A G,et al. Remote triggering of tremor along the San Andreas fault in Central California[J]. J. Geophys. Res.,2009,114(B7):B00A06
[23]	Rubinstein J L,Gomberg J,Vidale J E,et al. Seismic wave triggering of nonvolcanic tremor,episodic tremor and slip,and earthquakes on Vancouver Island[J]. J. Geophys. Res.,2009,114(B2):B00A01-B00A22
[24]	Rubinstein J L,Ellsworth W L. Precise estimation of repeating earthquake moment:Example from Parkfield,California[J]. Bull. Seismol. Soc. Amer.,2010,100(5A):1952-1961 doi: 10.1785/0120100007
[25]	Peng Z G,Shelly D R,Ellsworth W L. Delayed dynamic triggering of deep tremor along the Parkfield-Cholame section of the San Andreas Fault following the 2014 M6.0 South Napa earthquake[J]. Geophys. Res. Lett.,2015,42(19):7916-7922 doi: 10.1002/2015GL065277
[26]	Shelly D R. Migrating tremors illuminate complex deformation beneath the seismogenic San Andreas Fault[J]. Nature,2010,463(7281):648-752 doi: 10.1038/nature08755
[27]	Shelly D R. A 15-year catalog of more than 1 million low-frequency earthquakes:Tracking tremor and slip along the deep San Andreas Fault[J]. J. Geophys. Res.,2017,122(5):3739-3753 doi: 10.1002/2017JB014047
[28]	Frank W B, Shapiro N M, Husker A L, et al. Tectonic Tremor and the Collective Behavior of Low-Frequency Earthquakes[C]. Agu Fall Meeting, 2015
[29]	Frank W B,Shapiro N M,Husker A L,et al. The evolving interaction of low-frequency earthquakes during transient slip[J]. Science Advances,2016,2(4):e1501616 doi: 10.1126/sciadv.1501616
