基于支持向量机上海地区土体物理力学指标相关性研究

李志国; 白瑞涵; 刘旭进; 王庶懋

doi:10.19987/j.dzkxjz.2022-166

基于支持向量机上海地区土体物理力学指标相关性研究

doi: 10.19987/j.dzkxjz.2022-166

李志国^1,,
白瑞涵^{2, 3},
刘旭进¹,
王庶懋^1, ,

1.
中国电力工程顾问集团华东电力设计院有限公司，上海 200063
2.
河海大学岩土力学与堤坝工程教育部重点实验室，江苏南京 210024
3.
河海大学江苏省岩土工程技术工程研究中心，江苏南京 210024

基金项目: “基于数据挖掘技术的岩土工程勘察设计管理及优化平台研究”（GSKJ2-G02-2019）资助。

详细信息

作者简介:
李志国（1983-），男，高级工程师，主要从事岩土工程勘察工作。E-mail：2564@ecepdi.com

通讯作者:
王庶懋（1978-），男，高级工程师，主要从事岩土工程勘察及岩土工程设计工作。E-mail：2431@ecepdi.com

中图分类号: TU431
计量
- 文章访问数: 68
- HTML全文浏览量: 15
- PDF下载量: 18
出版历程
- 收稿日期: 2022-11-16
- 录用日期: 2022-12-26
- 网络出版日期: 2023-01-06

Correlations between physical and mechanical property indexes of Shanghai soil based on support vector machine

Li Zhiguo^1
,,
Bai Ruihan^{2, 3},
Liu Xujin¹,
Wang Shumao^{1
, ,}

1.
East China Electric Power Design Institute Co., LTD. of China Power Engineering Consulting Group, Shanghai 200063, China
2.
Key Laboratory of Minstry of Education for Geomechanics and Embankment Engineering, Hohai University, Jiangsu Nanjing 210024, China
3.
Geotechnical Engineering Research Center of Jiangsu Province, Hohai University, Jiangsu Nanjing 210024, China

摘要

摘要:
针对上海地区土体物理力学指标开展相关性分析，结合多个工程场地获取的土体室内试验数据，采用支持向量机算法构建了土体塑性指数、液性指数与压缩系数的相关性分析模型，并结合误差指标对模型参数进行优化。将支持向量机模型与传统的线性、多项式拟合方法结果对比分析，表明该模型预测结果与实际结果较为吻合，且该模型另一优势在于能够从更多的数据中进行更深度的挖掘来提升自身的鲁棒性。考虑到不同土体的工程性质差异较大，进一步研究该模型的预测性能与适用性，就每个测试样本点预测偏差与其物理指标建立二者的关系曲线，结果表明可塑性小的中压缩性土体相较于高压缩性土体的预测偏差更小，模型更加稳定与准确，可为上海地区土体压缩性相关研究提供参考。
- 支持向量机 /
- 相关性分析 /
- 压缩系数 /
- 液性指数 /
- 塑性指数
Abstract:
Correlation analysis of physical and mechanical indexes of Shanghai soil was carried out. Using the support vector machine algorithm, the authors constructed a correlation analysis model of soil plasticity index, liquidity index and compressibility coefficient based on the soil indoor test data obtained from several engineering sites. Then the model parameters were optimized by combining the error indexes. Comparing the results of support vector machine model with those of traditional linear and polynomial fitting methods, it was shown that the prediction results of the model are basically consistent with the actual results, and another advantage of model is that it can carry out deeper mining from more data to improve its robustness. Considering the engineering properties of different category soils are quite different, the authors further analyzed the performance and applicability of model, and established the relationship curve between the forecast bias of each testing sample and its physical indexes. The results indicate that the error of medium compressible soil is smaller than high compressible soil, and the model is more stable and accurate, which could provide a reference for the research of soil compressibility in Shanghai.
- support vector machine /
- correlation analysis /
- compressibility coefficient /
- liquidity index /
- plasticity index

HTML全文

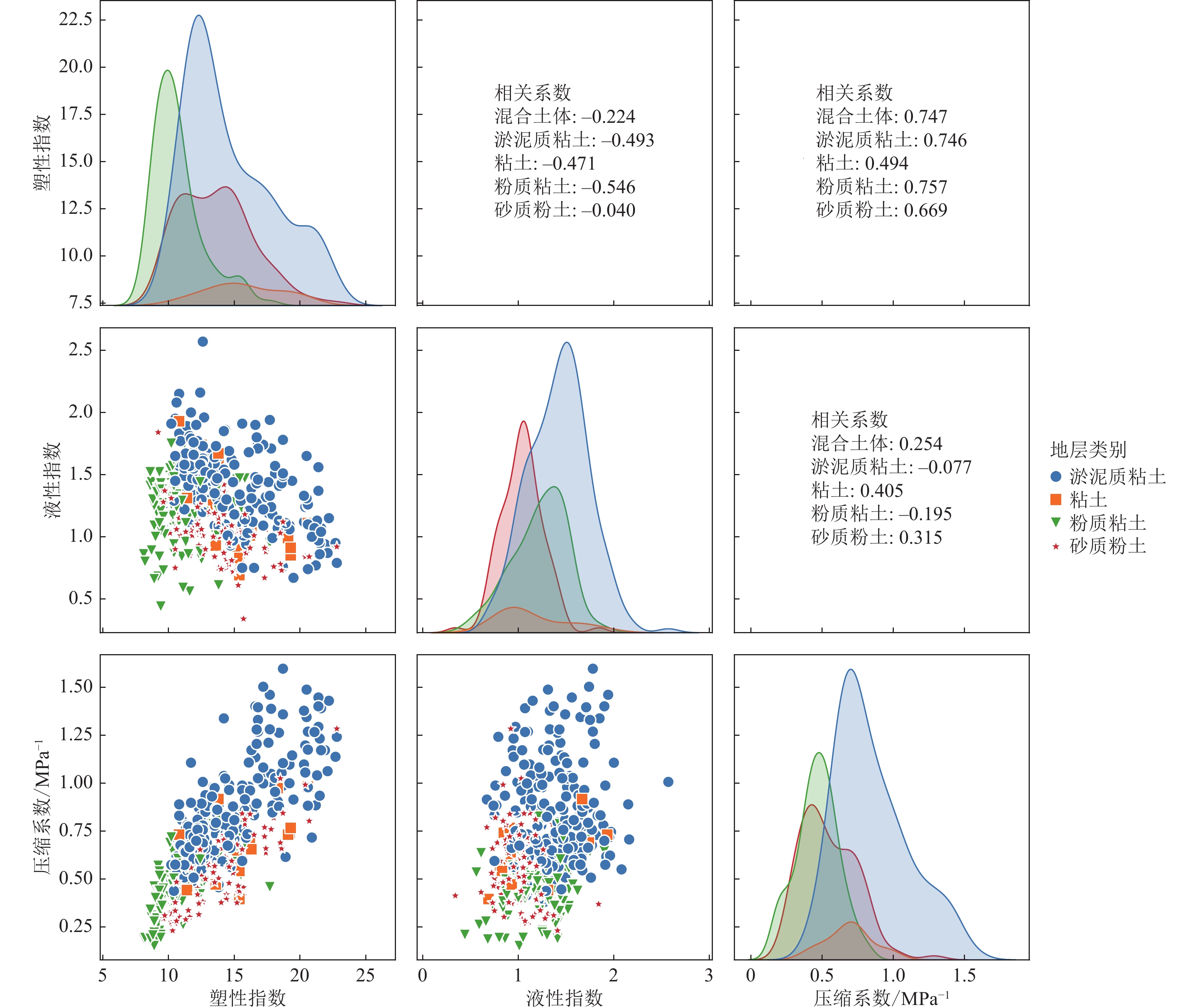

图 1 相关性散点图

Figure 1. Correlation scatter plot

下载: 全尺寸图片幻灯片

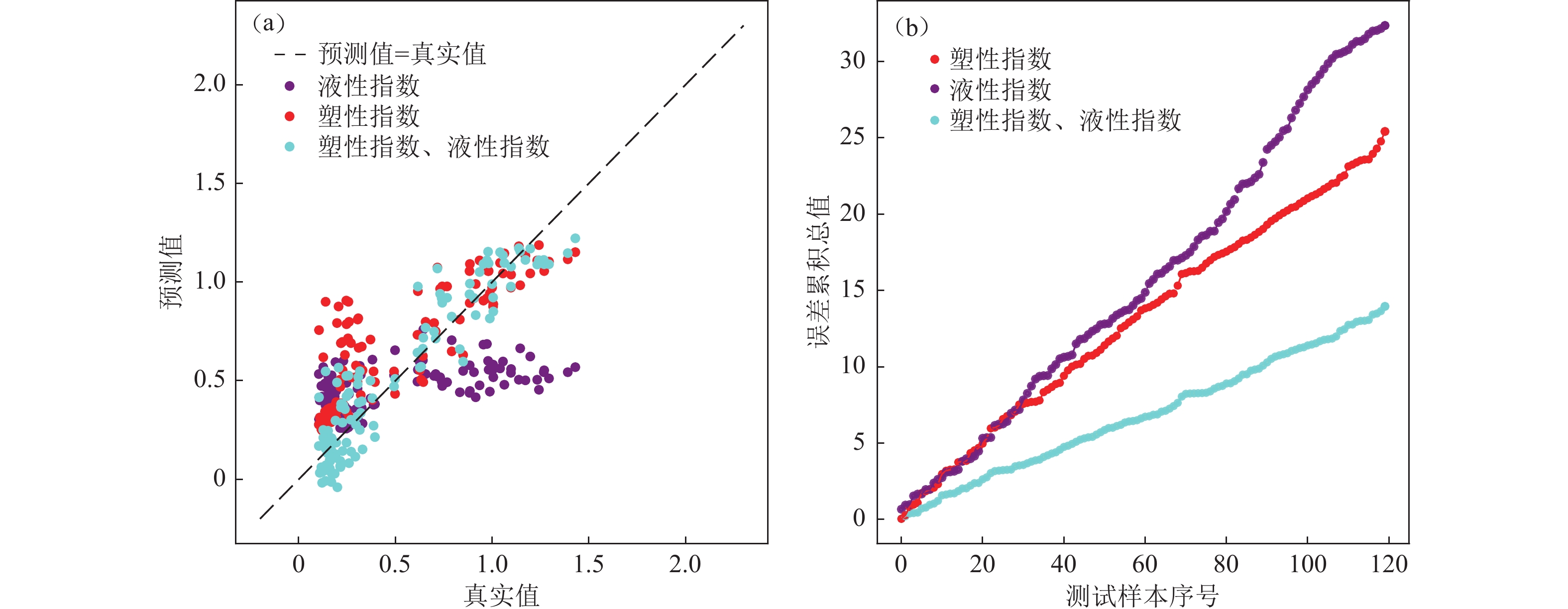

图 2 不同输入变量预测结果的对比分析

Figure 2. Comparisive analysis of forecast results for different input variables

下载: 全尺寸图片幻灯片

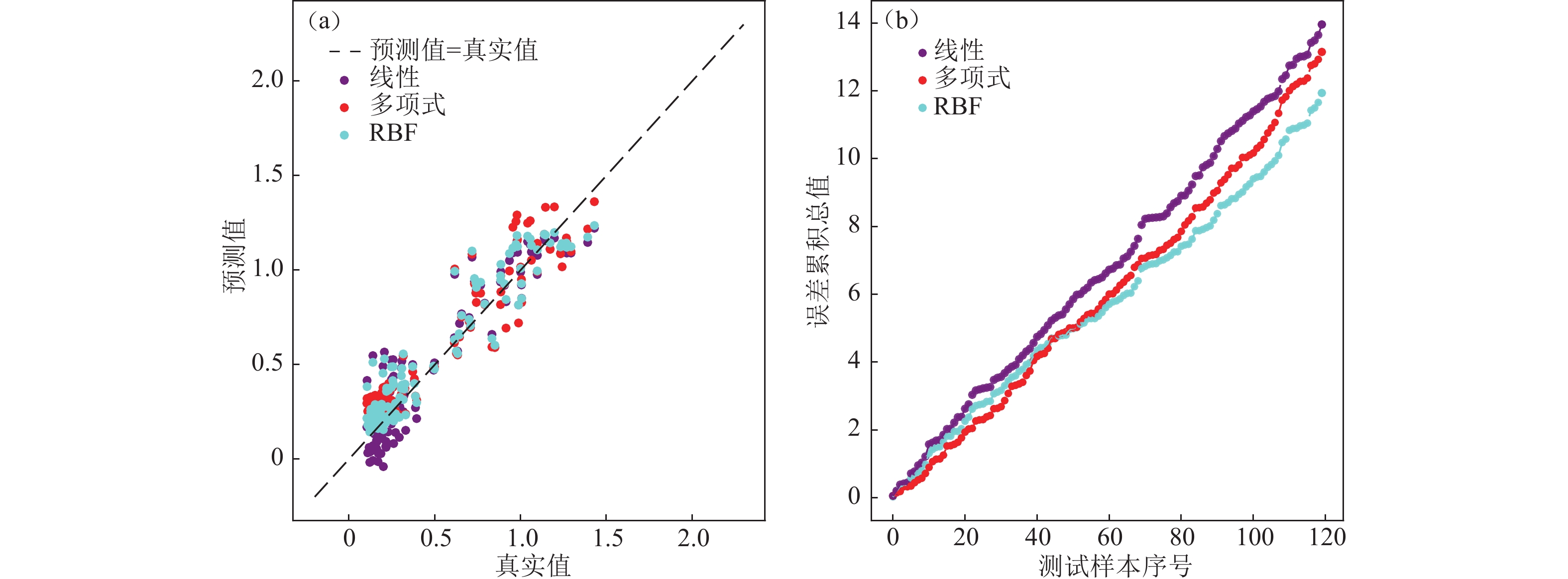

图 3 不同核函数预测结果的对比分析

Figure 3. Comparisive analysis of forecast results for different kernel functions

下载: 全尺寸图片幻灯片

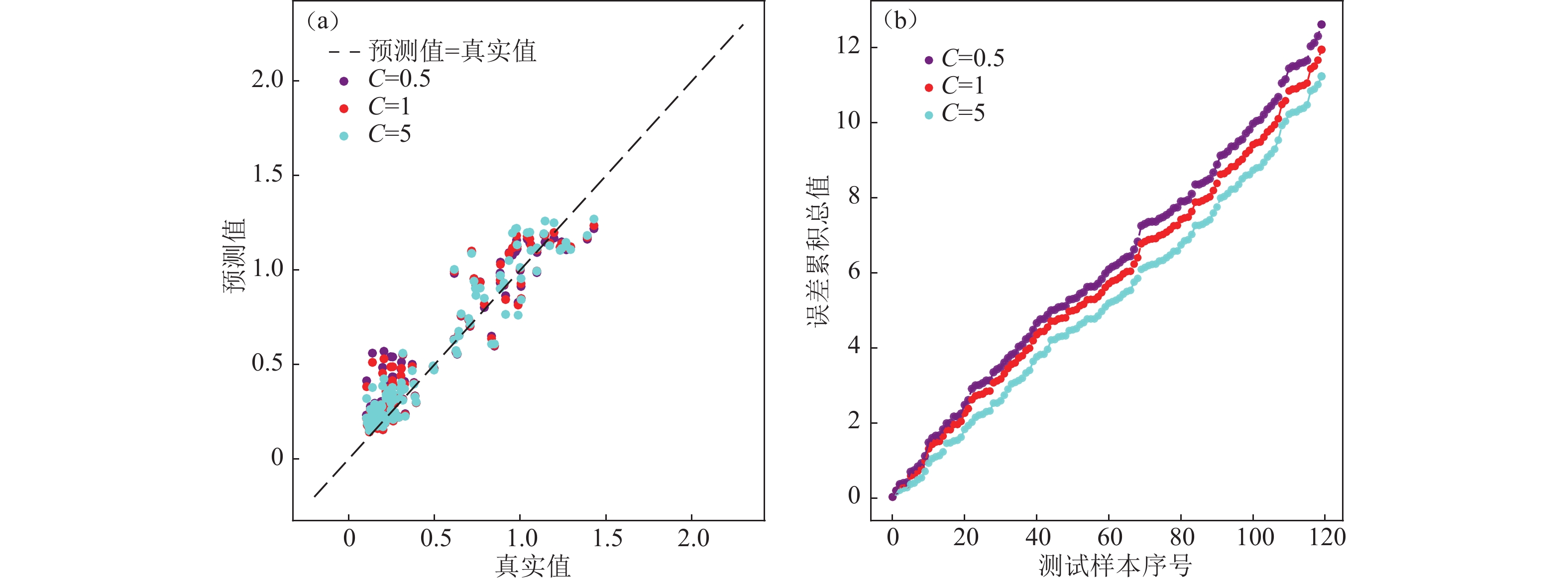

图 4 不同误差项惩罚系数预测结果的对比分析

Figure 4. Comparisive analysis of forecast results of penalty coefficients of different error item

下载: 全尺寸图片幻灯片

图 5 不同方法的压缩系数预测结果对比分析

Figure 5. Comparisive analysis of prediction results of compression coefficients by different methods

下载: 全尺寸图片幻灯片

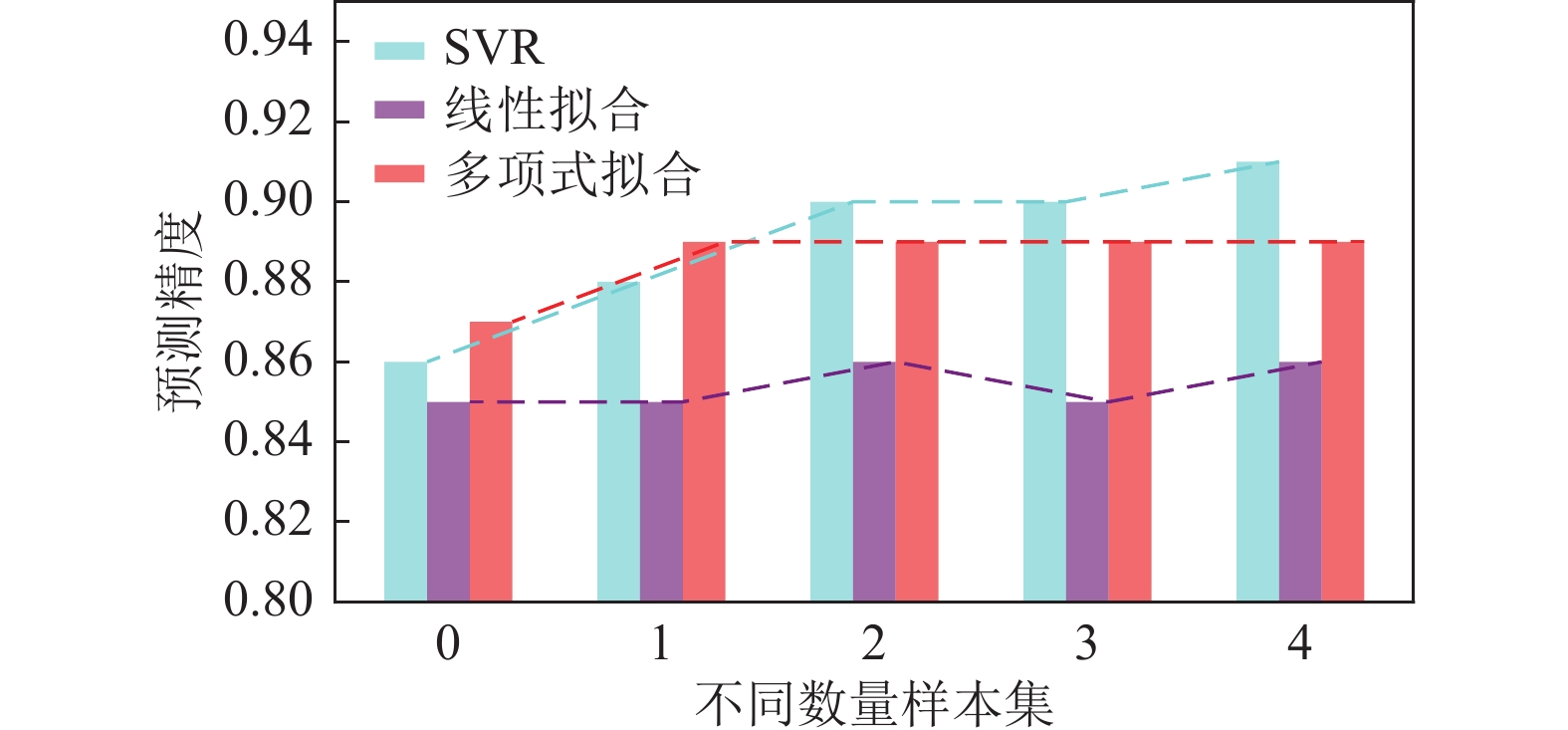

图 6 不同数量数据集下支持向量机与拟合方法的对比分析

Figure 6. Comparative analysis of support vector machine and fitting methods in different datasets

下载: 全尺寸图片幻灯片

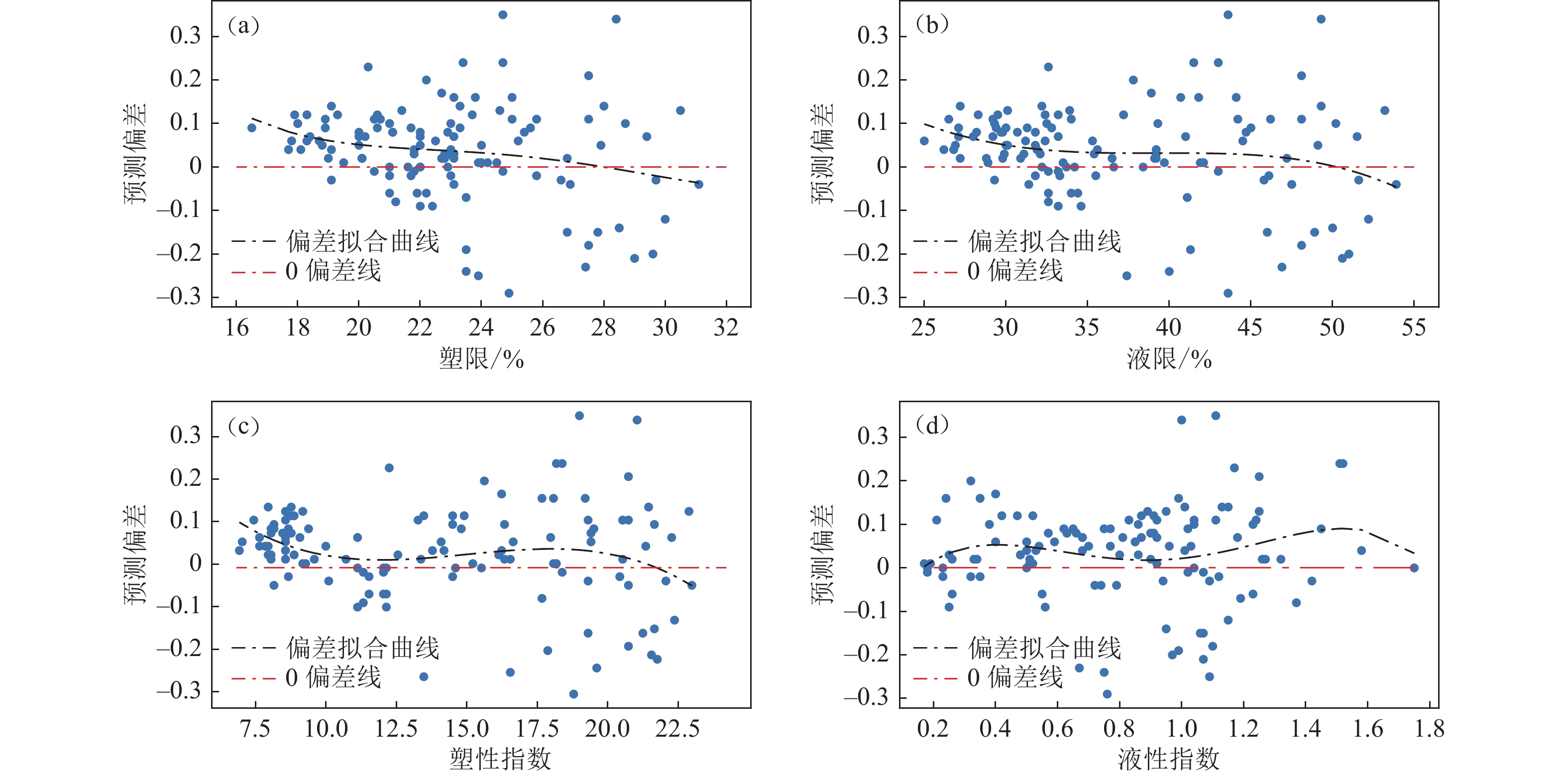

图 7 不同物理指标的预测偏差

Figure 7. Forecast bias of different physical indexes

下载: 全尺寸图片幻灯片

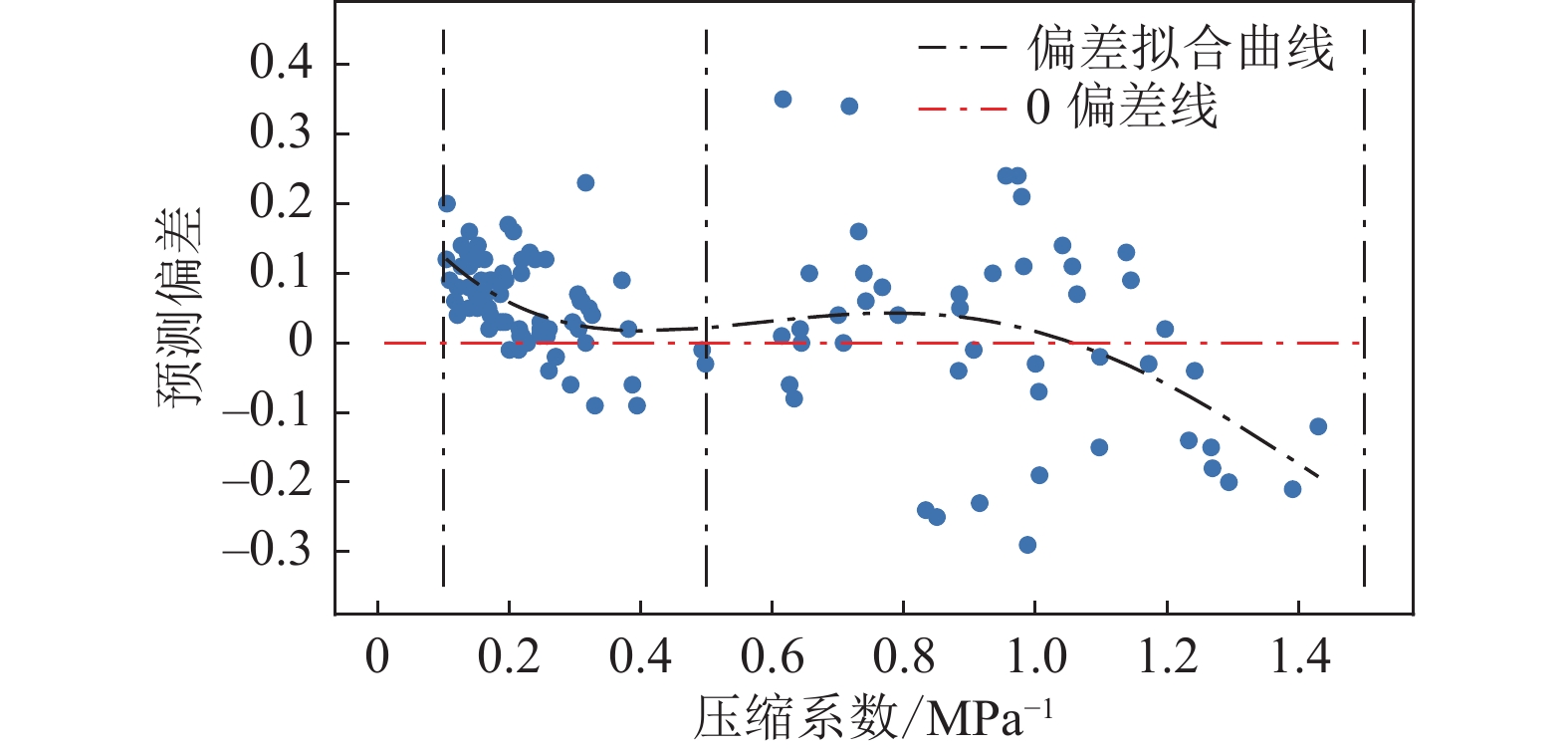

图 8 基于压缩系数的预测偏差变化

Figure 8. Variation of forecast bias based on compression coefficients

下载: 全尺寸图片幻灯片

表 1 土的物理力学指标统计

Table 1. Statistics of physical and mechanical indexes of soil

土体类型	统计量	物理力学指标	参数值
土体类型	统计量	物理力学指标	最小值	最大值	平均值	标准差	变异系数
淤泥质粘土	221	压缩系数a_1-2/MPa⁻¹	0.66	1.60	0.84	0.27	0.32
		含水量w/%	24.40	63.40	42.93	6.54	0.15
		塑限W_P/%	17.00	31.30	22.80	2.92	0.13
		液限W_L/%	26.50	53.90	37.42	6.10	0.16
		塑性指数I_P	9.40	22.80	14.62	3.38	0.23
		液性指数I_L	0.52	2.57	1.41	0.32	0.23
		湿密度ρ/（cm·s⁻³）	1.62	1.97	1.76	0.06	0.03
		土粒比重G_s	2.71	2.75	2.73	0.01	0.0039
粘土	31	压缩系数a_1-2/ MPa⁻¹	0.21	0.98	0.57	0.22	0.39
		含水量w/%	24.00	52.60	36.22	7.66	0.21
		塑限W_P/%	16.50	27.50	22.17	2.55	0.12
		液限W_L/%	30.50	48.10	37.64	4.57	0.12
		塑性指数I_P	10.80	20.60	15.47	2.41	0.16
		液性指数I_L	0.35	1.93	0.92	0.43	0.47
		湿密度ρ/（cm·s⁻³）	1.70	2.02	1.87	0.10	0.05
		土粒比重G_s	2.72	2.75	2.73	0.01	0.0037
粉质粘土	198	压缩系数a_1-2/ MPa⁻¹	0.07	1.28	0.41	0.21	0.51
		含水量w/%	18.20	52.00	30.97	6.27	0.20
		塑限W_P/%	15.00	31.00	21.46	2.40	0.11
		液限W_L/%	25.40	53.80	35.15	4.63	0.13
		塑性指数I_P	9.00	22.80	13.68	2.61	0.19
		液性指数I_L	-0.31	1.84	0.72	0.41	0.57
		湿密度ρ/（cm·s⁻³）	1.67	2.10	1.90	0.09	0.05
		土粒比重G_s	2.71	2.75	2.73	0.01	0.0037
砂质粉土	137	压缩系数a_1-2/ MPa⁻¹	0.10	0.83	0.39	0.18	0.46
		含水量w/%	19.90	46.40	31.51	5.01	0.16
		塑限W_P/%	13.00	25.70	20.14	2.44	0.12
		液限W_L/%	22.40	43.40	30.29	3.45	0.11
		塑性指数I_P	7.10	17.70	10.15	1.91	0.19
		液性指数I_L	0.35	1.90	1.10	0.33	0.30
		湿密度ρ/（cm·s⁻³）	1.73	2.03	1.84	0.07	0.04
		土粒比重G_s	2.69	2.74	2.71	0.01	0.0025

下载: 导出CSV

表 2 不同输入变量预测结果误差对比

Table 2. Error comparison of forecast results for different input variables

输入变量	误差指数
输入变量	R²	MAE	RMSE	MSE
塑性指数、液性指数	0.860	0.116	0.144	0.021
塑性指数	0.525	0.212	0.265	0.070
液性指数	0.228	0.269	0.338	0.114

下载: 导出CSV

表 3 不同核函数预测结果误差对比

Table 3. Error comparison of forecast results for different kernel functions

核函数	误差指数
核函数	R²	MAE	RMSE	MSE
RBF	0.886	0.100	0.130	0.017
多项式	0.876	0.109	0.136	0.018
线性	0.86	0.116	0.144	0.021

下载: 导出CSV

表 4 不同误差项惩罚系数预测结果误差对比

Table 4. Error comparison of forecast results of penalty coefficients of different error item

误差项惩罚系数C	误差指数
误差项惩罚系数C	R²	MAE	RMSE	MSE
5	0.903	0.094	0.120	0.014
1	0.886	0.100	0.130	0.017
0.5	0.873	0.105	0.137	0.019

下载: 导出CSV

表 5 不同方法的压缩系数预测结果误差对比

Table 5. Error comparison of prediction results of compression coefficients by different methods

算法	误差指数
算法	R²	MAE	RMSE	MSE
SVR算法	0.911	0.08	0.115	0.013
线性拟合	0.859	0.118	0.144	0.021
多项式拟合	0.892	0.101	0.127	0.016

下载: 导出CSV

表 6 不同物理指标预测结果误差对比

Table 6. Error comparison of prediction results for different physical indexes

指标	变化范围	误差指标
指标	变化范围	MAE	RMSE	MSE
塑限W_P	16—20	0.071	0.080	0.006
	20—26	0.082	0.111	0.012
	26—32	0.129	0.023	0.151
液限W_L	25—35	0.067	0.080	0.006
	35—45	0.104	0.141	0.020
	45—55	0.122	0.144	0.021
塑性指数I_P	7.5—12.5	0.064	0.079	0.006
	12.5—17.5	0.081	0.108	0.012
	17.5—22.5	0.130	0.158	0.025
液性指数I_L	0.2—0.7	0.069	0.087	0.008
	0.7—1.2	0.107	0.133	0.018
	1.2—1.8	0.094	0.122	0.015

下载: 导出CSV

表 7 中高压缩性土预测结果误差对比

Table 7. Error comparison of prediction results of medium and high compressible soil

土体类型	误差指数
土体类型	MAE	RMSE	MSE
中压缩性土	0.069	0.085	0.007
高压缩性土	0.120	0.150	0.023

下载: 导出CSV

参考文献(17)

[1]	Koppula S D. Statistical estimation of compression index[J]. Geotechnical Testing Journal,1981,4(2):68-73 doi: 10.1520/GTJ10768J
[2]	Rendon-Herrero O. Universal compression index equation[J]. Journal of Geotechnical & Geoenvironmental Engineering,1980,106(11):1179-1200
[3]	Schofield A, Wroth P. Critical state soil mechanics[M]. London: Mcgraw Hill, 1968
[4]	Nakase A,Kamei T,Kusakabe O. Constitutive parameters estimated by plasticity index[J]. Journal of Geotechnical Engineering,1988,114(7):844-858 doi: 10.1061/(ASCE)0733-9410(1988)114:7(844)
[5]	Azzouz A S,Krizek R J,Corotis R B. Regression analysis of soil compressibility[J]. Soils and Foundations,1976,16(2):19-29 doi: 10.3208/sandf1972.16.2_19
[6]	刘吉福,高玉峰. 广东软粘土物理力学指标相关性分析[J]. 路基工程,2013(2):47-52 doi: 10.3969/j.issn.1003-8825.2013.02.012 Liu J F,Gao Y F. Analysis on correlation of physical and mechanical indices of soft clay in Guangdong[J]. Subgrade Engineering,2013(2):47-52 doi: 10.3969/j.issn.1003-8825.2013.02.012
[7]	赵孝旗,周翔,康怀信,等. 杭州地区海相软土物理力学指标相关性分析[J]. 路基工程,2021(5):30-34 doi: 10.13379/j.issn.1003-8825.202101092 Zhao X Q,Zhou X,Kang H X,et al. Analysis on correlation of physical and mechanical indexes of marine soft soil in Hangzhou area[J]. Subgrade Engineering,2021(5):30-34 doi: 10.13379/j.issn.1003-8825.202101092
[8]	刘伽,朱斌,段磊,等. 大连黏性土压缩指数与物理指标相关性分析[J]. 土木工程与管理学报,2018,35(3):118-123 doi: 10.3969/j.issn.2095-0985.2018.03.019 Liu J,Zhu B,Duan L,et al. Correlation analysis between compression index and physical parameters of Dalian clayey soils[J]. Journal of Civil Engineering and Management,2018,35(3):118-123 doi: 10.3969/j.issn.2095-0985.2018.03.019
[9]	涂春霖,尹林虎,顾亚. 云南遮放盆地粉质黏土物理力学指标相关性分析[J]. 矿产勘查,2021,12(9):1979-1984 doi: 10.3969/j.issn.1674-7801.2021.09.016 Tu C L,Yin L H,Gu Y. Correlation analysis on physical and mechanical indexes of the silty clay in Zhefang Basion of Yunnan Province[J]. Mineral Exploration,2021,12(9):1979-1984 doi: 10.3969/j.issn.1674-7801.2021.09.016
[10]	白冰,周健,章光. 饱和软黏土的塑性指数对其压缩变形参数的影响[J]. 水利学报,2001,32(11):51-55 doi: 10.3321/j.issn:0559-9350.2001.11.009 Bai B,Zhou J,Zhang G. Effect of plasticity index of saturated soft clay on its deformation parameters[J]. Journal of Hydraulic Engineering,2001,32(11):51-55 doi: 10.3321/j.issn:0559-9350.2001.11.009
[11]	李晨晨,徐世光,吴静. 昆明市南市区软土内摩擦角与各物理指标之间的相关关系分析[J]. 科学技术与工程,2014,14(3):243-245 doi: 10.3969/j.issn.1671-1815.2014.03.053 Li C C,Xu S G,Wu J. The analysis of the correlativity between the internal frictional angle and physical parameter of the soft soil in the south city,Kunming,Yunnan Province[J]. Science Technology and Engineering,2014,14(3):243-245 doi: 10.3969/j.issn.1671-1815.2014.03.053
[12]	孙毅力,于洪民. 北京区域土的压缩性与物理指标相关性分析[J]. 地震工程学报,2015,37(增刊1):26-29 Sun Y L,Yu H M. Correlation analysis of the compressibility and physical indices of soils in Beijing[J]. China Earthquake Engineering Journal,2015,37(S1):26-29
[13]	李旭昶,孙德安,徐永福. 扬州土物理与力学性质指标的相关性分析[J]. 工程地质学报,2019,27(2):333-340 doi: 10.13544/j.cnki.jeg.2017-486 Li X C,Sun D A,Xu Y F. Study on correlations of physical and mechanical property indexes of Yangzhou clays[J]. Journal of Engineering Geology,2019,27(2):333-340 doi: 10.13544/j.cnki.jeg.2017-486
[14]	丁祖德,付江,李夕松,等. 昆明泥炭质土的物理力学指标特征及相关性分析[J]. 公路工程,2018,43(4):86-91 doi: 10.3969/j.issn.1674-0610.2018.04.018 Ding Z D,Fu J,Li X S,et al. Properties of physical and mechanical indexes and correlation analysis of peaty soil in Kunming area[J]. Highway Engineering,2018,43(4):86-91 doi: 10.3969/j.issn.1674-0610.2018.04.018
[15]	张鹤. 基于软土常规物理参数的压缩模量预测研究[J]. 铁道建筑技术,2019(1):1-5,49 doi: 10.3969/j.issn.1009-4539.2019.01.001 Zhang H. Prediction study on compression modulus of soft soil based on conventional physical parameters[J]. Railway Construction Technology,2019(1):1-5,49 doi: 10.3969/j.issn.1009-4539.2019.01.001
[16]	蒋建平,阎长虹,高广运. 地基土压缩系数的RBF神经网络预测[J]. 江苏大学学报(自然科学版),2011,32(2):232-235,248 doi: 10.3969/j.issn.1671-7775.2011.02.023 Jiang J P,Yan C H,Gao G Y. Prediction on compressibility coefficient of soil based on RBF neural network[J]. Journal of Jiangsu University (Natural Science Edition),2011,32(2):232-235,248 doi: 10.3969/j.issn.1671-7775.2011.02.023
[17]	Zhang D M,Zhang J Z,Huang H W,et al. Machine learning-based prediction of soil compression modulus with application of 1D settlement[J]. Journal of Zhejiang University-Science A:Applied Physics & Engineering,2020,21(6):430-444
