The centroid moment tensor solution of 2022 Luding MS6.8 earthquake in Sichuan Province
-
-
图 1 泸定地震矩张量
红色圆圈：鲜水河断裂带1725年以来7.0级以上地震震中分布；青绿色三角形：矩张量反演所用台站分布；红色震源球：泸定地震震源机制解
Figure 1. Focal mechanism of Luding earthquake

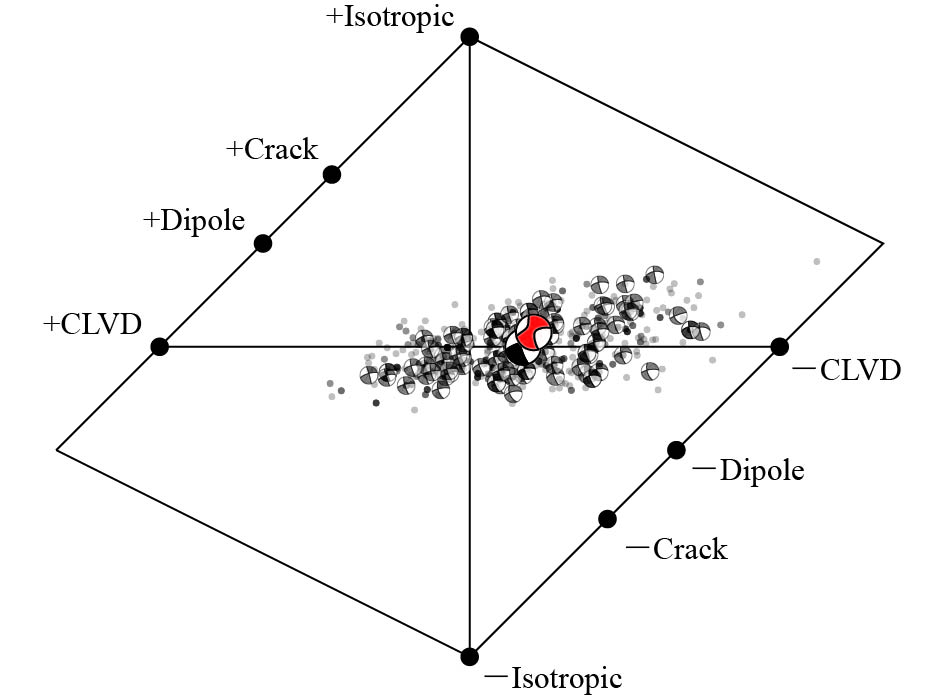

图 2 2022年9月5日四川泸定MS6.8地震的矩张量解在Hudson震源类型图上的投影
红色震源球为最优解，黑色震源球为10%最优采样解集，其他采样解以点表示DC—双力偶；+Crack—张裂缝；−Crack—闭合裂缝；+Isotropic—爆炸；−Isotropic—塌陷；±CLVD—错动方向相反补偿线性失量偶极子；±Dipole—错动方向相反的偶极子
Figure 2. Projection of Luding earthquake moment tensor solution on Hudson source type map

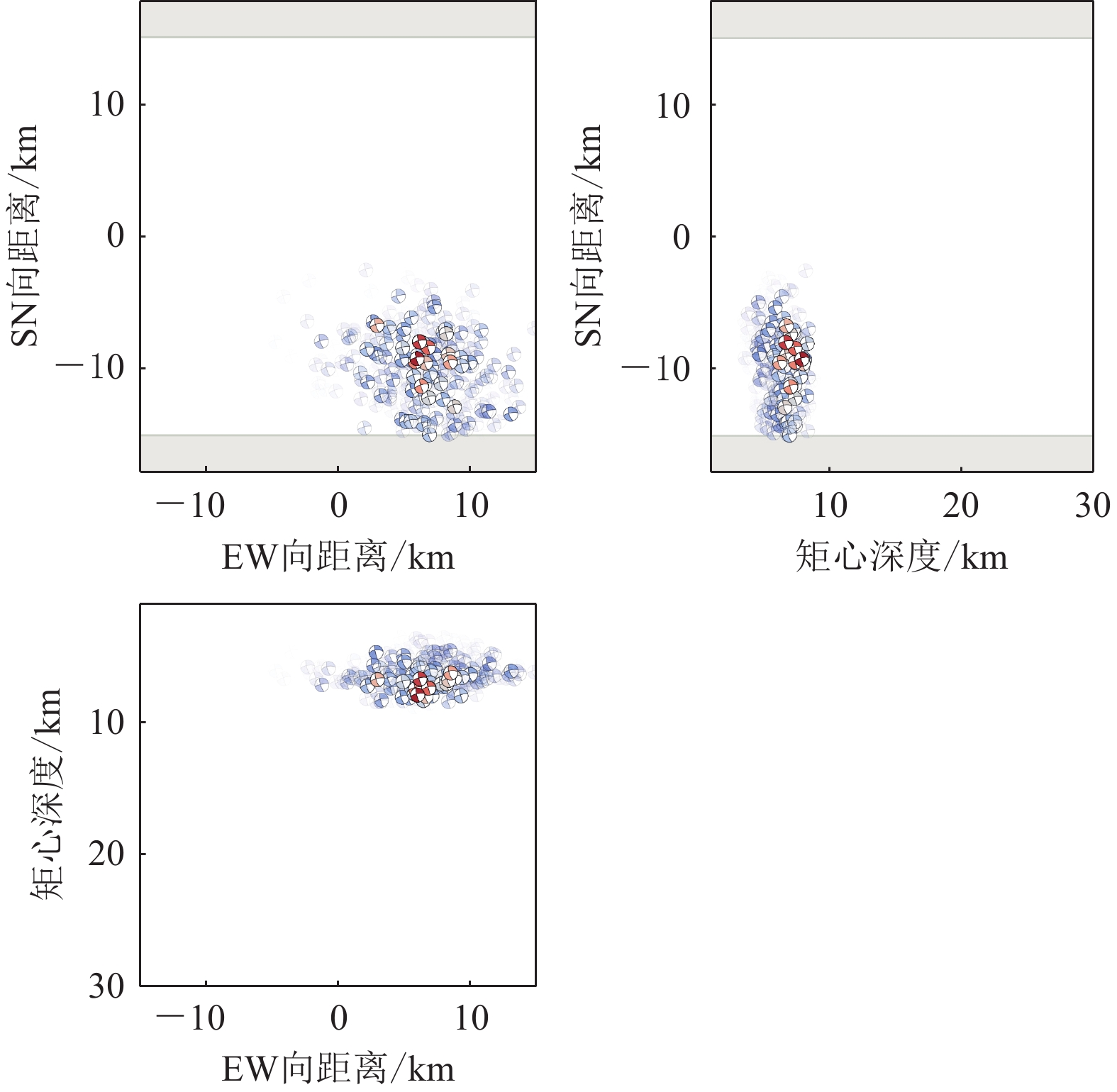

图 3 2022年9月5日四川泸定MS6.8地震的矩心位置
符号显示最佳的双力偶解；红色为低失配误差，蓝色为高失配误差
Figure 3. Earthquake moment tensor location of Luding earthquake

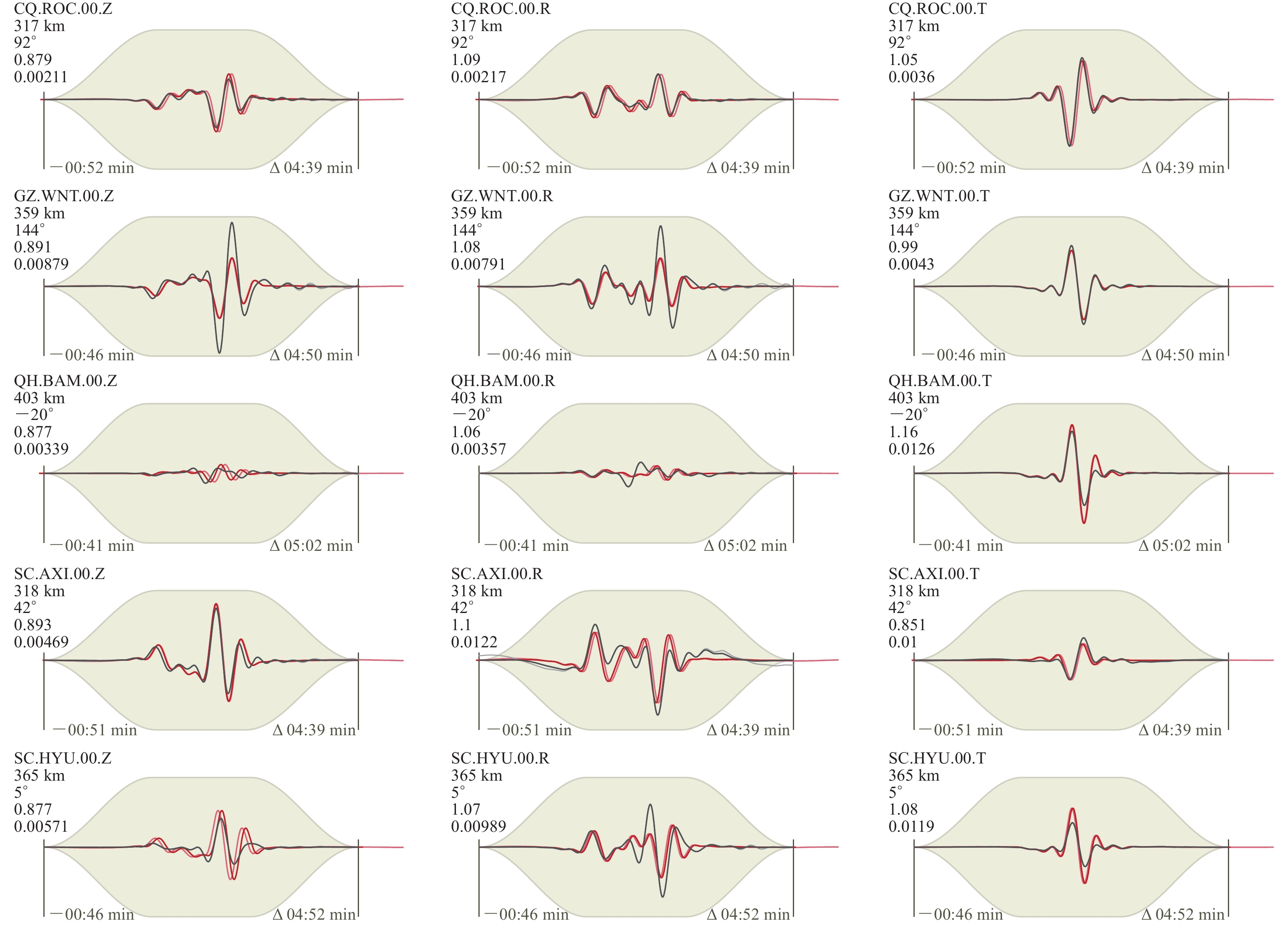

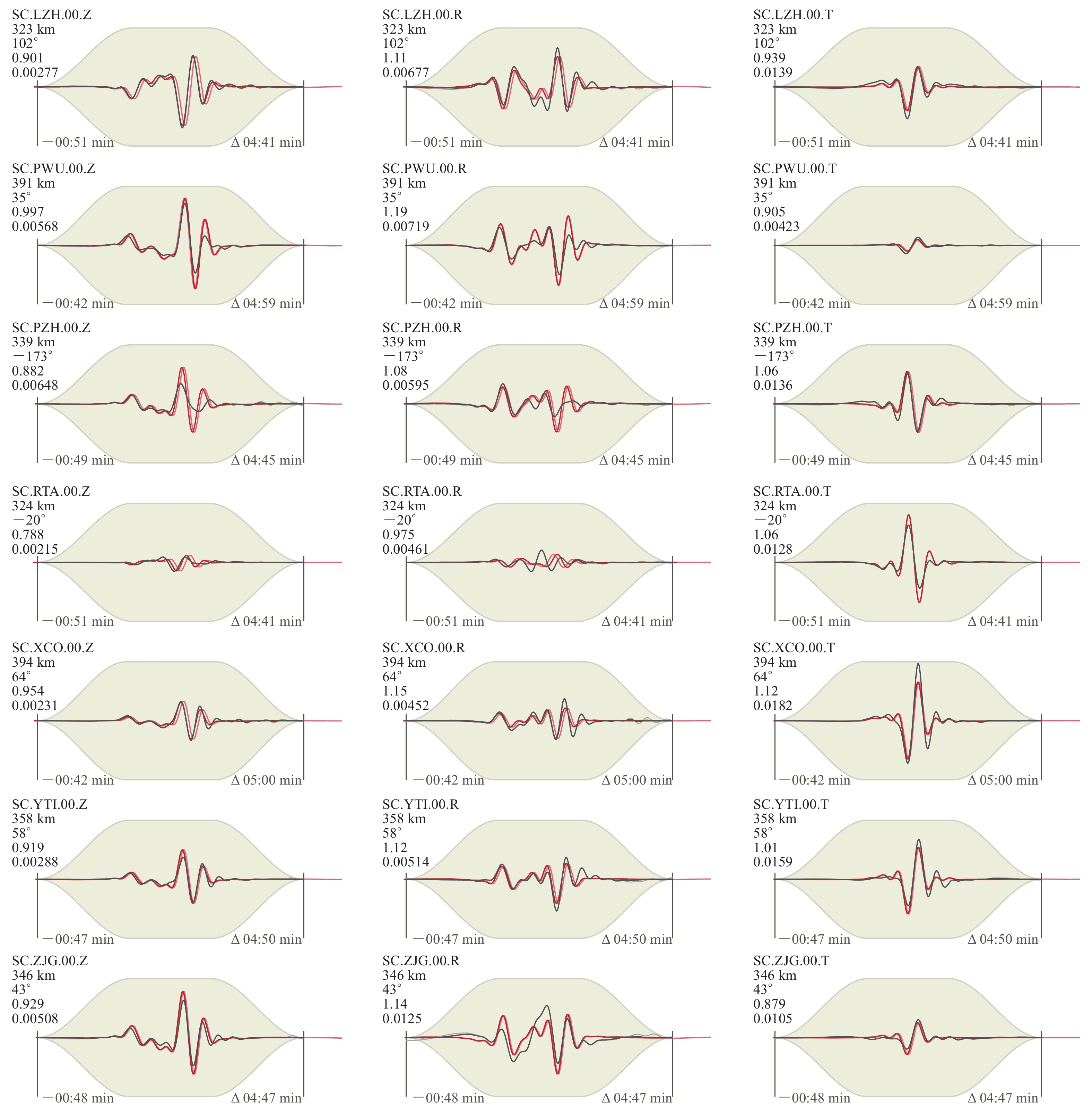

图 4 2022年9月5日四川泸定MS6.8地震部分台站波形拟合情况
黑色为实际观测波形，红色为理论计算波形。图中标注信息从上到下依次为台站名、震中距、方位角、权重、拟合误差及时间窗
Figure 4. Fits waveform best ensemble of different station
表 1 2022年9月5日四川泸定MS6.8地震矩张量
Table 1. Moment tensor solution of Luding MS6.8 earthquake
MW Mnn Mee Mdd Mne Mnd Med ISO CLVD 6.68 0.496 −0.409 0.05 0.823 0.1 −0.32 0.043 −0.19
下载: 导出CSV
-
[1] Heimann S, Isken M, Kühn D, et al. Grond: A probabilistic earthquake source inversion framework. V. 1.0. GFZ Data Services [EB/OL]. [2022-09-08]. https: //doi.org/10.5880/GFZ.2.1.2018.003 [2] Aki K, Richards P G. Quantitative seismology: Second edition [M]. California: University Science Books, 2002: 49-62 [3] Laske G, Masters G, Reif C. Crust 2.0: A new global crustal model at 2×2 degrees[EB/OL]. [2022-09-08]. https: //igppweb.ucsd.edu/~gabi/crust2.html [4] Helmholtz-Centre Potsdam. Green’s function stores[WB/OL]. [2022-09-08]. https: //greens-mill.pyrocko.org/ [5] 郑秀芬,欧阳飚,张东宁,等. “国家数字测震台网数据备份中心” 技术系统建设及其对汶川大地震研究的数据支撑[J]. 地球物理学报,2009,52(5):1412-1417 doi: 10.3969/j.issn.0001-5733.2009.05.031Zheng X F,Ouyang B,Zhang D N,et al. Technical system construction of Data Backup Centre for China Seismograph Network and the data support to researches on the Wenchuan earthquake[J]. Chinese Journal of Geophysics,2009,52(5):1412-1417 doi: 10.3969/j.issn.0001-5733.2009.05.031 [6] Vavryčuk V. Iterative joint inversion for stress and fault orientations from focal mechanisms[J]. Geophysical Journal International,2014,199(1):69-77 doi: 10.1093/gji/ggu224 [7] 陈桂华,徐锡伟,闻学泽,等. 川滇块体—东边界活动构造带运动学转换与变形分解作用[J]. 地震地质,2008,30(1):58-84 doi: 10.3969/j.issn.0253-4967.2008.01.005Chen G H,Xu X W,Wen X Z,et al. Kinematical transformation and slip partitioning of northern to eastern active boundary of Sichuan-Yunnan block[J]. Seismology and Geology,2008,30(1):58-84 doi: 10.3969/j.issn.0253-4967.2008.01.005 -
