基于水化学的永清井水温异常分析

王艳; 马利军; 王会芳; 吕文青; 张娜

doi:10.19987/j.dzkxjz.2022-127

基于水化学的永清井水温异常分析

doi: 10.19987/j.dzkxjz.2022-127

保定地震监测中心站，河北保定 071051

基金项目: 中国地震局三结合项目（3JH-202202039）资助

详细信息

通讯作者:
王艳（1981-），女，工程师，主要从事地下流体学科分析与研究工作。 E-mail：43395571@qq.com

中图分类号: P315.72⁺3
计量
- 文章访问数: 60
- HTML全文浏览量: 26
- PDF下载量: 15
出版历程
- 收稿日期: 2022-08-15
- 录用日期: 2022-10-20
- 网络出版日期: 2022-10-24

Analysis of water temperature anomaly in Yongqing well based on water chemistry

Baoding Seismic Monitoring Center Station, Hebei Baoding 071051, China

摘要

摘要: 在地下流体研究中，判定地下水异常的首要任务是区别地下水是受浅层物质补给的影响还是受深层介质活动的影响。本文通过对永清井及周边多次样品采集与测试，获得水化学组分和氢氧稳定同位素观测数据；通过对地下水样品数据对比分析、水化学组分及氢氧稳定同位素与大气降水线、水温数据分析，认为永清井水温的多次异常变化不是受干扰影响；通过对水温的异常变化与地震的对应关系的分析，认为永清井水温异常可能与3次地震有关。
- 水温异常 /
- 水化学 /
- 氢氧同位素 /
- 水质
Abstract: It is a primary task to distinguish whether the groundwater is affected by shallow material recharge or deep medium activity for the research of subsurface fluid. In this paper, the data of water chemical composition and hydrogen and oxygen stable isotope were obtained by collecting and testing several samples from Yongqing well and its surrounding areas. Through the comparison of groundwater sample data, water chemical composition, stable isotopes of hydrogen and oxygen and precipitation line, water temperature and water level data analysis, it is concluded that the repeated abnormal changes of water temperature in Yongqing well are not interference effects. According to the corresponding relationship between the abnormal change of water temperature and earthquake, it is founded that the abnormal water temperature in Yongqing well may be related to three earthquakes.
- water temperature anomaly /
- water chemistry /
- hydrogen and oxygen isotope /
- water quality

HTML全文

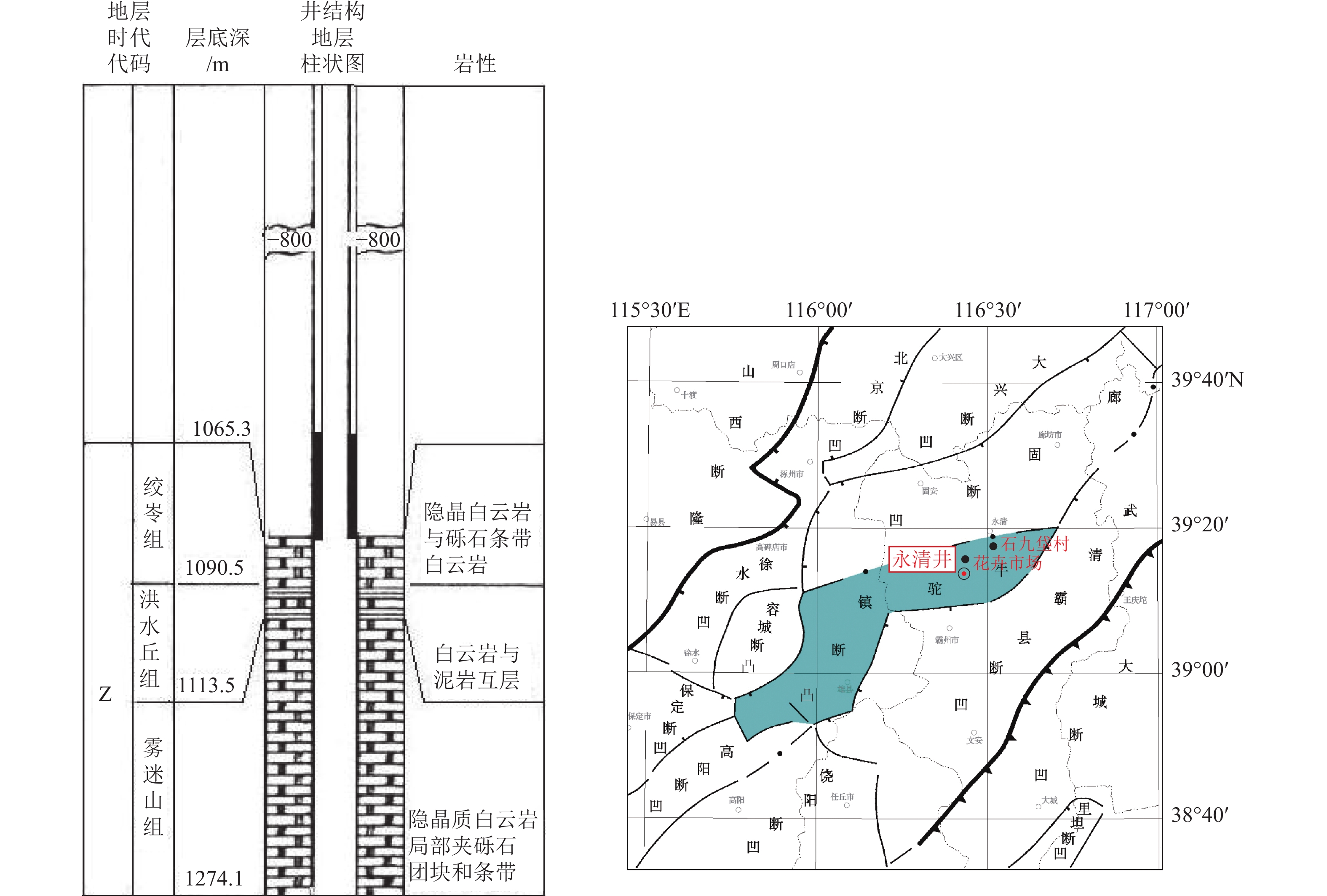

图 1 永清井井孔柱状图（a）及周边区域构造图（b）

Figure 1. Well hole histogram （a） and regional structure map of Yongqing well （b）

下载: 全尺寸图片幻灯片

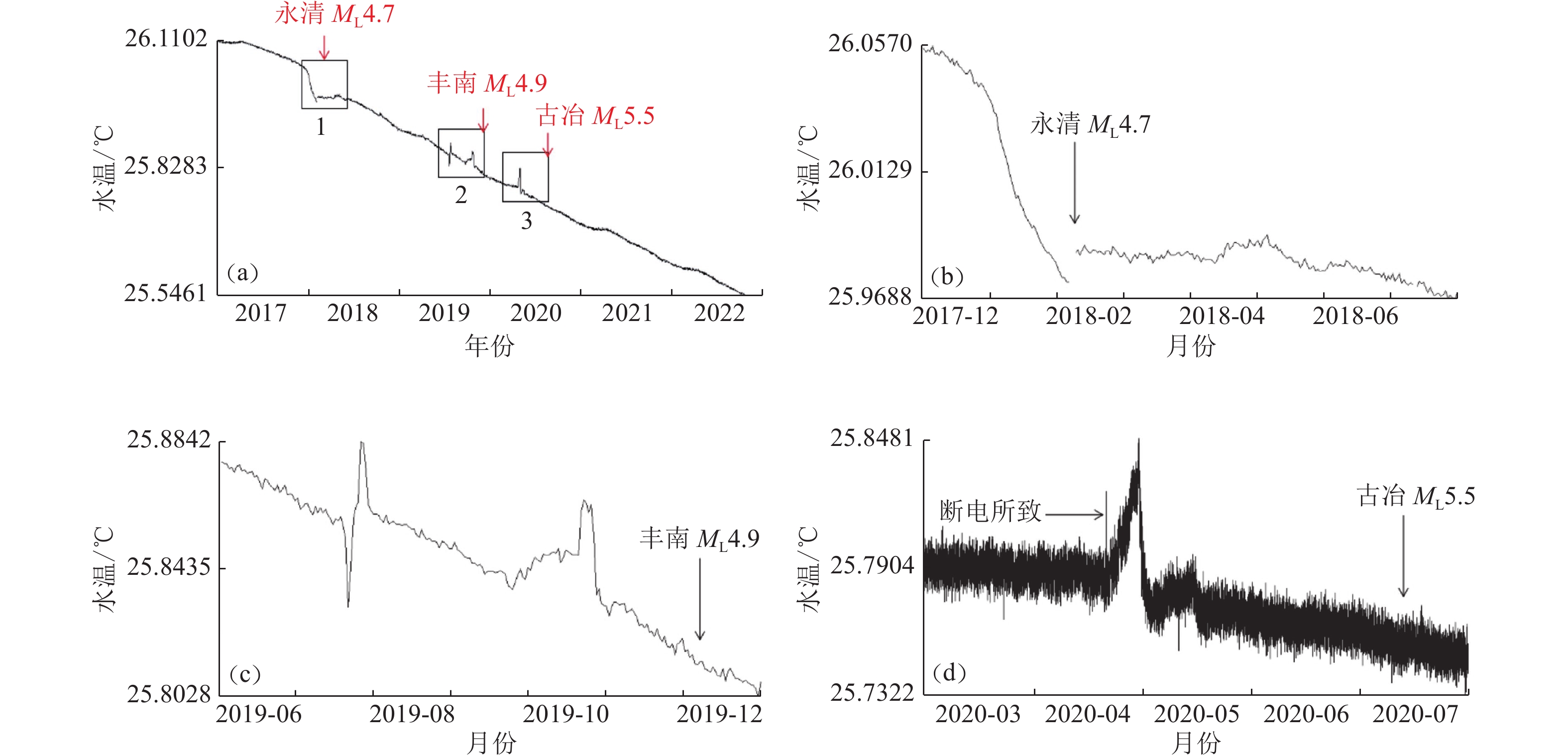

图 2 永清井水温曲线图

（a） 2017年1月—2022年10月永清井水温日均值曲线图；（b） 2017年12月—2018年7月永清井水温日均值曲线图；（c） 2019年6—12月永清井水温日均值曲线图；（d） 2020年3—7月永清井水温分钟值曲线图

Figure 2. Curves of water temperature in Yongqing well

（a） Daily mean curve of water temperature in Yongqing well from January 2017 to October 2022；（b） Daily mean curve of water temperature in Yongqing well from December 2017 to July 2018；（c） Daily mean curve of water temperature in Yongqing well from June to December 2019；（d） Minute value curve of water temperature in Yongqing well from March to July 2020

下载: 全尺寸图片幻灯片

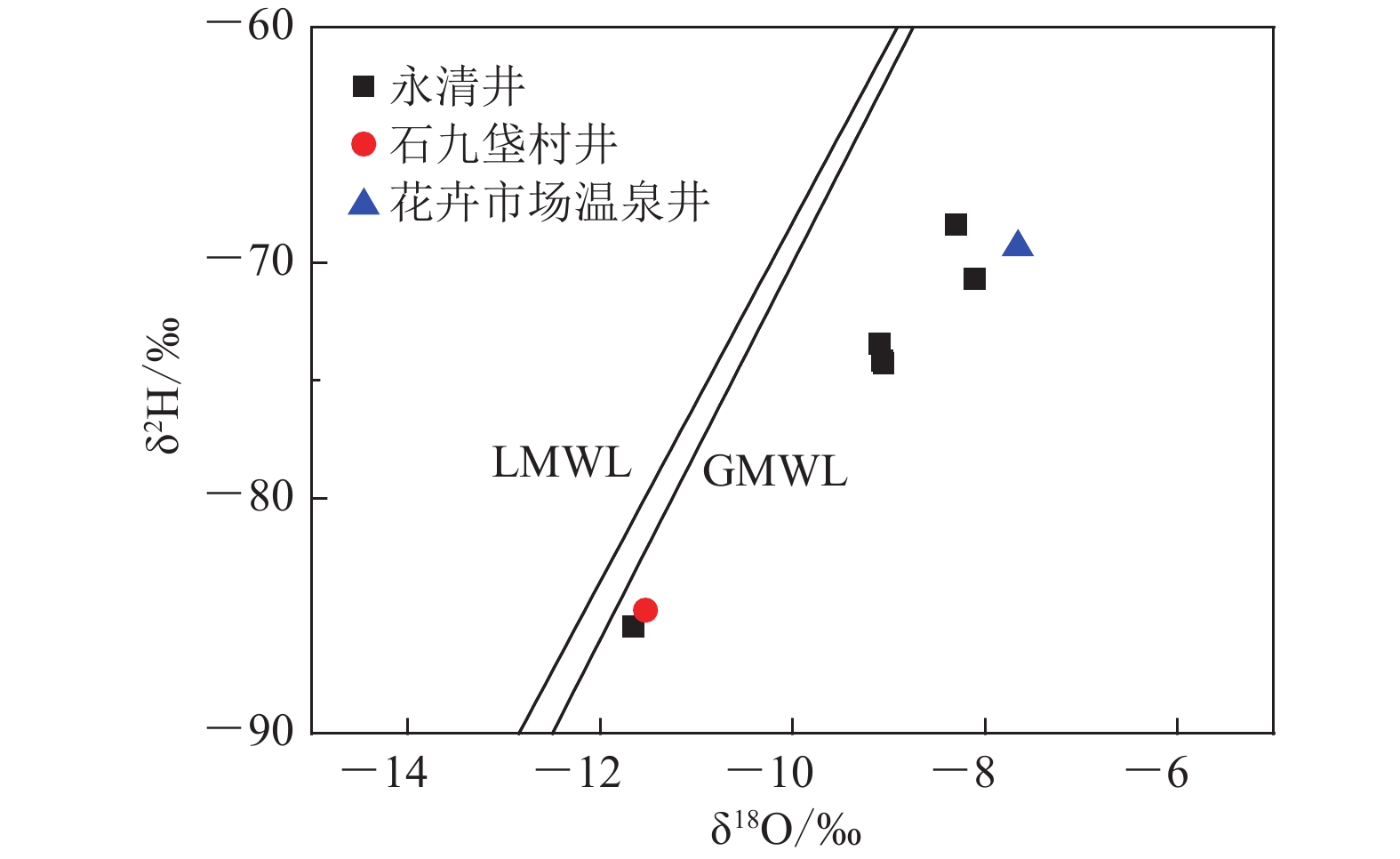

图 3 水样氢氧稳定同位素对比图

Figure 3. Comparison of hydrogen and oxygen stable isotopes in water samples

下载: 全尺寸图片幻灯片

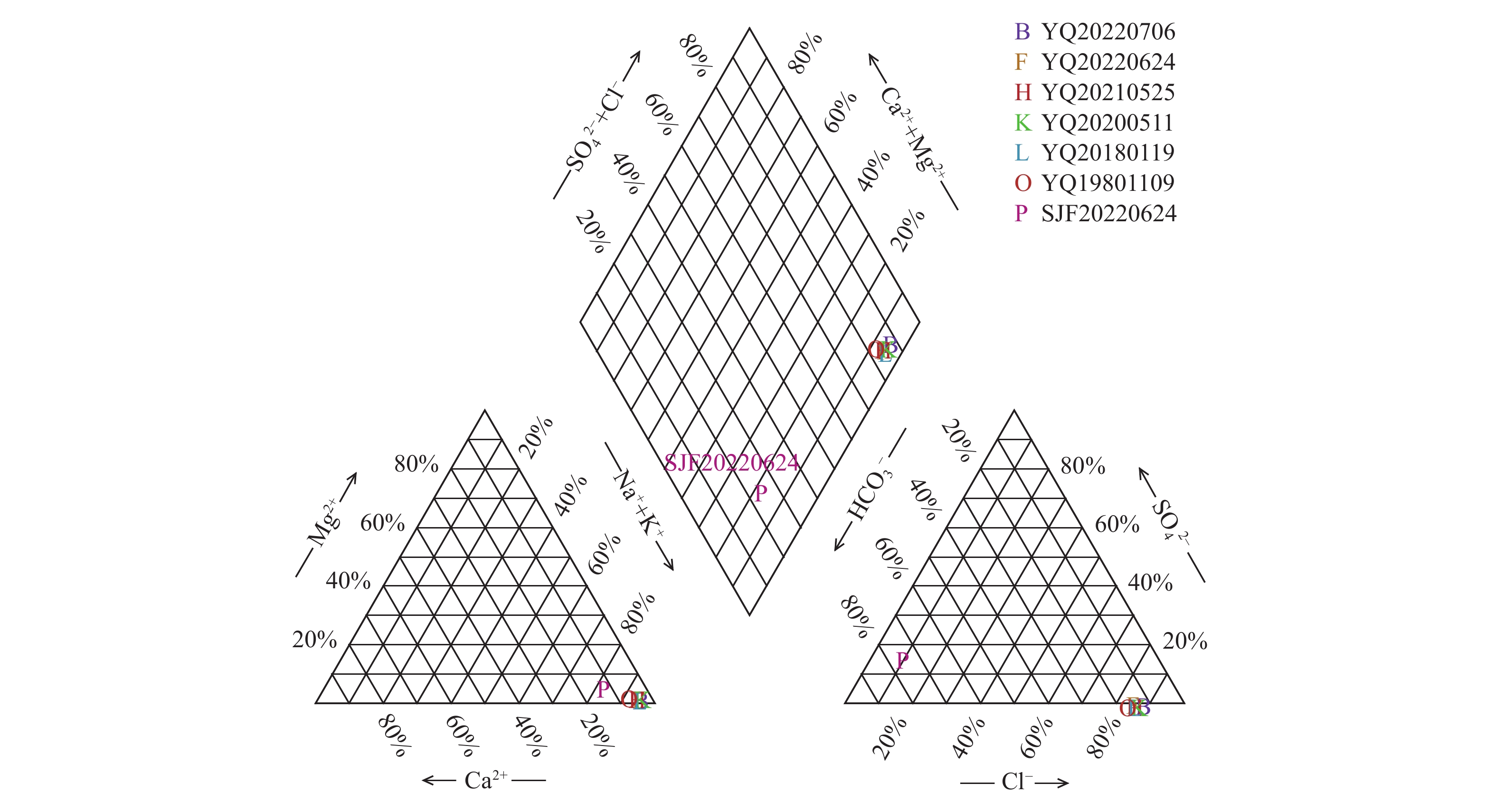

图 4 永清井离子组分三线图

Figure 4. Piper diagram of ionic composition in Yongqing well

下载: 全尺寸图片幻灯片

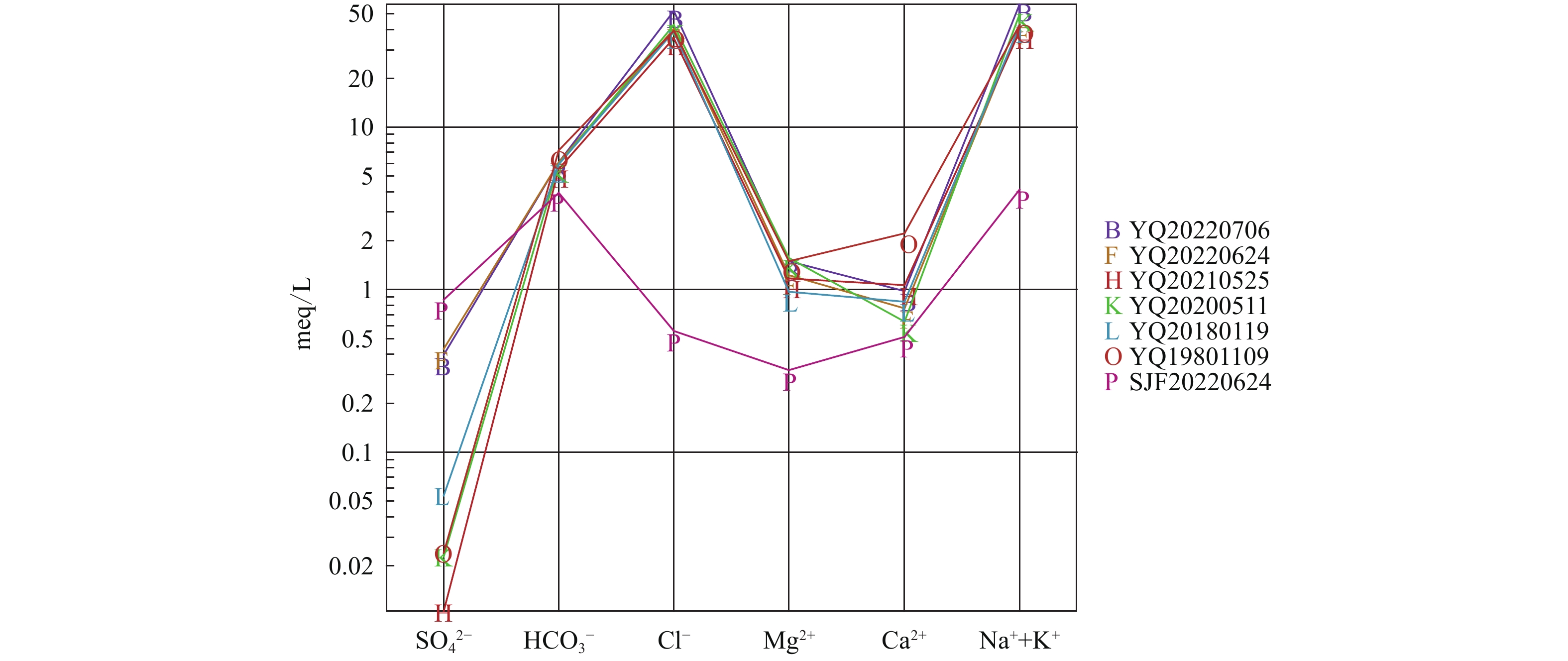

图 5 永清井离子组分Schoeller图

Figure 5. Schoeller diagram of ionic composition in Yongqing well

下载: 全尺寸图片幻灯片

表 1 氢氧同位素测量结果

Table 1. Results of hydrogen and oxygen isotope measurements

氢氧同位素	永清井						花卉市场温泉井	石九垈村井
氢氧同位素	2018-04-01	2019-11-08	2020-05-11	2021-05-25	2022-06-24	2022-07-06	2019-11-08	2022-06-24
δ²H/‰	−68.39	−85.46	−74.16	−70.7	−74.28	−73.44	−69.32	−84.76
δ¹⁸O/‰	−8.3	−11.65	−9.07	−8.1	−9.05	−9.09	−7.66	−11.53

下载: 导出CSV

表 2 水质化验结果（单位：mg/L)

Table 2. Water quality test results （unit：mg/L）

离子名称	永清井						石九垡村井
离子名称	1980-11-09	2018-01-19	2020-05-11	2021-05-25	2022-06-24	2022-07-06	2022-06-24
K⁺	56	52.54	5.9	50.5	63.83	80.92	1.92
Na⁺	944.7	944.7	1141	866	913.96	1266.43	94.24
Ca²⁺	44.53	16.89	12.76	21.3	15.34	19.58	10.24
Mg²⁺	18.2	11.84	19	14.3	14.92	18.13	3.88
HCO₃⁻	441.19	362.7	360	338	372.2	372.2	240.01
SO₄²⁻	1.15	2.59	1.09	0.505	20.77	19	41.78
Cl⁻	1391.66	1379	1508	1249	1425.68	1844.36	19.79
NO₃⁻	1.64		1.9		1.78	12.78	4.66

下载: 导出CSV
