Discussion on precise location, focal mechanism and seismogenic mechanism of Jiaokou reservoir earthquakes
-
摘要: 利用双差定位法对宁波皎口水库2009—2021年地震进行重新定位，通过HASH方法计算了较大地震的震源机制解，基于精确定位后的地震震源位置分布、深度分布以及总体震源机制解特征，结合区域地质构造背景、库区地质条件以及水库水位变化，对发震构造及孕震机理进行探讨。结果表明，皎口水库2009—2012年地震序列与2018—2021年地震序列孕震机理相似，区域性断裂长兴—奉化可能为发震断层；库水通过断裂破碎带下渗，孔隙水压力扩散及库水对岩石的软化弱化长时间作用，造成断层面及其深部某些薄弱部位变为不稳定区域，最后在库水变化导致的加卸荷应力场作用下触发地震。Abstract: Jiaokou reservoir earthquakes in Ningbo from 2009 to 2021 were relocated using the double difference positioning method. The focal mechanism solutions of large earthquakes were calculated by HASH method. Based on the location distribution, depth distribution and overall focal mechanism solution characteristics of the earthquakes after precise positioning, the seismogenic structure and seismogenic mechanism were discussed by combining with the regional geological tectonic background, geological conditions in the reservoir area and the change of reservoir water level. The results show that the seismogenic mechanism of the Jiaokou reservoir earthquake sequence in 2009—2012 is similar to that in 2018—2021, and the regional fault Changxing—Fenghua may be the seismogenic fault. The reservoir water infiltrates through the fracture fracture zone, the pore water pressure diffuses, the reservoir water softens and weakens the rock for a long time, causing the fault plane and some weak parts in the deep part to become unstable areas, and finally triggering the earthquake under the loading and unloading stress field caused by the change of reservoir water.
-

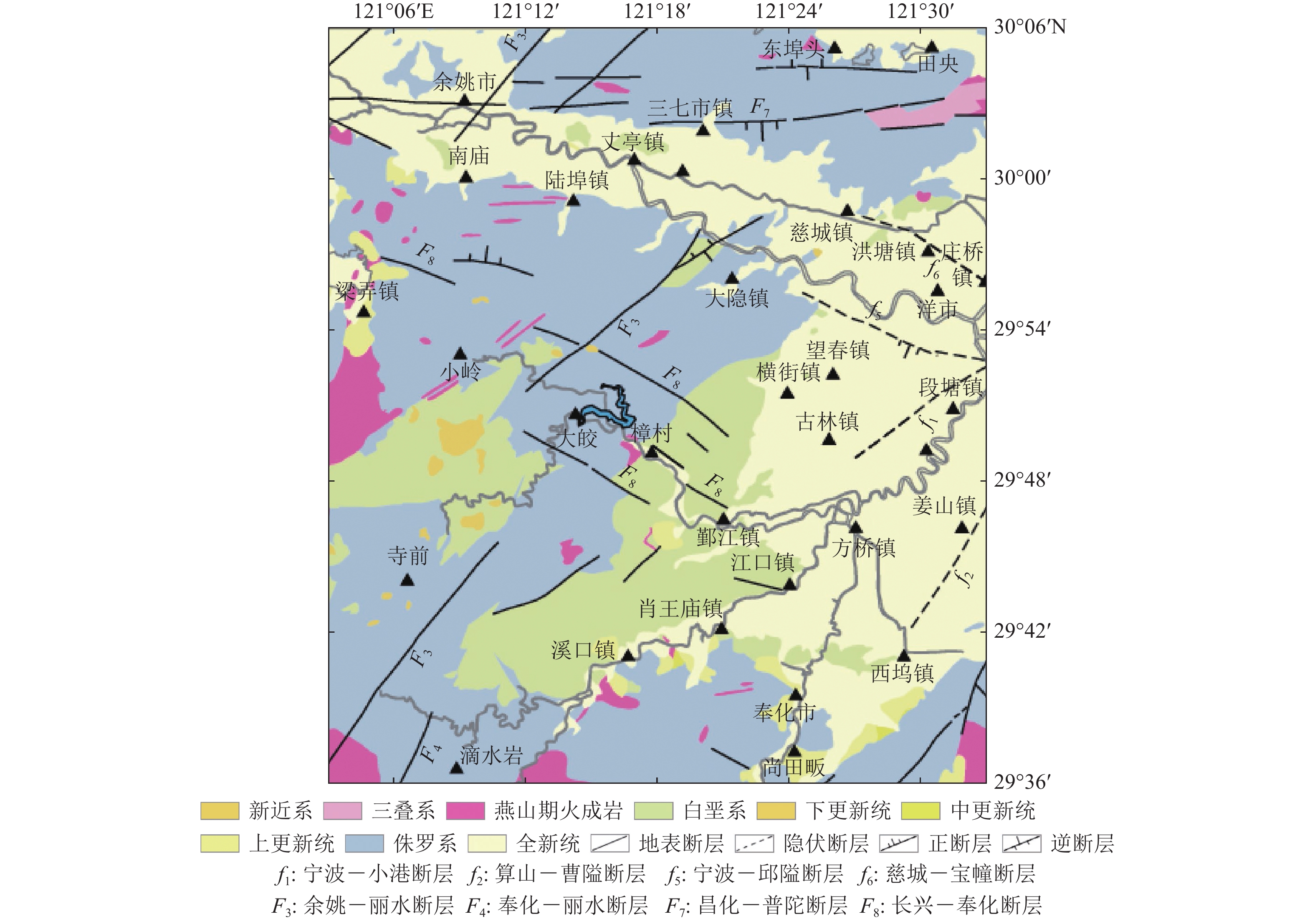

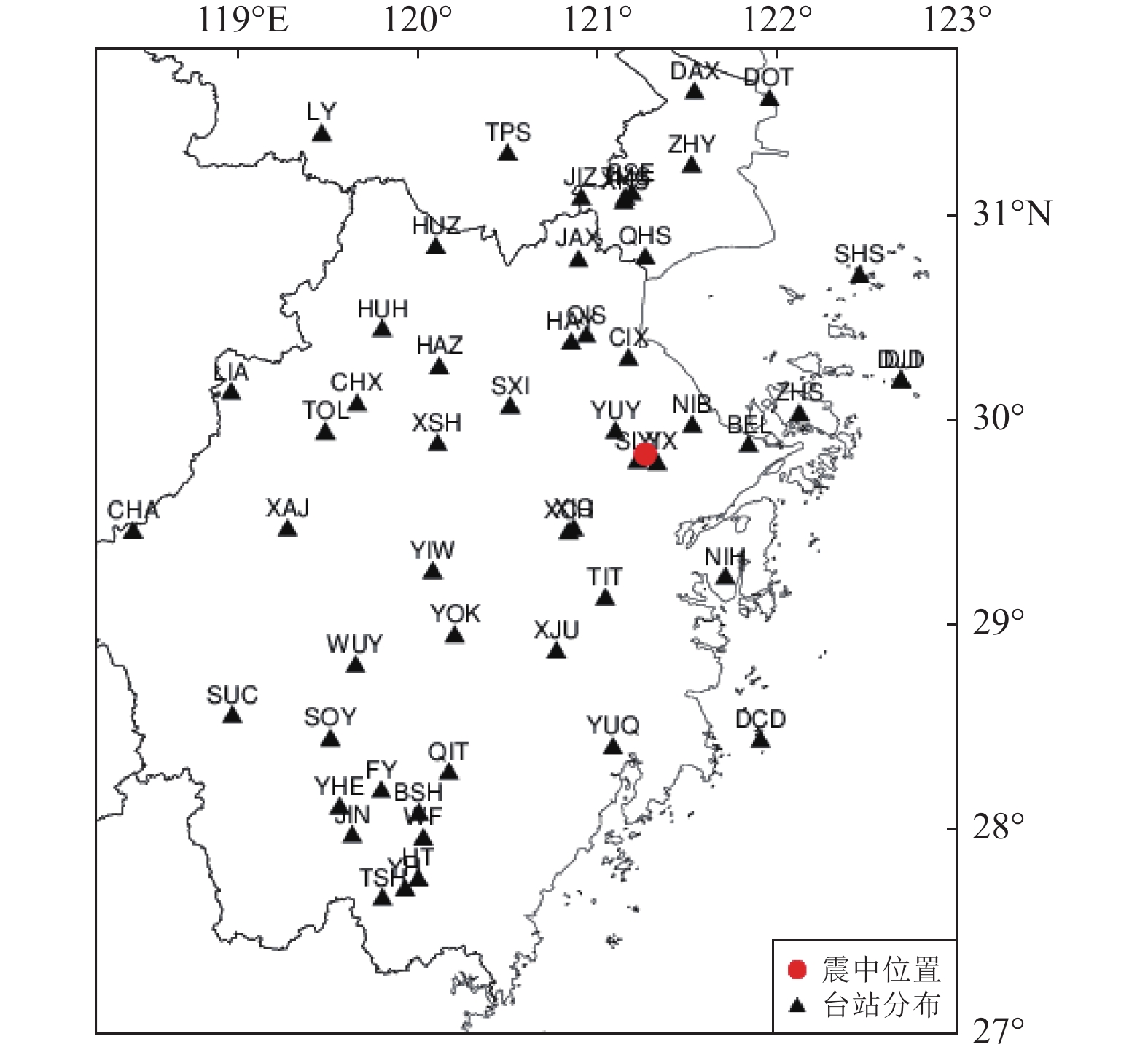

图 2 皎口水库地震序列震中分布图
Figure 2. Epicenter distribution map of Jiaokou reservoir earthquake sequence

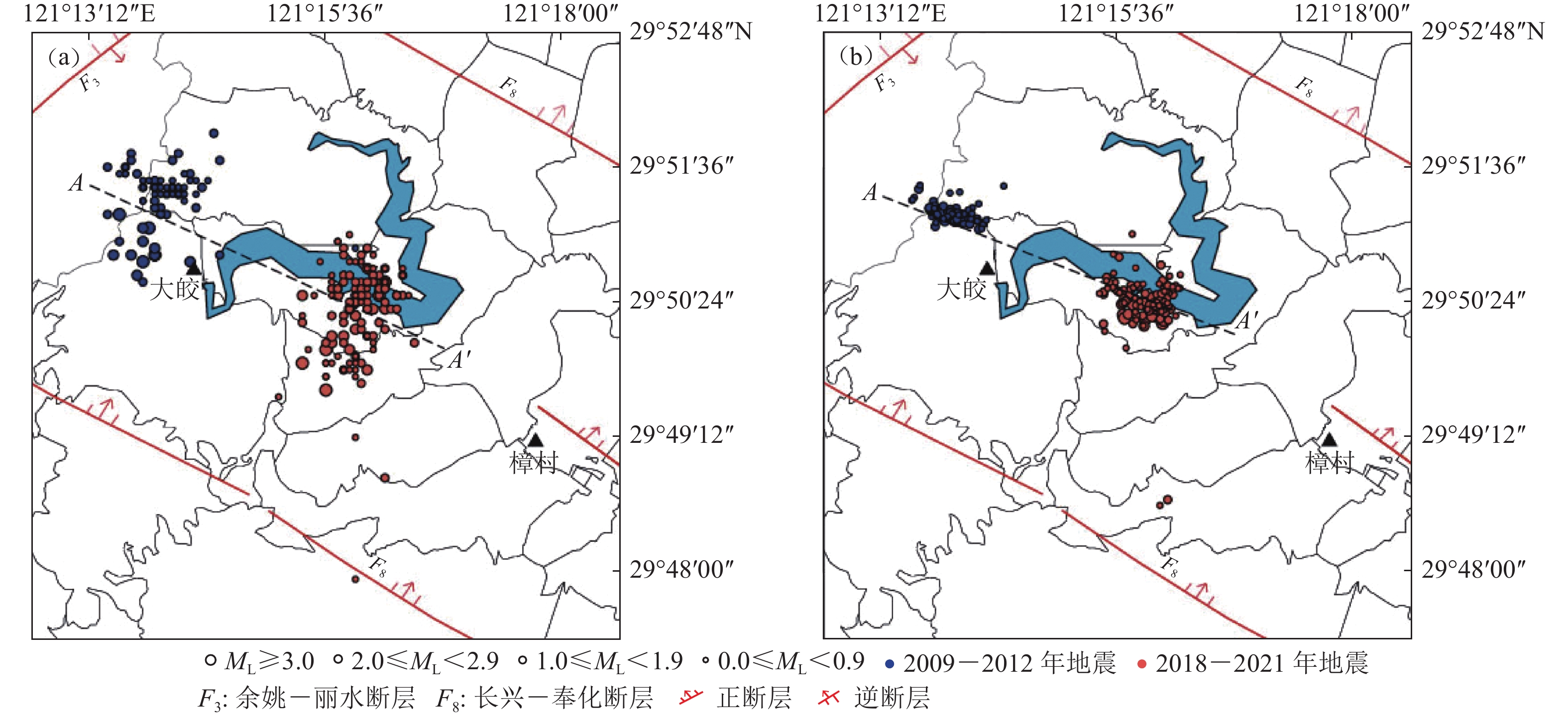

图 4 2009—2021年皎口水库地震序列原始（a） 及重新定位后（b） 震中分布图
Figure 4. Epicenter distribution map of the original (a) and relocated (b) of Jiaokou reservoir earthquake sequence from 2009 to 2021

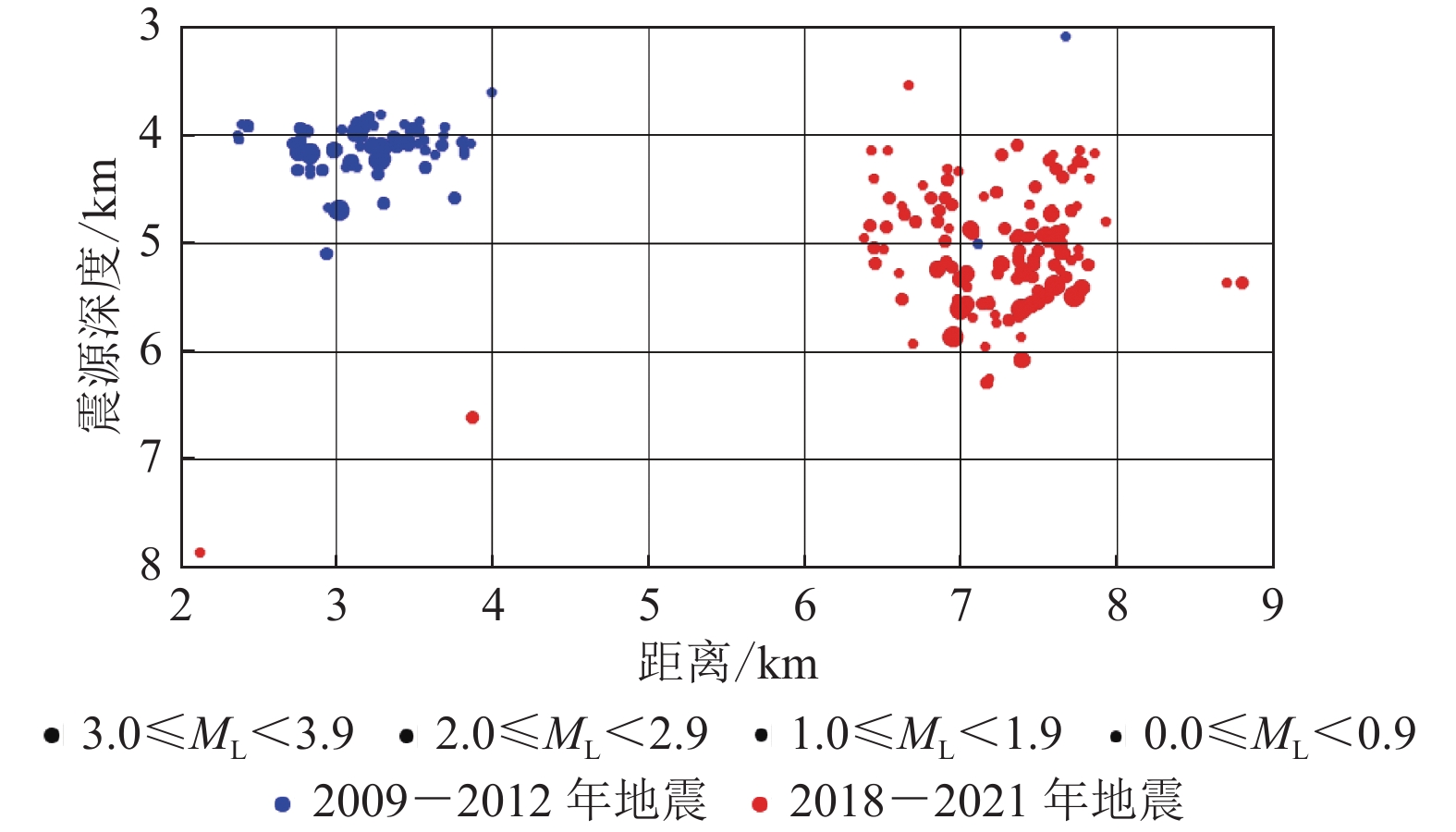

图 5 2009—2021年皎口水库地震震源深度分布图（投影到剖面AA′）
Figure 5. Focal depth distribution of Jiaokou reservoir earthquake sequence from 2009 to 2021 (projected to section AA′)

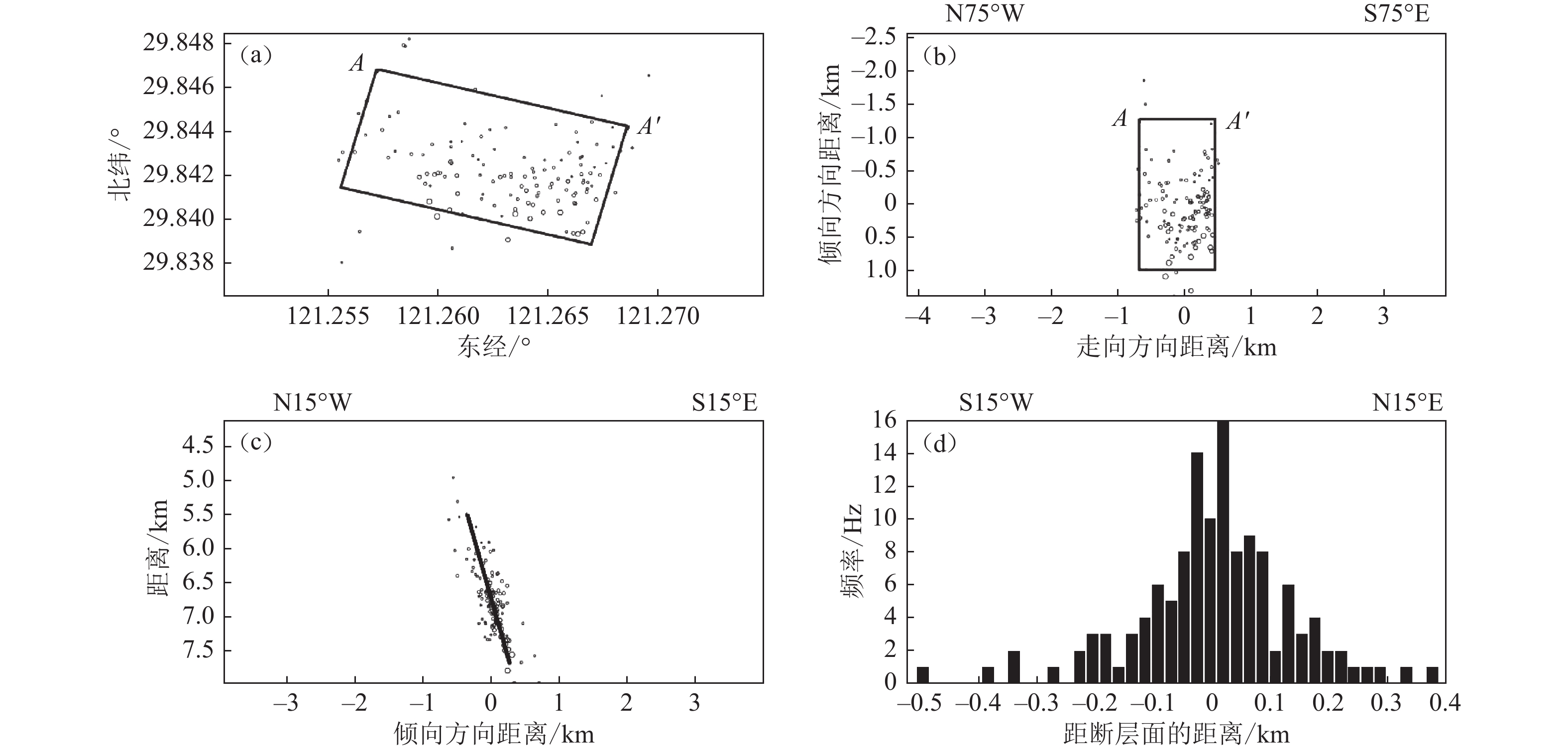

图 6 皎口水库2018—2021年地震序列精确定位后的地震分布在水平面（a）、断层面（b）、垂直于断层面的横断面上（c）的投影、以及地震距断层面距离的分布（d）。圆圈表示精确定位后的地震，粗线表示确定的断层面边界，AA′为断层上边界端点
Figure 6. The earthquakes accurately located in the 2018—2021 Jiaokou reservoir earthquake sequence are distributed on the projection of the horizontal plane (a), the projection of the fault plane (b), the projection of the cross-section perpendicular to the fault plane (c), and the distribution of the distance between the earthquakes and the fault plane (d). The circles indicate the accurately located earthquakes. The thick line indicates the determined boundary of the fault plane. AA′ is the endpoint of the upper boundary of the fault
图 7 皎口水库地震序列较大地震震源机制解
Figure 7. Focal mechanism solutions of the larger earthquakes in Jiaokou reservoir earthquake sequence
图 8 2009—2021年皎口水库地震总体震源机制解
Figure 8. Overall focal mechanism solution of Jiaokou reservoir earthquake sequence from 2009 to 2021

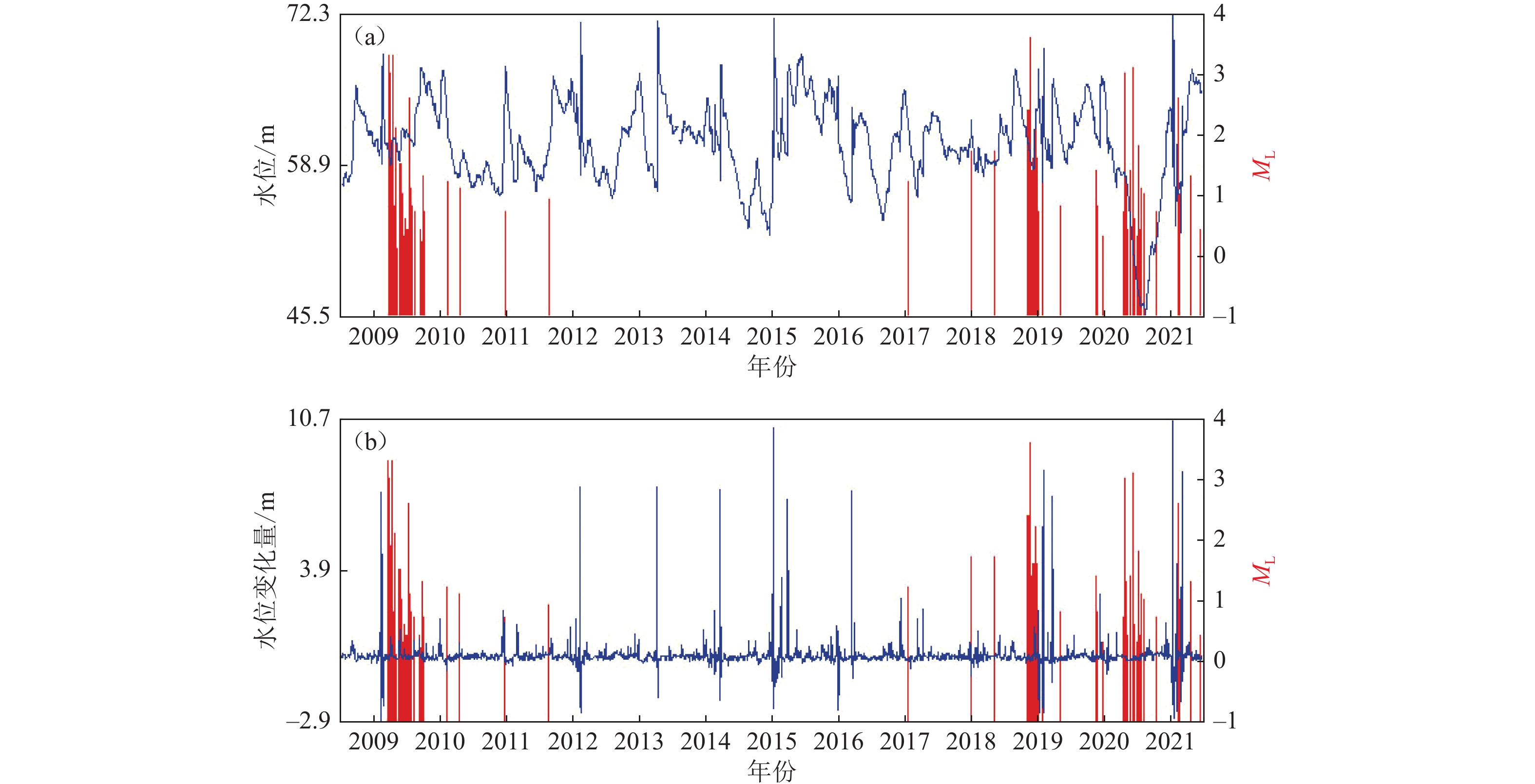

图 9 2009—2021年皎口水库逐日水位（a） 、水位日变化量（b） 与地震活动对比图
Figure 9. Comparison diagram of daily water level (a)、daily variation of water level (b) and seismic activities of Jiaokou reservoir from 2009 to 2021
表 1 皎口水库大坝基坑开挖发现的断层（贯穿坝基上下游）
Table 1. Faults founded in the foundation pit excavation of Jiaokou reservoir dam (running through the upstream and downstream of the dam foundation)
编号 产状 特征 力学性质 走向 倾向 倾角 １ N60°—80°W SW 65°—80° 破碎带发育，夹少量断层角砾及褐色断层泥 张性 ２ N30°—35°W NE 67°—80° 破碎带局部有少量断层泥及铁镁稀浆（其中见有巨大的断层角砾） 张性 ３ N75°—85°W NE 55°—70° 破碎带夹少量的断层泥及断层角砾岩 扭性
