Comparative analysis of focal depth of MS5.0 earthquake in Dafeng sea area of Jiangsu Province on November 17, 2021
-
摘要: 选取江苏测震台网震中距2°以内18个地震台站记录清晰的波形资料，使用单纯形、LocSAT、HypoSAT地震定位方法，分别采用华南速度模型、郯庐断裂带中南段速度模型以及IASP91全球速度模型，重新测定江苏大丰海域MS5.0地震震源深度，对获取的深度值进行对比分析。结果表明：3种地震定位方法测定的震源深度结果接近，约为11 ± 2 km；HypoSAT定位方法计算结果较为稳定，IASP91、郯庐断裂带中南段模型均适用于该区域震源深度计算。Abstract: In this paper, we selected the clear waveform data recorded by 18 seismic stations within 2° from the epicenter of Jiangsu seismic network, and remeasured the focal depth of the MS5.0 earthquake in Dafeng sea area of Jiangsu Province by using the simple type, LocSAT and HypoSAT seismic positioning method, using the South China, the middle-south segment of Tan-Lu Fault Zone and IASP91 velocity model respectively. And the obtained depth values are compared and analyzed. The results show that the focal depths measured by the three seismic location methods are close, about 11 ± 2 km; The calculation result of HypoSAT positioning method is relatively stable, and the models of IASP91 and the middle-south segment of Tan-Lu fault zone are suitable for the calculation of focal depth in this area.
-
Key words:
- earthquake in Dafeng sea area /
- focal depth /
- seismic location /
- velocity model
-
图 1 研究区地质构造、地震射线路径及地震台站分布
Figure 1. Geological structure, seismic ray paths and distribution of seismic stations in the study area

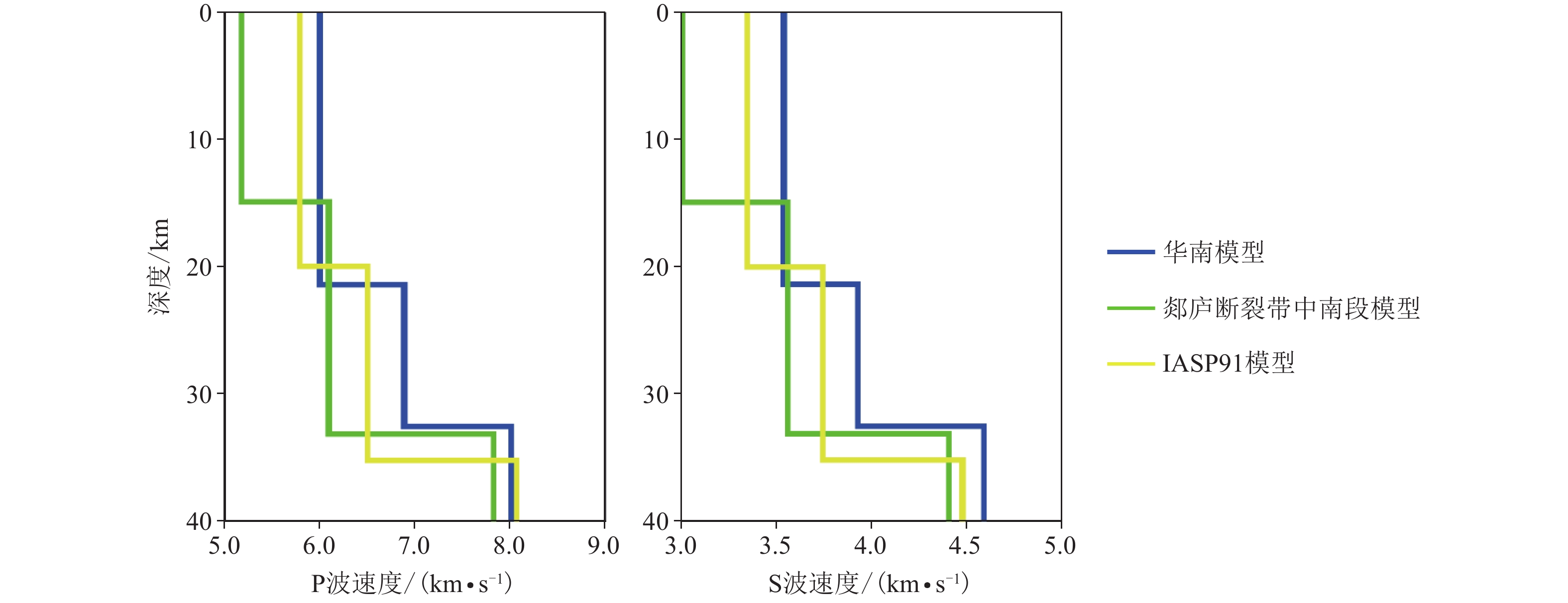

图 2 华南、郯庐断裂带中南段和IASP91速度模型对比
Figure 2. Comparison of velocity models between South China, the middle-south segment of Tan-Lu Fault Zone and IASP91
图 3 不同方法和速度模型测定的震源深度对比
Figure 3. Comparison of focal depth measured by different methods and velocity models
图 4 各个台站资料所用震相走时残差的分布情况
Figure 4. Distribution of seismic phase travel time residuals used in the data of each station
表 1 定位结果参数
Table 1. Positioning result parameters
编号 定位方法 速度模型 震源深度/km 深度误差/km 发震时间 北纬/° 东经/° 定位残差/s 1 单纯形 华南 12.7 － 13:54:29.7 33.51 121.27 0.727 2 单纯形 郯庐断裂带中南段 11.7 － 13:54:27.8 33.52 121.19 0.851 3 单纯形 IASP91 9.9 － 13:54:28.8 33.50 121.10 0.919 4 LocSAT 华南 13.2 ±2.4 13:54:29.5 33.53 121.15 0.981 5 LocSAT 郯庐断裂带中南段 13.7 ±2.1 13:54:28.9 33.50 121.22 0.927 6 LocSAT IASP91 11.8 ±2.3 13:54:28.6 33.51 121.10 1.244 7 HypoSAT 华南 7.6 ±1.5 13:54:28.8 33.56 121.16 0.473 8 HypoSAT 郯庐断裂带中南段 10.4 ±2.0 13:54:27.2 33.53 121.23 0.507 9 HypoSAT IASP91 11.4 ±1.4 13:54:30.1 33.53 121.07 0.493
下载: 导出CSV
-
[1] 王瑶,万永革. 多层介质中利用sPn与Pn到时差确定震源深度的研究[J]. 地震工程学报,2021,43(6):1294-1302Wang Y,Wan Y G. Determination of focal depth using the travel time difference of sPn and Pn waves in multilayer medium[J]. China Earthquake Engineering Journal,2021,43(6):1294-1302 [2] Rudziński L,Debski W. Extending the double difference location technique-improving hypocenter depth determination[J]. Journal of Seismology,2013,17(1):83-94 doi: 10.1007/s10950-012-9322-7 [3] Zhang M H,Xu D S,Chen J W. Geological structure of the Yellow Sea Area from regional gravity and magnetic interpretation[J]. Applied Geophysics,2007,4(2):75-83 doi: 10.1007/s11770-007-0011-1 [4] 李旭东,刘绍文,王丽. 江苏—南黄海地区地震活动时空分布特征及其孕震构造分析[J]. 高校地质学报,2018,24(4):551-562Li X D,Liu S W,Wang L. Spatiotemporal pattern of earthquake activities and seismotectonics in Jiangsu and adjacent Southern Yellow Sea Area[J]. Geological Journal of China Universities,2018,24(4):551-562 [5] 周文杰,武巴特尔,周健,等. 江苏射阳地区地震尾波Qc值特征[J]. 地震地磁观测与研究,2021,42(3):46-54 doi: 10.3969/j.issn.1003-3246.2021.03.006Zhou W J,Wu B T E,Zhou J,et al. Characteristics of seismic coda Qc value in Sheyang region,Jiangsu Province[J]. Seismological and Geomagnetic Observation and Research,2021,42(3):46-54 doi: 10.3969/j.issn.1003-3246.2021.03.006 [6] Geiger L. Probability method for the determination of earthquake epicenters from the arrival time only[J]. Bulletin of Saint Louis University,1912,8(1):60-71 [7] 孔韩东,边银菊,刘瑞丰,等. 地震定位方法研究进展[J]. 地震地磁观测与研究,2017,38(4):81-92 doi: 10.3969/j.issn.1003-3246.2017.04.014Kong H D,Bian Y J,Liu R F,et al. Review of seismic location study[J]. Seismological and Geomagnetic Observation and Research,2017,38(4):81-92 doi: 10.3969/j.issn.1003-3246.2017.04.014 [8] 周康雅,王丽,殷翔,等. 基于江苏台网的南黄海地区震源深度分析[J]. 华北地震科学,2020,38(4):61-67Zhou K Y,Wang L,Yin X,et al. Focal depth analysis based on Jiangsu Seismic Network in South Yellow Sea Area[J]. North China Earthquake Sciences,2020,38(4):61-67 [9] 许英才,曾宪伟,罗国富. 2021年吴忠—灵武ML3.6震群重新定位及震源机制研究[J]. 地震科学进展,2022,52(6):259-270Xu Y C,Zeng X W,Luo G F. Relocation and focal mechanism of the 2021 Wuzhong-Lingwu ML3.6 seismic swarm[J]. Progress in Earthquake Sciences,2022,52(6):259-270 [10] Nelder J A,Mead R. A Simplex Method for Function Minimization[J]. The Computer Journal,1965,7(4):308-313 doi: 10.1093/comjnl/7.4.308 [11] 王桂丹. 基于JOPENS/MSDP地震定位方法的定位结果分析[J]. 内陆地震,2016,30(1):74-80Wang G D. Positioning result analysis based on JOPENS/MSDP location methods[J]. Inland Earthquake,2016,30(1):74-80 [12] 谢石文,周冬瑞,袁勇,等. 华南模型与AH2015模型在安徽区域地震定位中的对比研究[J]. 地震科学进展,2021,51(8):337-344Xie S W,Zhou D R,Yuan Y,et al. The comparative research of South China model and AH2015 model in Anhui regional seismic location[J]. Progress in Earthquake Sciences,2021,51(8):337-344 [13] Bratt S R, Nagy W. LocSAT-event locator, Locsat_linux documentation[R]. San Diego: Science Applications International Corporation, 1991 [14] Schweitzer J. HYPOSAT−An enhanced routine to locate seismic events[J]. Pure and Applied Geophysics,2001,158(1):277-289 doi: 10.1007/PL00001160 [15] Karasözen E,Karasözen B. Earthquake location methods[J]. GEM-International Journal on Geomathematics,2020,11(1):1-28 doi: 10.1007/s13137-019-0137-3 [16] Buland R,Chapman C H. The computation of seismic travel times[J]. Bulletin of the Seismological Society of America,1983,73(5):1271-1302 [17] Kennett B L N,Engdahl E R. Traveltimes for global earthquake location and phase identification[J]. Geophysical Journal International,1991,105(2):429-465 doi: 10.1111/j.1365-246X.1991.tb06724.x [18] Kennett B L N,Engdahl E R,Buland R. Constraints on seismic velocities in the Earth from traveltimes[J]. Geophysical Journal International,1995,122(1):108-124 doi: 10.1111/j.1365-246X.1995.tb03540.x [19] 范玉兰,林纪曾,胡瑞贺,等. 华南地区近震走时表的研制[J]. 华南地震,1990,10(2):1-16Fan Y L,Lin J Z,Hu R H,et al. The development of travel timetable for near earthquake in South China[J]. South China Journal of Seismology,1990,10(2):1-16 [20] 何奕成,范小平,赵启光,等. 郯庐断裂带中南段地壳结构分段特征[J]. 地球物理学报,2021,64(9):3164-3178 doi: 10.6038/cjg2021O0247He Y C,Fan X P,Zhao Q G,et al. Segmentation of crustal structure beneath the middle-south segment of Tan-Lu Fault Zone[J]. Chinese Journal of Geophysics,2021,64(9):3164-3178 doi: 10.6038/cjg2021O0247 [21] 王恩惠,张广伟,谢卓娟,等. 盐城地区小震精定位及构造意义[J]. 地球物理学进展,2020,35(2):461-466 doi: 10.6038/pg2020DD0037Wang E H,Zhang G W,Xie Z J,et al. Precise relocation of small earthquakes in the Yancheng area and associated tectonic implications[J]. Progress in Geophysics,2020,35(2):461-466 doi: 10.6038/pg2020DD0037 -
