Emergency response and disaster investigation of Menyuan M6.9 earthquake in Qinghai Province
-
摘要: 2022年1月8日1时45分在青海省海北藏族州门源县（37.77°N，101.26°E）发生M6.9地震，震源深度10 km，此次地震波及到甘肃省河西走廊地区。地震发生后，国务院抗震救灾指挥部办公室、应急管理部立即启动国家地震灾害三级应急响应。应急管理部、中国地震局连夜派出工作组赴现场协助地方开展灾害调查、地震趋势研判、烈度评定等工作。青海省和甘肃省立即启动联防联控机制，迅速开展地震灾害应急处置工作。本文就此次地震的应急响应、灾情调查和烈度评定情况进行详细梳理，为今后高效应对此类大震提供经验积累和科学参考。
-
关键词:
- 青海门源M6.9地震 /
- 应急响应 /
- 灾情调查 /
- 地震烈度
Abstract: On January 8, 2022, at 1: 45, an earthquake of M6.9 occurred in Menyuan County (37.77°N, 101.26°E ), Haibei Tibetan Autonomous Prefecture, Qinghai Province, with a focal depth of 10 km. The earthquake affected the Hexi Corridor area of Gansu Province. After the earthquake, China’s State Council’s Earthquake Relief Headquarters Office and the Ministry of Emergency Management immediately launched the national third-level emergency response of earthquake disasters. The Ministry of Emergency Management and the China Earthquake Administration sent working groups to the site overnight to assist local governments in disaster investigation, earthquake trend judgment, intensity evaluation and other work. Qinghai Province and Gansu Province immediately launched the joint prevention and control mechanism to quickly carry out emergency response to earthquake disasters. In this paper, the emergency response, disaster investigation and intensity evaluation of this earthquake are sorted out in detail, so as to provide experience accumulation and scientific reference for such large earthquakes with high effects in the future. -
图 1 门源M6.9地震灾情调查点分布图
Figure 1. Distribution map of disaster investigation points of Menyuan M6.9 earthquake

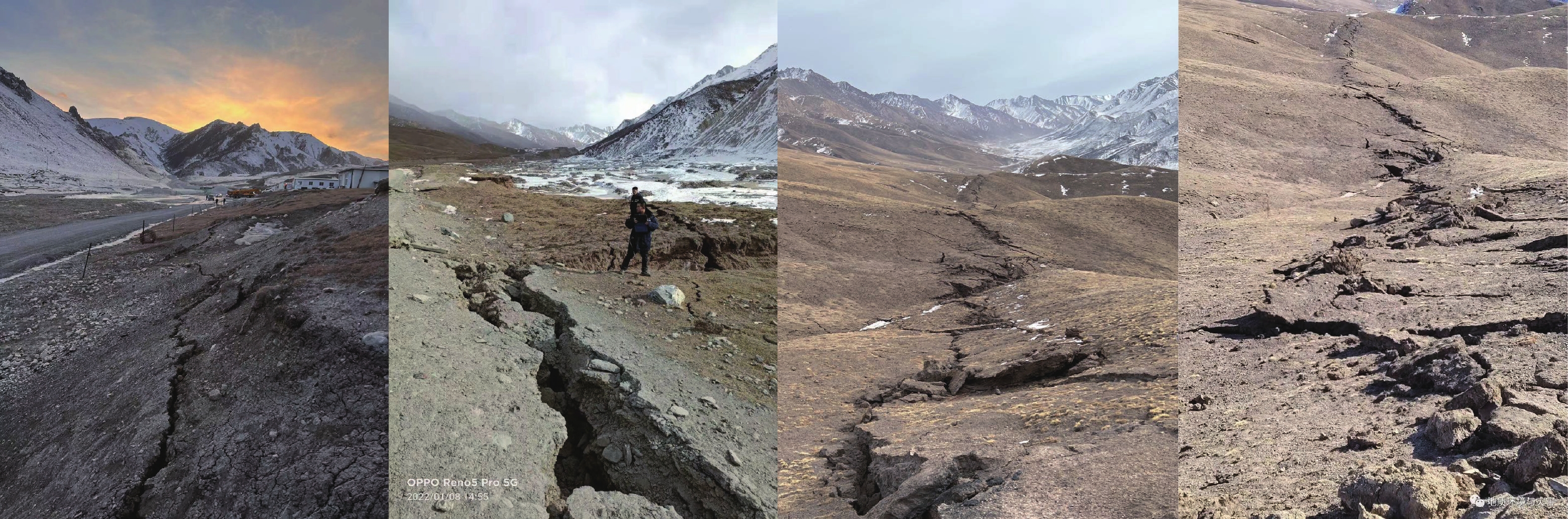

图 2 地表破裂情况 （主要由李志敏团队提供）
Figure 2. The situation of surface rupture (mainly provided by Li Zhimin team)
图 3 铁路和桥梁破坏情况 （主要由杨里臣团队提供）
Figure 3. The damage situation of railway and bridge (mainly provided by Yang Lichen team)
图 4 建筑物破坏情况
（a） 土木结构房屋受损情况；（b） 砖木结构房屋受损情况；（c） 砖混结构房屋受损情况
Figure 4. Damage situation of buildings
（a） Damage of civil structure houses；（b） Damage of brick-wood structure houses；（c） Damage of brick-concrete structure houses
表 1 建筑物破坏比（单位：%）
Table 1. Damage ratio of buildings (unit：%)
地震震区 结构类型 毁坏 严重破坏 中等破坏 轻微破坏 基本完好 Ⅵ度区（6度） 土木结构 0.00 0.00 5.00 15.00 80.00 砖木结构 0.00 0.00 3.00 10.00 87.00 砖混结构 0.00 0.00 0.00 3.00 97.00 框架结构 0.00 0.00 0.00 0.20 99.80 Ⅶ度区（7度） 土木结构 0.00 5.00 12.00 26.00 57.00 砖木结构 0.00 2.00 6.00 20.00 72.00 砖混结构 0.00 0.00 3.00 10.00 87.00 框架结构 0.00 0.00 0.00 0.05 99.95
下载: 导出CSV
-
[1] 地震现场工作第3部分: 调查规范: GB/T 18208.3—2011[S]. 北京: 中国标准出版社, 2011Post-earthquake field works-Part 3: Code for field survey: GB/T 18208.3—2011[S]. Beijing: Standards Press of China, 2011 [2] 中国地震烈度表: GB/T 17742—2008[S]. 北京: 中国标准出版社, 2008Chinese seismic intensity scale: GB/T 17742—2008[S]. Beijing: Standards Press of China, 2008 [3] 地震现场工作第4部分: 灾害直接损失评估: GB/T 18208.4—2011[S]. 北京: 中国标准出版社, 2011Post-earthquake field works-Part 4: Assessment of direct loss: GB/T 18208.4—2011[S]. Beijing: Standards Press of China, 2011 [4] 石玉成,高晓明,陈文凯,等. 甘肃夏河5.7级地震应急处置及抗震防灾启示[J]. 地震工程学报,2020,42(5):1343-1348 doi: 10.3969/j.issn.1000-0844.2020.05.1343Shi Y C,Gao X M,Chen W K,et al. Enlightenment of the emergency response and disaster prevention of the Xiahe M5.7 earthquake,Gansu Province[J]. China Earthquake Engineering Journal,2020,42(5):1343-1348 doi: 10.3969/j.issn.1000-0844.2020.05.1343 [5] 许建华,张俊,赖俊彦,等. 甘肃岷县漳县6.6级地震应急响应措施及特点分析[J]. 灾害学,2014,29(3):188-191,223Xu J H,Zhang J,Lai J Y,et al. Analysis on Minxian-Zhangxian M6.6 earthquake emergency response measures[J]. Journal of Catastrophology,2014,29(3):188-191,223 [6] 贾军鹏,成琳. 河北永清4.3级地震应急处置工作综述[J]. 国际地震动态,2018(5):5-11 doi: 10.3969/j.issn.0253-4975.2018.05.003Jia J P,Cheng L. Summary of the emergency response following the Yongqing M4.3 earthquake in Hebei Province[J]. Recent Developments in World Seismology,2018(5):5-11 doi: 10.3969/j.issn.0253-4975.2018.05.003 -
