Research and application of off-line earthquake disaster rapid assessment and emergency mapping system
-
摘要:
地震灾害损失快速评估与制图在震后应急中发挥着极其重要的作用。本文以京津冀地区为例，实现一种新颖、实用的快速评估与制图技术，其基于离线数据与自主研发的软件模块即可完成地震灾害损失快速评估与专业制图表达。关键技术与方法包括：①京津冀地区基础地理数据与重要涉震数据的融合处理，基于细节层次模型（LOD）的地图显示原理，制作多级预缓存离线地图数据；②基于先进的分区分类评估模型与计算方法，生成京津冀地区不同烈度下地震灾害损失预评估结果的公里网格数据；③针对大量的离线地图数据与损失预评估公里网格数据，基于地理空间分区实现高效的离线存储管理机制；④基于面向对象编程和图形图像处理技术，实现地震灾害损失快速评估与专业制图表达一体化软件集成开发。本研究实现了全链条关键技术，不依赖任何第三方商业软件或服务插件，1分钟内即可自动完成快速评估报告与系列专题图件的生成。研究结果在多次地震应急中取得应用实效，对于提高地震应急处置能力有重要意义。
Abstract:Rapid loss assessment and emergency mapping play an extremely important role in post-earthquake emergency work. Taking the Beijing-Tianjin-Hebei region as an example, this research studied and implemented a novel and practical rapid assessment and mapping technology. Based on off-line data and self-developed software modules, the rapid loss assessment and professional mapping representation could be easily realized. Firstly, the basic geographic data and important earthquake-related data of the Beijing-Tianjin-Hebei region were updated and processed, and the multi-level pre-cached off-line map data was produced based on the principle of LOD (Level of Details) model. Secondly, based on advanced sub-area classification evaluation model and calculation method, the kilometer grid data of earthquake disaster losses under different intensities were generated. Subsequently, an efficient off-line storage management mechanism based on geographical partitions was implemented, for large amounts of off-line map data and pre-assessed loss kilometer grid data. Finally, based on object-oriented programming and graphic image processing technology, the integrated application software for rapid loss assessment and professional mapping representation was designed, developed and implemented. This research has realized the key technologies of the whole chain, and does not rely on any third-party commercial software or service plug-ins. The rapid assessment reports and series of maps can be automatically generated within one minute. The research results have achieved novel practical effectiveness in multiple earthquake events. This research is of great significance for improving the ability of earthquake emergency response.
-
Key words:
- earthquake emergency /
- rapid assessment /
- emergency mapping /
- off-line technology
-

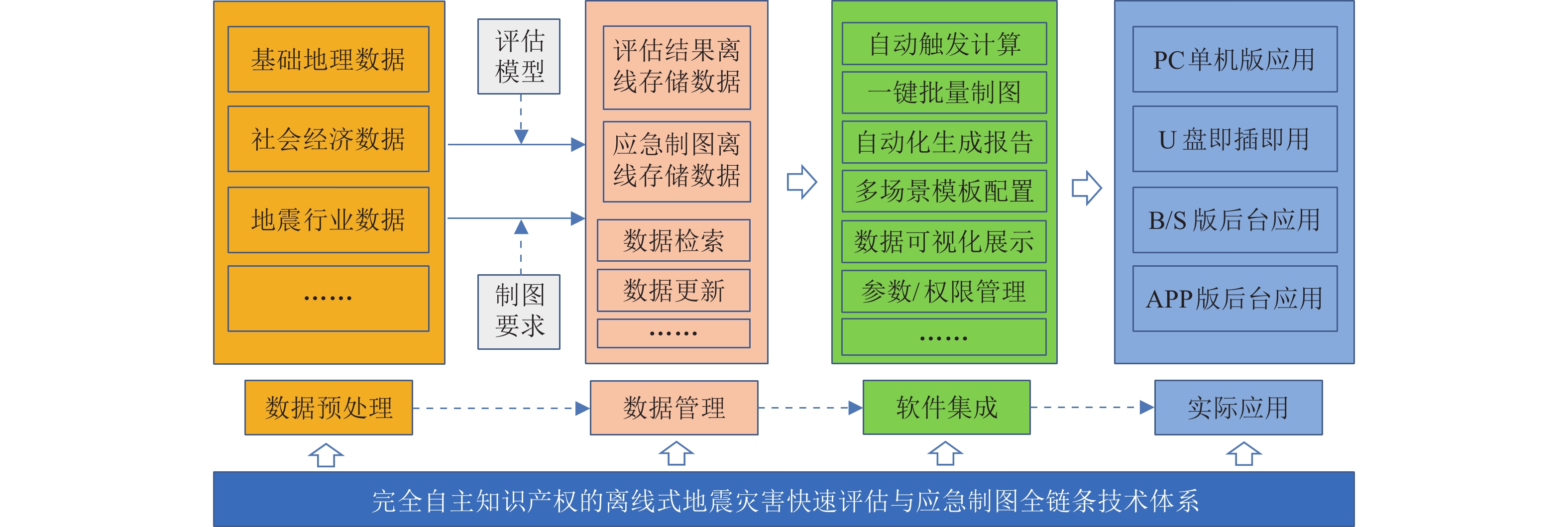

图 1 离线式地震灾害评估与应急制图技术体系示意图
Figure 1. Diagram of off-line earthquake disaster assessment and emergency mapping technology system

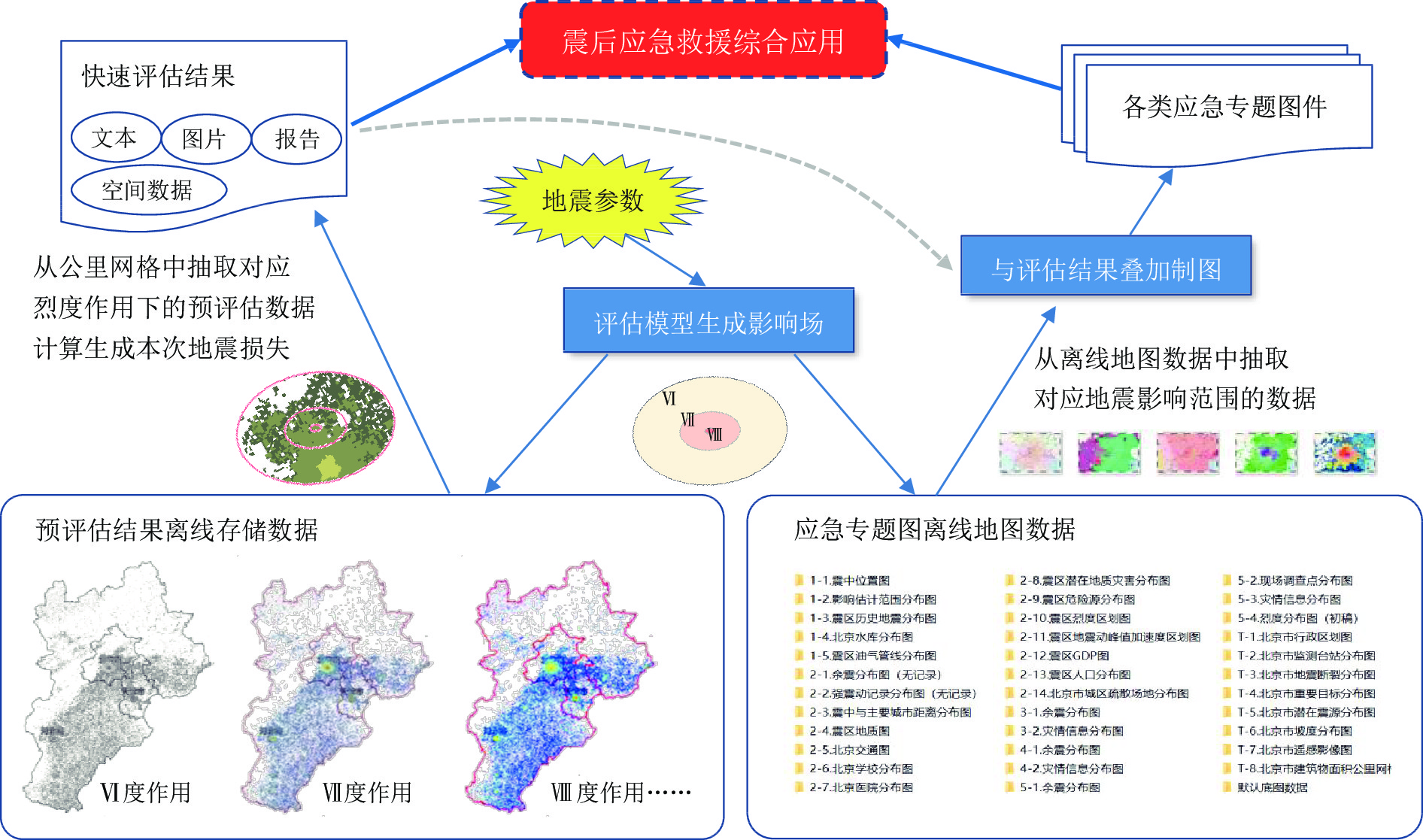

图 2 离线式地震灾害评估与应急制图技术原理示意图
Figure 2. Diagram of off-line earthquake disaster assessment and emergency mapping technical principle

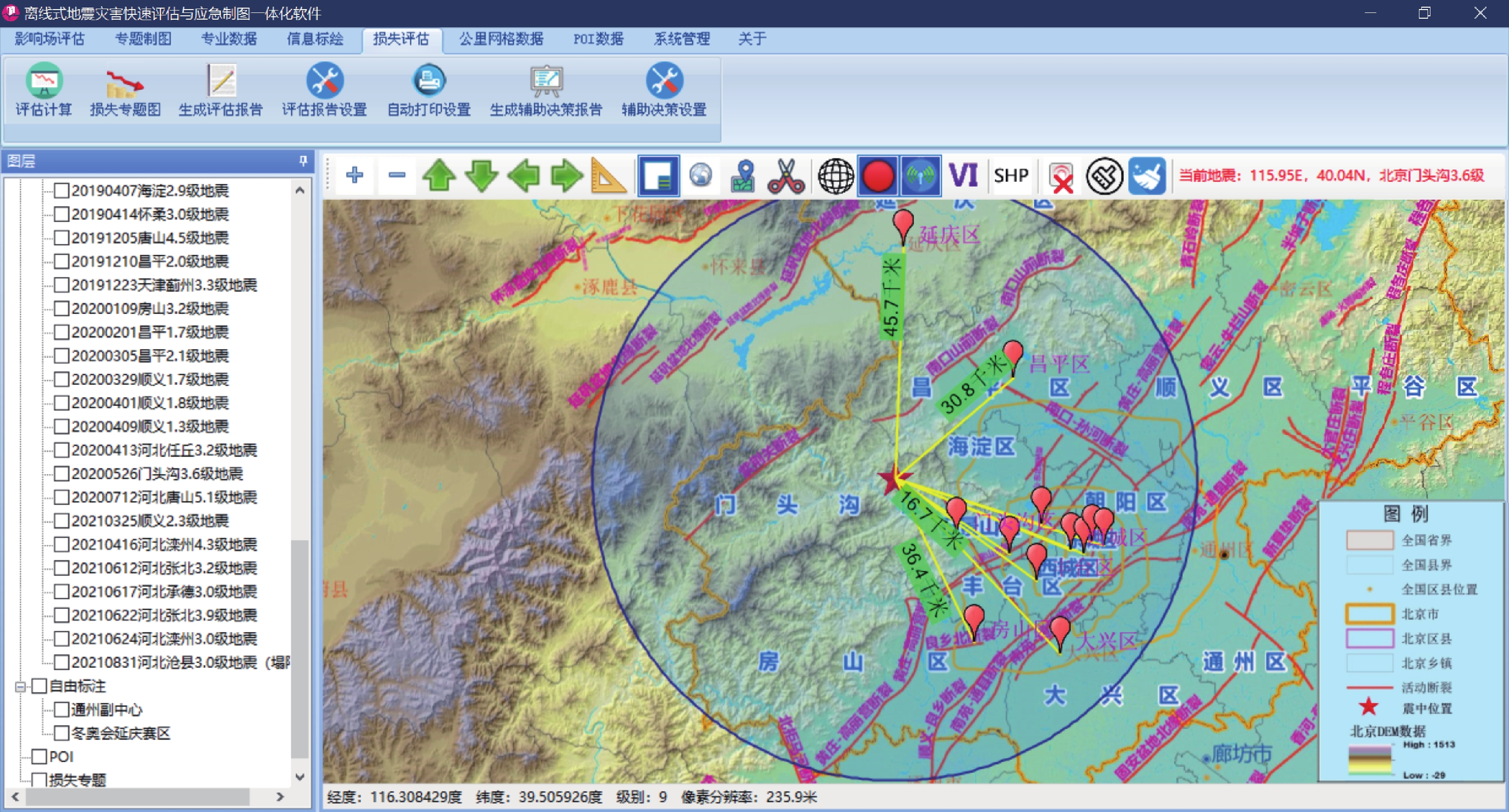

表 1 2019—2021年北京启动应急地震事件列表
Table 1. Earthquake events affecting Beijing from 2019 to 2021
序号 日期 震中位置 震级 1 2019-04-07 北京海淀区 2.9 2 2019-04-14 北京怀柔区 3.0 3 2019-12-05 河北唐山市丰南区 4.5 4 2019-12-10 北京昌平区 2.0 5 2019-12-23 天津蓟州区 3.3 6 2020-01-09 北京房山区 3.2 7 2020-02-01 北京昌平区 1.7 8 2020-03-05 北京昌平区 2.1 9 2020-03-29 北京顺义区 1.7 10 2020-04-01 北京顺义区 1.8 11 2020-04-09 北京顺义区 1.3 12 2020-04-13 河北沧州市任丘市 3.2 13 2020-05-26 北京门头沟区 3.6 14 2020-07-12 河北唐山市古冶区 5.1 15 2021-03-25 北京顺义区 2.3 16 2021-04-16 河北唐山市滦州市 4.3 17 2021-06-12 河北张家口市张北县 3.2 18 2021-06-17 河北承德市双桥区 3.0 19 2021-06-22 河北张家口市张北县 3.9 20 2021-06-24 河北唐山市滦州市 3.0
下载: 导出CSV
-
[1] 薄景山,李平,孙有为,等. 中国城市抗御地震灾害研究的发展与实践[J]. 震灾防御技术,2019,14(2):259-268 doi: 10.11899/zzfy20190201Bo J S,Li P,Sun Y W,et al. The development and practice of the research on city resistance to earthquake disaster in China[J]. Technology for Earthquake Disaster Prevention,2019,14(2):259-268 doi: 10.11899/zzfy20190201 [2] 王润, 姜彤, Lorenz King, 等. 20世纪重大自然灾害评析[J]. 自然灾害学报, 2000, 9(4): 9-15Wang R, Jiang T, Lorenz K, et al. Review on global natural catastrophes in the 20th century [J]. Journal of Natural Disasters, 2000, 9(4): 9-15 [3] 冯蔚,钱庚,杨牧萍. 2021年全球地震灾害概要[J]. 地震科学进展,2022,52(6):262-270Feng W,Qian G,Yang M P. Overview of worldwide earthquake disasters in 2021[J]. Progress in Earthquake Sciences,2022,52(6):262-270 [4] 聂高众,安基文. 地震应急基本理论模式初探[J]. 城市与减灾,2013,17(3):25-29 doi: 10.3969/j.issn.1671-0495.2013.03.008Nie G Z,An J W. Preliminary study on basic theoretical model of emergency response for earthquakes[J]. City and Disaster Reduction,2013,17(3):25-29 doi: 10.3969/j.issn.1671-0495.2013.03.008 [5] 聂高众,安基文,邓砚. 地震应急灾情服务进展[J]. 地震地质,2012,34(4):782-791 doi: 10.3969/j.issn.0253-4967.2012.04.020Nie G Z,An J W,Deng Y. Advances in earthquake emergency disaster service[J]. Seismology and Geology,2012,34(4):782-791 doi: 10.3969/j.issn.0253-4967.2012.04.020 [6] 姜立新,帅向华,聂高众,等. 地震应急指挥协同技术平台设计研究[J]. 震灾防御技术,2012,7(3):294-302Jiang L X,Shuai X H,Nie G Z,et al. Study on the design of earthquake emergency command collaboration technology platform[J]. Technology for Earthquake Disaster Prevention,2012,7(3):294-302 [7] 姜立新,帅向华,聂高众,等. 地震应急联动信息服务技术平台设计探讨[J]. 震灾防御技术,2011,6(2):156-163 doi: 10.3969/j.issn.1673-5722.2011.02.007Jiang L X,Shuai X H,Nie G Z,et al. Discussion on the design of earthquake emergency linkage information service platform[J]. Technology for Earthquake Disaster Prevention,2011,6(2):156-163 doi: 10.3969/j.issn.1673-5722.2011.02.007 [8] 郑通彦,文鑫涛,李华玥,等. 地震应急信息速报视图自动发布系统的设计与实现[J]. 中国地震,2021,37(1):206-215 doi: 10.3969/j.issn.1001-4683.2021.01.020Zheng T Y,Wen X T,Li H Y,et al. Design and development of the rapid visualization output system of earthquake emergency information[J]. Earthquake Research in China,2021,37(1):206-215 doi: 10.3969/j.issn.1001-4683.2021.01.020 [9] 中国地震局. 中国地震应急指挥技术系统规程[M]. 北京: 地震出版社, 2005China Earthquake Administration. Stipulation on China earthquake disaster emergency command system[M]. Beijing: Seismological Press, 2005 [10] 帅向华,姜立新,王栋梁. 国家地震应急指挥软件系统研究[J]. 自然灾害学报,2009,18(3):99-104 doi: 10.3969/j.issn.1004-4574.2009.03.017Shuai X H,Jiang L X,Wang D L. Study of national earthquake emergency command software system[J]. Journal of Natural Disasters,2009,18(3):99-104 doi: 10.3969/j.issn.1004-4574.2009.03.017 [11] 温瑞智,贾国玉. 城市建筑物震害损失快速评估系统[J]. 世界地震工程,1998,14(2):23-28Wen R Z,Jia G Y. Earthquake damage fast evaluation for urban buildings[J]. World Information on Earthquake Engineering,1998,14(2):23-28 [12] 王晓青,丁香. 基于GIS的地震现场灾害损失评估系统[J]. 自然灾害学报,2004,13(1):118-125 doi: 10.3969/j.issn.1004-4574.2004.01.019Wang X Q,Ding X. Estimation system of disastrous losses in seismic site based on GIS[J]. Journal of Natural Disasters,2004,13(1):118-125 doi: 10.3969/j.issn.1004-4574.2004.01.019 [13] 陈洪富,孙柏涛,陈相兆,等. HAZ-China地震灾害损失评估系统研究[J]. 土木工程学报,2013,46(增刊2):294-300Chen H F,Sun B T,Chen X Z,et al. HAZ-China earthquake disaster loss estimation system[J]. China Civil Engineering Journal,2013,46(S2):294-300 [14] 谭庆全. 地震应急专题图离线生成技术研究与应用[J]. 城市与减灾,2017,20(1):53-58 doi: 10.3969/j.issn.1671-0495.2017.01.012Tan Q Q. Study on the generated off-line technology of thematic map for earthquake emergency response and its application[J]. City and Disaster Reduction,2017,20(1):53-58 doi: 10.3969/j.issn.1671-0495.2017.01.012 [15] 樊琪,刘洪光. 地震应急专题图离线自动出图研究与应用−以海南省为例[J]. 地震科学进展,2021,51(7):304-308 doi: 10.3969/j.issn.2096-7780.2021.07.003Fan Q,Liu H G. Research and application of off-line automatic mapping of earthquake emergency thematic map:A case study of Hainan Province[J]. Progress in Earthquake Sciences,2021,51(7):304-308 doi: 10.3969/j.issn.2096-7780.2021.07.003 [16] 韩贞辉,何重阳,谢恒义,等. 基于Python的地震应急专题图快速出图技术研究[J]. 地震科学进展,2020,50(4):34-37Han Z H,He C Y,Xie H Y,et al. Research on rapid mapping technology of seismic emergency thematic map of Henan Province based on Python[J]. Progress in Earthquake Sciences,2020,50(4):34-37 [17] Tan Q Q, Zhao Z H, Yu J Y, et al. Research on rapid assessment technology of earthquake disaster loss based on GIS[C]//2019 IEEE 2nd International Conference on Computer and Communication Engineering Technology (CCET). Beijing: IEEE, 2019: 164-167 [18] 孙柏涛,张桂欣. 中国大陆建筑物地震灾害风险分布研究[J]. 土木工程学报,2017,50(9):1-7Sun B T,Zhang G X. Study on seismic disaster risk distribution of buildings in mainland China[J]. China Civil Engineering Journal,2017,50(9):1-7 -
