An introduction of key modules of downhole very broadband seismograph
-

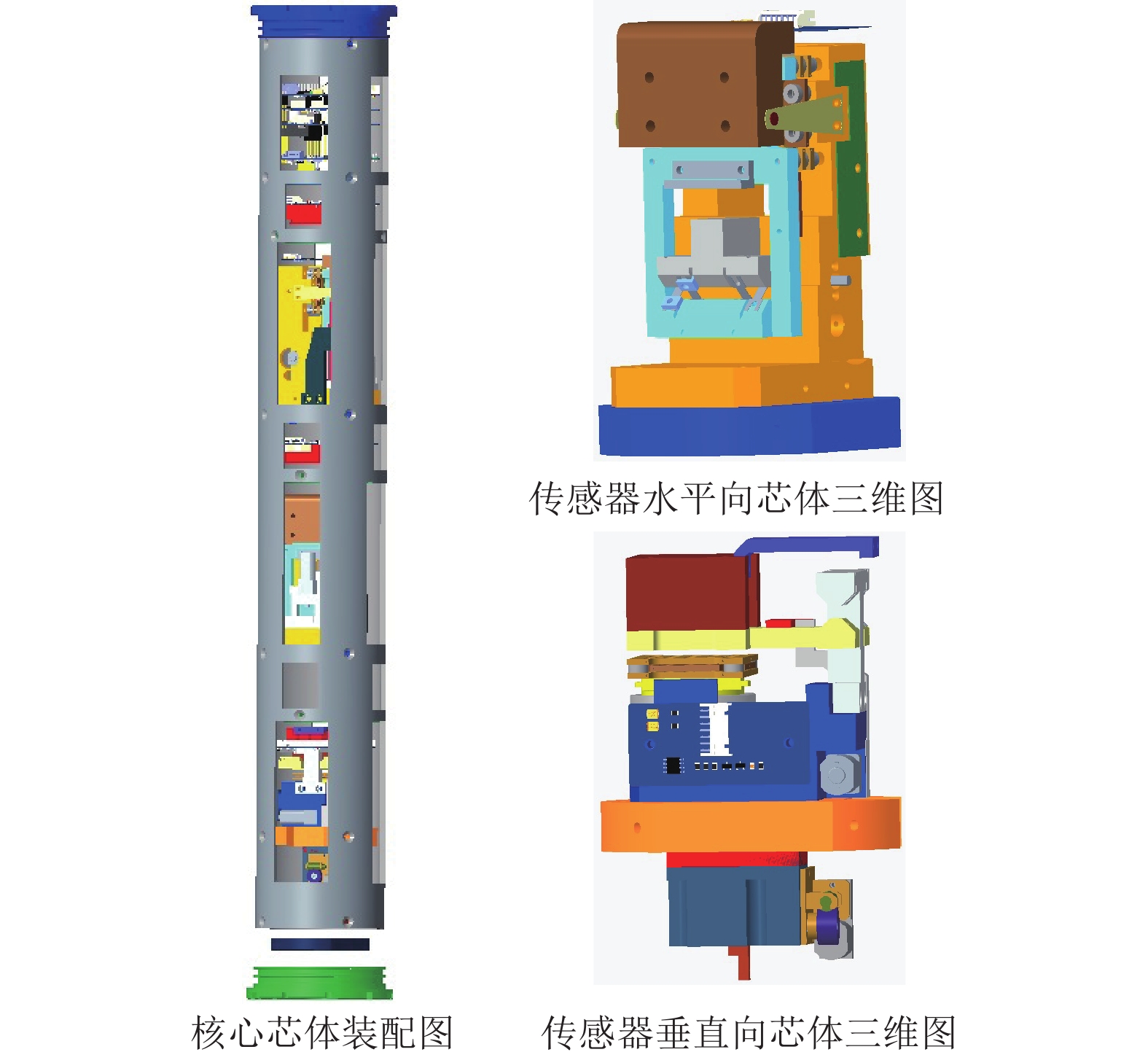

Abstract: The key modules of downhole very broadband seismograph include multi-components core machinery and reed system, core feedback adjustment system, and downhole positioning and orientation system.
-
Key words:
- reed /
- feedback adjustment /
- positioning and orientation
-

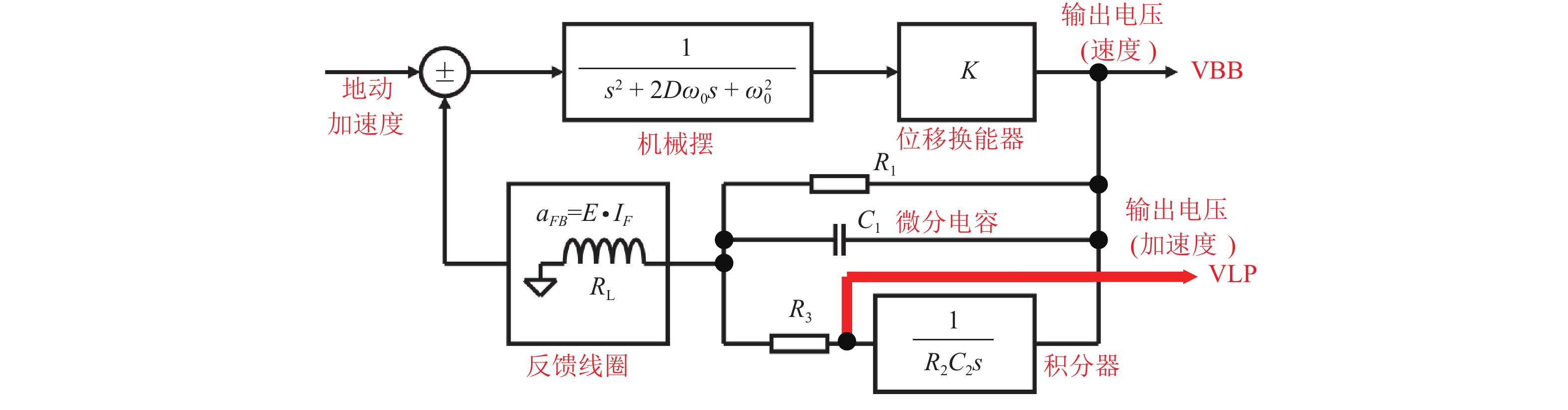

图 6 甚宽频带地震仪反馈模型框图
Figure 6. Illustration graph of very broadband seismograph feedback module

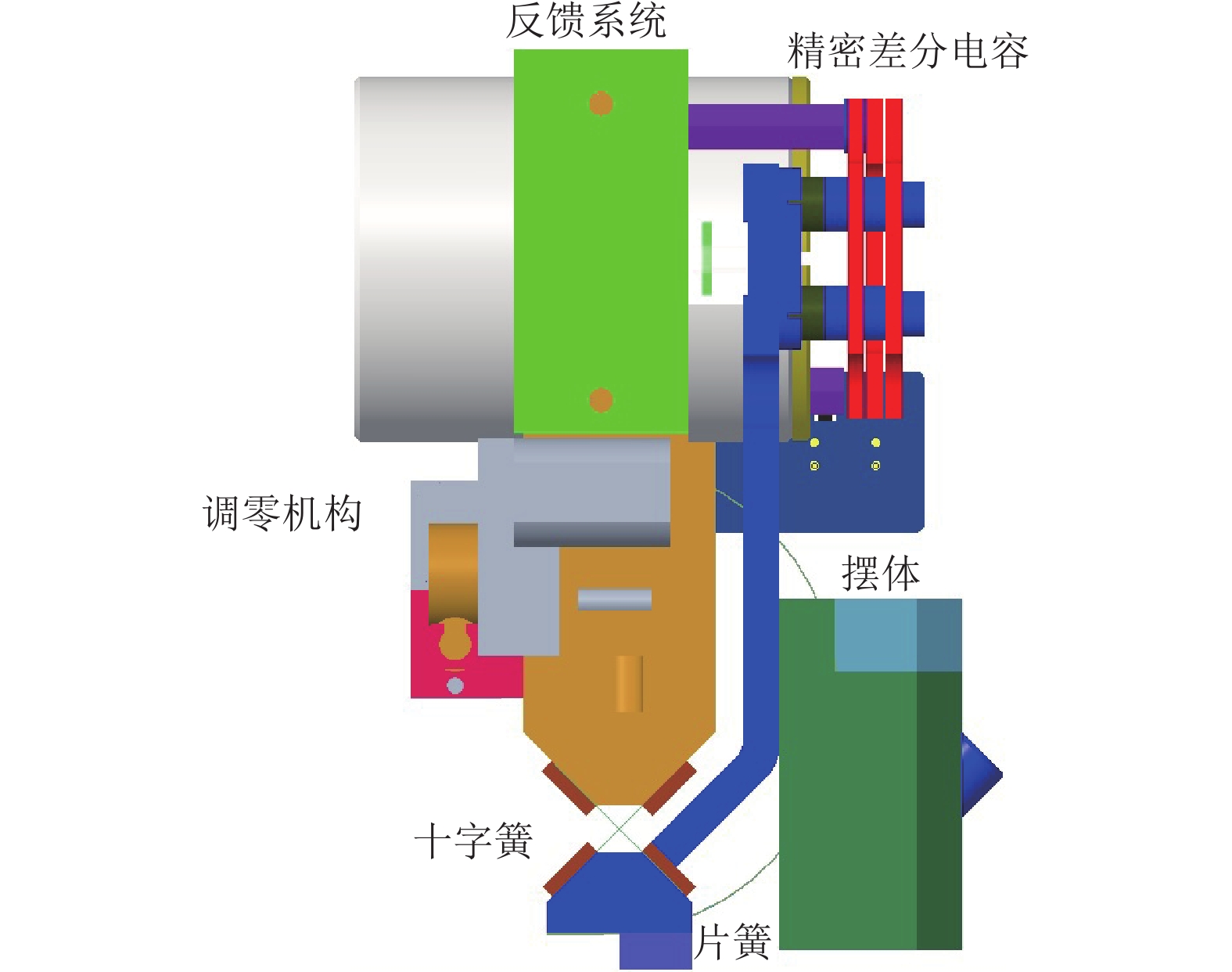

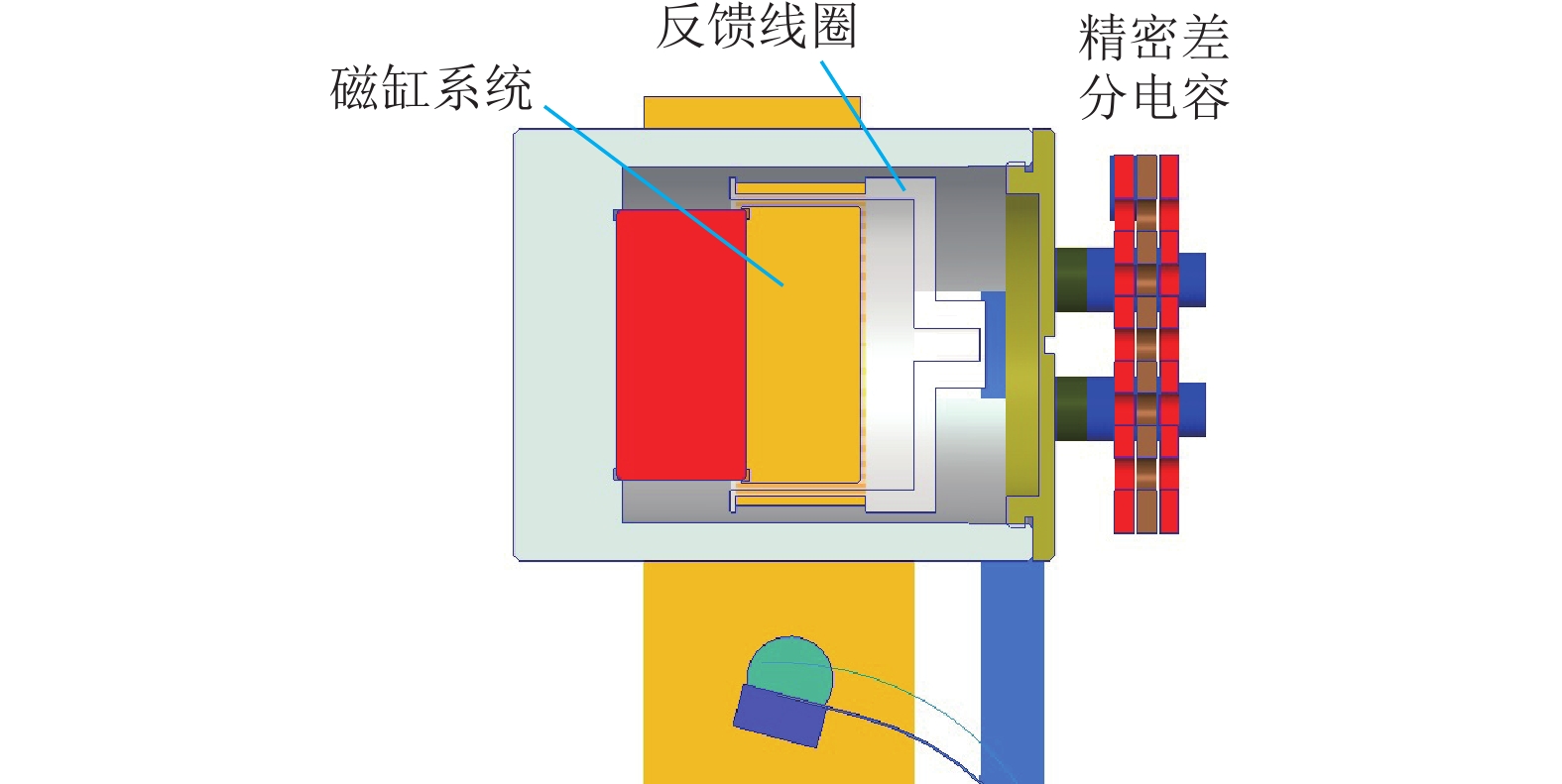

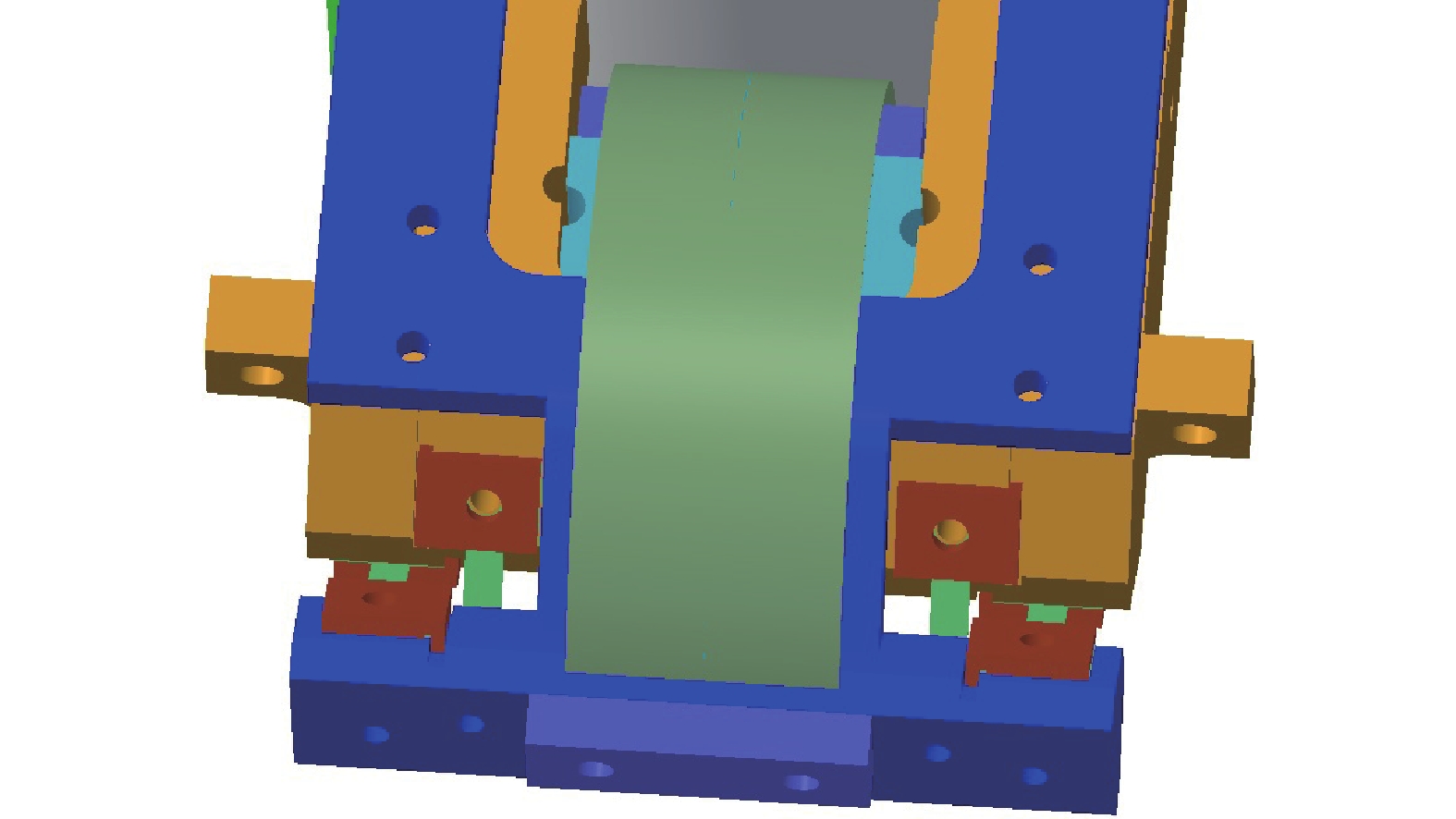

图 7 传感器力平衡反馈系统的机械结构
Figure 7. Machinery of force equilibrium feedback system of sensor
图 8 井下地震仪反馈调理电路印制电路板（PCB）
Figure 8. The printed circuit board (PCB) of feedback modulation circuit of downhole seimograph

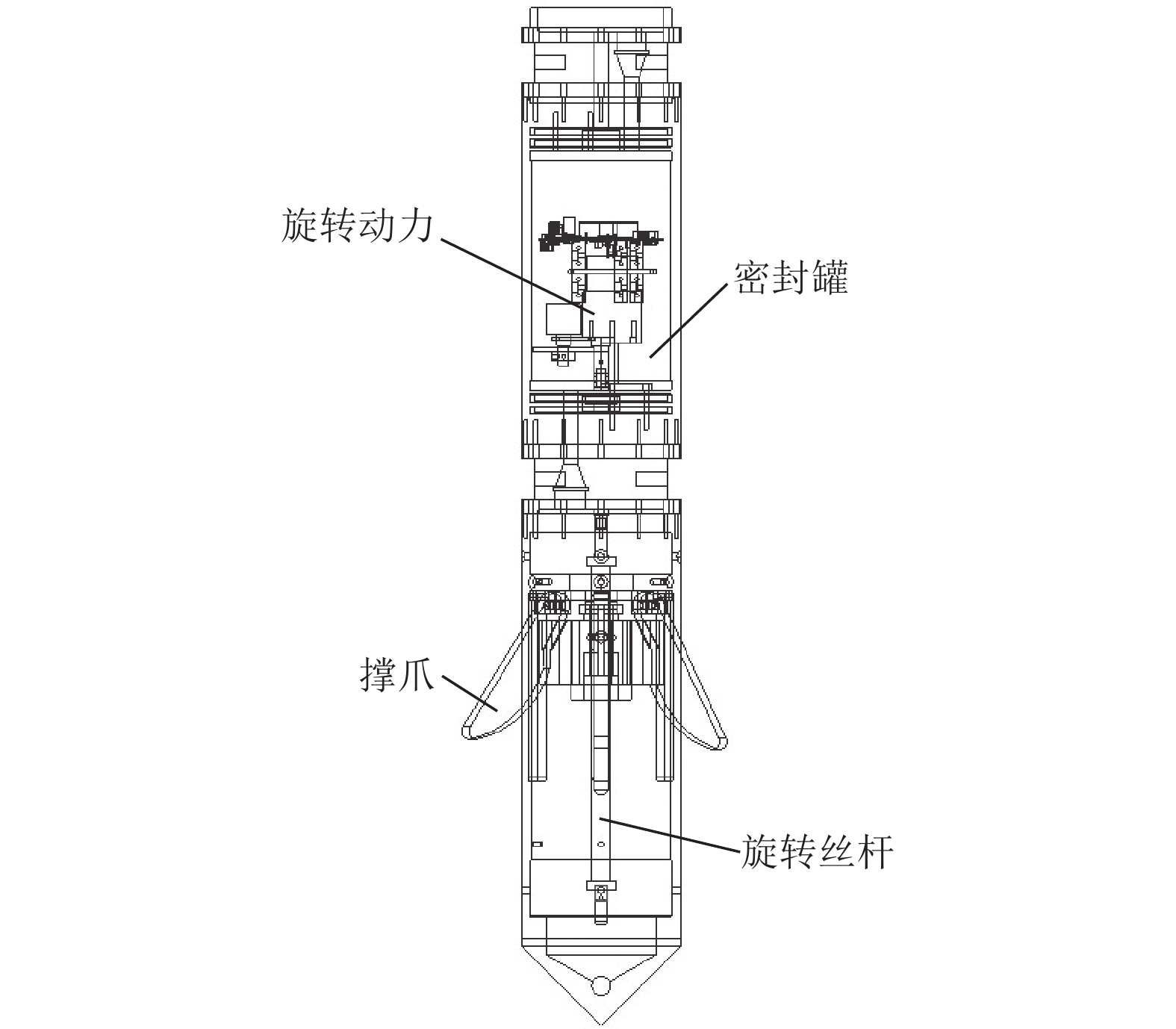

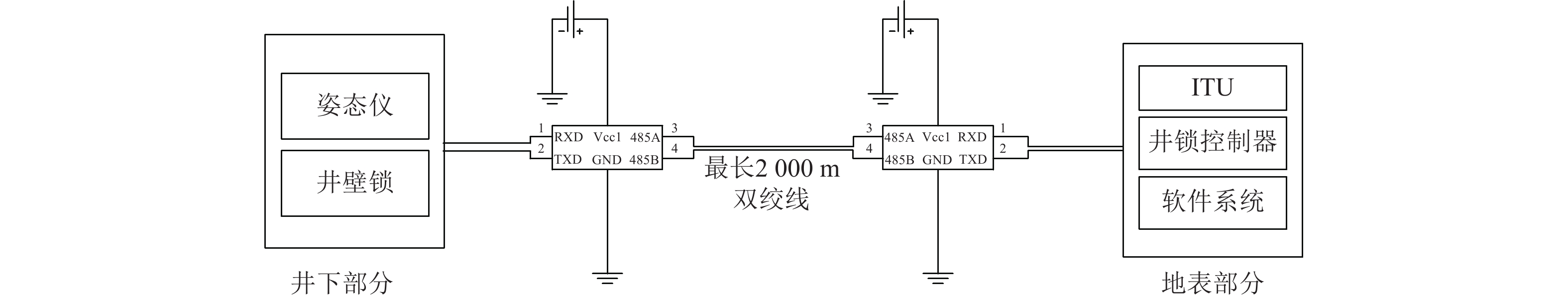

图 9 井下定位定向系统示意图
Figure 9. Illustration graph of downhole positioning and orientation system

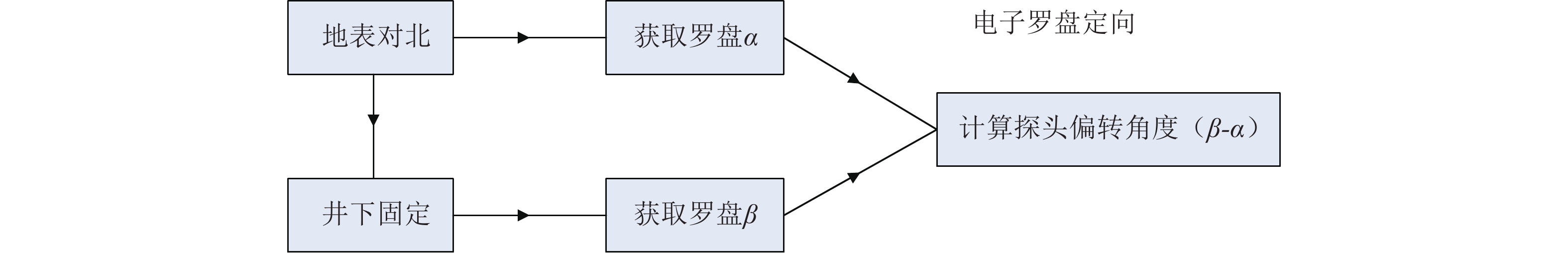

图 10 电子罗盘定向原理框图
Figure 10. Block graph of the principle of electronic compass orientation

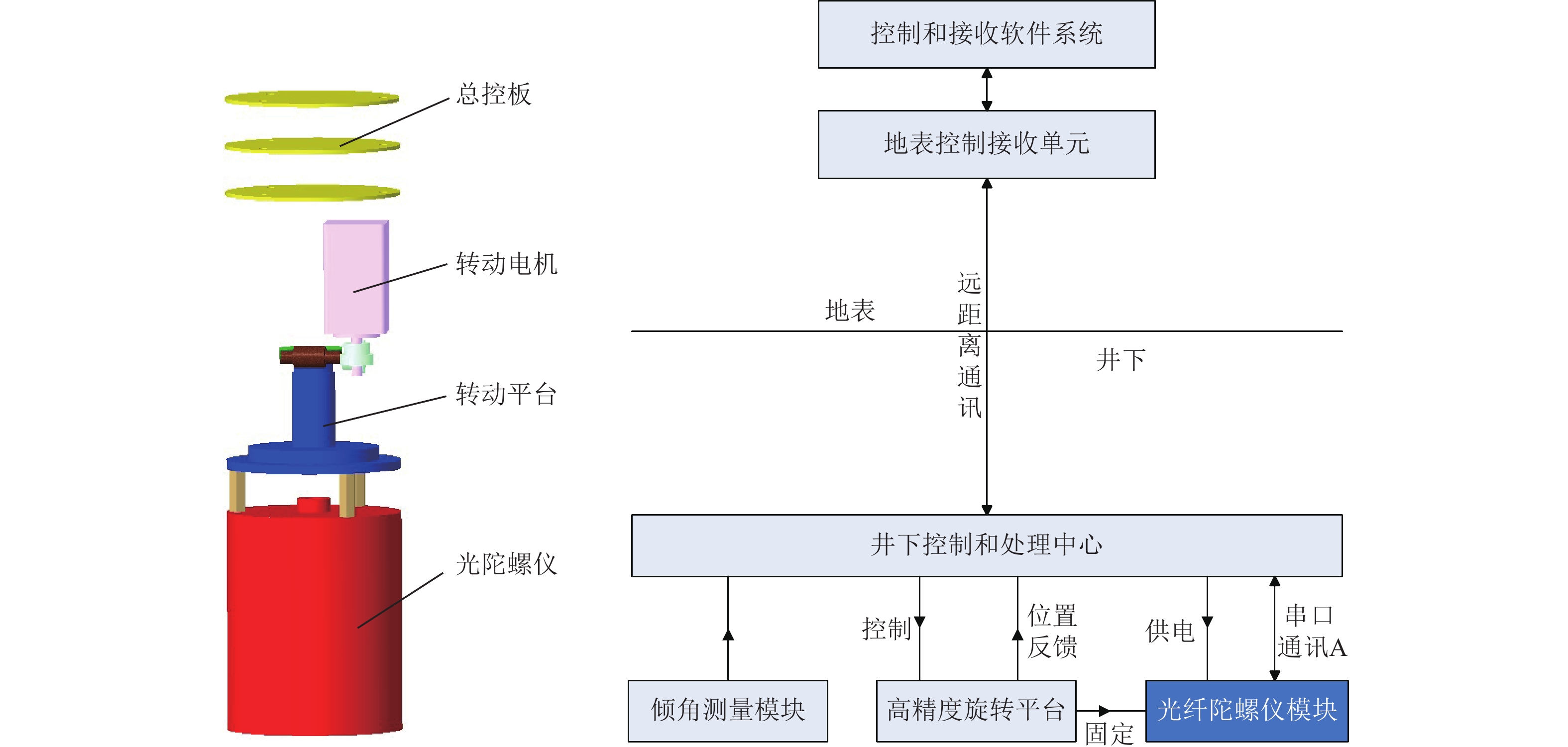

图 11 井下光纤陀螺寻北仪结构与总控模块图
Figure 11. Components structure graph and illustration graph of general control module of downhole Fiber Optical Gyroscope (FOG) north finder

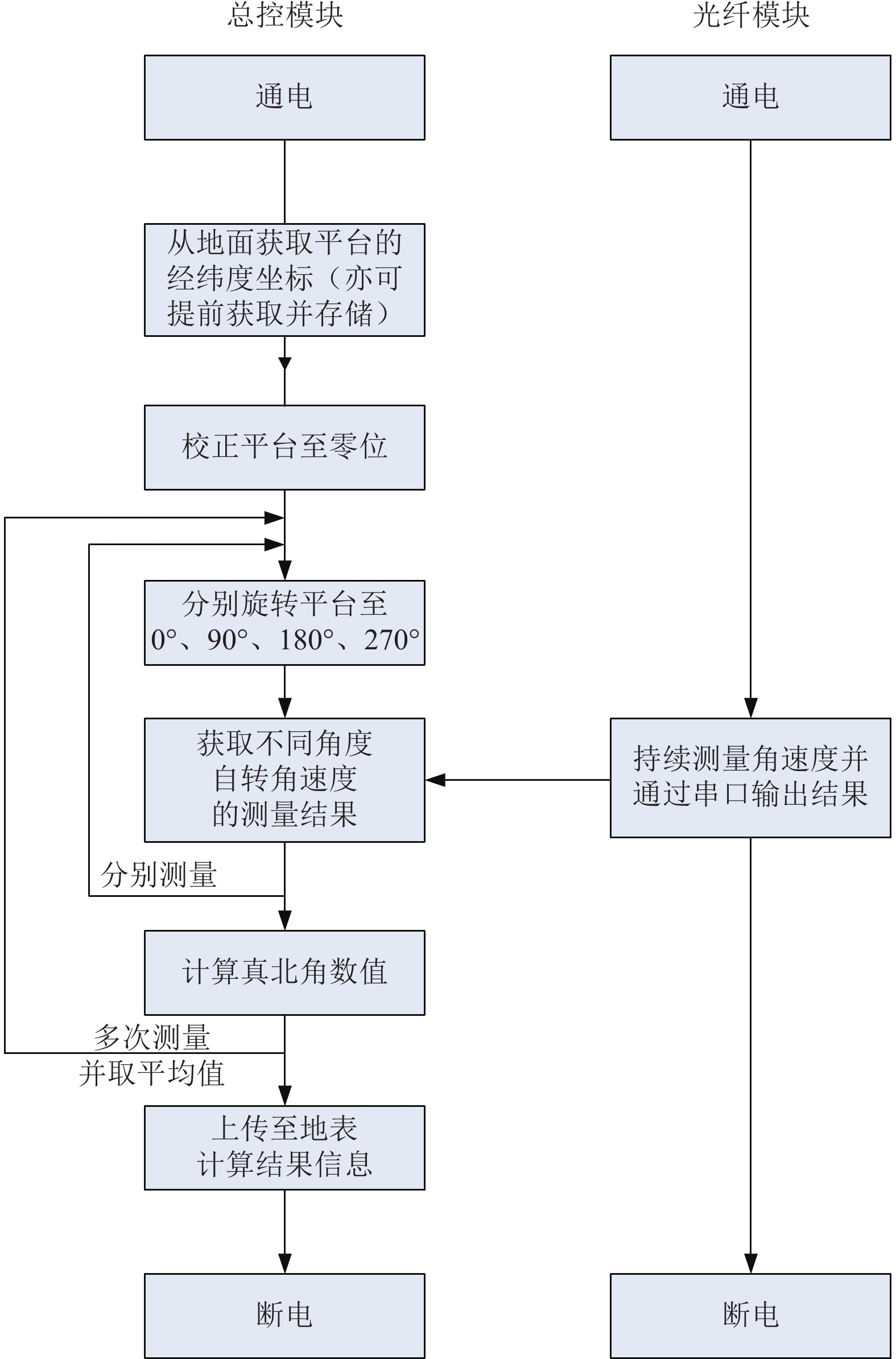

图 12 井下光纤寻北仪通讯流程图
Figure 12. Flow chart of communication for downhole Fiber Optical Gyroscope (FOG) north finder

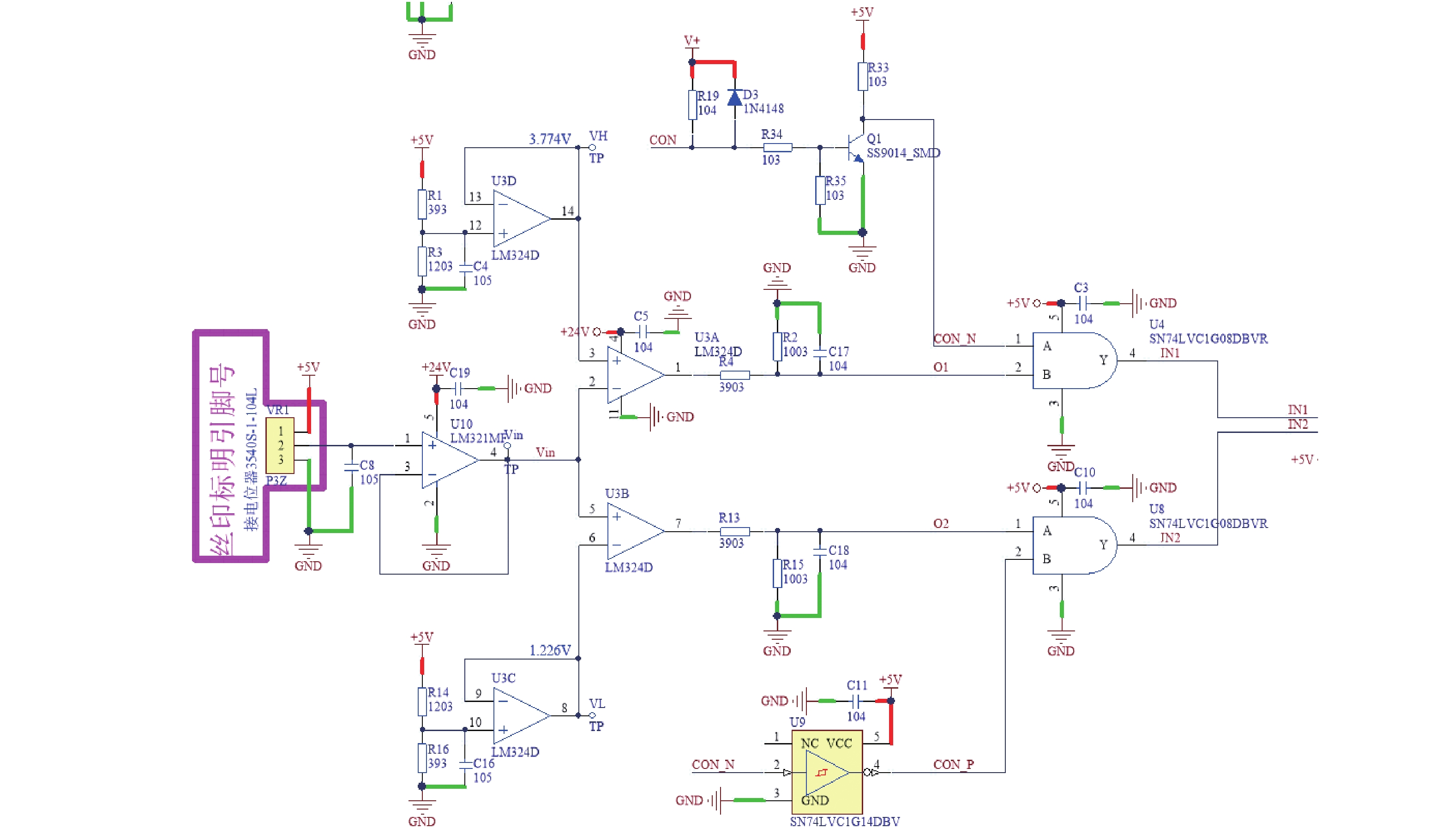

图 16 井锁到位指示灯驱动电路设计图
Figure 16. Design of drive circuit for position indicator of borehole locker
-
