An introduction of overall design for downhole very broadband seismograph
-
摘要: 针对2000 m深井观测的国家需求，应用 “解构与重构” 设计思路，共性赋能技术与地震技术深度融合的设计方法，对井下甚宽频带地震仪进行创新性总体设计；电磁兼容性、环境适应性与可靠性设计等定型技术设计；结构、功能与外壳的设计。测试和试运行结果表明，新研制的井下甚宽频带地震仪完全达到设计指标。Abstract: According to China national needs of 2000 m depth downhole seismic observation, using the design idea of ‘Deconstruction and Refactoring’ and the design method of deep integration of enabling technology and seismic technology, we innovatively carry out: ① the overall design of downhole very broadband seismograph; ② the design typification of its sub-systems of electromagnetic compatibility, environmental adaptability, and reliability; ③ the design of its components structure, function, and shell. The testing and trial operation results show that the newly developed downhole very broadband seismograph fully meets the design indexes.
-
Key words:
- deconstruction and refactoring /
- design typification
-

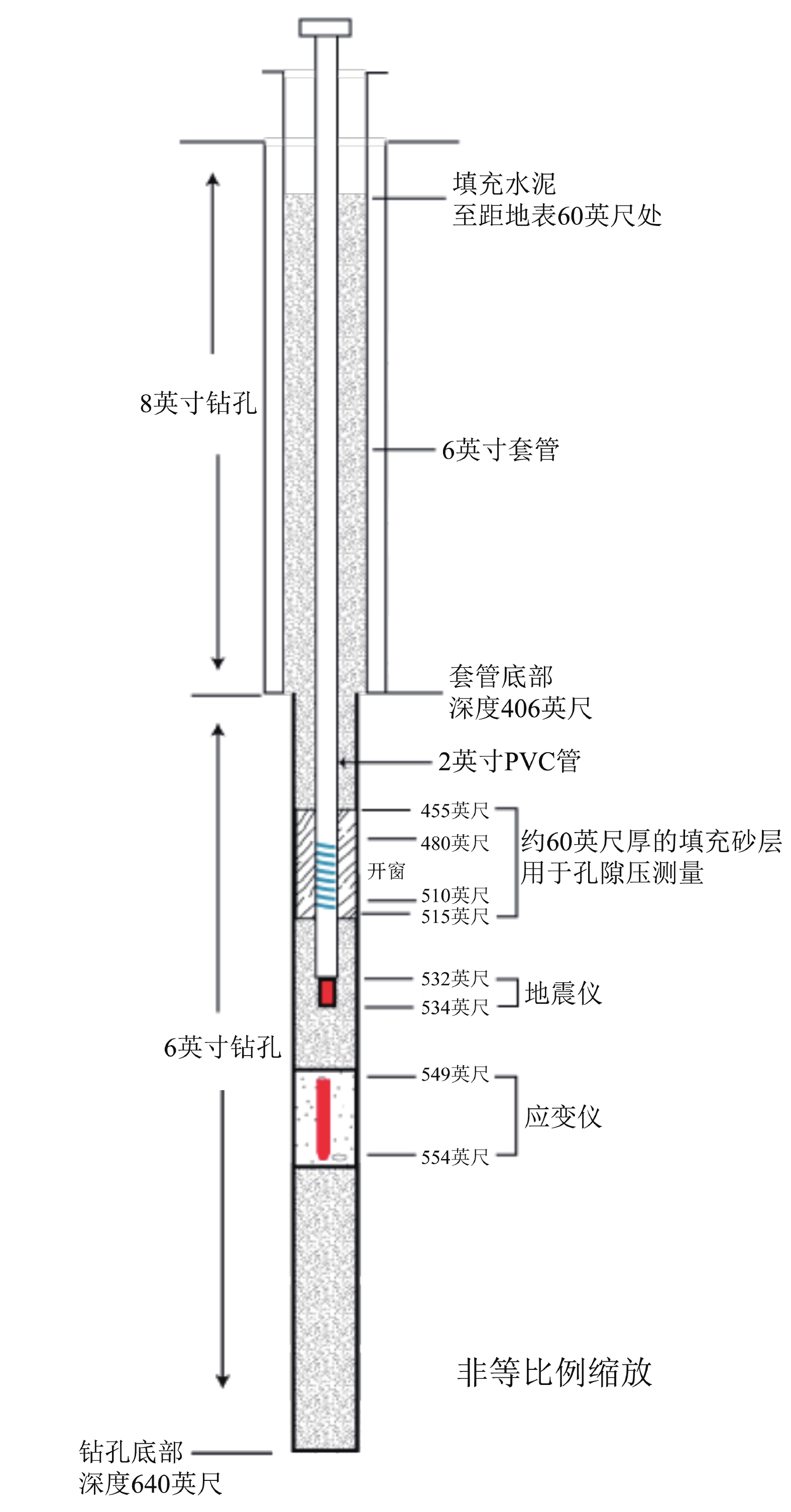

图 1 PBO计划中叠放式井下地震观测设备示意图
Figure 1. Illustration graph of multi-drop borehole seismic observation instrument in PBO plan

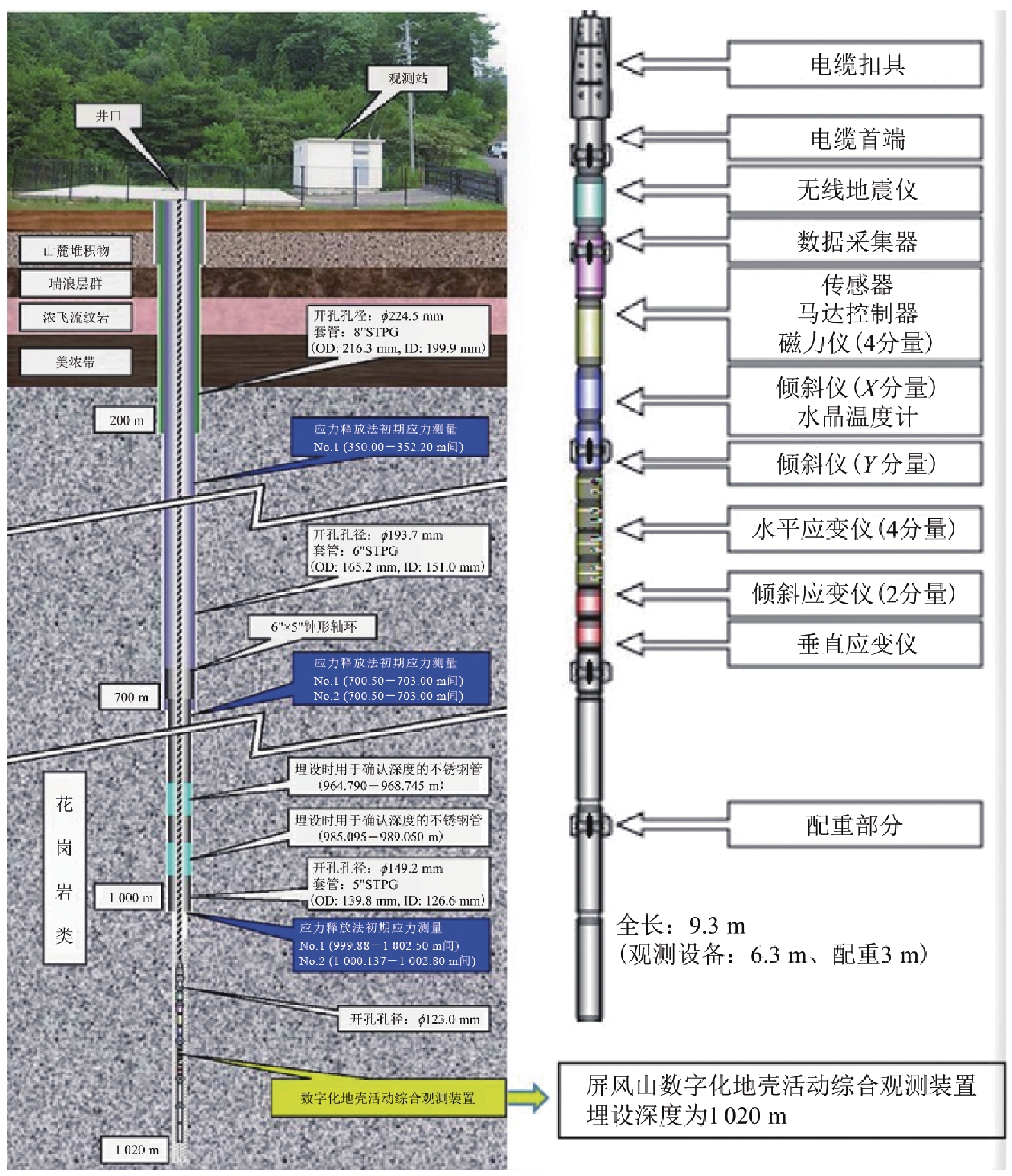

图 2 一体化井下综合观测设备（日本东浓地震科学研究所）结构示意图
Figure 2. Content structure graph of integrated borehole comprehensive observation instrument (Tono Research Institute of Earthquake Science, Japan)

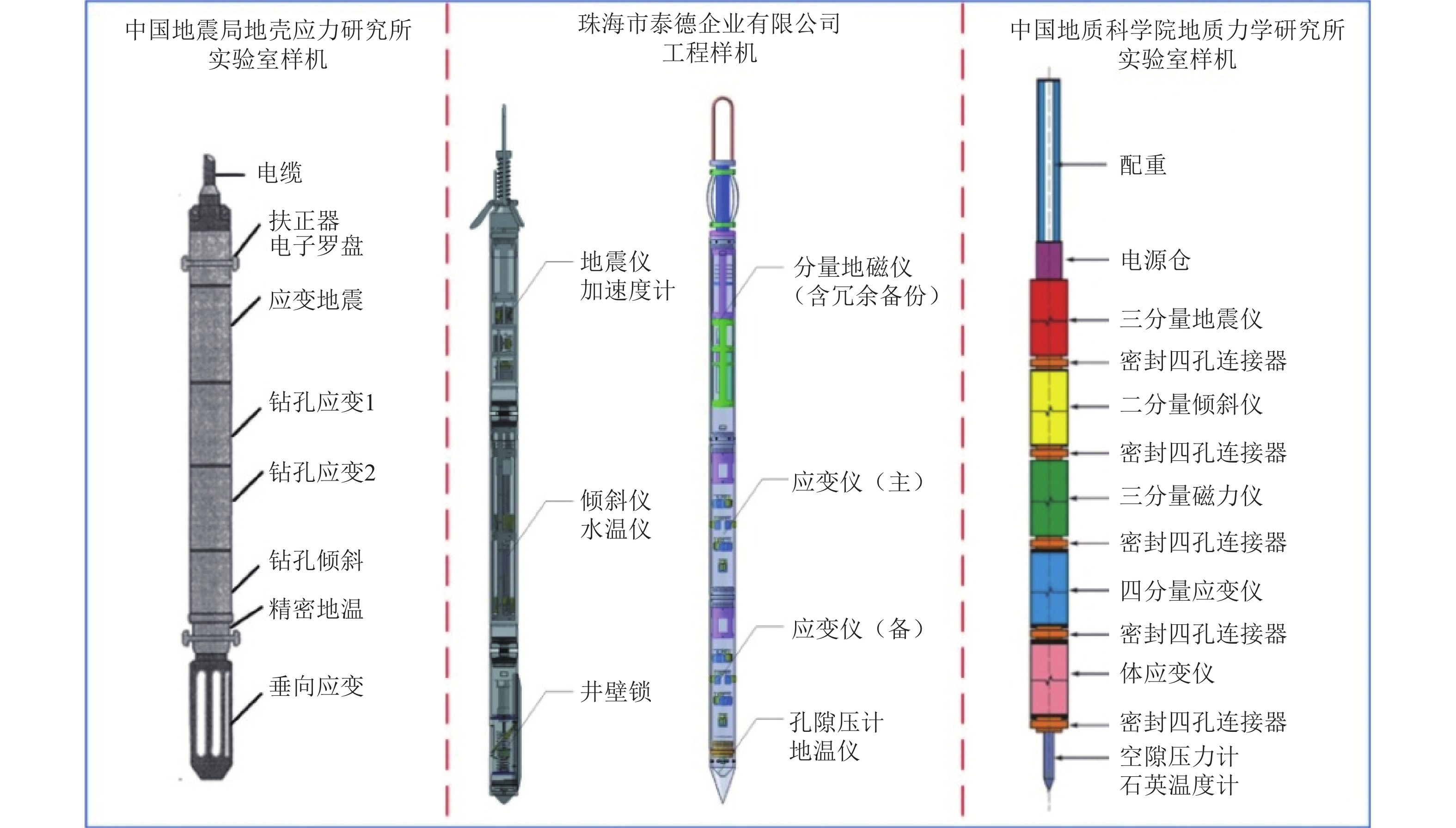

图 3 国内井下综合观测设备示意图
Figure 3. Illustration graph of three types of China borehole comprehensive observation instrument

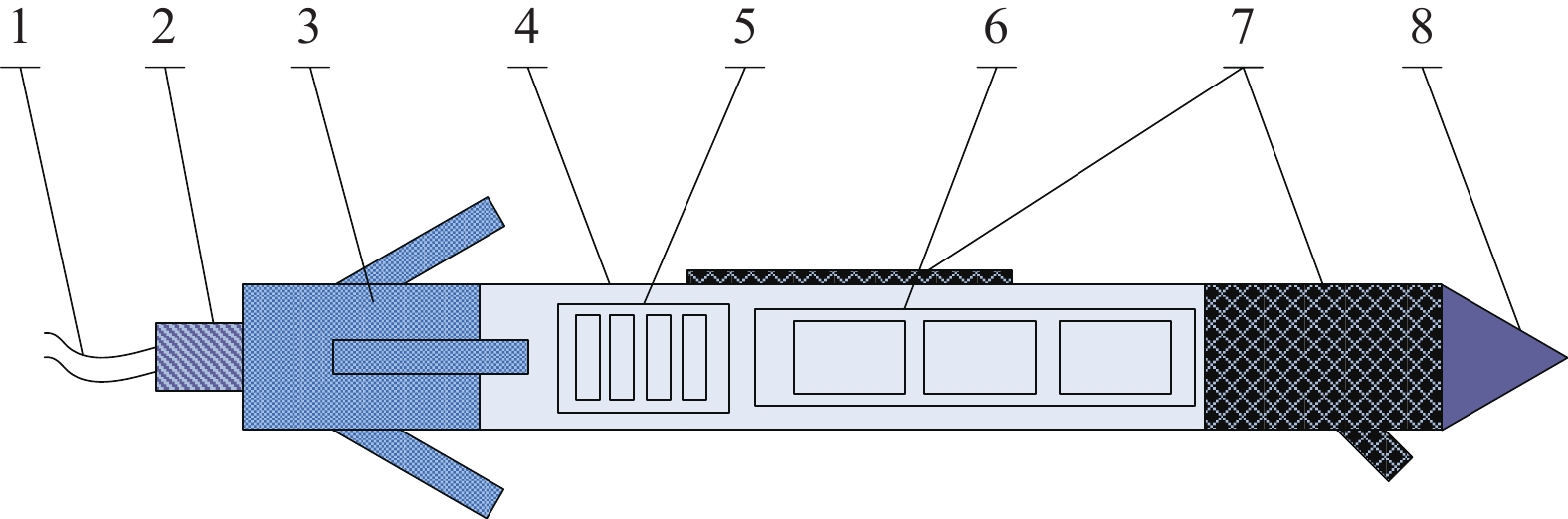

图 4 井下甚宽频带地震仪主要结构
1-防水线缆；2-深井防水接头；3-扶正器；4-密封腔；5-采集单元；6-甚宽频带传感器；7-井锁装置；8-导锥
Figure 4. Main contents of downhole very broadband seismograph
1-waterproof cable; 2-deep borehole waterproof joint; 3-centralizer; 4-sealing chamber; 5-data acquisition unit; 6-very broadband sensor; 7-locking device; 8-guide cone

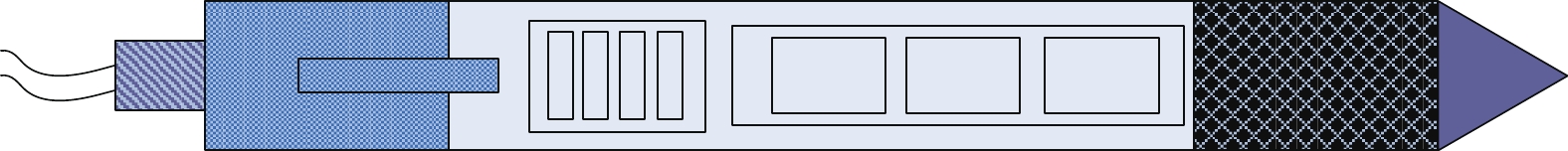

图 6 井下仪器承压结构示意图
Figure 6. Illustration graph of pressure bearing structure of downhole instrument

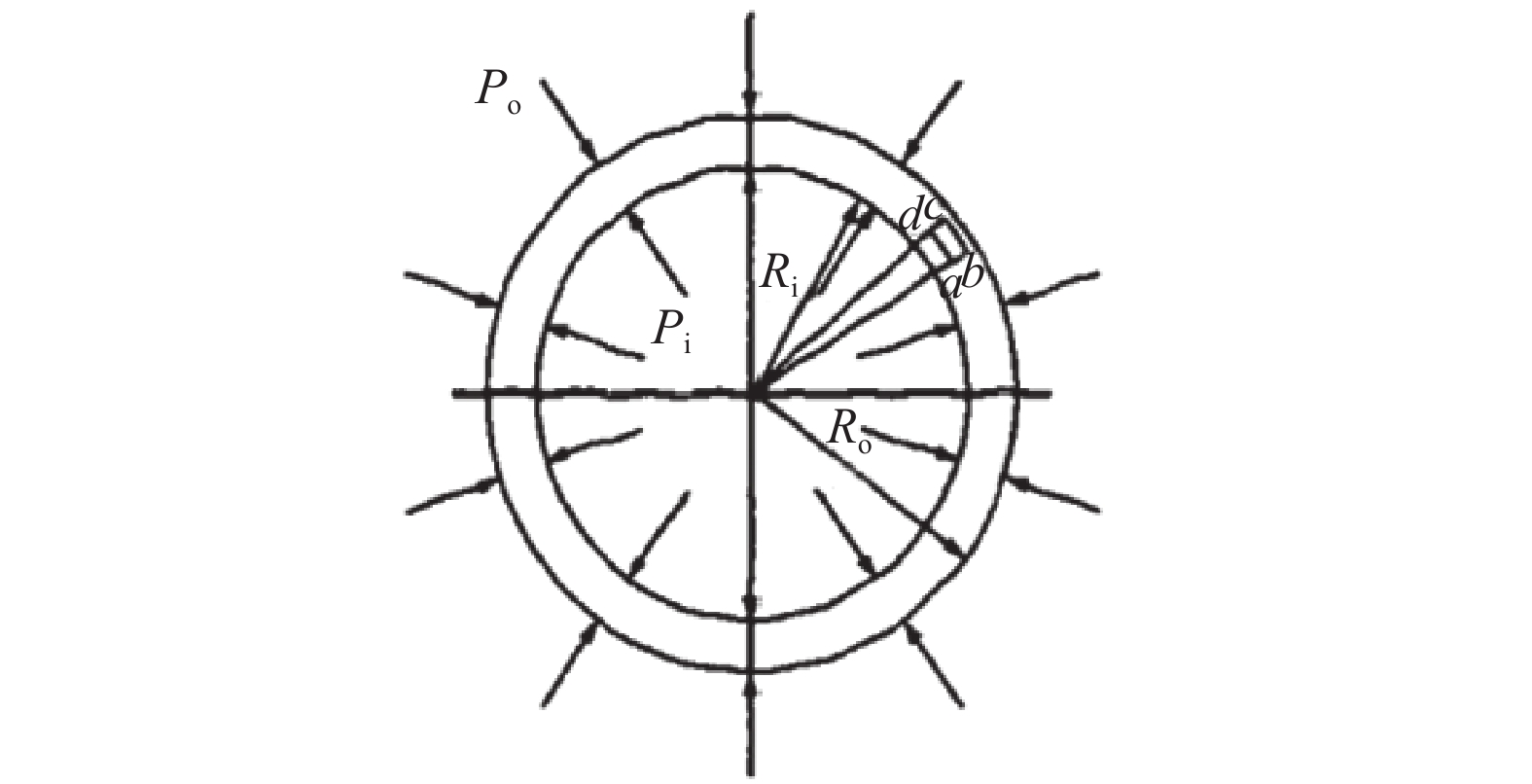

图 7 承压外壳截面受压图
Figure 7. Illustration graph of cross section pressure for pressure bearing shell
图 9 2018年10月22日加拿大温哥华岛附近海域发生M6.7地震
Figure 9. A M6.7 earthquake occured near Vancouver Island，Canada on Oct. 22，2018

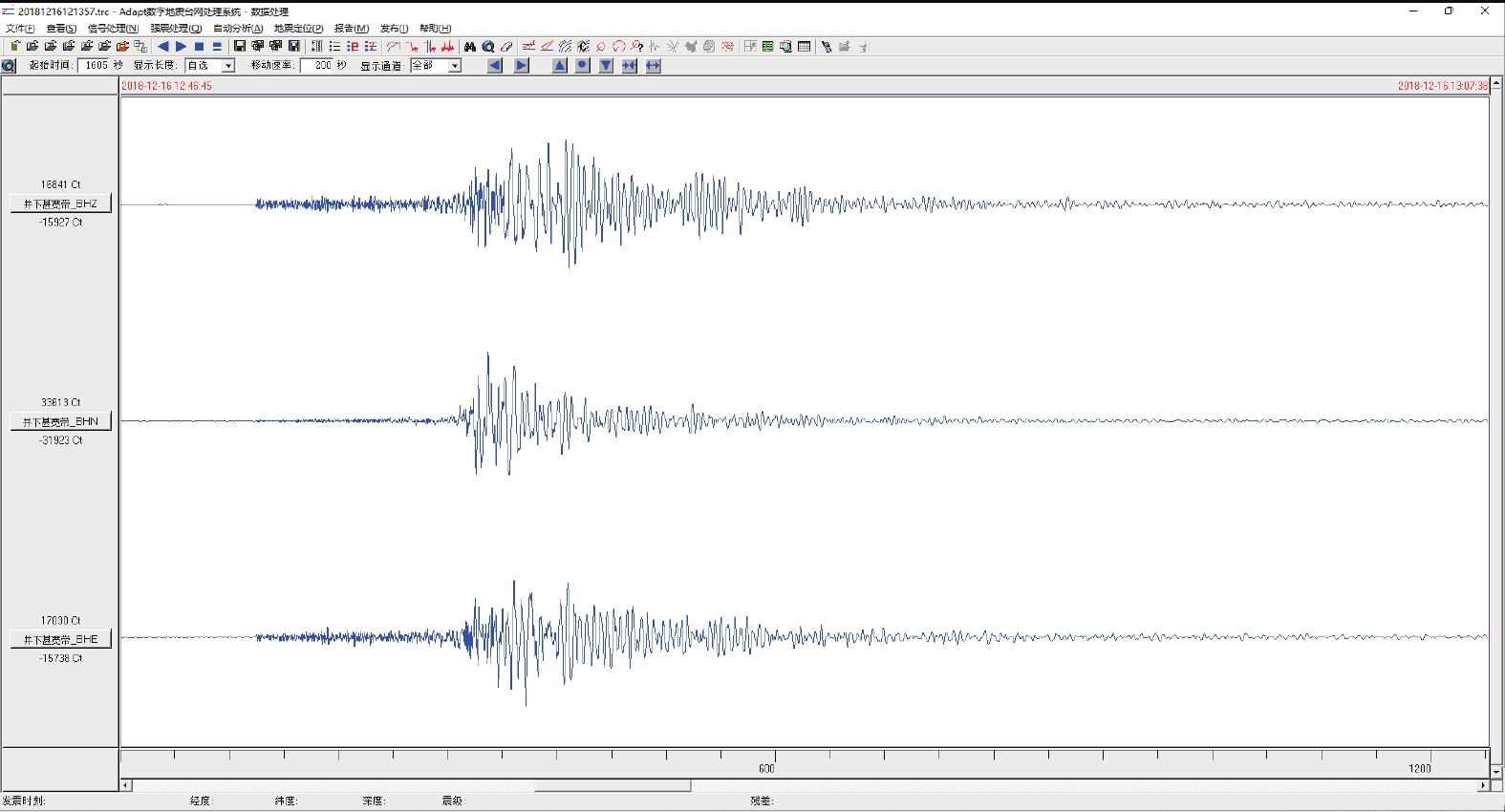

图 10 2018年12月16日四川宜宾市兴文县发生M5.7地震
Figure 10. A M5.7 earthquake occured in Sichuan Yibin Xingwen on Dec. 16，2018

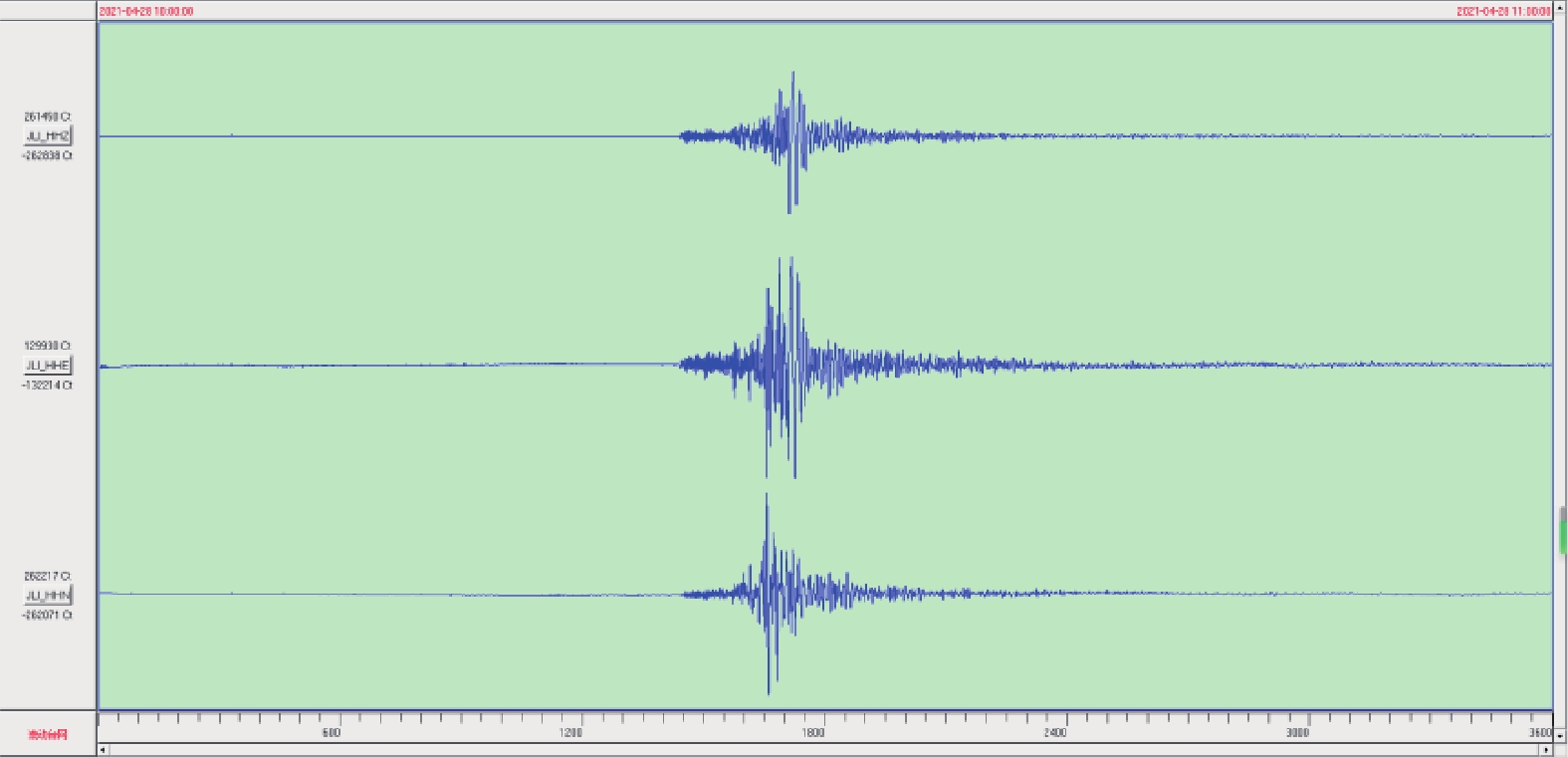

图 11 2021年4月28日印度发生M6.2地震
Figure 11. A M6.2 earthquake occured in India on Apr. 28，2021
表 1 井下地震仪外壳选用材料物理参数表
Table 1. Physical parameters of shell materials of downhole seismic instruments
不锈钢钢号 密度
/g•cm−3熔点
/℃弹性模量
/GPa热导率λ
/W•(m•℃）−1硬度
/HB膨胀系数
/μm•（m•°C−1）−1工作温度
/℃0Cr17Ni4Cu4Nb （17-4PH） 7.78 1420 191 20.3 360 11.2 ＜300 06Cr19Ni10 （304） 8.00 193 201 17.8 ＜300 0Cr17Ni12Mo2 （316) 7.98 1380 193 19.7 217 16.0 ＜300
下载: 导出CSV
-
[1] 刘文义, 李丽, 周辉, 等. 地震4.0—新一代智能地震技术体系SCPS[J]. 地震地磁观测与研究, 2020, 41(2): 1-14Liu W Y, Li L, Zhou H, et al. Earthquake 4.0, a new generation of intelligent seismic technology system SCPS[J]. Seismological and Geomagnetic Observation and Research, 2020, 41(2): 1-14 [2] 张汝伦. 《存在与时间》释义[M]. 上海: 上海人民出版社, 2012Zhang R L. ‘Being and time’ meaning[M]. Shanghai : Shanghai People’s Publishing House, 2012 [3] 聂云霞,陈烟然. 解构与重构:论档案与社会记忆管控[J]. 档案与建设,2021(4):22-25,46Nie Y X,Chen Y R. Deconstruction and reconstruction:Research on control of archives and social memory[J]. Achives and Construction,2021(4):22-25,46 [4] Martin Fowler. 重构: 改善既有代码的设计[M]. 北京: 人民邮电出版社, 2014Fowler M. Refactoring: Improving the design of existing code[M]. Beijing : Posts and Telecom Press, 2014 [5] 迈克尔•波特. 物联网时代来临！公司必须做出的十大战略选择[EB/OL]. (2014-10-22)[2022-01-18]. https://www.hbrchina.org/2014-10-22/2456.htmlPorter M. The era of internet of things is coming！Ten strategic choices the company must make[EB/OL]. (2014-10-22)[2022-01-18]. https://www.hbrchina.org/2014-10-22/2456.html [6] 董云开,李宏. 井下综合观测技术发展现状[J]. 震灾防御技术,2012,9(1):149-158Dong Y K,Li H. Current situation of borehole multi-component observation technology[J]. Technology for Earthquake Disaster Prevention,2012,9(1):149-158 [7] 马京杰, 李宏, 马相波. 深井地震综合观测系统集成[J]. 地震地磁观测与研究, 2013, 34(3): 166-170Ma J J, Li H, Ma X B. The integration of composite observing system of multi-component earthquake instrument for deep borehole[J]. Seismological and Geomagnetic Observation and Research, 2013, 34(3): 166-170 [8] 李丽,罗新恒,关作金,等. 我国井下甚宽频带地震仪研制与应用开发新进展[J]. 国际地震动态,2016(10):1-3 doi: 10.3969/j.issn.0235-4975.2016.10.001Li L,Luo X H,Guan Z J,et al. New development and application of downhole very broadband seismograph in China[J]. Recent Developments in World Seismology,2016(10):1-3 doi: 10.3969/j.issn.0235-4975.2016.10.001 [9] 汪开义. 井下仪器外壳设计要点[J]. 石化技术, 2018, 25(8): 315Wang K Y. Design of down-hole instrument shell[J]. Petrochemical Industry Technology, 2018, 25(8): 315 [10] 刘振宝, 梁剑雄, 苏杰, 等. 高强度不锈钢的研究及发展现状[J]. 金属学报, 2020, 56(4): 549-557Liu Z B, Liang J X, Su J, et al. Research and application progress in ultra-high strength stainless steel[J]. Acta Metallurgica Sinica, 2020, 56(4): 549-557 [11] 陶爱华, 罗瑜林, 高辉, 等. 测井仪器承压金属外壳的强度计算[J]. 现代商贸工业, 2010, 22(15): 356-357Tao A H, Luo Y L, Gao H, et al. Strength calculation of pressure bearing metal shell of logging tool[J]. Modern Business Trade Industry, 2010, 22(15): 356-357 [12] 胡友林, 吴建农. 一种新型双感应八侧向测井仪结构研究[J]. 石油仪器, 2008, 22(2): 16-18Hu Y L, Wu J N. Structural reach of a new dual induction laterolog-8 logger[J]. Petroleum Instruments, 2008, 22(2): 16-18 -
